Home >> Mercedes Benz >> 2012 >> S 350 BLUETEC (221.183) V6-3.0L DSL Turbo (642.868) >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Instrument Cluster / Carrier >> Description and Operation >> GF54.30-P-0002-04LE Instrument Cluster (IC), Location of Components

GF54.30-P-0002-04LE Instrument Cluster (IC), Location of Components



GF54.30-P-0002-04LE Instrument Cluster (IC), Location Of Components
- as of model year 09

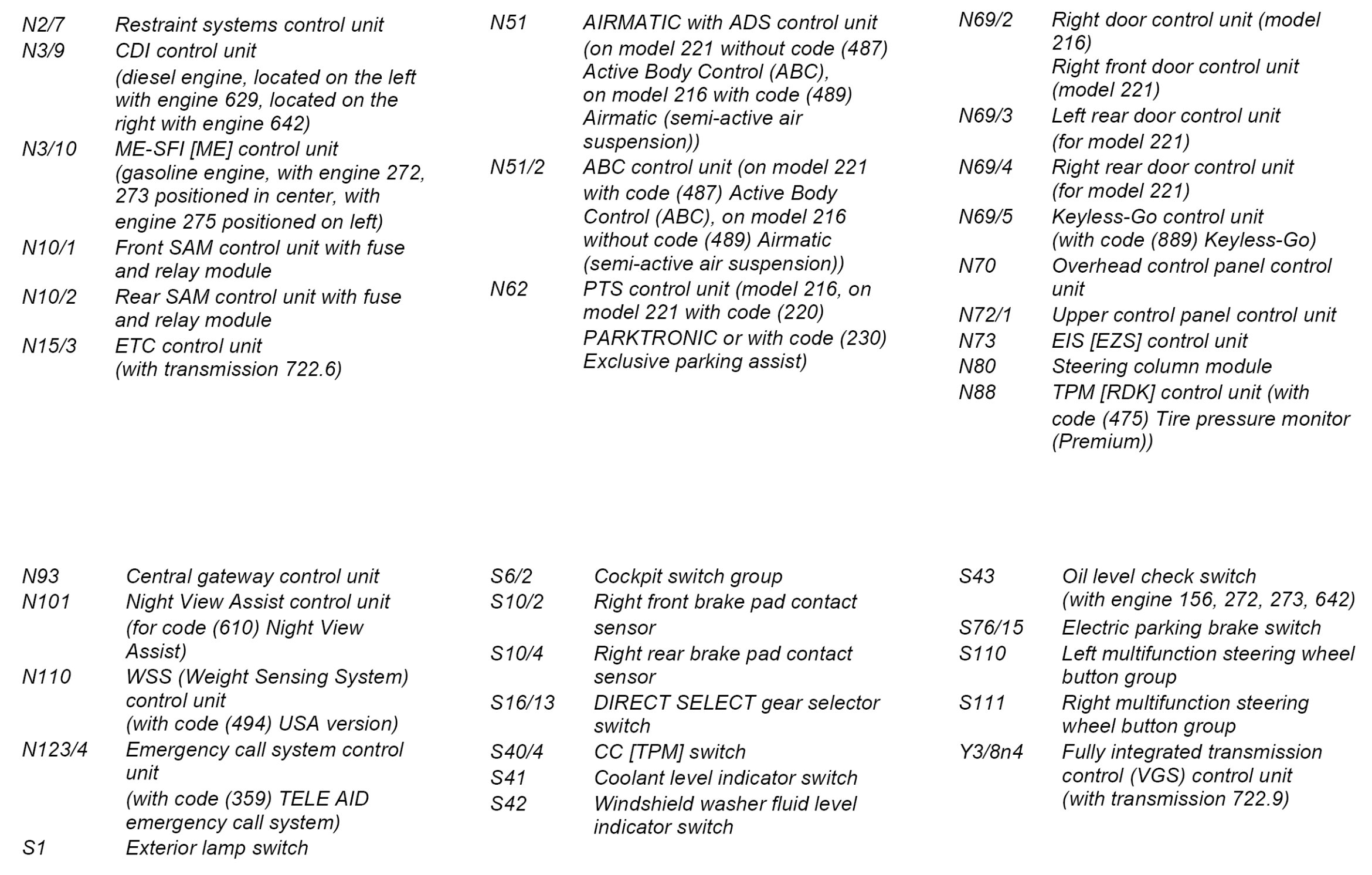

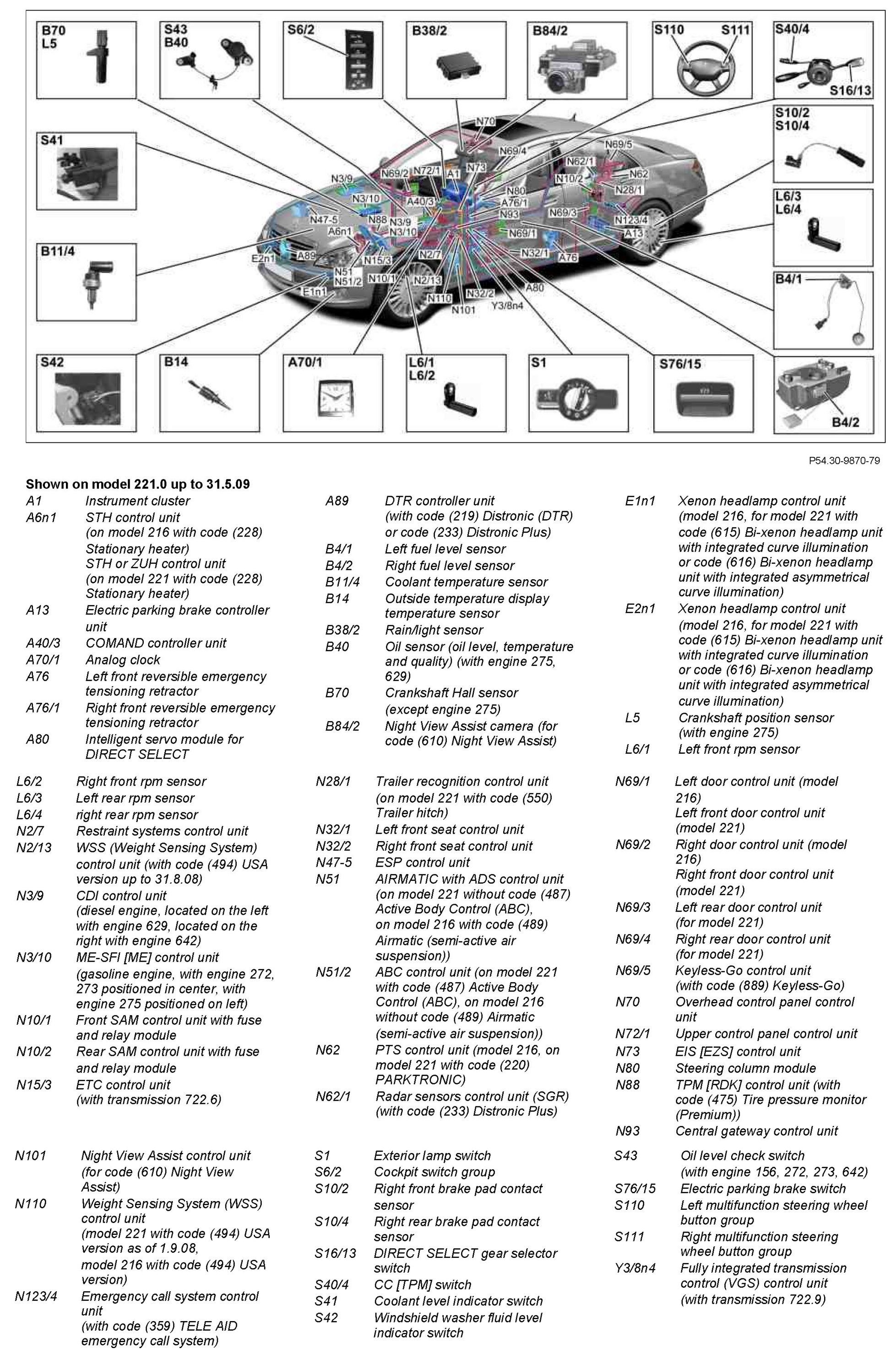

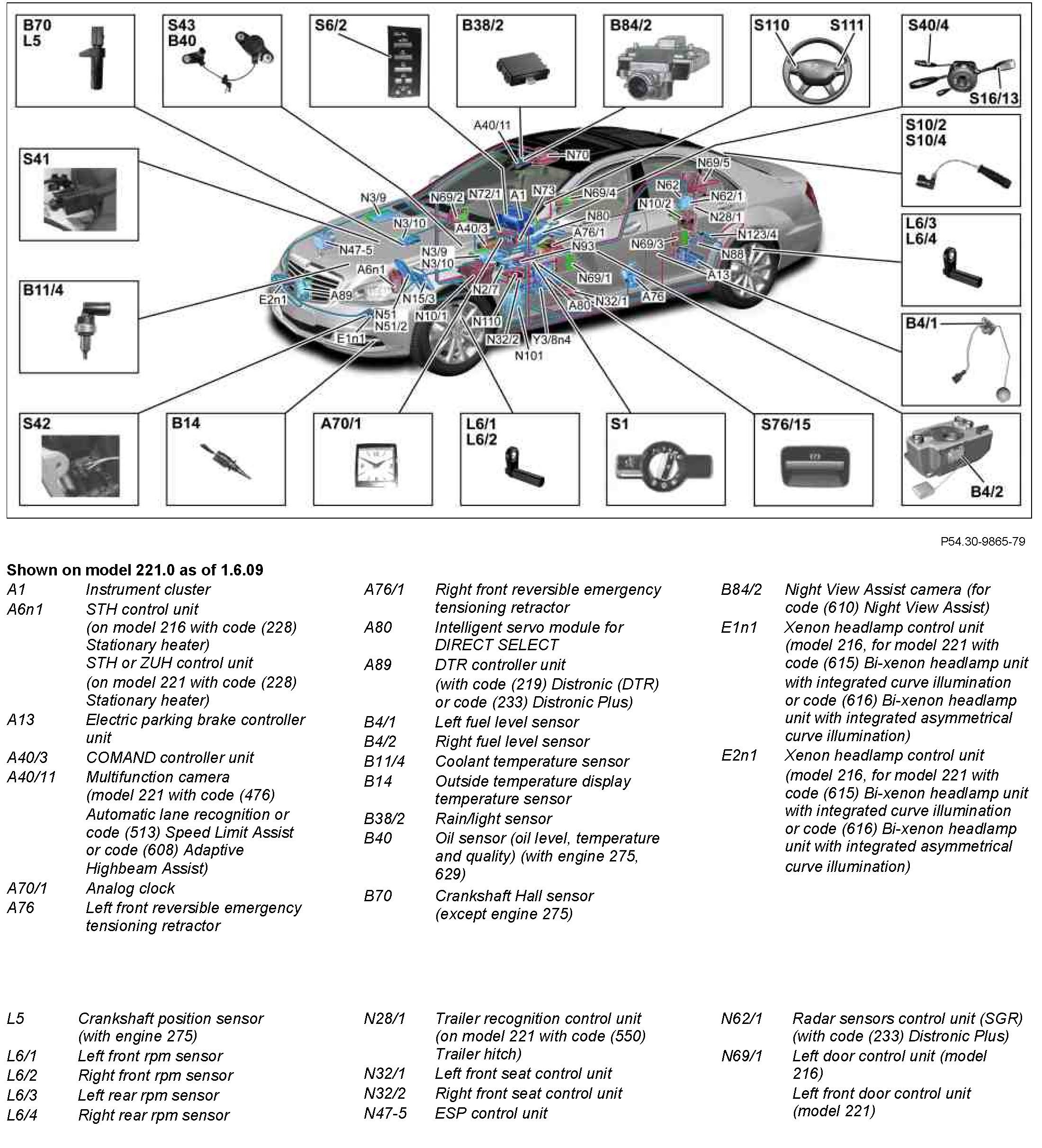

Component Identification:





Component Identification:
