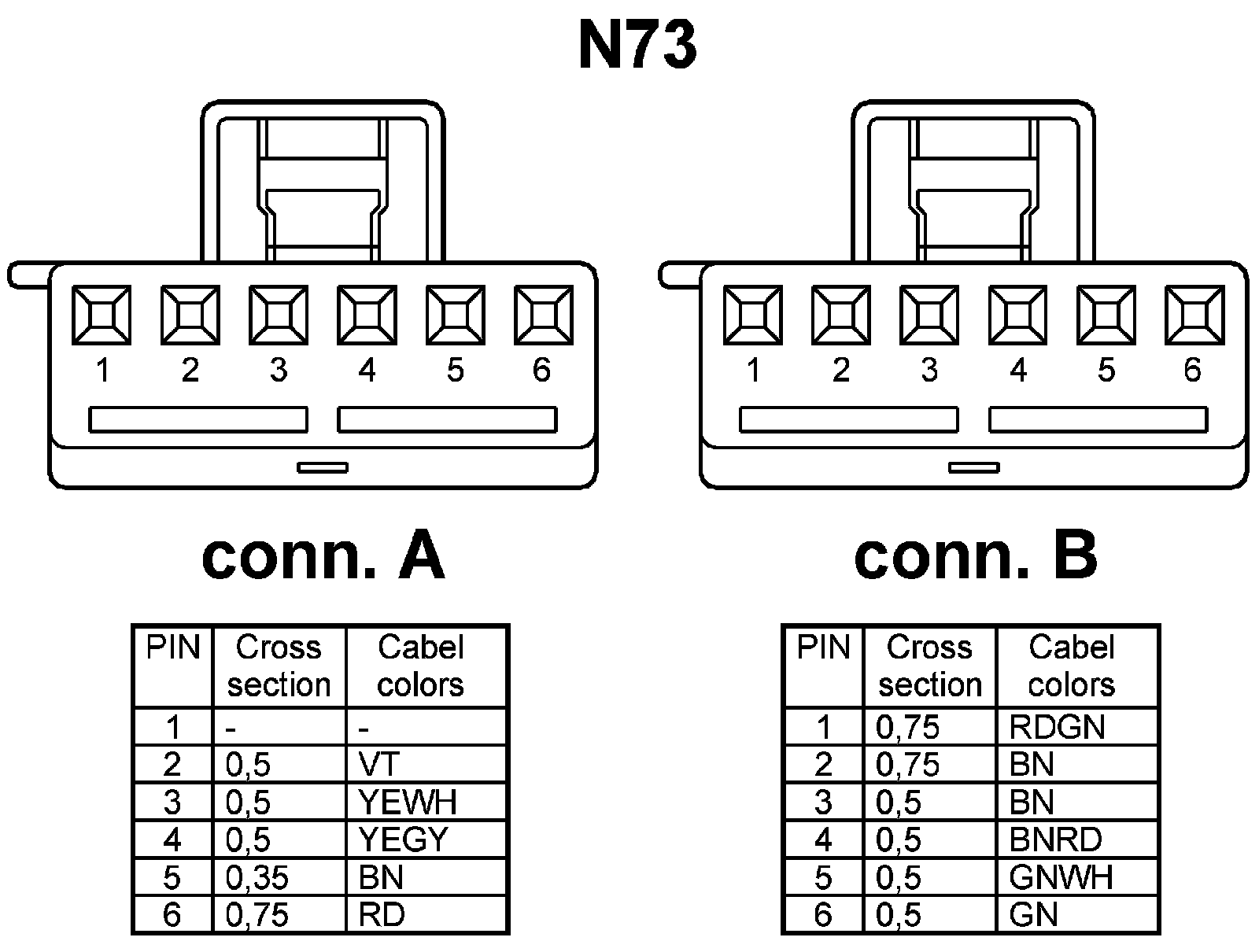

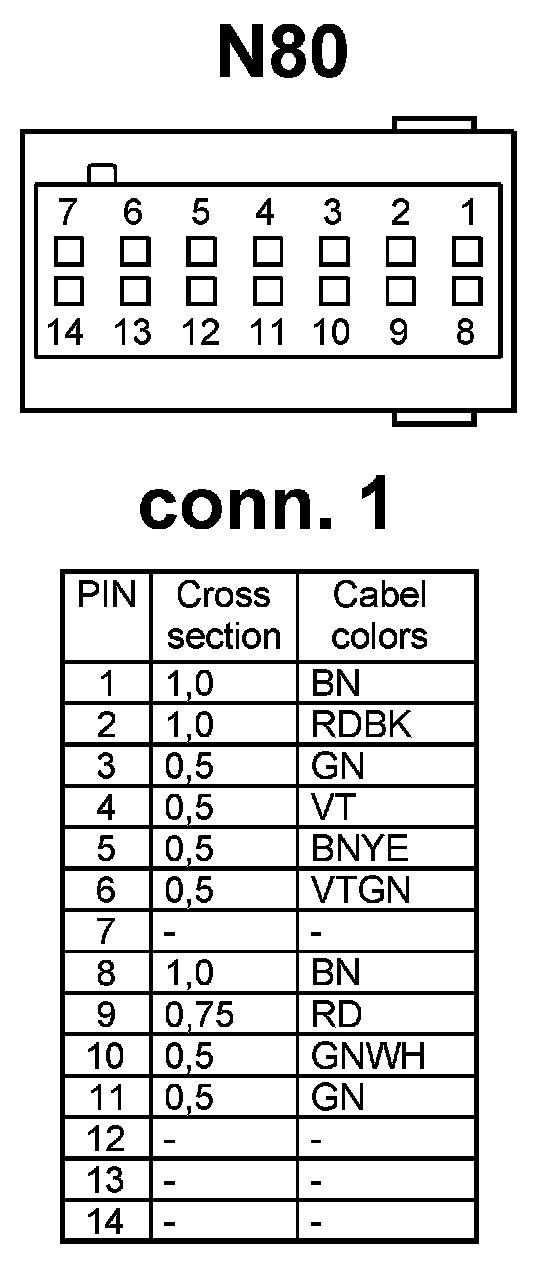

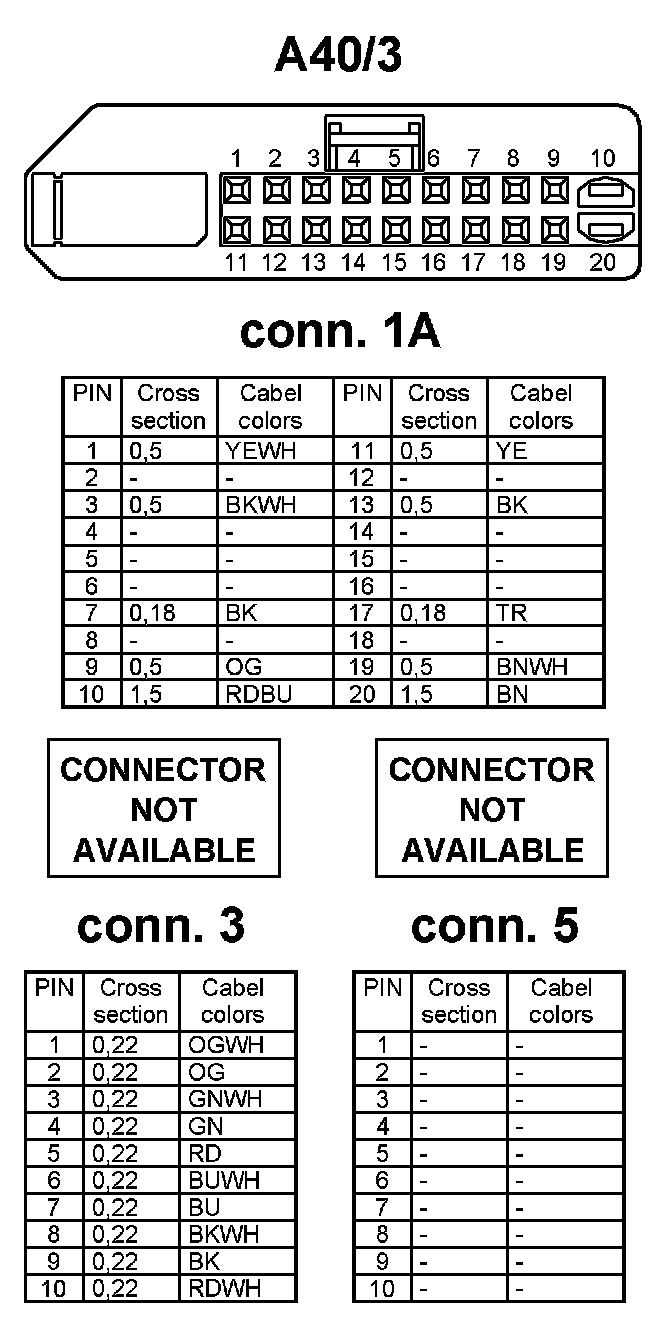

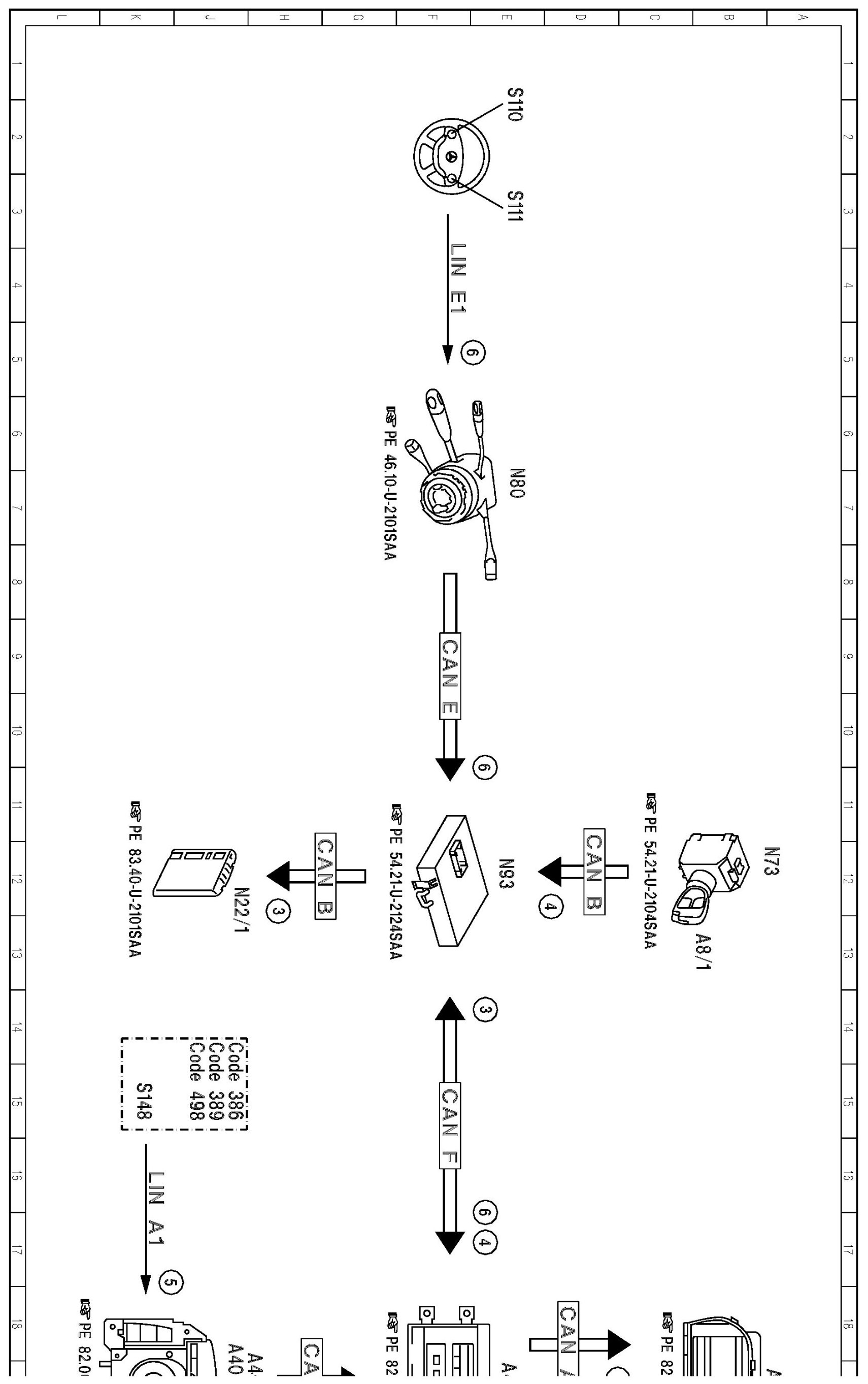

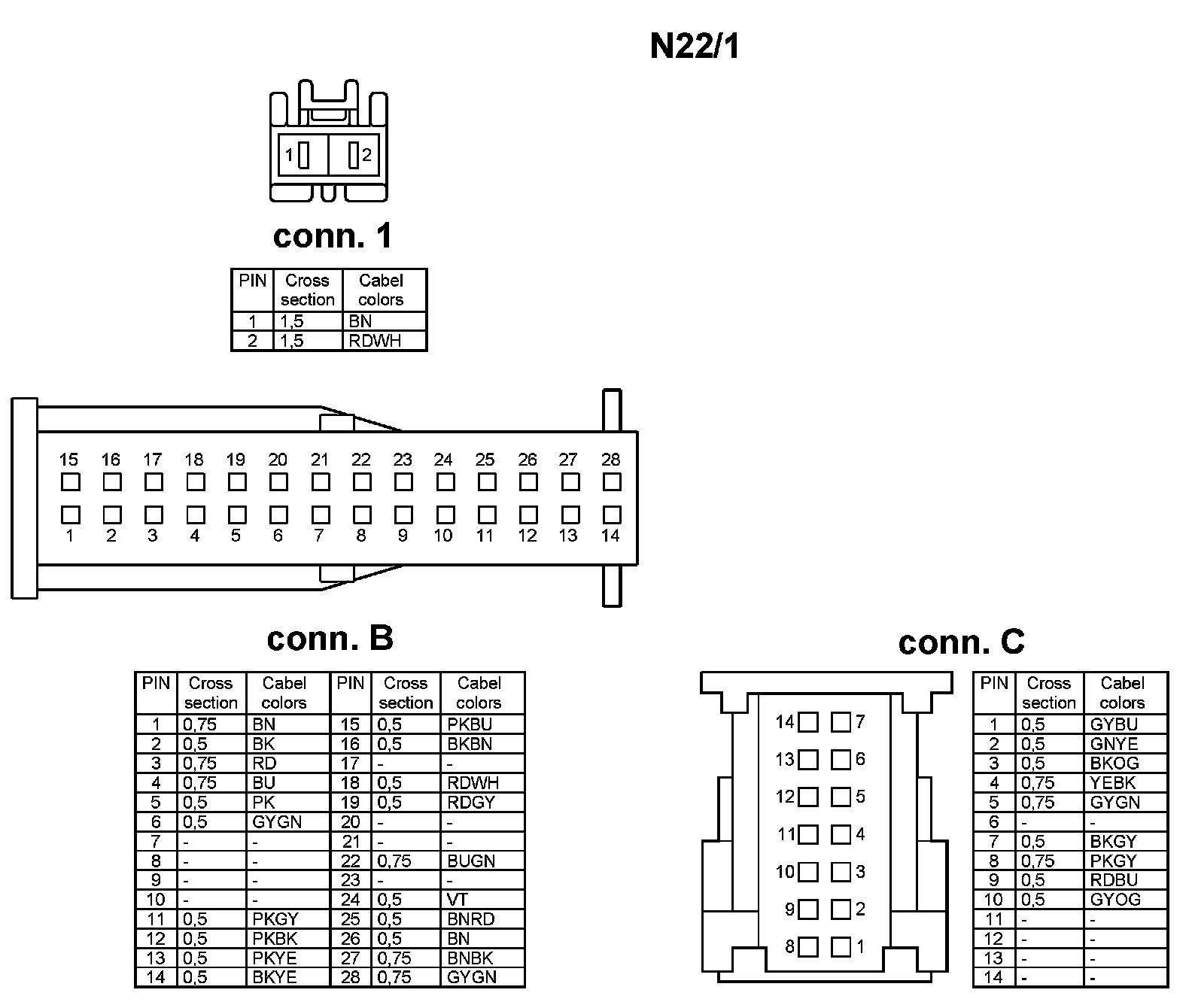

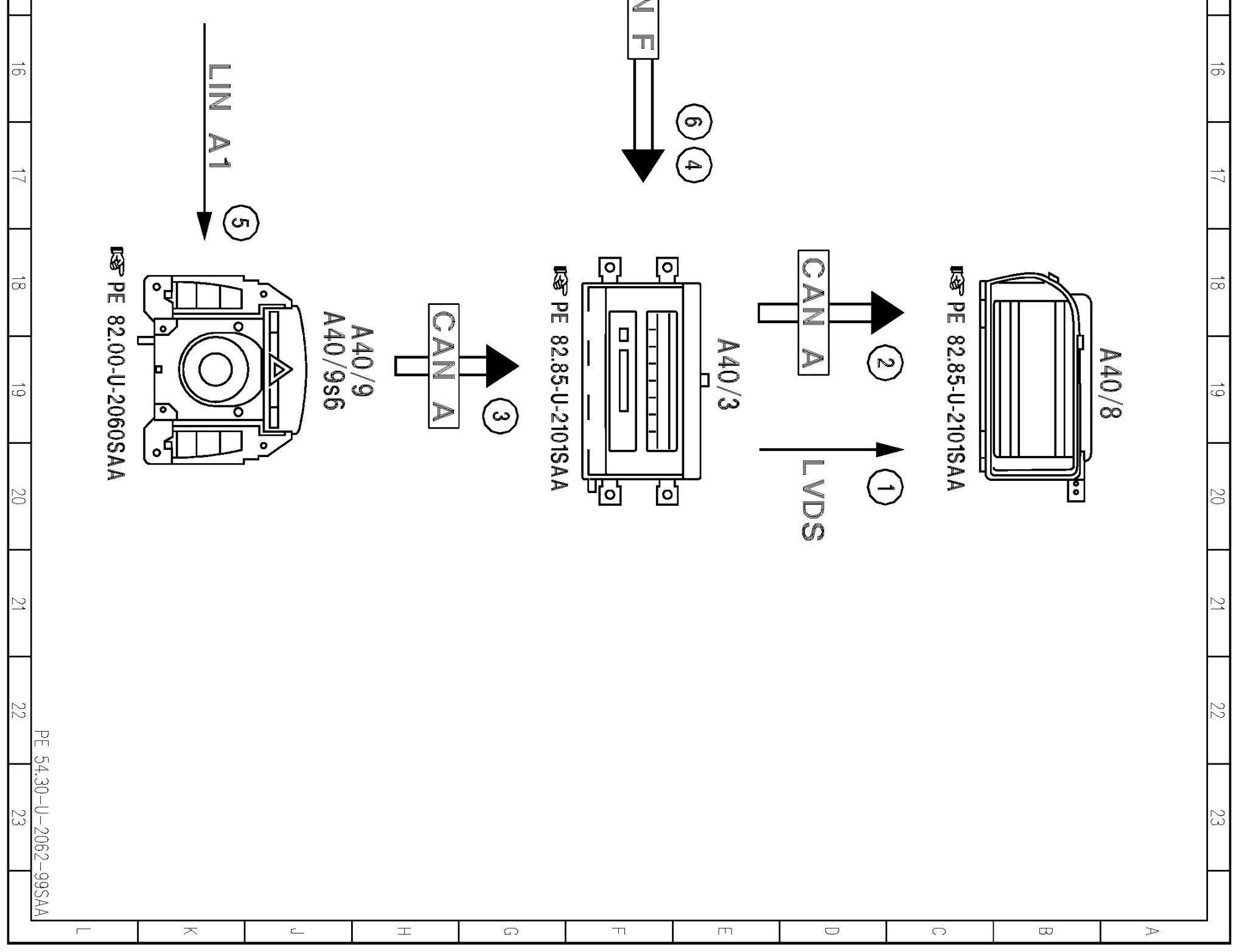

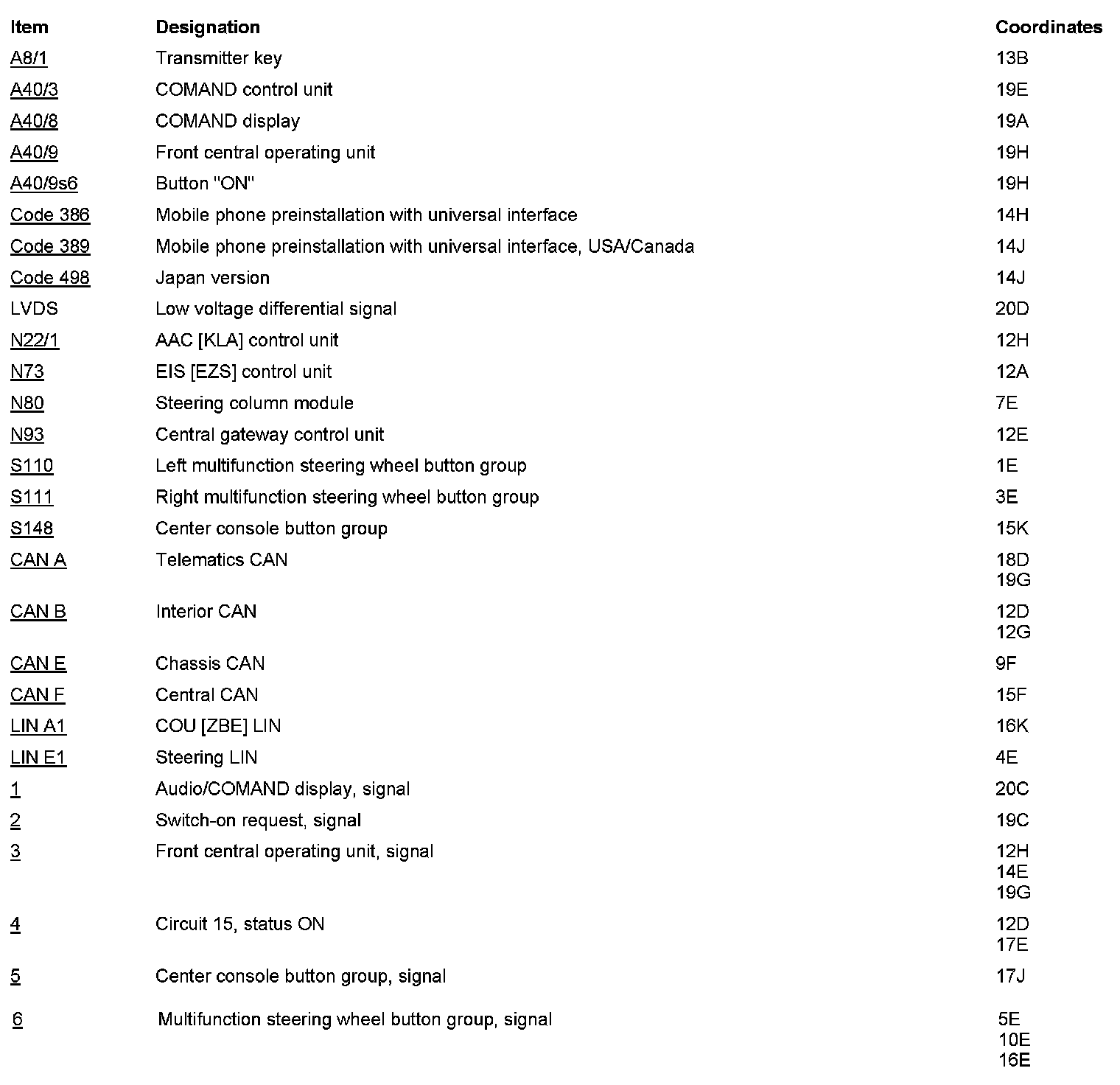

PE54.30-U-2062SAA Electrical Function Schematic For Systems Displayed In Cockpit Central Display, Function

PE54.30-U-2062SAA Electrical Function Schematic For Systems Displayed In Cockpit Central Display, Function

MODEL 221
- with CODE (527) COMAND APS with single DVD drive (with navigation)
- as of Model Year 2009







































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
