AR68.10-P-1180SX Remove/Install Trim Strip on Instrument Panel



AR68.10-P-1180SX Remove/Install Trim Strip On Instrument Panel

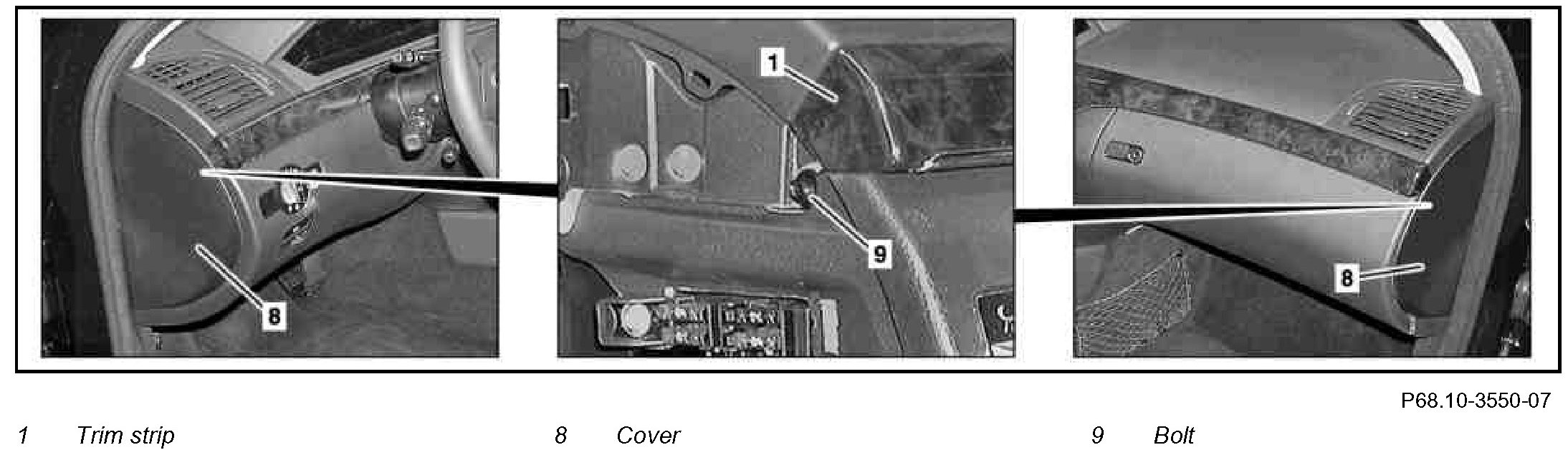

Component Identification:

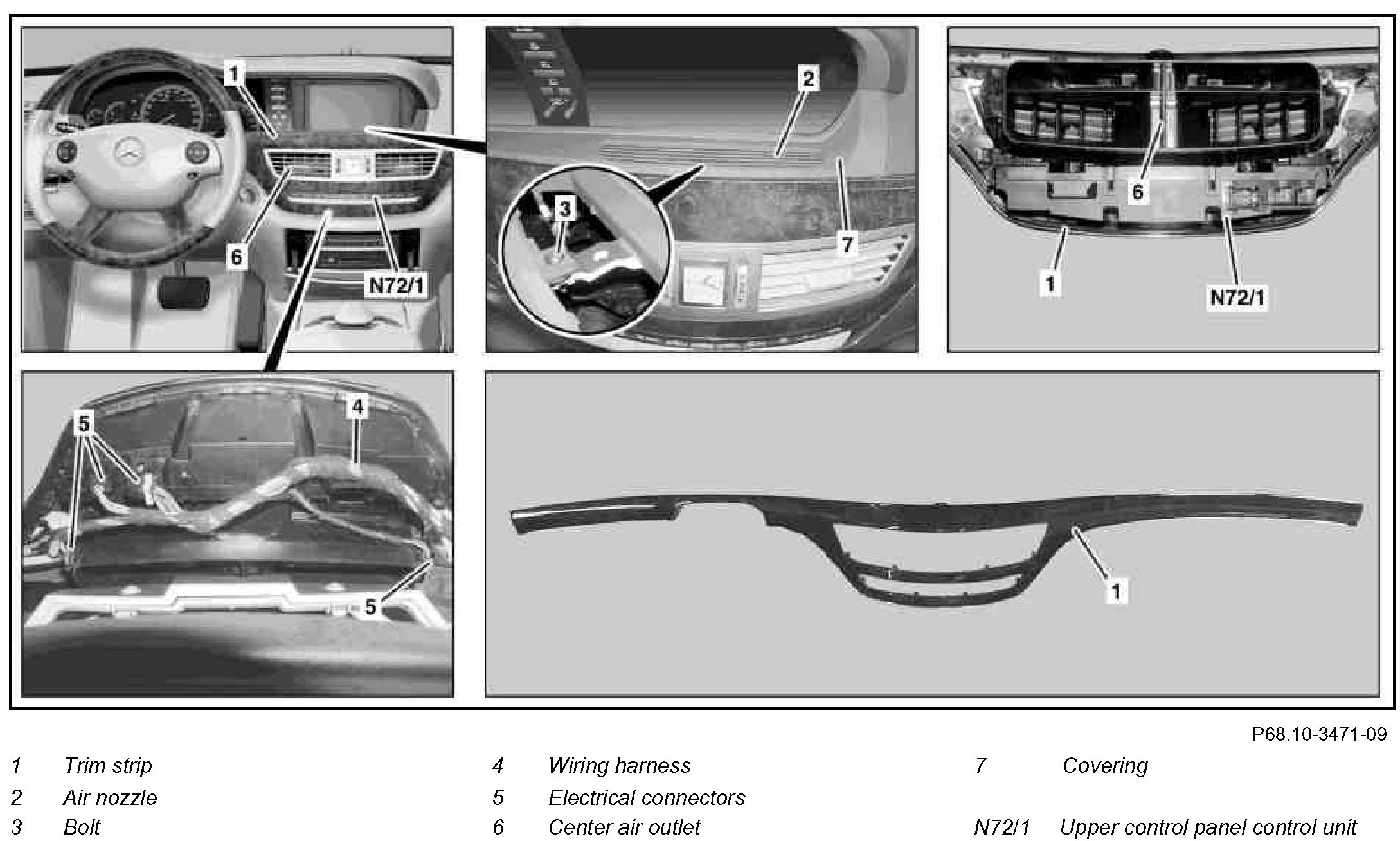

Component Identification:




Modification Notes:

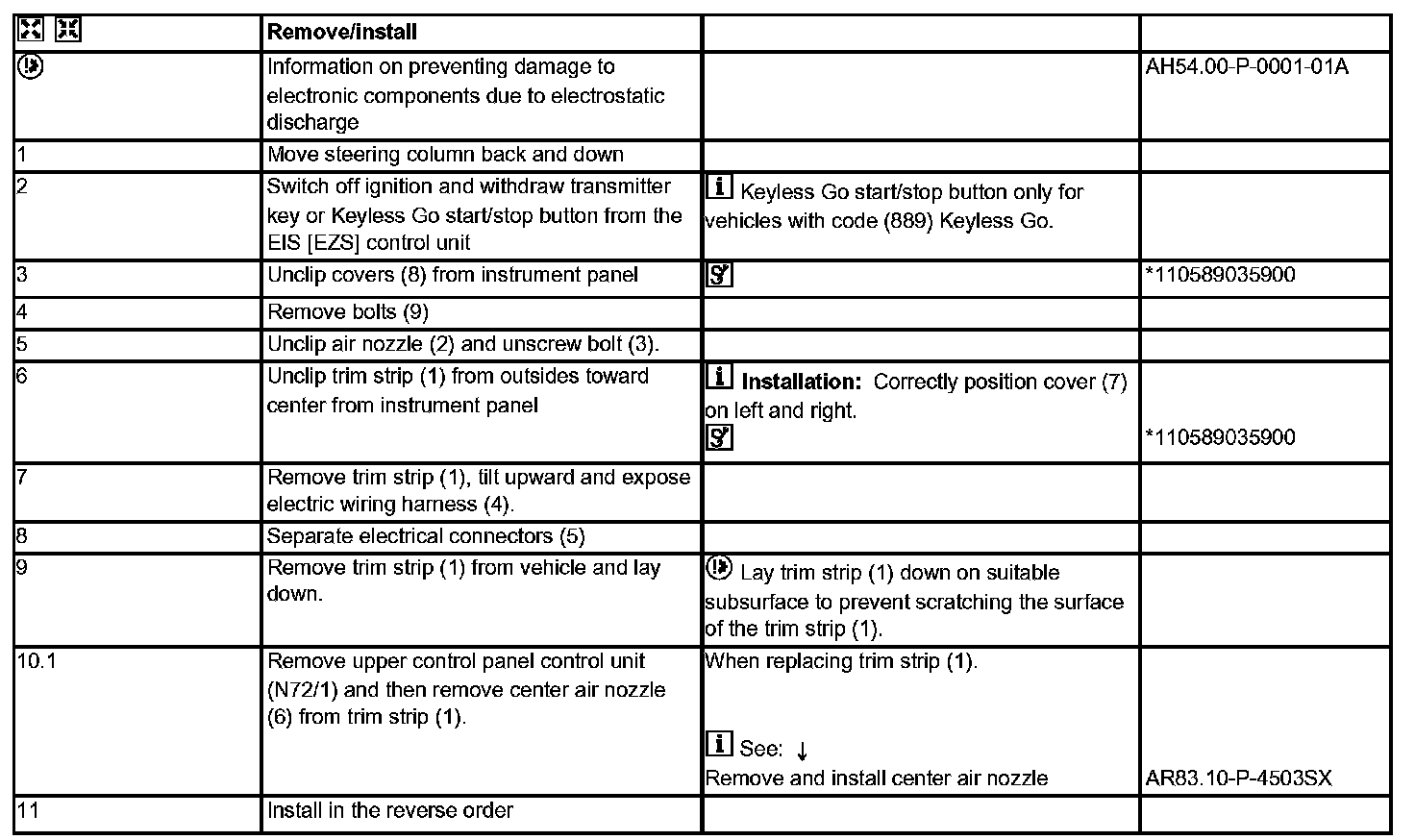

Steps 1 - 11:

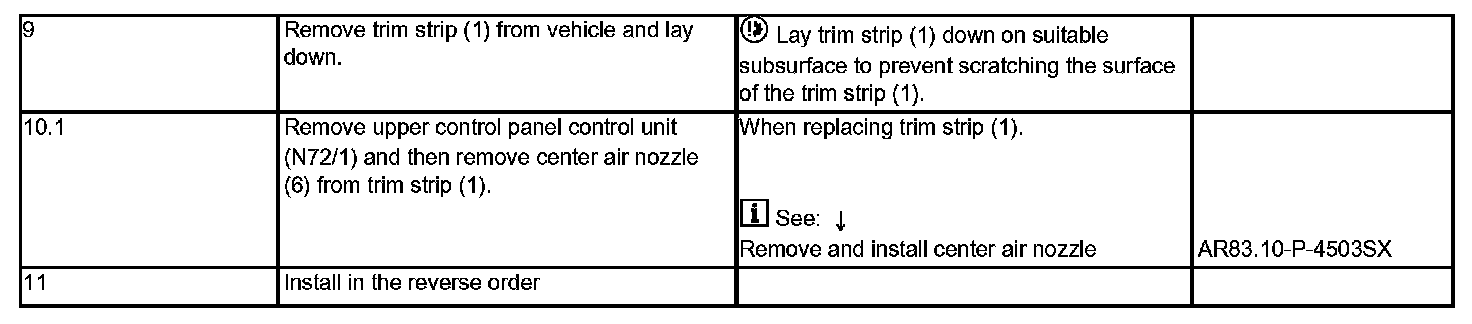

Steps 9 - 11:

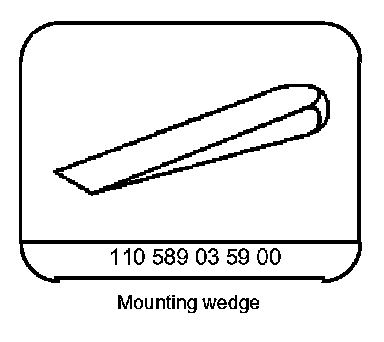

Special Tools:
