Receiver Dryer: Service and Repair
AR83.30-P-6520SX Remove/Install Fluid Reservoir

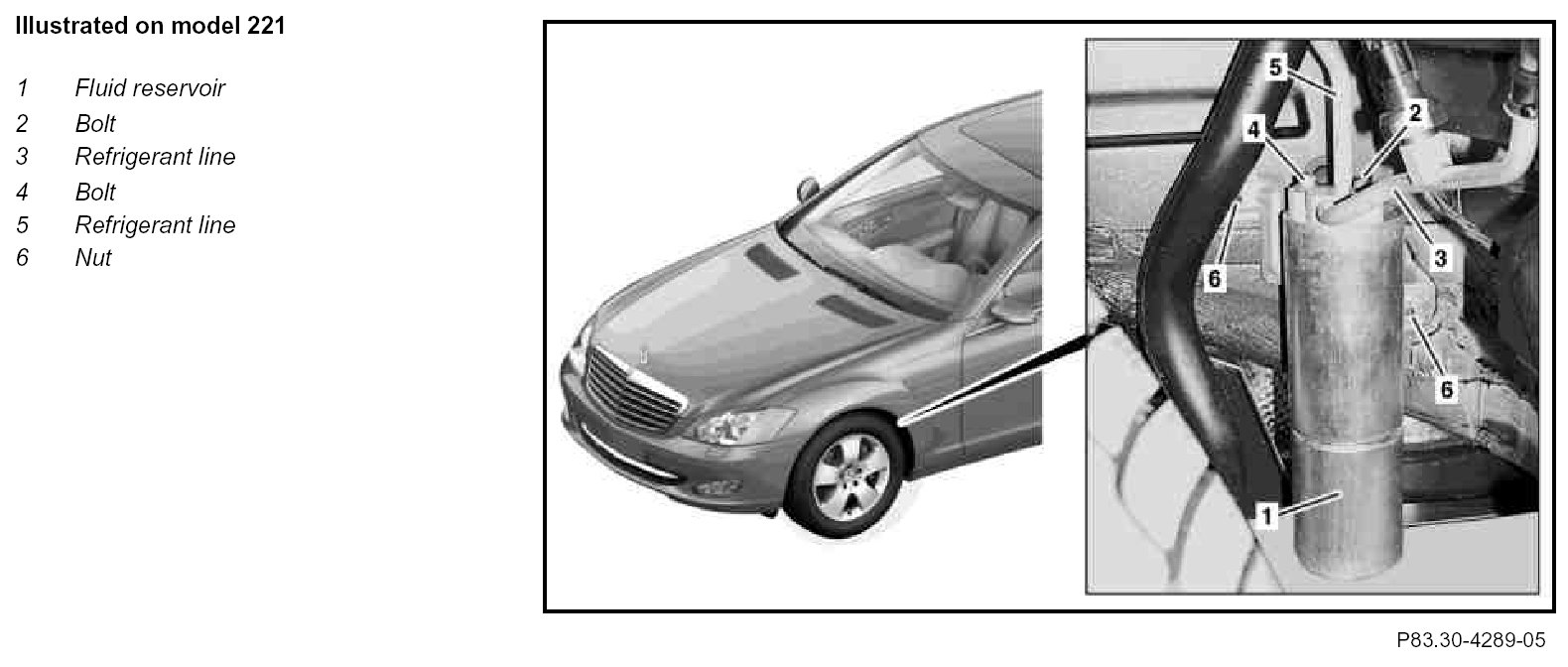

Component Identification:

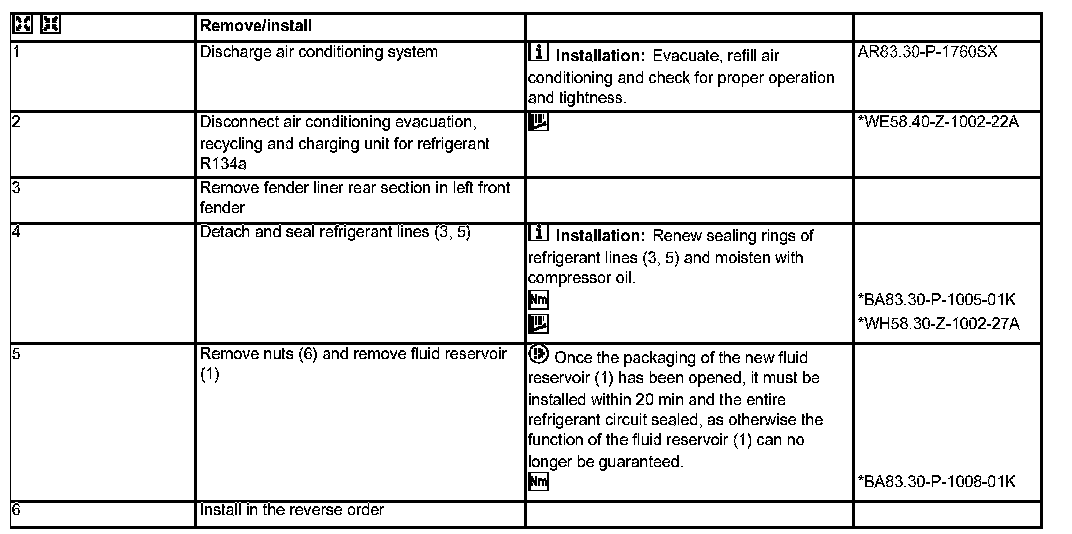

Steps 1 - 6:

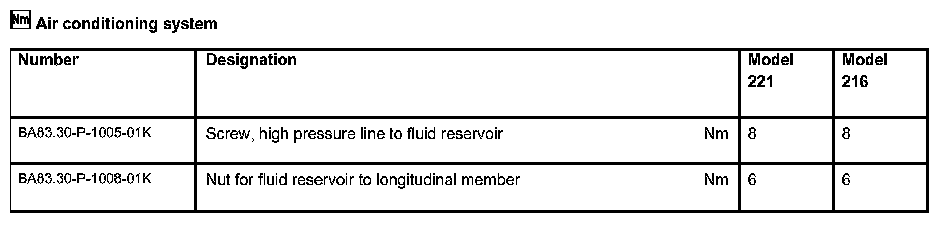

Air Conditioning System:
Commercially Available Tools:
Workshop Equipment:
