AR83.50-P-9020SX Remove And Install Rear Air Conditioner Housing



AR83.50-P-9020SX Remove And Install Rear Air Conditioner Housing
- with CODE (582) Rear air conditioner

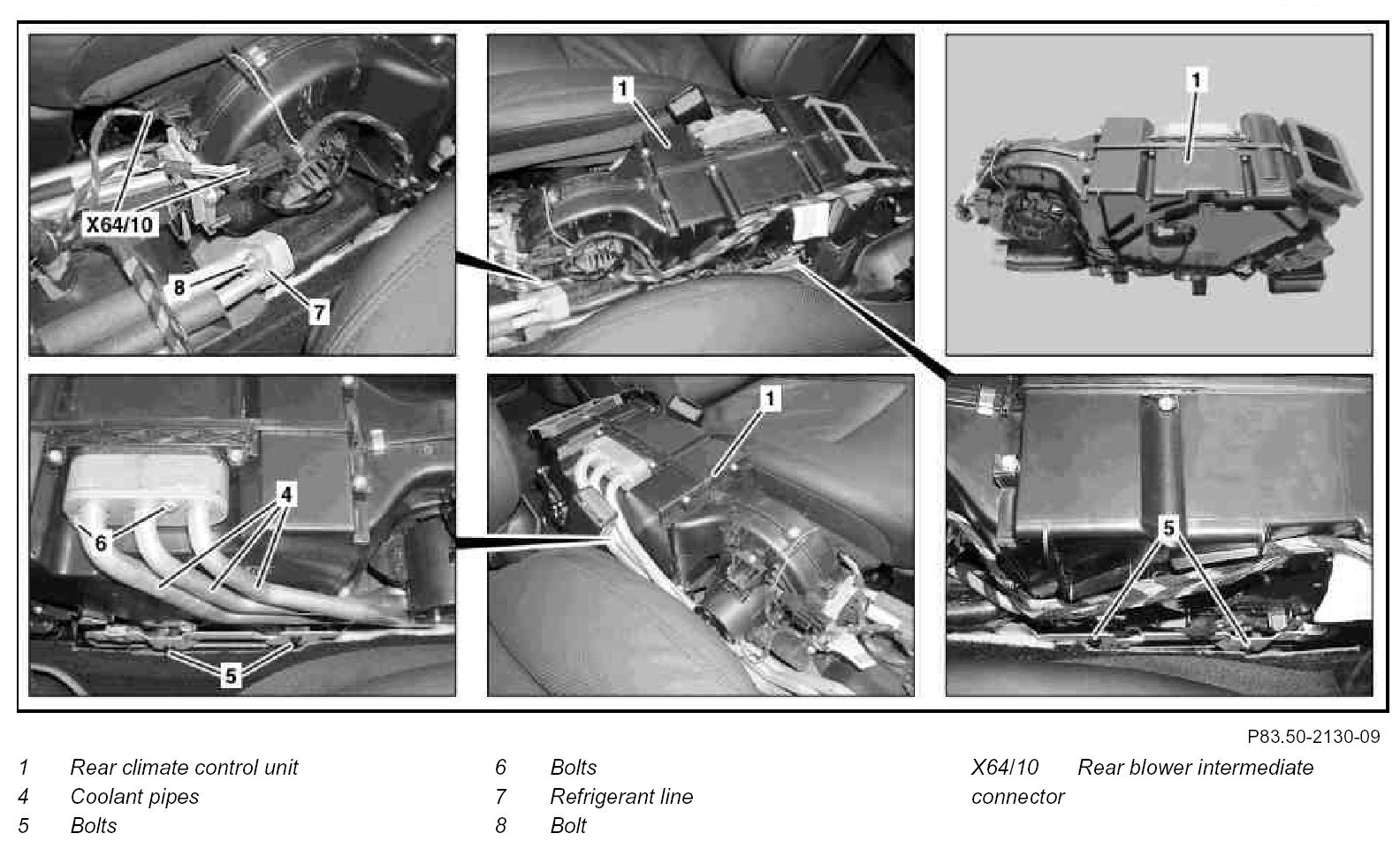

Component Identification:

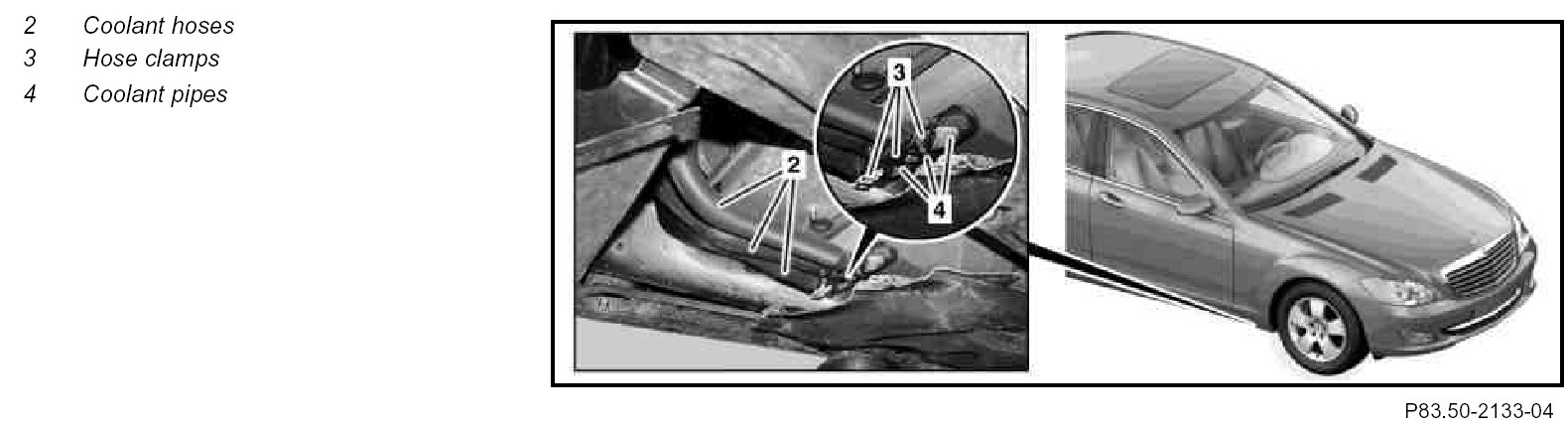

Component Identification:

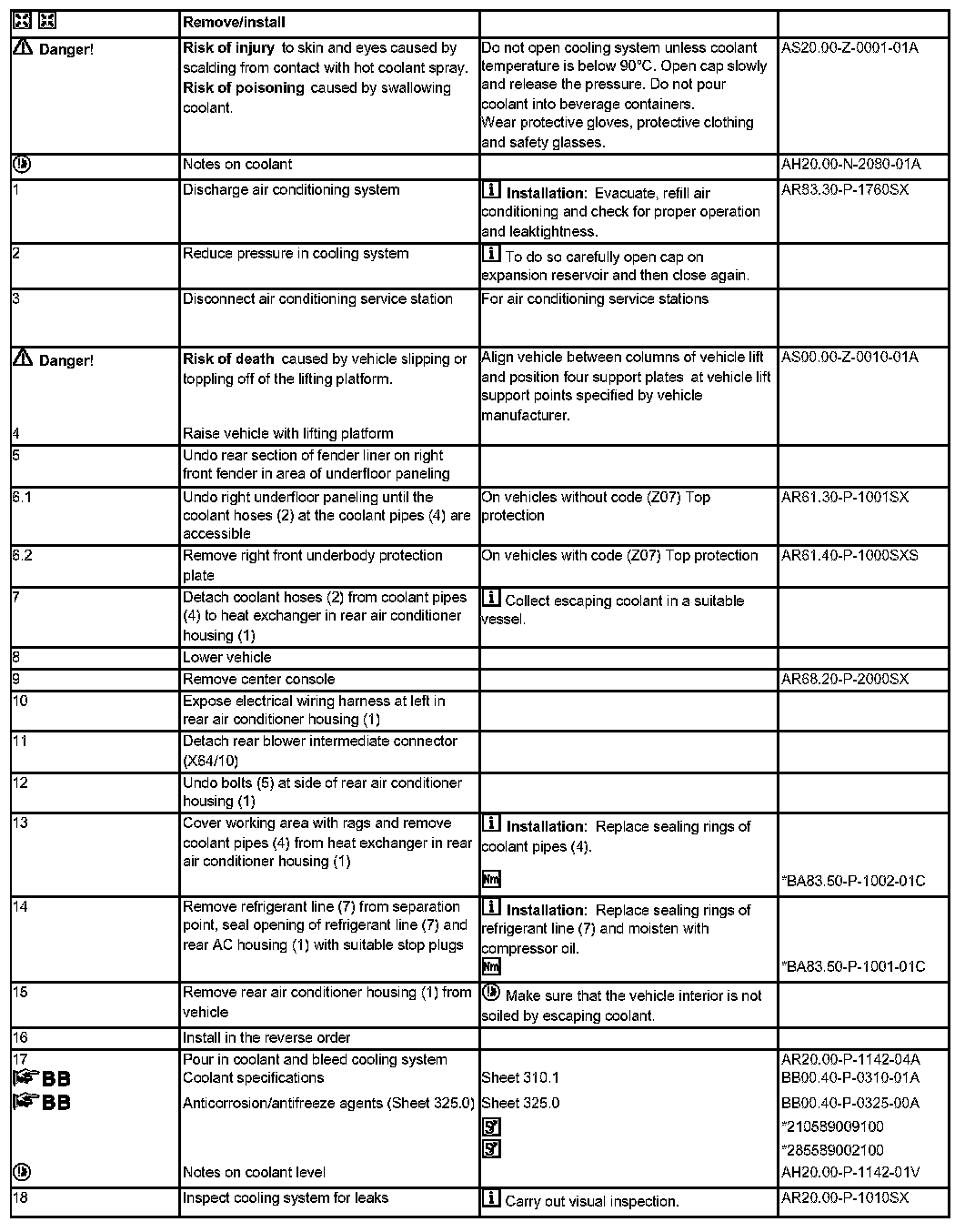

Steps 1 - 18:

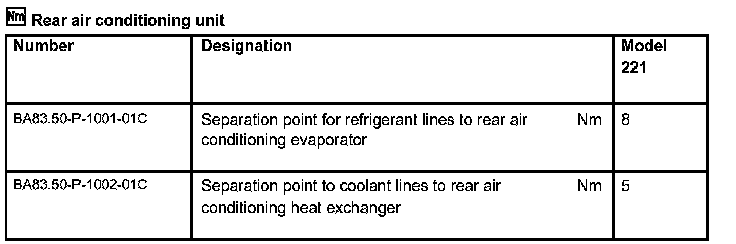

Rear Air Conditioning Unit:




Special Tools:




Special Tools:
