Expansion Valve: Service and Repair
AR83.30-P-5520SX Remove/Install Expansion Valve

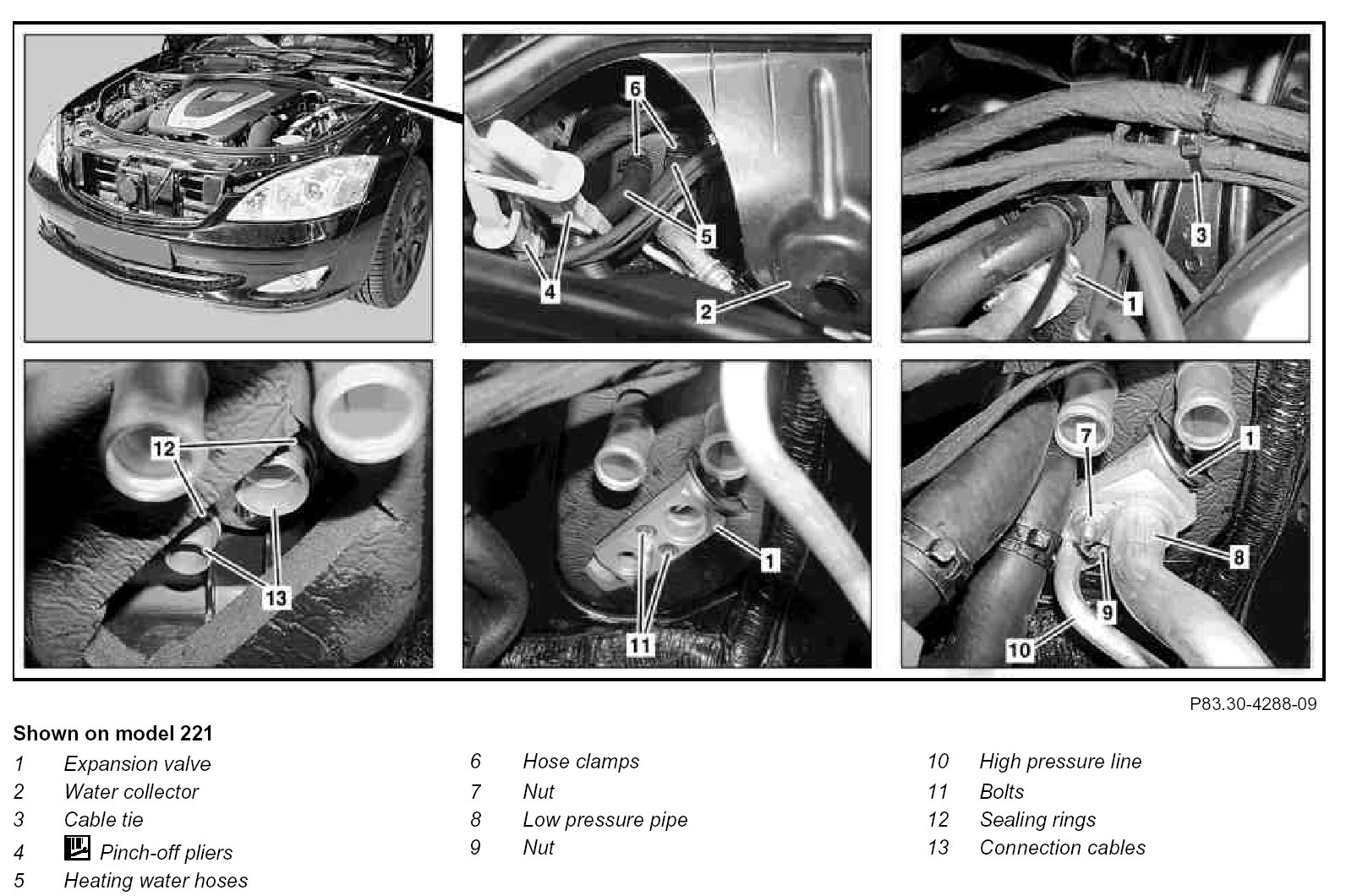

Component Identification:

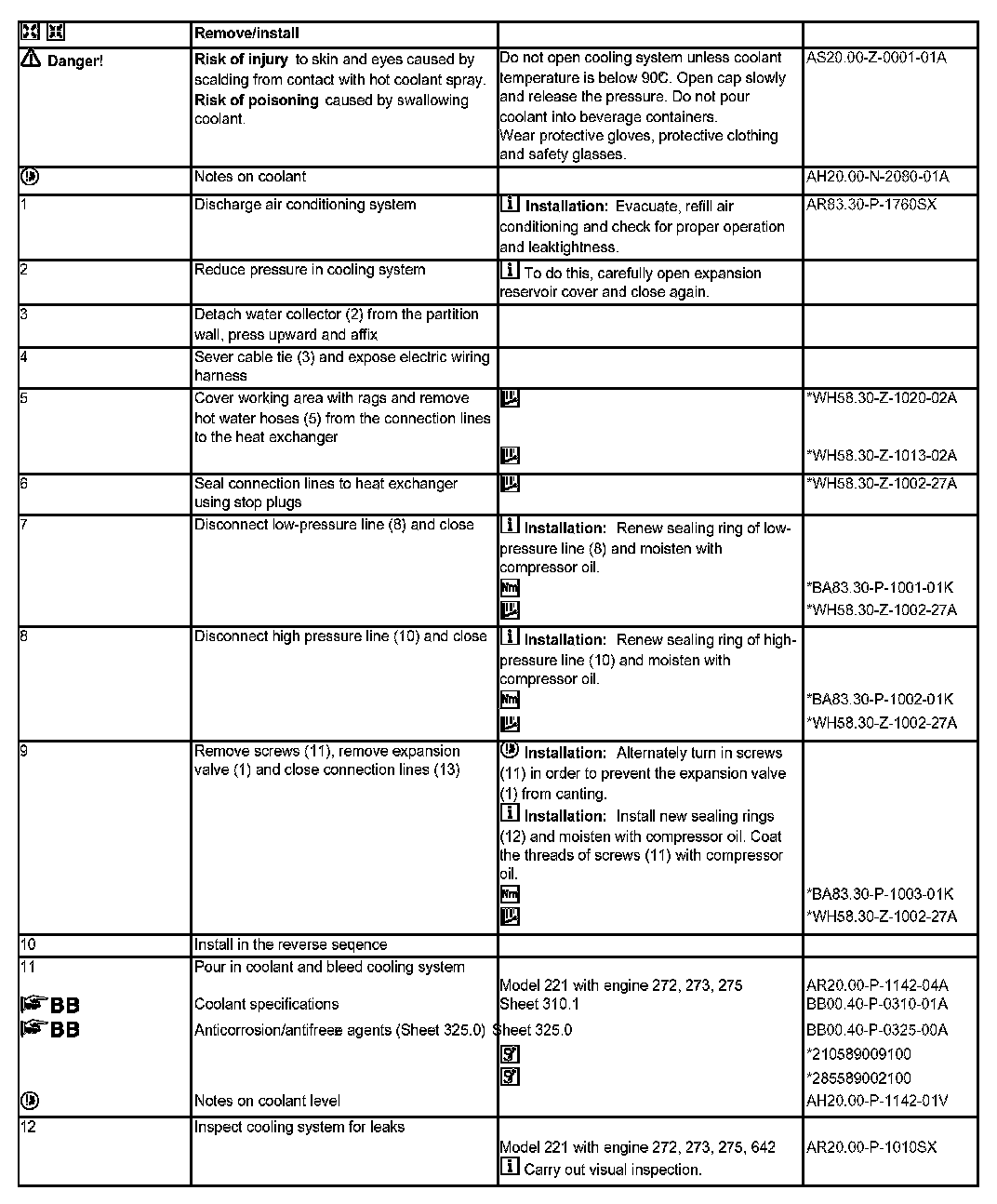

Steps 1 - 12:

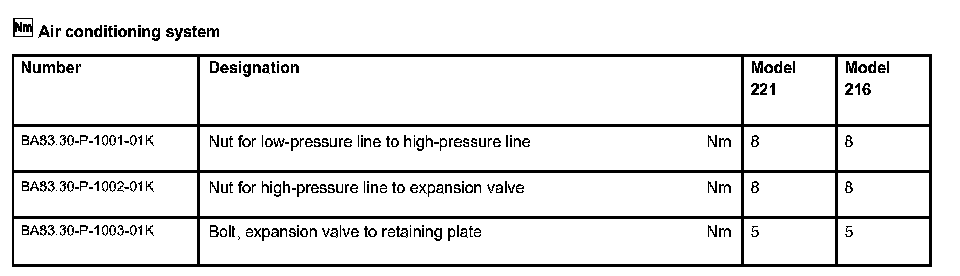

Air Conditioning System:
Special Tools:
Special Tools:

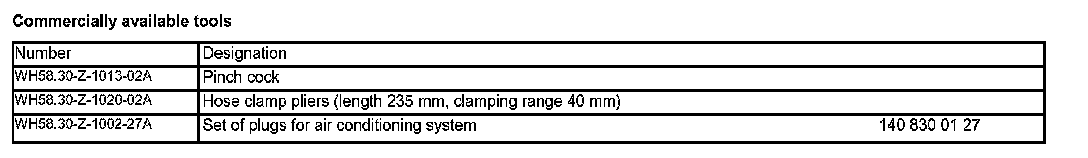

Commercially Available Tools:
AR83.30-P-5520SX Remove/Install Expansion Valve
