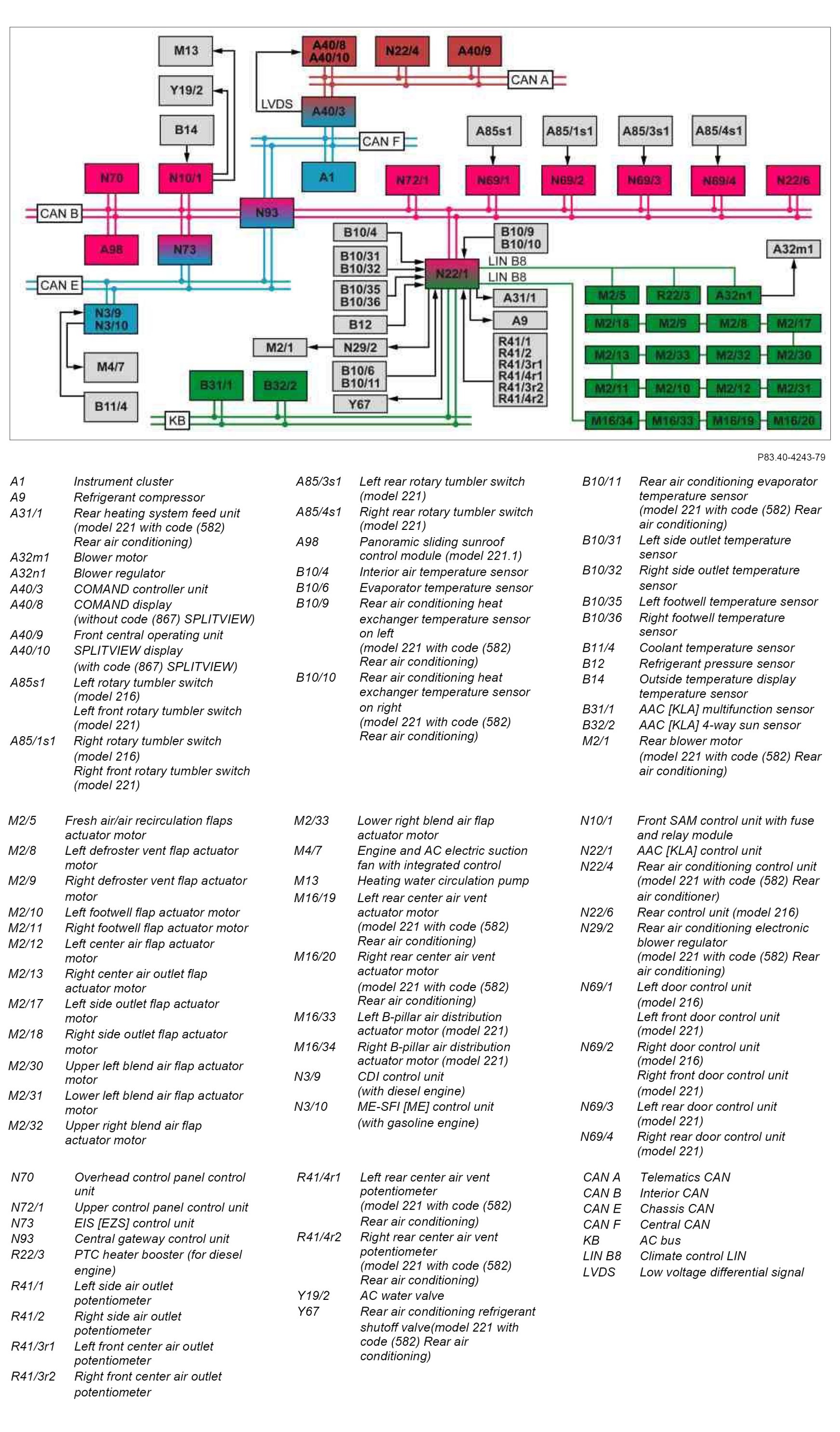

GF83.40-P-0005-02LE Automatic Air Conditioning, Block Diagram
GF83.40-P-0005-02LE Automatic Air Conditioning, Block Diagram
GF83.40-P-0005-02LE Automatic Air Conditioning, Block Diagram
