AR83.50-P-9040SX Remove And Install Blower Motor For Rear Air Conditioning



AR83.50-P-9040SX Remove And Install Blower Motor For Rear Air Conditioning
- with CODE (582) Rear air conditioner

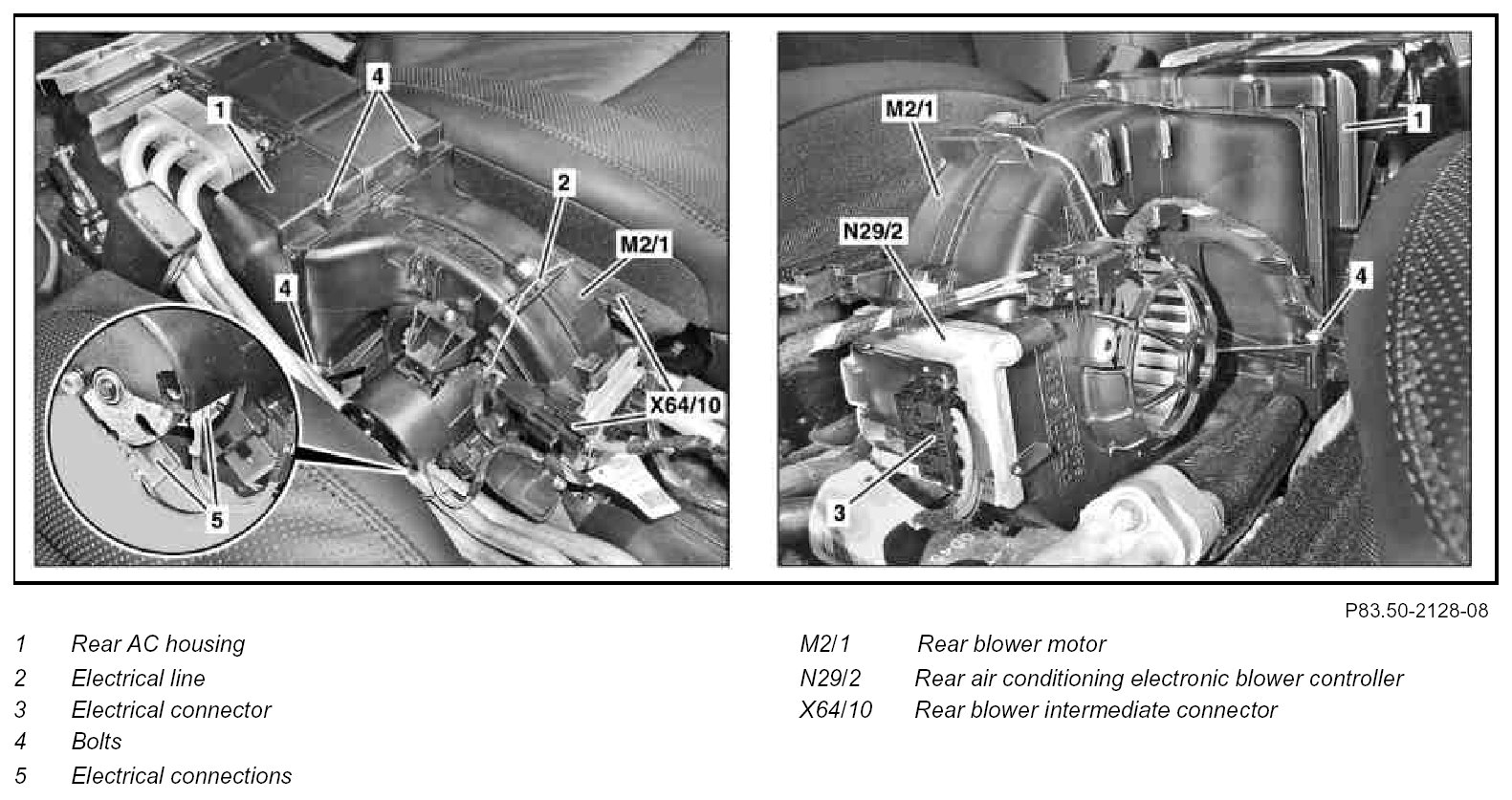

Component Identification:

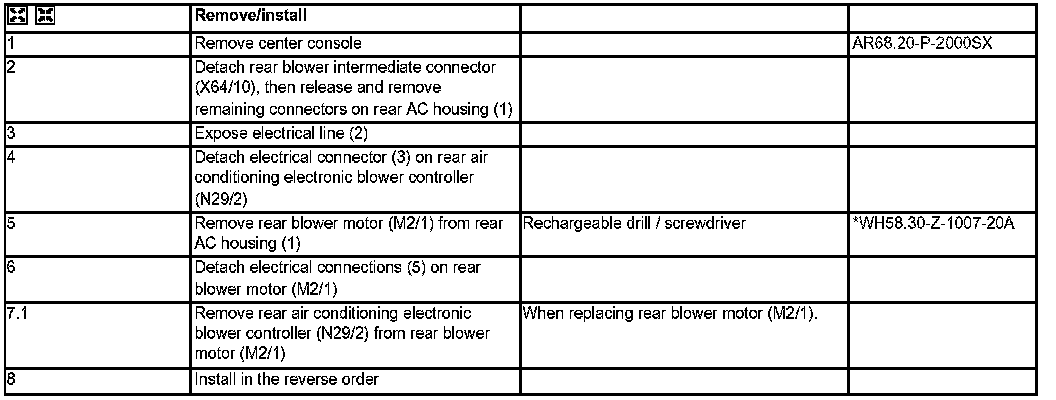

Steps 1 - 8:




Commercially Available Tools:
