AR20.10-P-1271SXI Remove/Install Coolant Pump

AR20.10-P-1271SXI Remove/Install Coolant Pump
-ENGINES 642 in MODEL 207, 212, 221, 218





Shown on engine 642.850

1 Coolant pump
2 Bolts

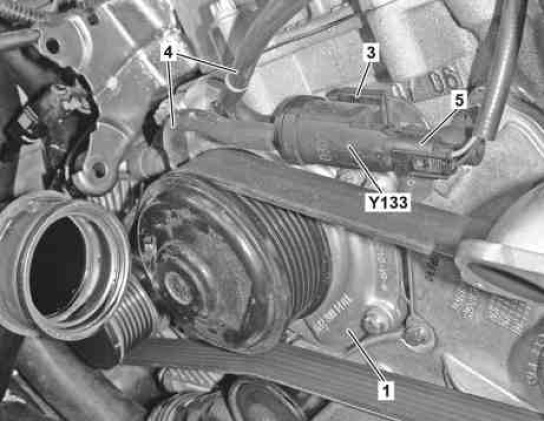

Shown on engine 642.852

1 Coolant pump
3 Retaining clip
4 Vacuum hoses
5 Electrical connector

Y133 Coolant pump switchover valve
