Removal and Replacement

AR01.40-P-8000SXI Remove/Install Timing Case Cover






Shown on engine 642.9

1 Tensioner pulley
2 Lower guide pulley
3 Belt pulley
4 Bolts
5 Timing case cover
6 Fitting sleeves

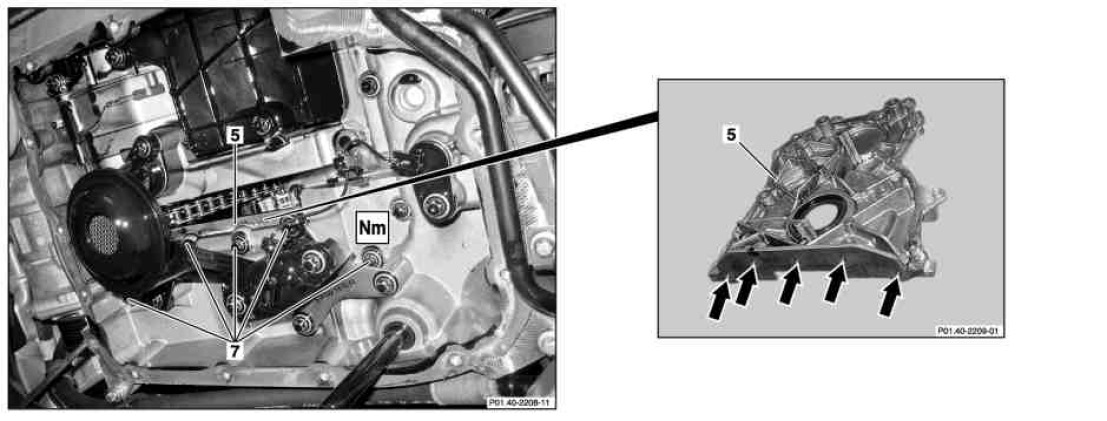

Shown on engine 642.9

5 Timing case cover
7 Bolts














642 589 00 14 00
Centering sleeve
