Timing Chain Tensioner: Service and Repair

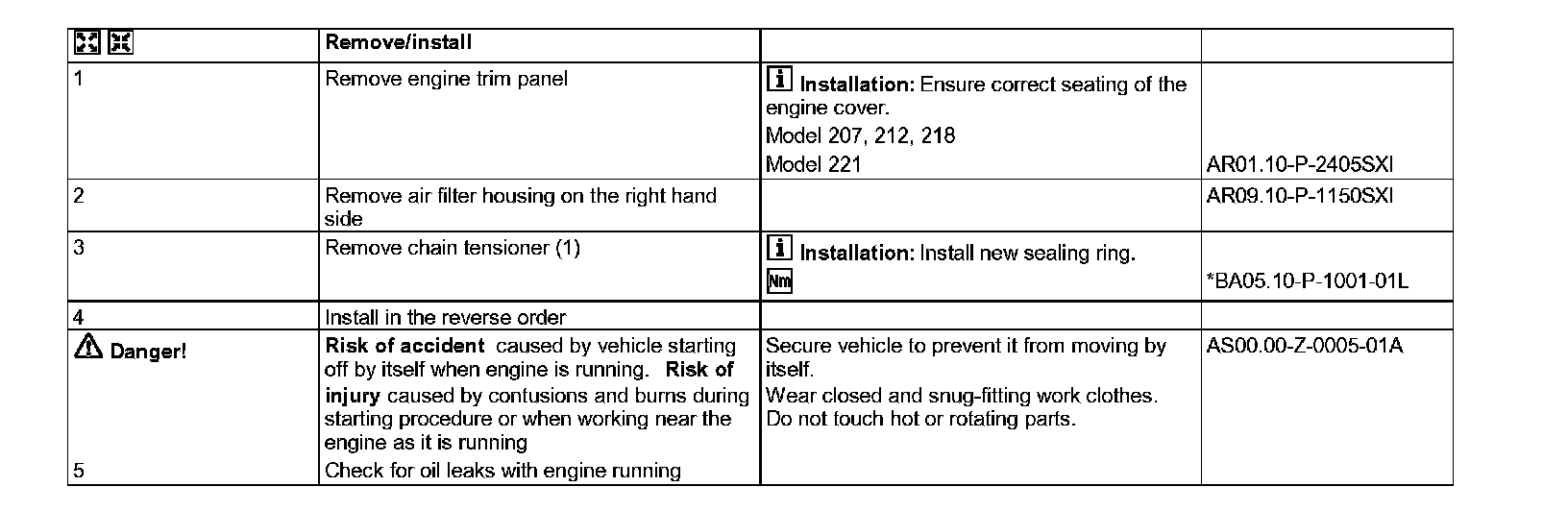

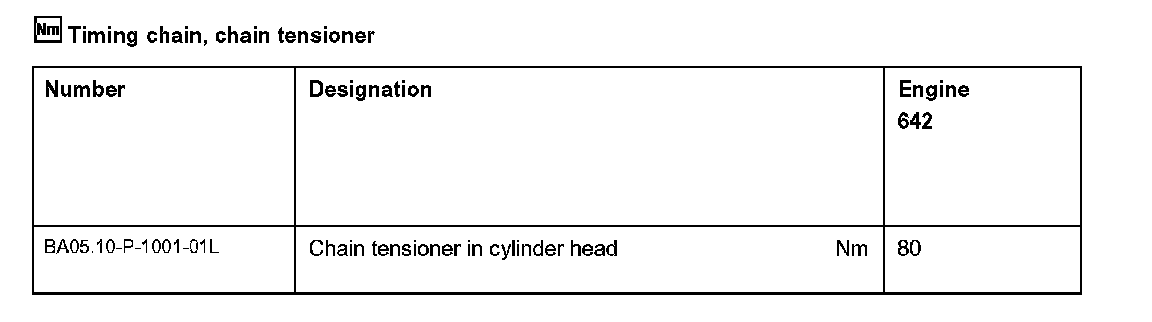

AR05.10-P-7800SXI Remove/Install Chain Tensioner

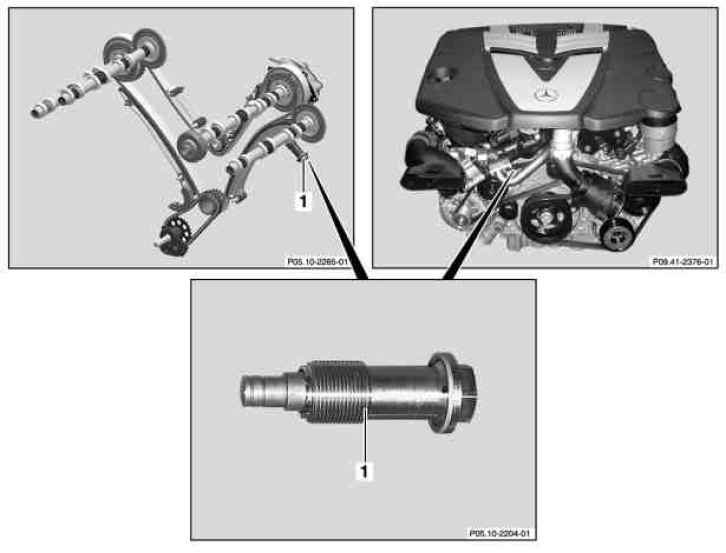

1 Chain tensioner
