Timing Chain Guide: Service and Repair

AR05.10-P-8484SXI Remove/Install Slide Rail in Timing Case Cover
-ENGINES 642 in MODEL 207, 212, 218, 221

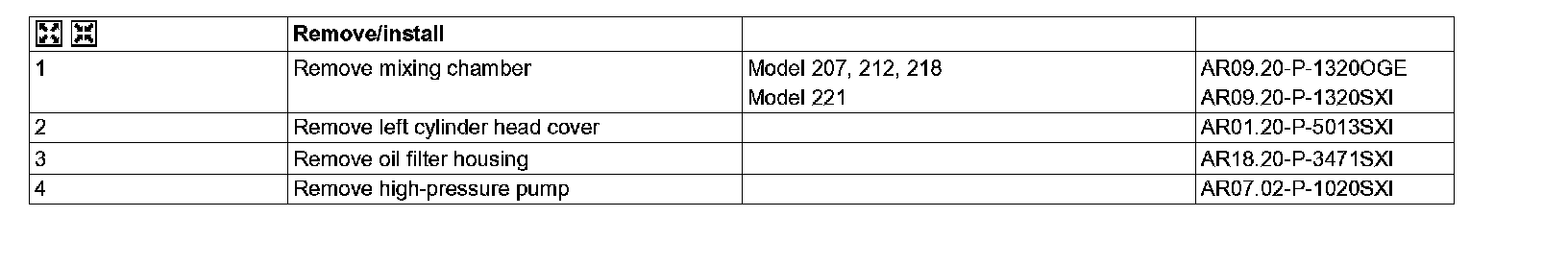

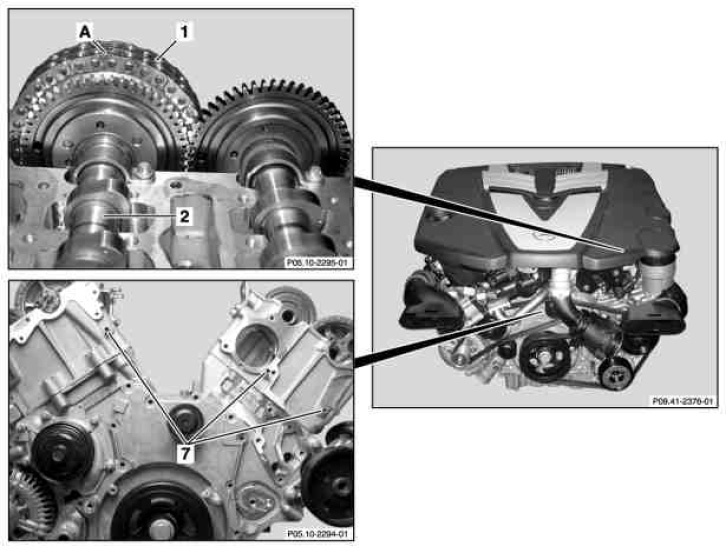

1 Timing chain
2 Left exhaust cam
7 Slide rail pins





3 Screw

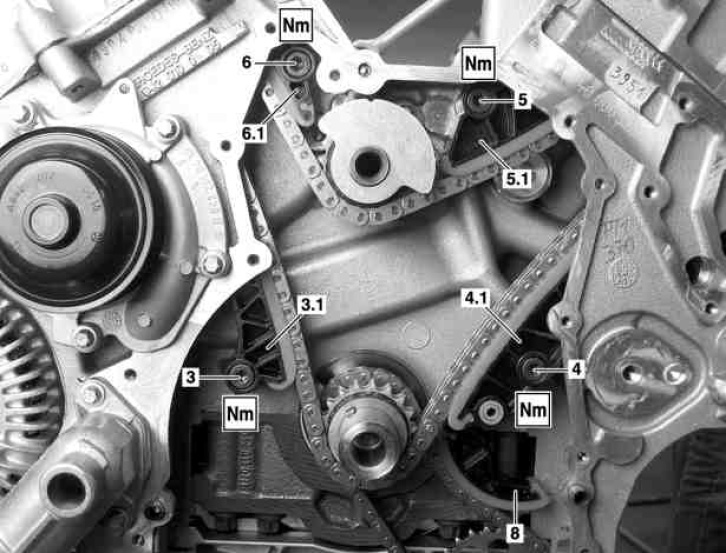

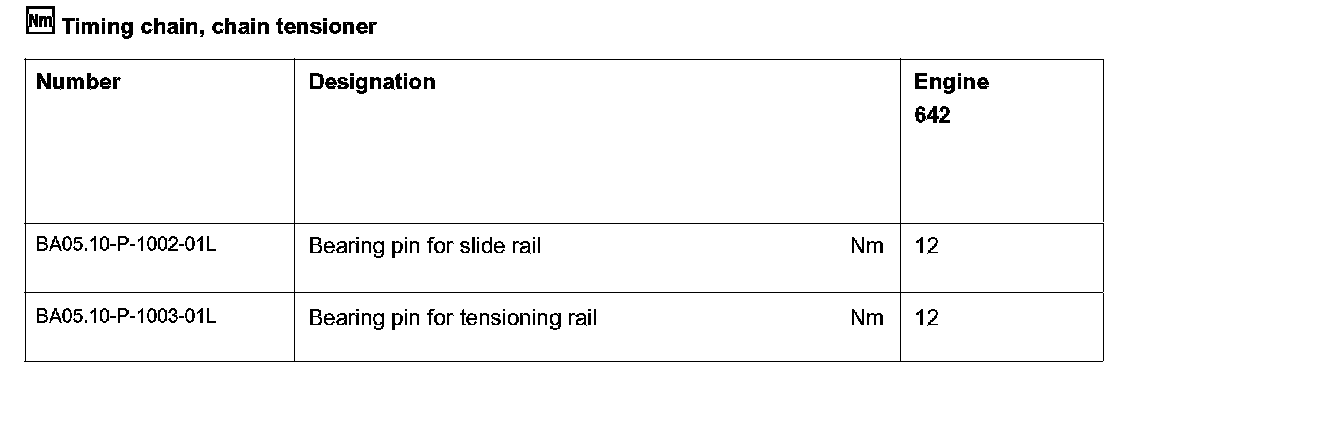

3.1 Tensioning rail
4 Bolt
4.1 Slide rail
5 Bolt
5.1 Slide rail
6 Bolt
6.1 Slide rail
8 Oil pump drive tensioning rail


























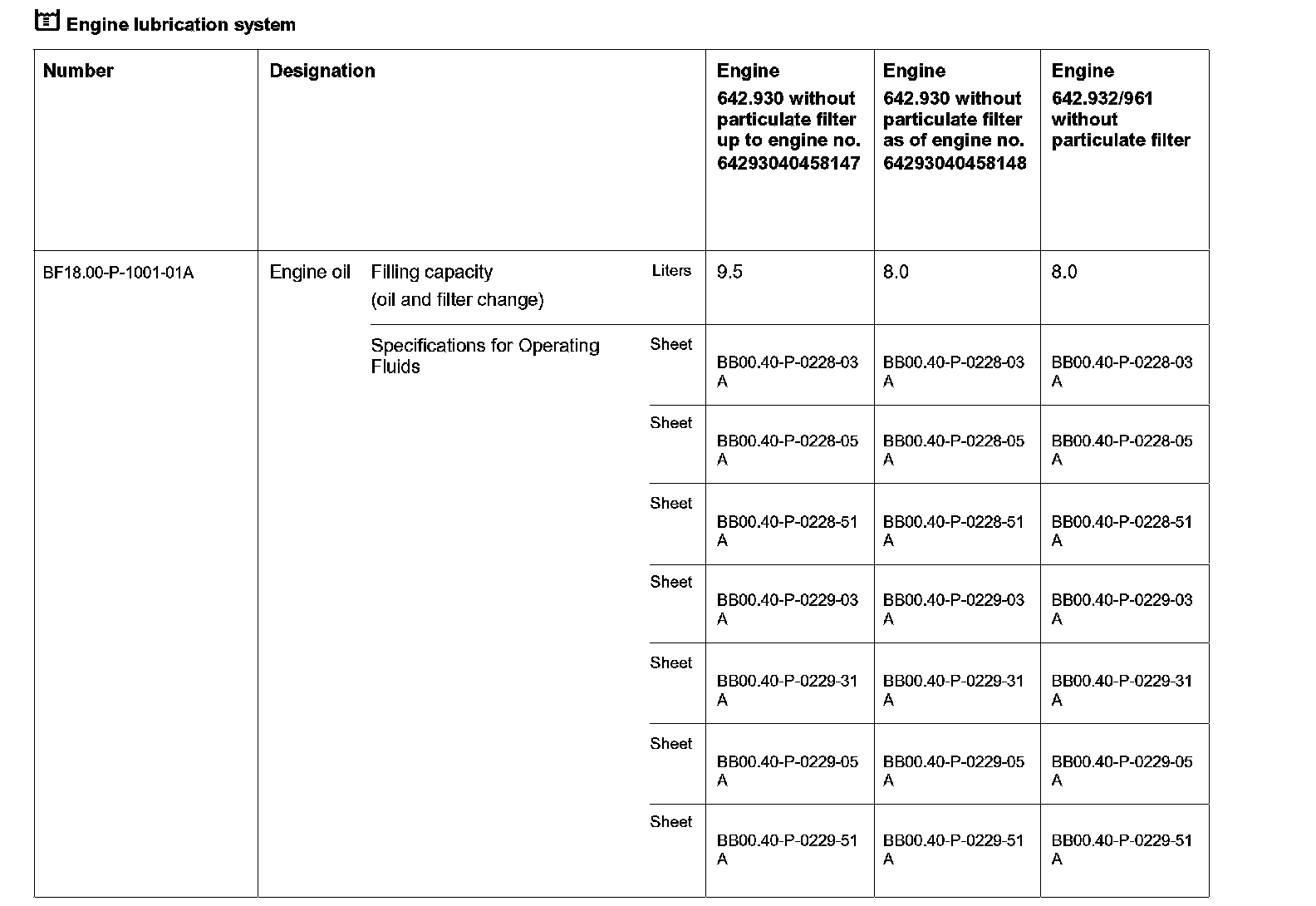

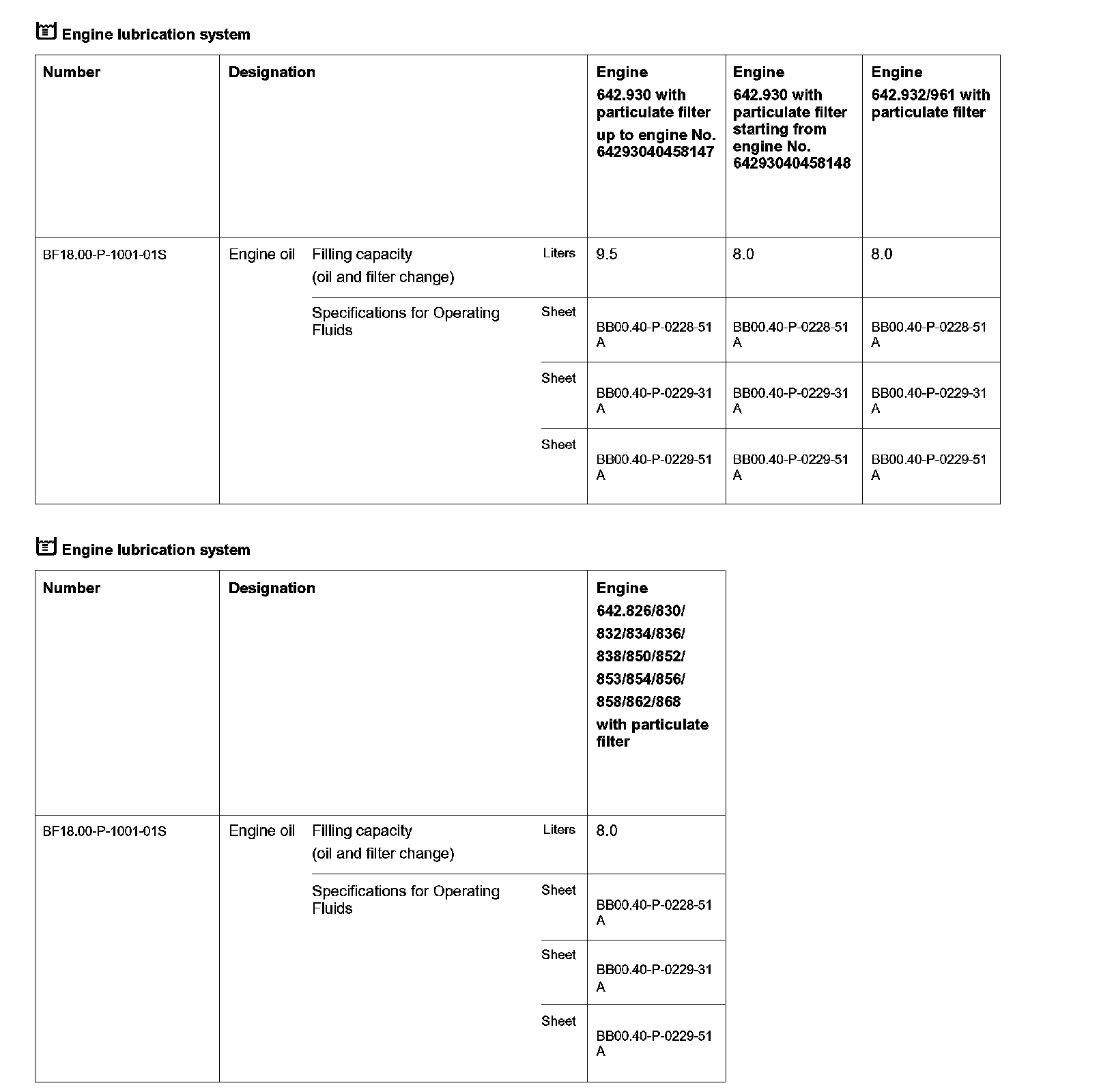

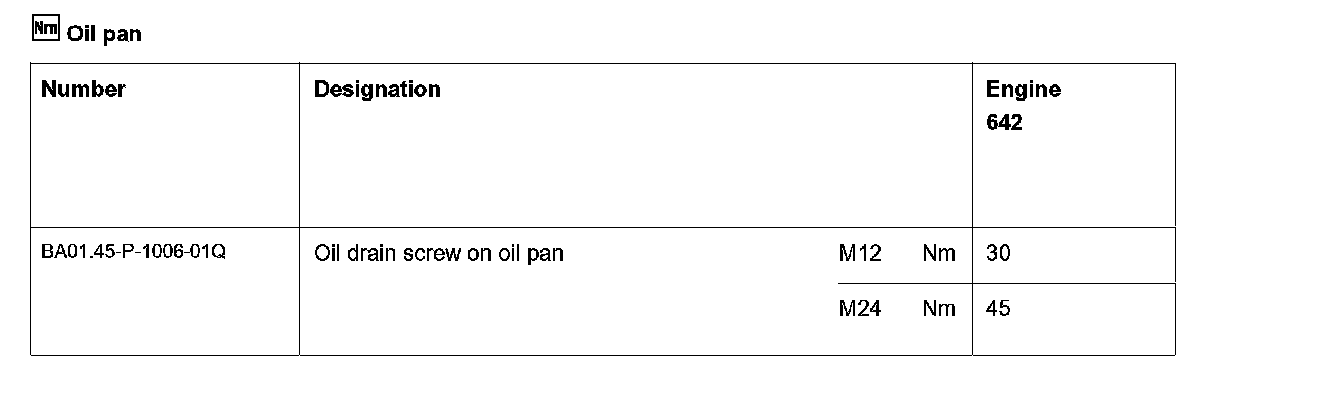

111 589 03 15 00
Retaining pins





112 589 03 40 00
Retaining lock





102 589 00 34 00
Threaded stud





116 589 20 33 00
Impact extractor





605 589 00 33 00
Puller
