Balance Shaft: Testing and Inspection
AR03.20-P-3637OM Check basic position of balancing shaft

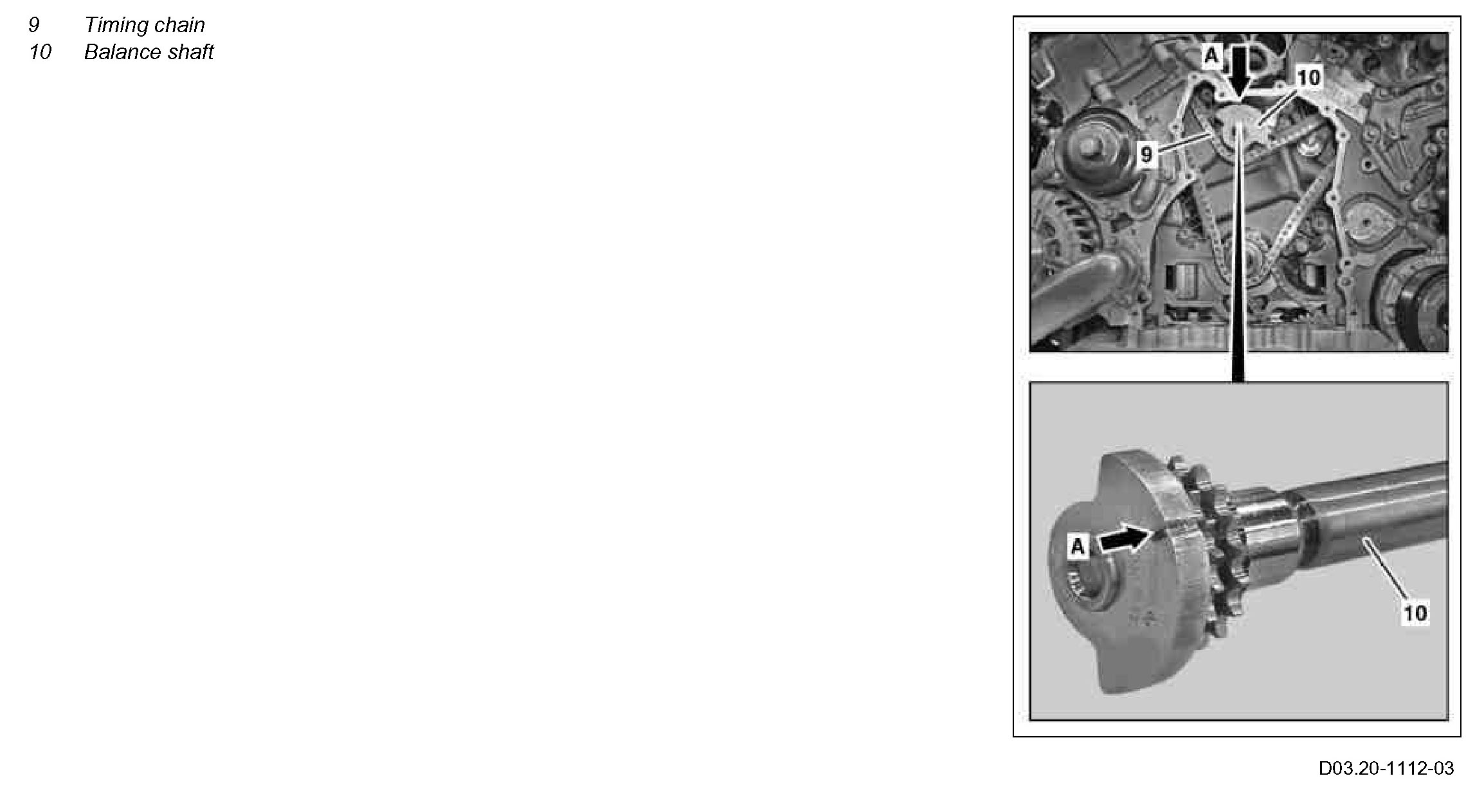

Component Identification:
Component Identification:

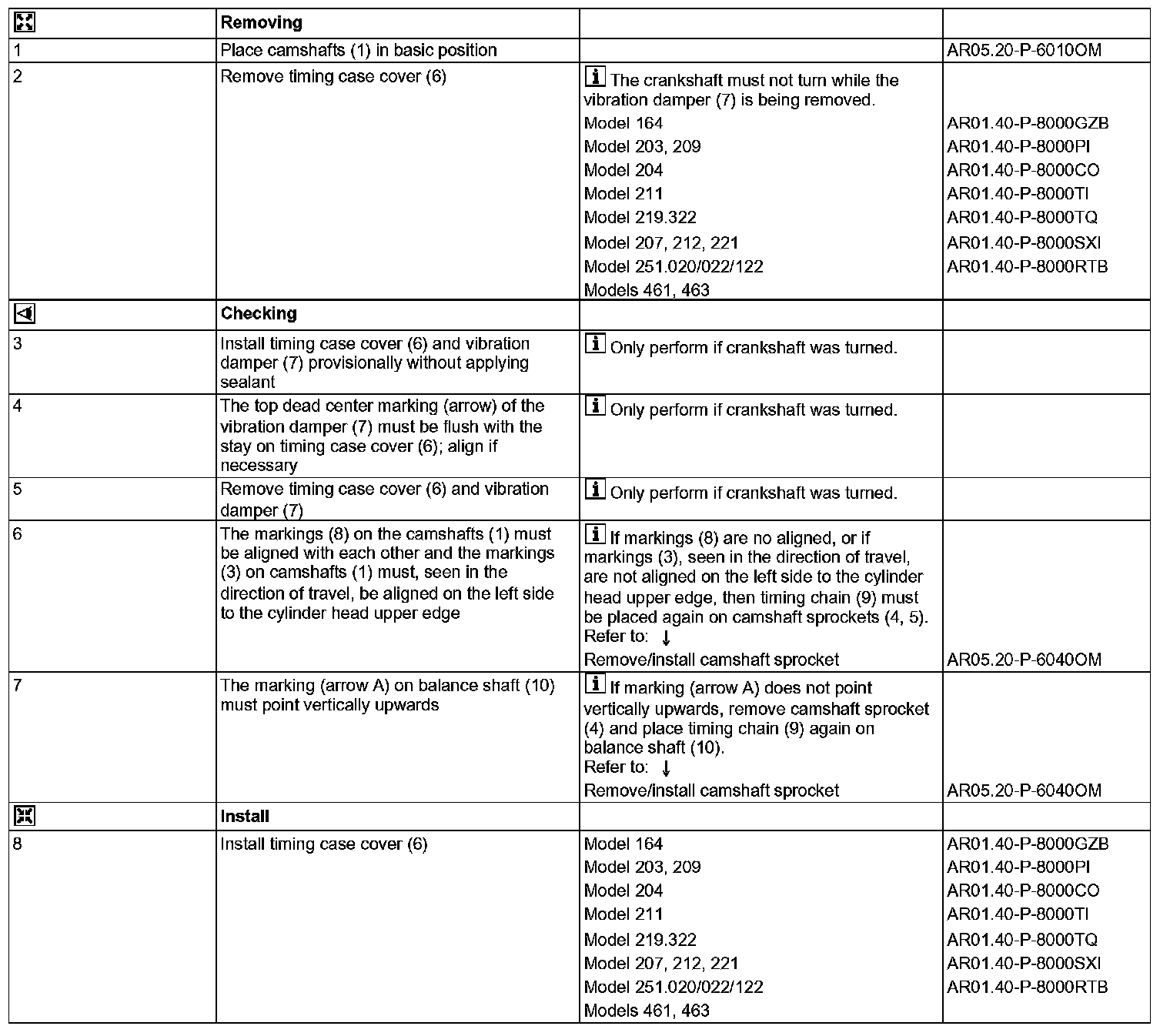

Steps 1-8:
