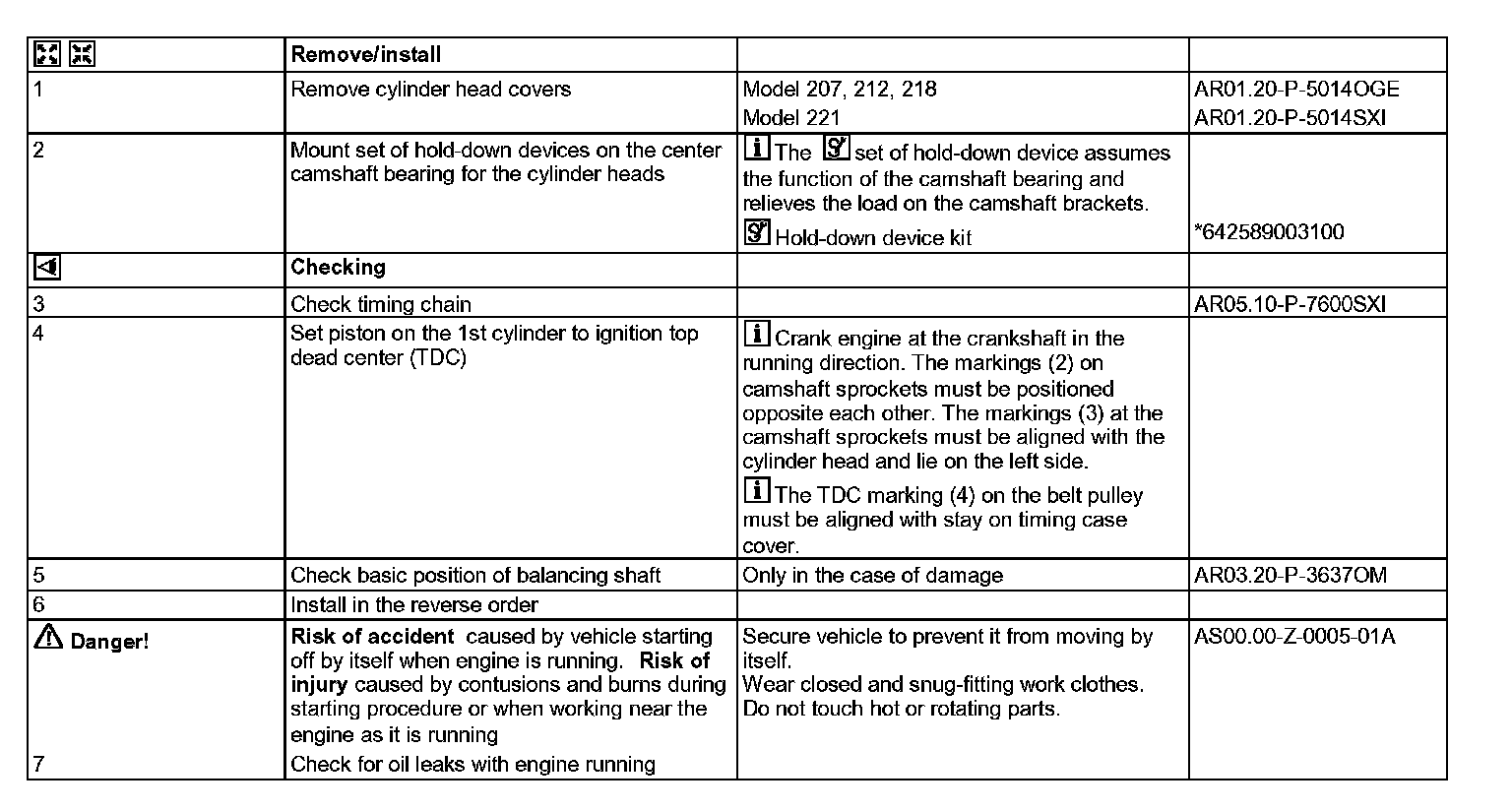

AR05.10-P-6858SXI Check Engine Valve Timing

AR05.10-P-6858SXI Check Engine Valve Timing

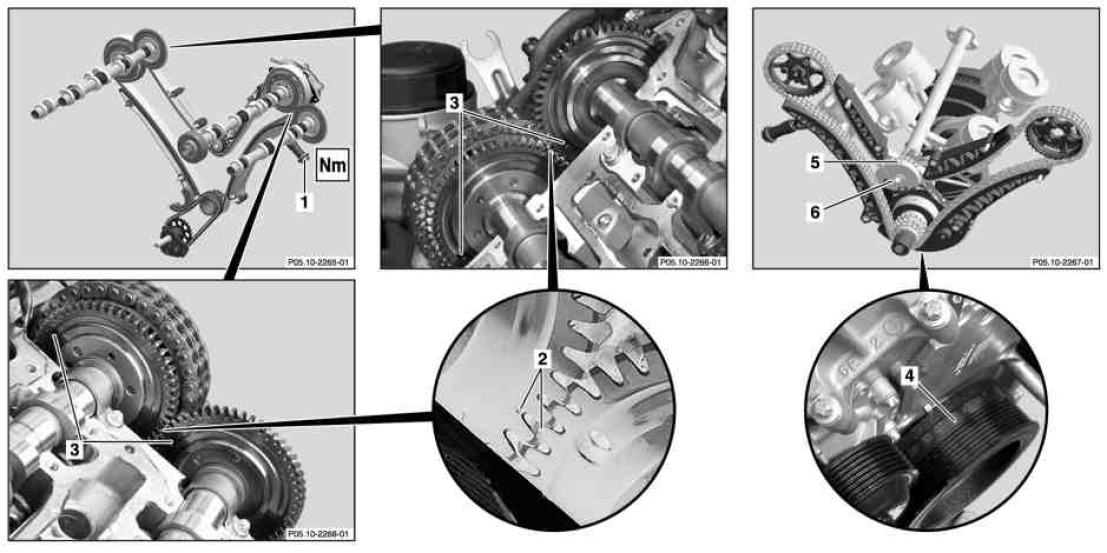

1 Chain tensioner
2 Markings
3 Markings
4 Top dead center (TDC) marking
5 Marking on the balance shaft
6 Balance shaft drive gear








642 589 00 31 00
Holddown device kit
