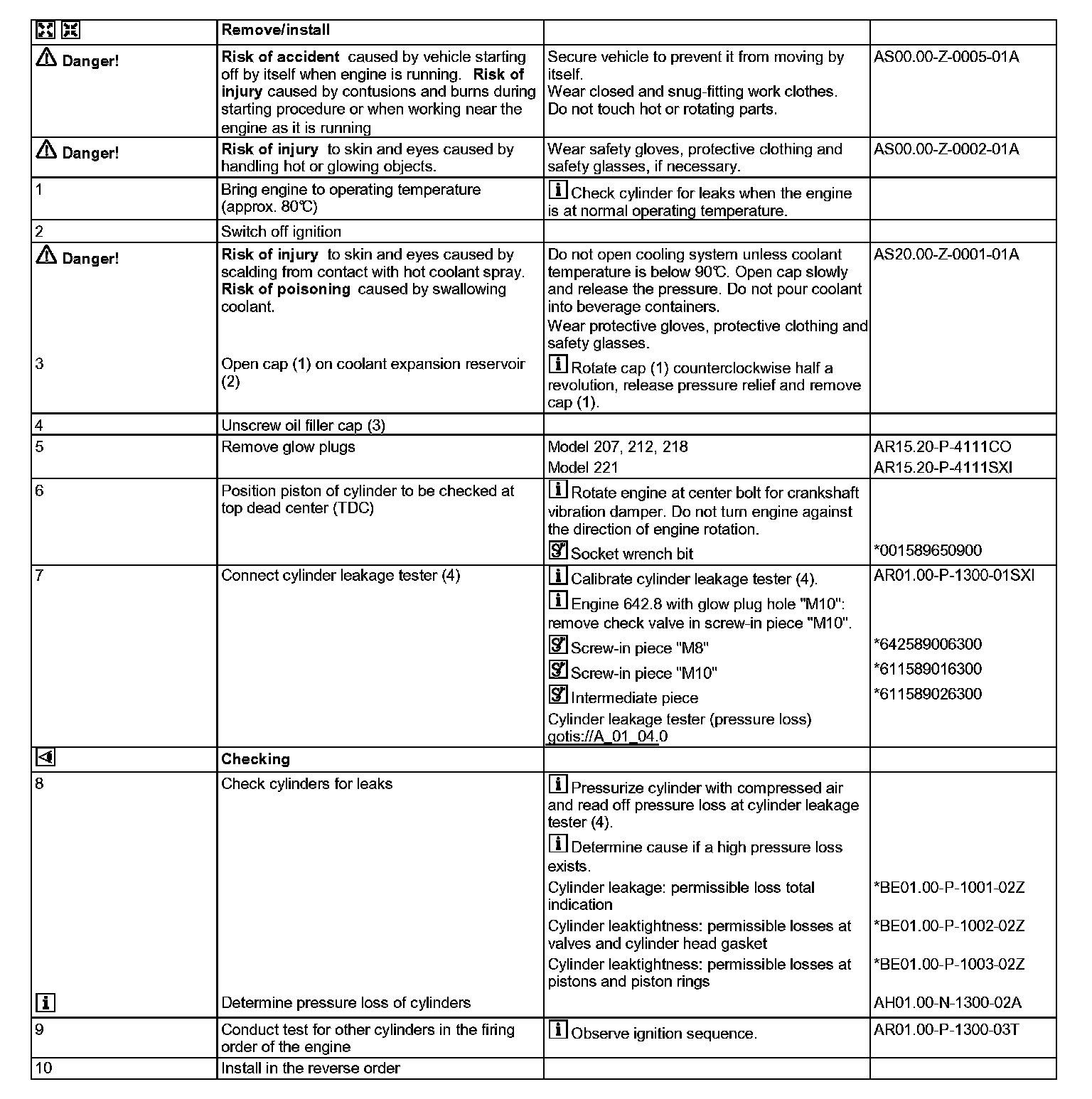

AR01.00-P-1300SXI Check Cylinders For Leaks

AR01.00-P-1300SXI Check Cylinders For Leaks






Shown on engine 646.961

1 Cap
2 Expansion reservoir
3 Oil filler cap
4 Cylinder leakage tester











001 589 65 09 00
Wrench socket





611 589 02 63 00
Intermediate piece





642 589 00 63 00
Screw-in fitting





611 589 01 63 00
Screw-in fitting
