AR01.00-P-1300-01SXI Connect Cylinder Leakage Testing Unit

AR01.00-P-1300-01SXI Connect Cylinder Leakage Testing Unit





611 589 02 63 00
Intermediate piece





642 589 00 63 00
Screw-in fitting





611 589 01 63 00
Screw-in fitting





Only use an approved screw-in fitting (1) for the respective engine.

1 Remove check valve from the screw-in fitting (1)
611 589 01 63 00.

Only for engine 642.8 with glow plug hole M10.

2 Screw in screw-in fitting (1) into spark plug hole.

Use screw-in piece (1)
642 589 00 63 00 for engine 642.8 or engine 642.9 with glow plug hole M8 screw-in piece (1) 611 589 01 63 00 for engine 642.8 with glow plug hole M10

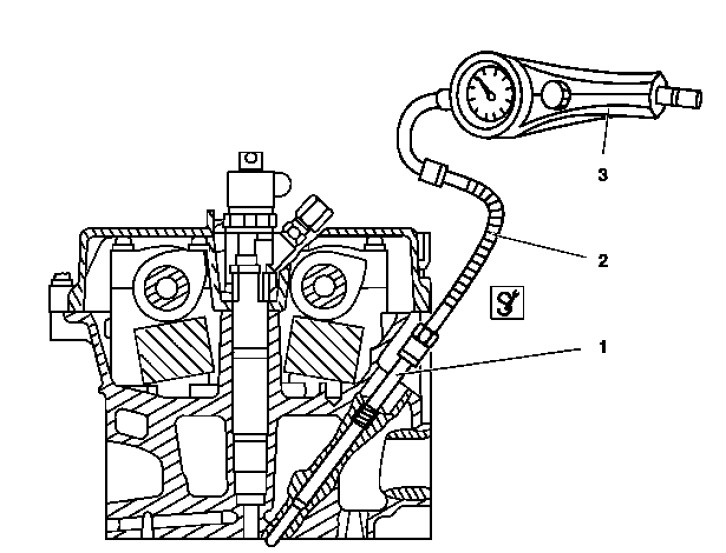

3 Attach adapter piece (2) to screw-in fitting (1).
4 Attach cylinder leakage tester (3) to intermediate piece (2).
Cylinder leakage tester (pressure loss)

gotis://A_01_04.0

Calibrate cylinder leakage tester (3).
