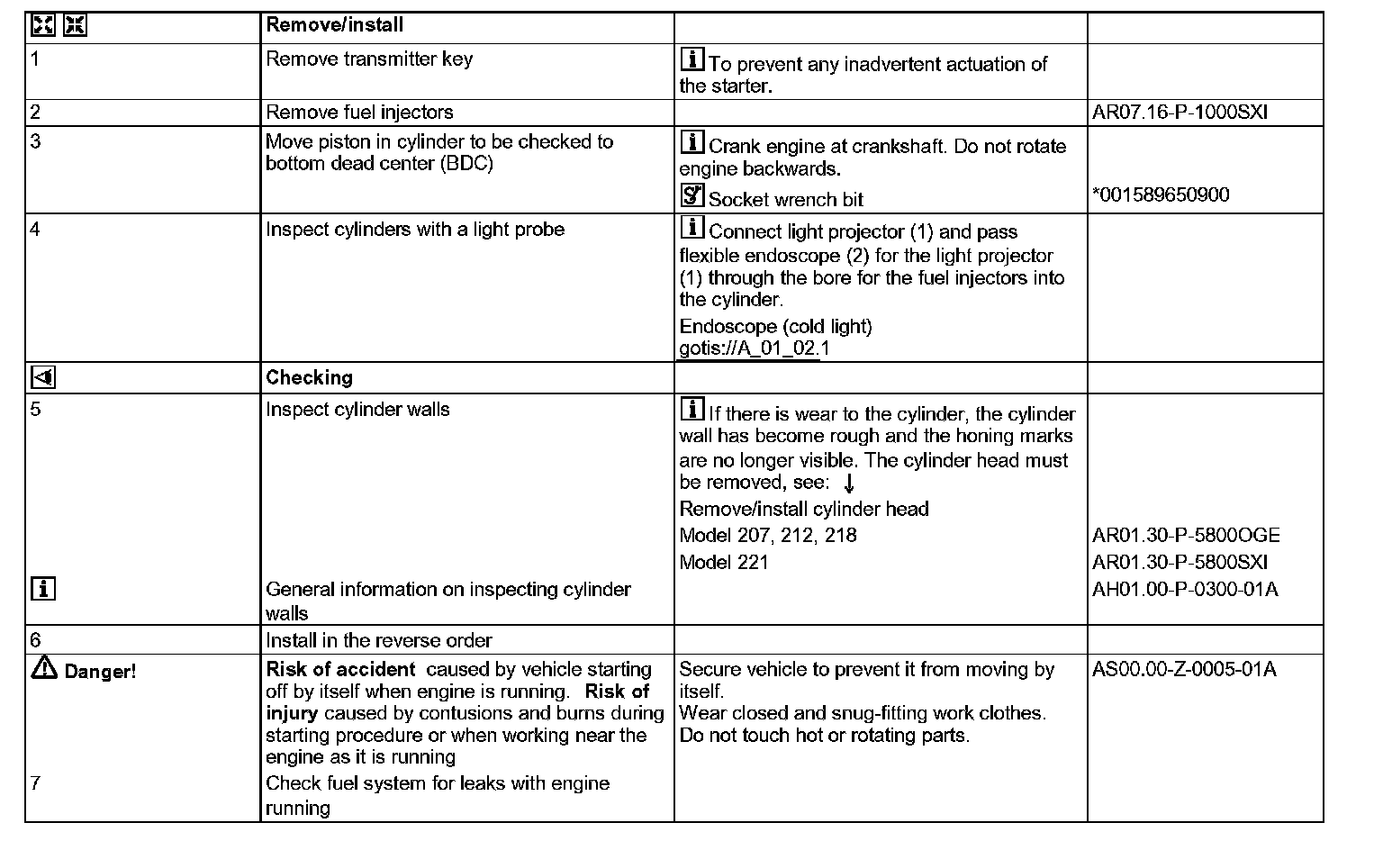

AR01.00-P-0200SXI Inspect Cylinders With A Light Probe




AR01.00-P-0200SXI Inspect Cylinders With A Light Probe

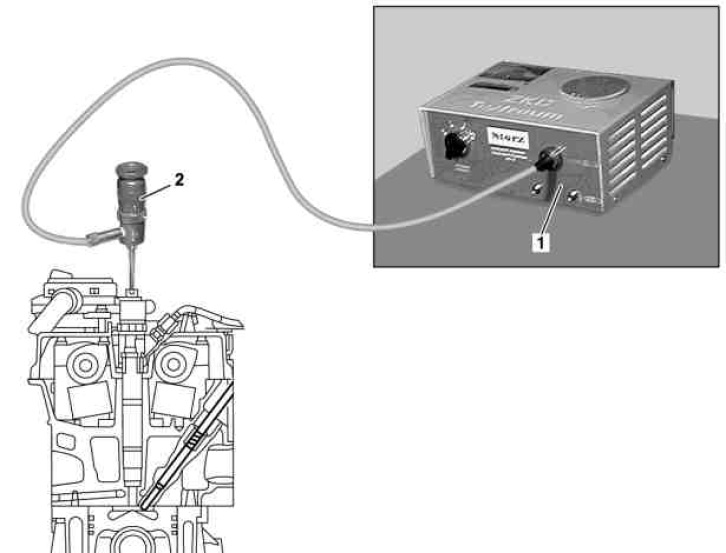

1 Light projector
2 Flexible endoscope








001 589 65 09 00
Wrench socket
