AR33.10-P-0105SX Attach Engine Lifting Device
AR33.10-P-0105SX Attach Engine Lifting Device
AR33.10-P-0105SX Attach engine lifting device

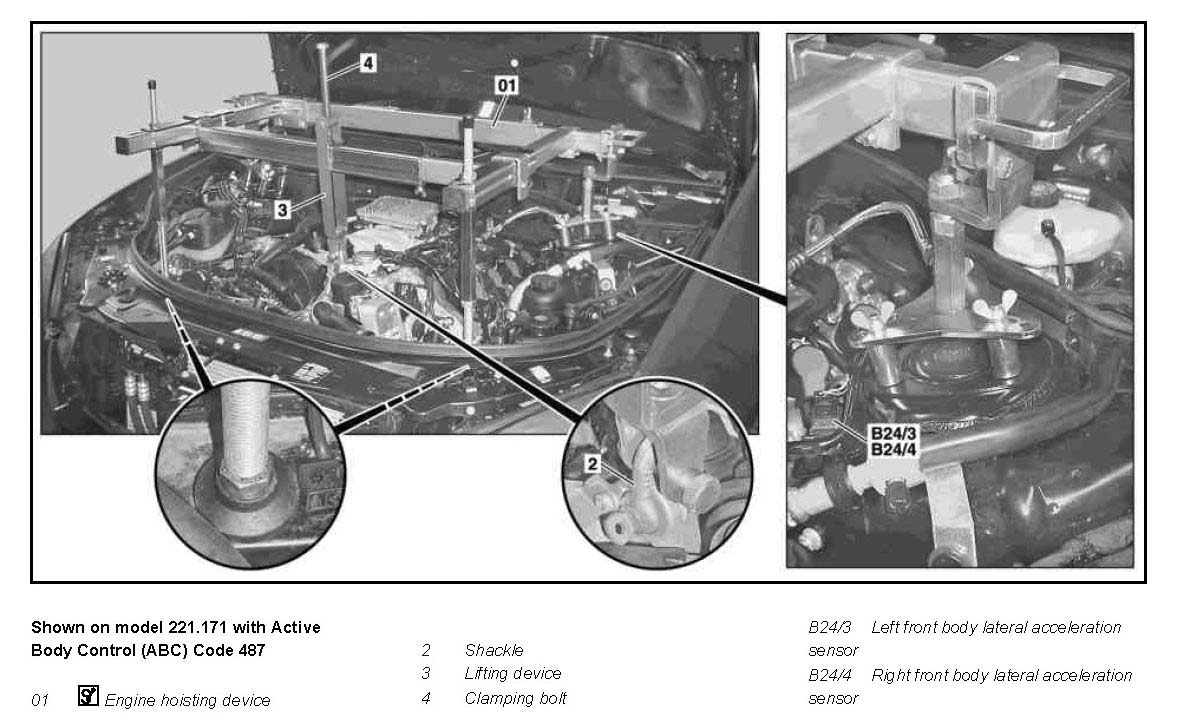

Component Identification:

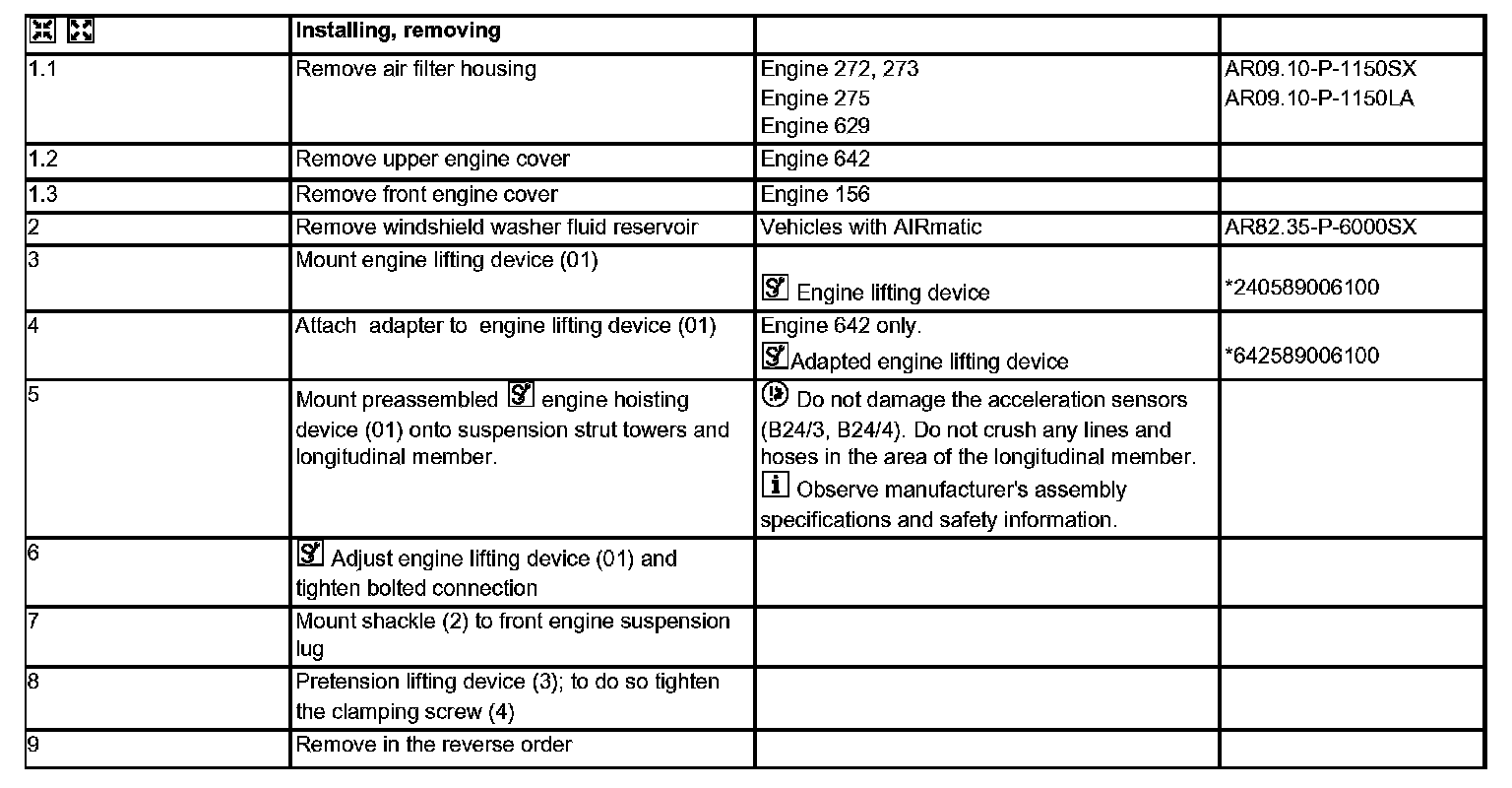

Steps 1.1-9:

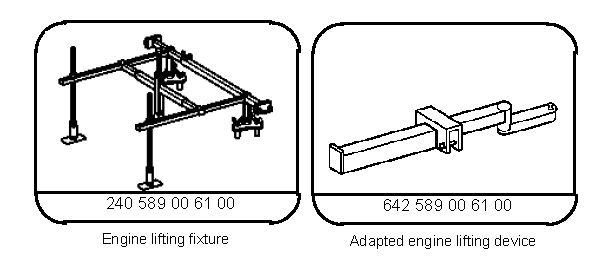

Special Tools:
