Home >> Mercedes Benz >> 2012 >> S 350 BLUETEC (221.183) V6-3.0L DSL Turbo (642.868) >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Engine >> Engine Lubrication >> Service and Repair >> Removal and Replacement

Removal and Replacement

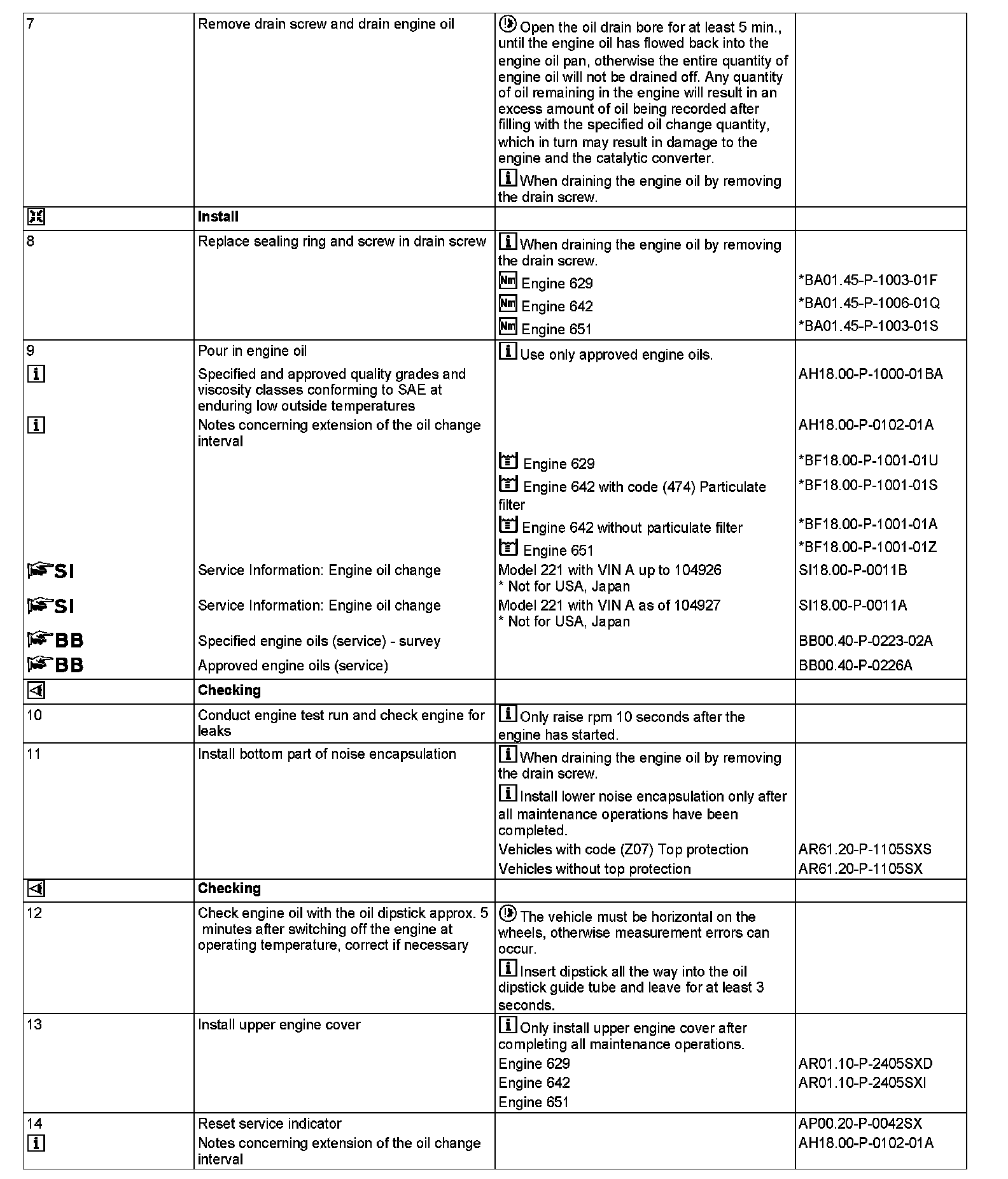

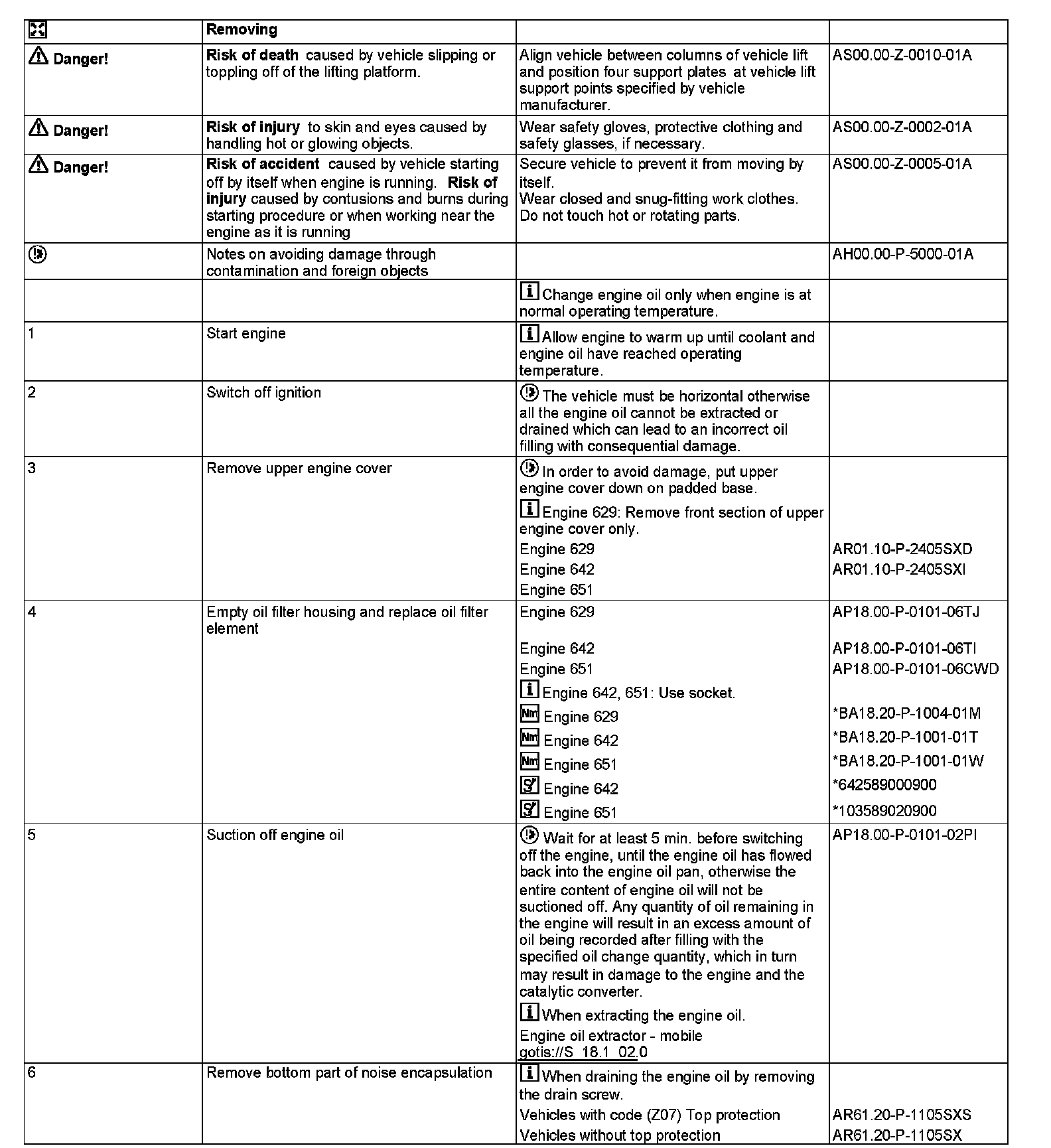

AP18.00-P-0101SXI Engine Oil And Filter Change
ENGINE 629, 642, 651 in MODEL 221






































642 589 00 09 00
Wrench socket





103 589 02 09 00
Wrench socket
