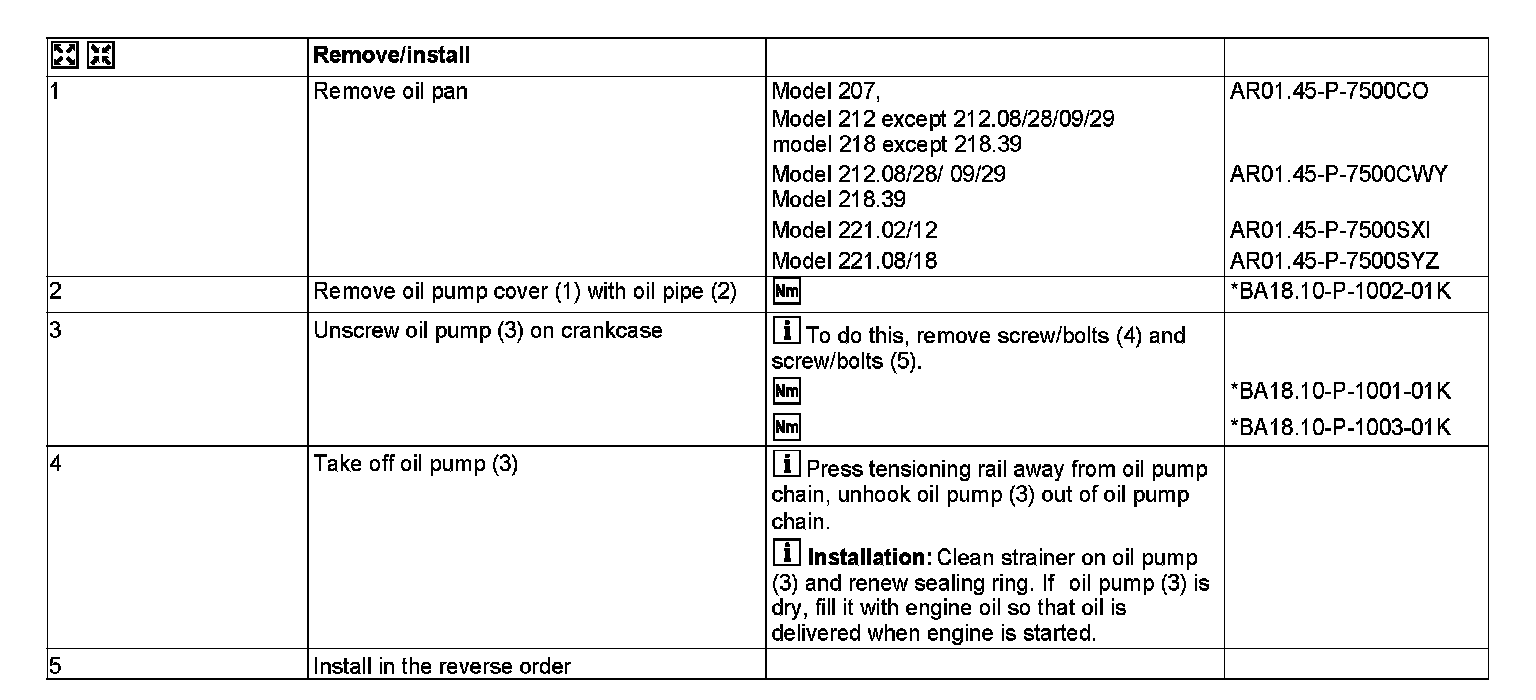

AR18.10-P-6020SXI Remove/Install Oil Pump

AR18.10-P-6020SXI Remove/Install Oil Pump
ENGINES 642 in MODEL 207, 212, 218, 221

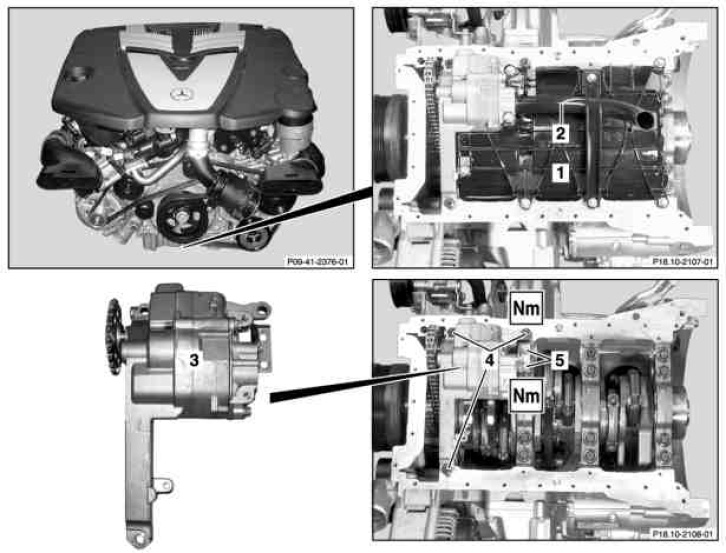

Shown on engine 642.9

1 Oil pump cover
2 Oil pipe
3 Oil pump
4 Screw/bolts
5 Screw/bolts
