Removal and Replacement

AH01.45-P-0001-01OM Notes On Sealant Path For Oil Pan

OM642

General Notes:

^ Sealing surface:
- free of anticorrosion agent
- free of machining residues
- oil and grease-free
- dust-free
^ The sealing surface must be flat (replace bent components).

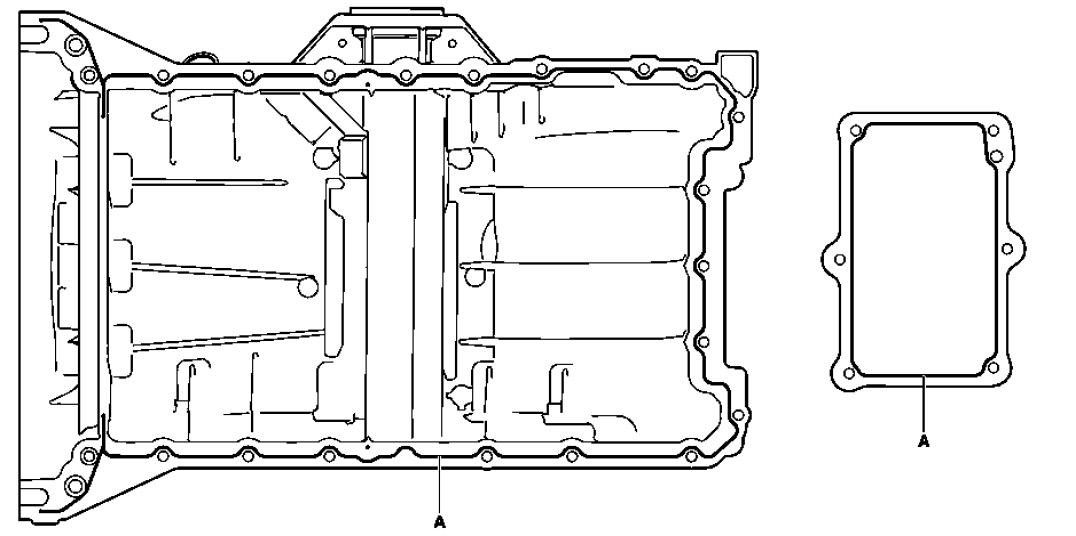

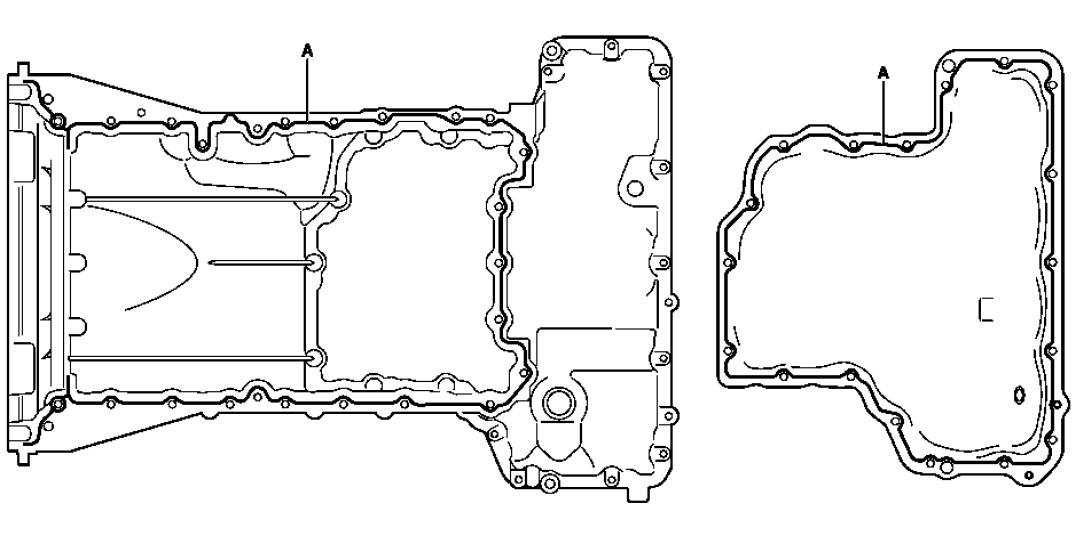

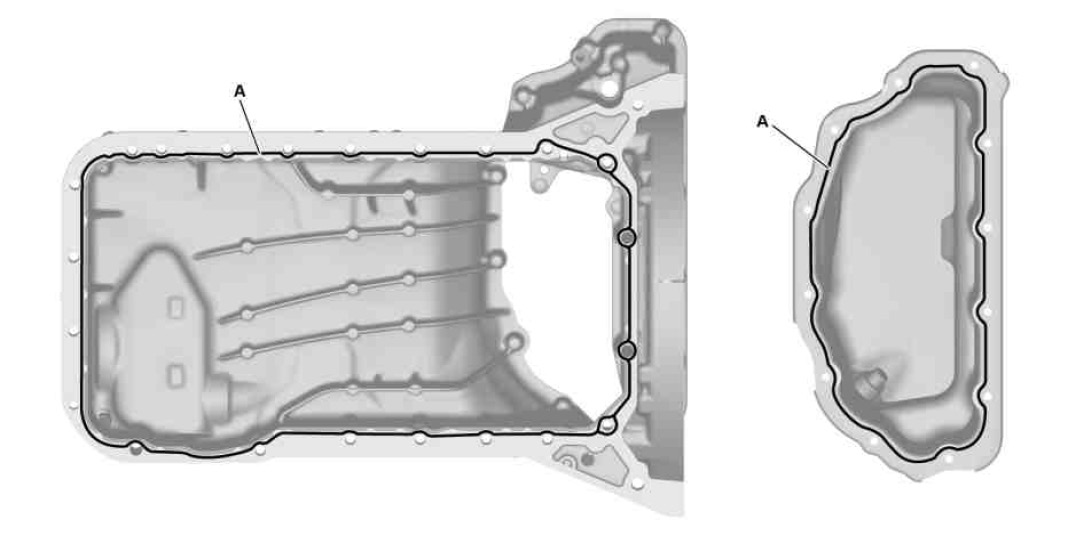

^ Line (A, F) marks the sealant path.
^ Discontinuity of the sealant bead is not permissible.
^ Do not spread sealing bead.
^ Component temperature: min. +7°C up to a max. of +25°C
^ Sealant temperature: min. +7°C up to a max. of +25° C
^ Maximum assembly time: 7 minutes
^ Sealant bead diameter: 2 mm
^ Nozzle diameter: 1.5 mm





Engine 642.910/920/852





Engine 642.930/862





Engine 642.921/932/961/868





Engine 642.940/950/ 970/872/886





Engine 642.975/884





Engine 642.826
