Valve: Service and Repair

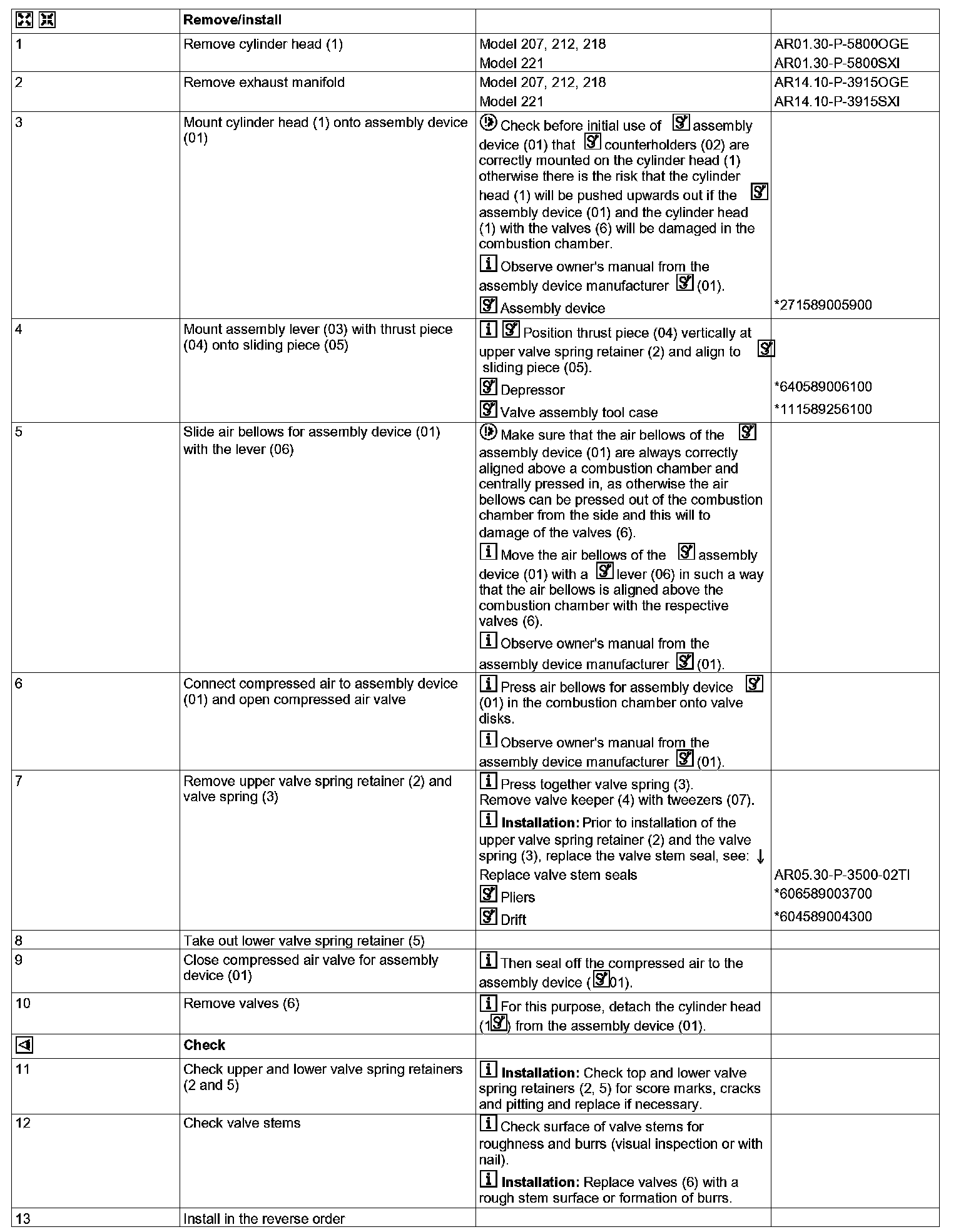

AR05.30-P-3511SXI Remove/Install Valves
-ENGINES 642 in MODEL 207, 212, 218, 221

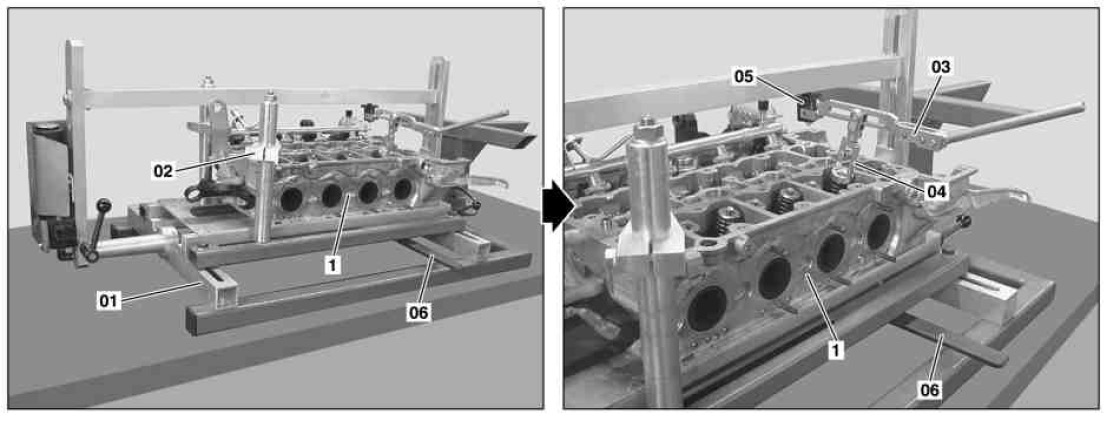

01 Assembly device
02 Counterholder
03 Assembly lever
04 Thrust piece
05 Sliding element
06 Lever
1 Cylinder head





04 Thrust piece
07 Tweezers
2 Upper valve spring retainer
3 Valve spring
4 Valve keeper
5 Lower valve spring retainer
6 Valve








271 589 00 59 00
Assembly tool





111 589 25 61 00
Case for valve installation tools





640 589 00 61 00
Depressor





606 589 00 37 00
Pliers





604 589 00 43 00
Drift
