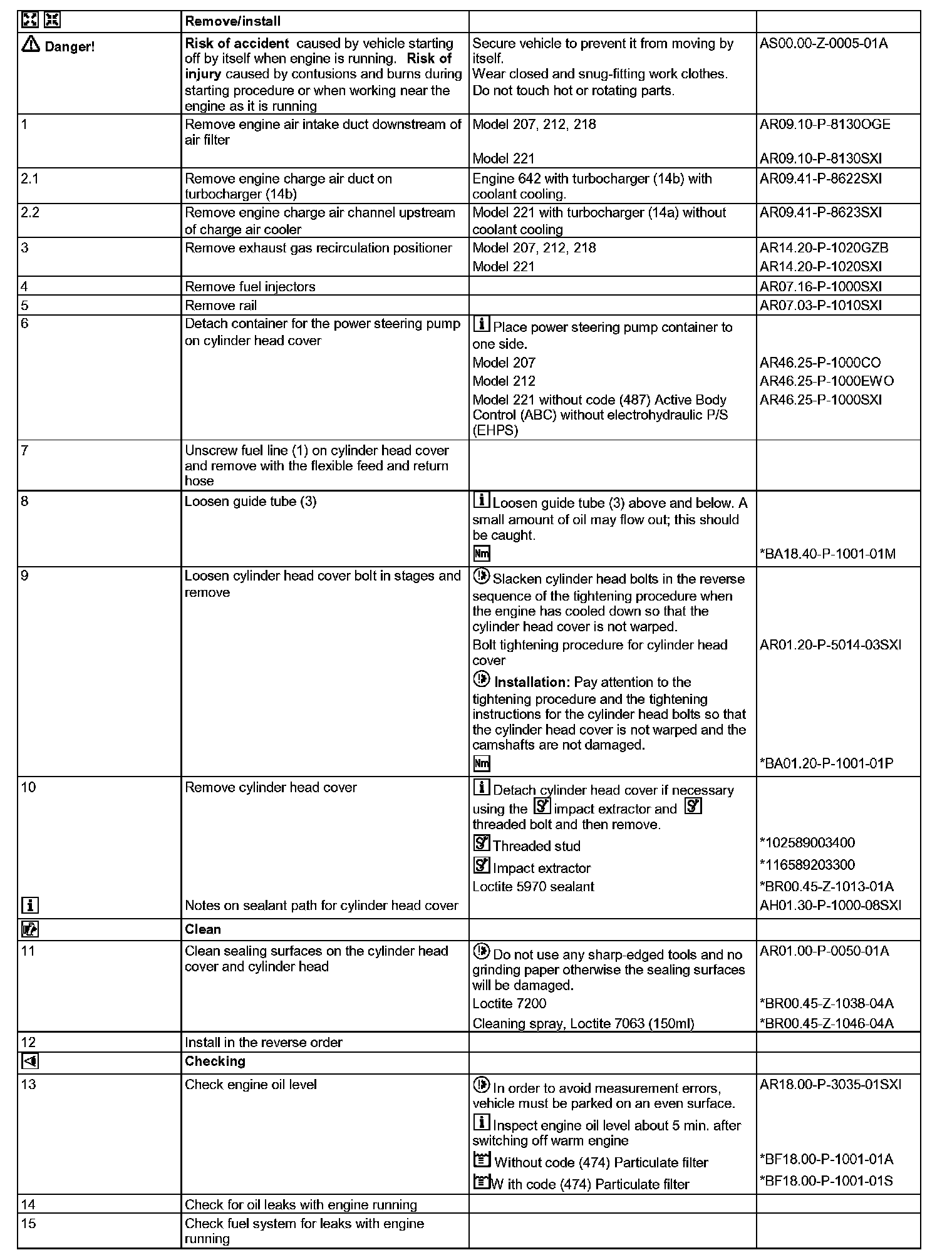

AR01.20-P-5013SXI Remove/Install Left Cylinder Head Cover

AR01.20-P-5013SXI Remove/Install Left Cylinder Head Cover






Shown on engine 642.930 in model 221

1 Fuel pipe
3 Guide tube

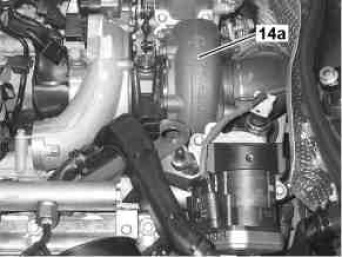

Turbocharger without coolant cooling

14a Turbocharger

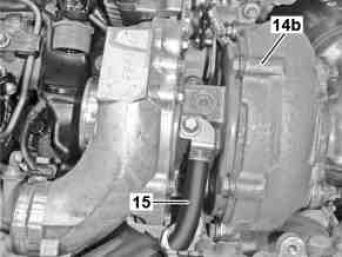

Turbocharger with coolant cooling

14b Turbocharger
15 Coolant line























116 589 20 33 00
Impact extractor





102 589 00 34 00
Threaded stud
