AR01.20-P-5014-03TI Bolt Tightening Diagram For Cylinder Head Cover

AR01.20-P-5014-03TI Bolt tightening diagram for cylinder head cover

Crankcase ventilation, cylinder head cover

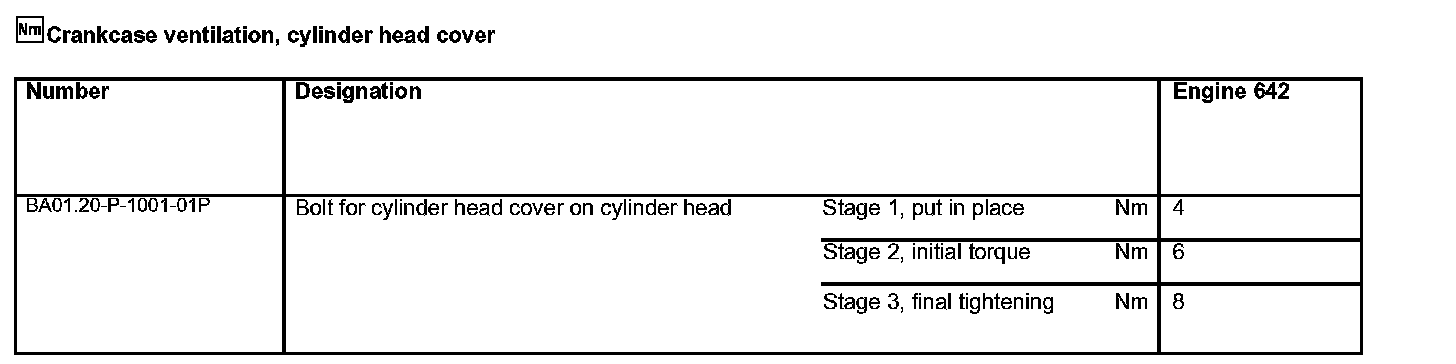

Crankcase ventilation, cylinder head cover:

Tightening of the bolts should be undertaken in the sequence contained in the plan.

Loosen bolts in reverse order.

The bolts should be tightened any further after the cold test.

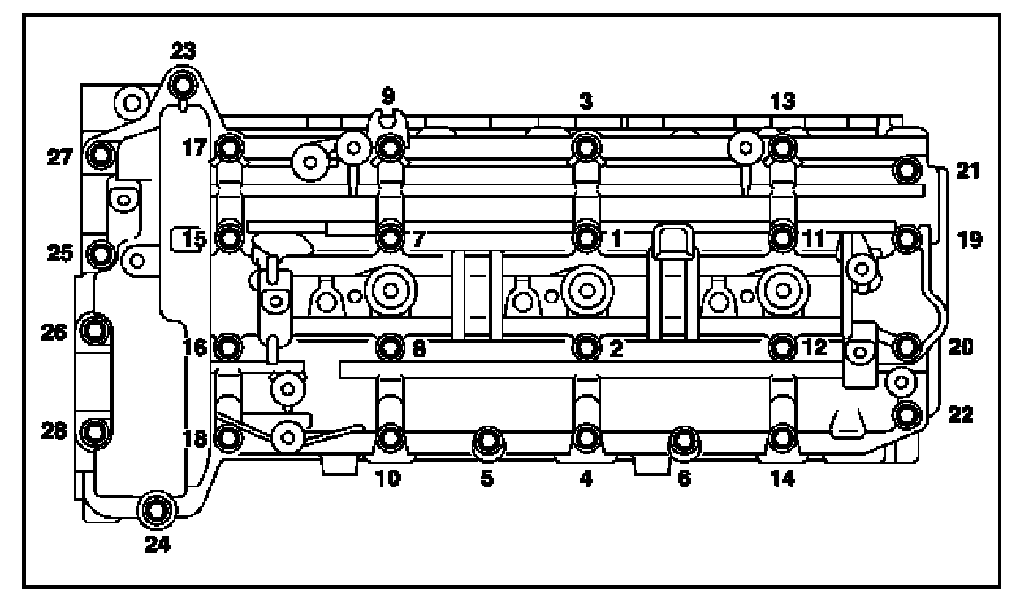

The right hand cylinder head cover:

The right hand cylinder head cover
Tighten cylinder head cover bolts in the numerical sequence.
1 Tighten bolts 8 and 11 to stage 1.
2 Tighten bolts (1 - 30) to stage 2.
3 Tighten bolts (1 - 30) to stage 3.

Left cylinder head cover:

Left cylinder head cover
Tighten cylinder head cover bolts in the numerical sequence.
1 Tighten bolts 8 and 11 to stage 1.
2 Tighten bolts (1 - 28) to stage 2.
3 Tighten bolts (1 - -28) to stage 3.
