Removal and Replacement

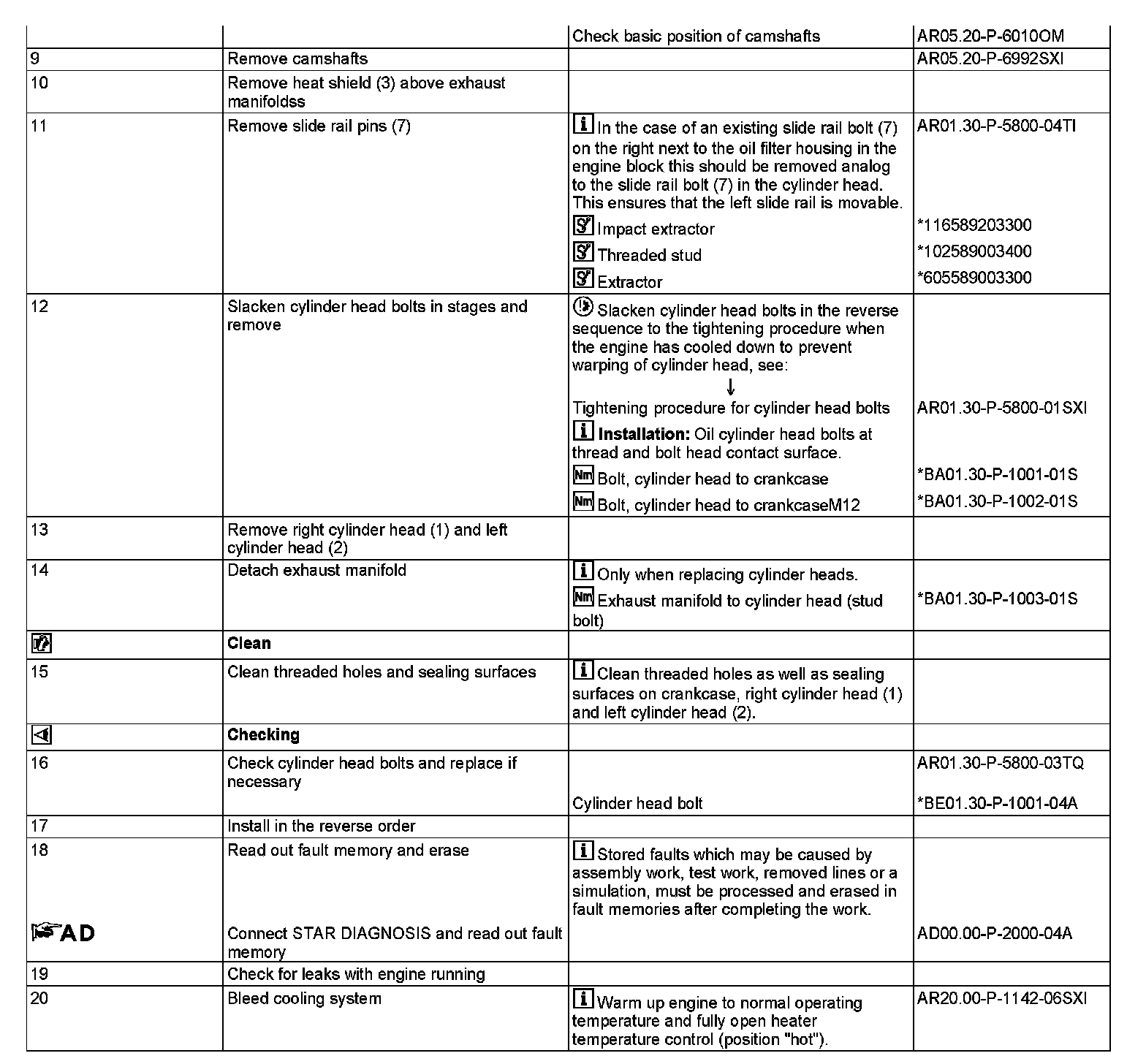

AR01.30-P-5800SXI Remove/Install Cylinder Head
ENGINES 642 in MODEL 221

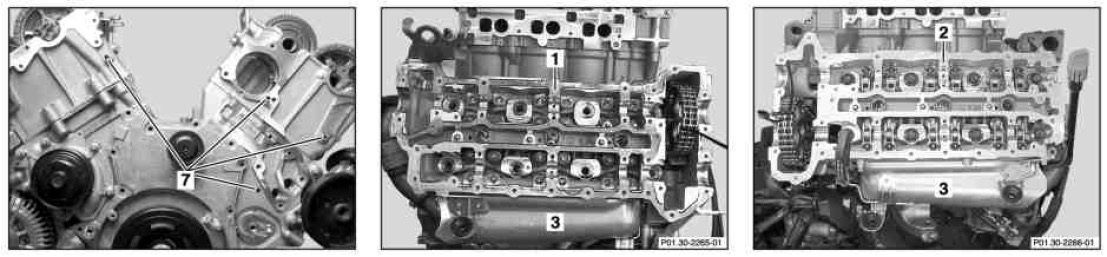

1 Right cylinder head
2 Left cylinder head
3 Heat shield
7 Slide rail pins























102 589 00 34 00
Threaded stud





116 589 20 33 00
Impact extractor





605 589 00 33 00
Puller
