AR01.30-P-5800-03TQ Checking Cylinder Head Bolts

AR01.30-P-5800-03TQ Checking Cylinder Head Bolts

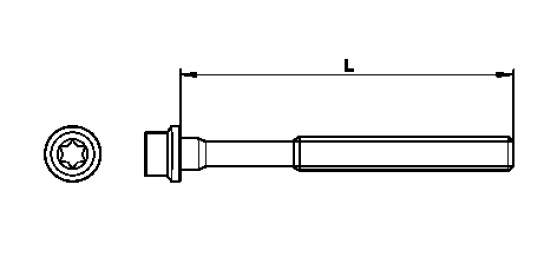

1 Measure length (L).

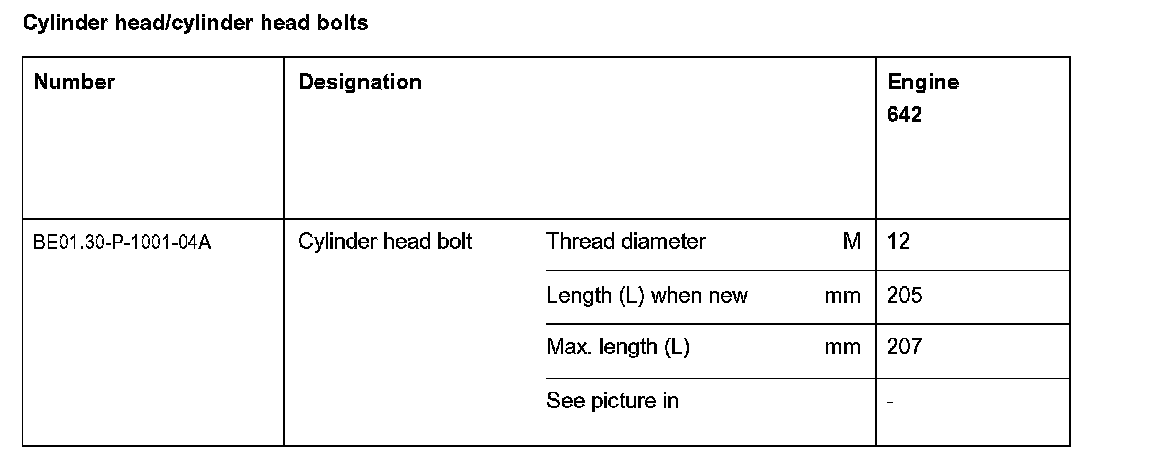

The cylinder head bolt must be installed new if the maximum length (L) of the cylinder head bolts is exceeded in order to achieve the correct torque for the cylinder head bolt.
