Crankshaft: Service and Repair

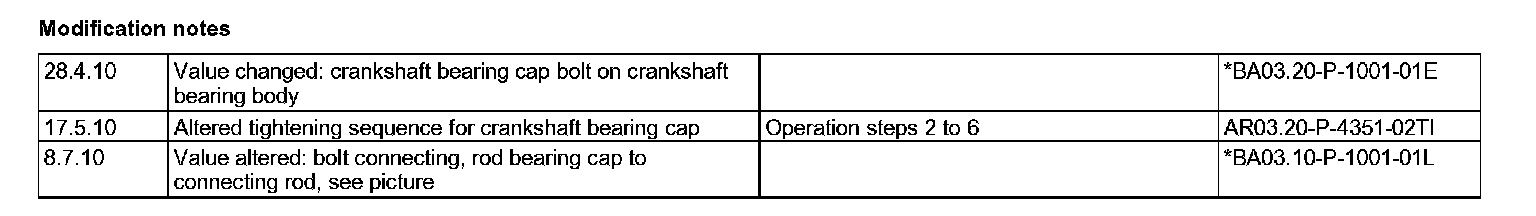

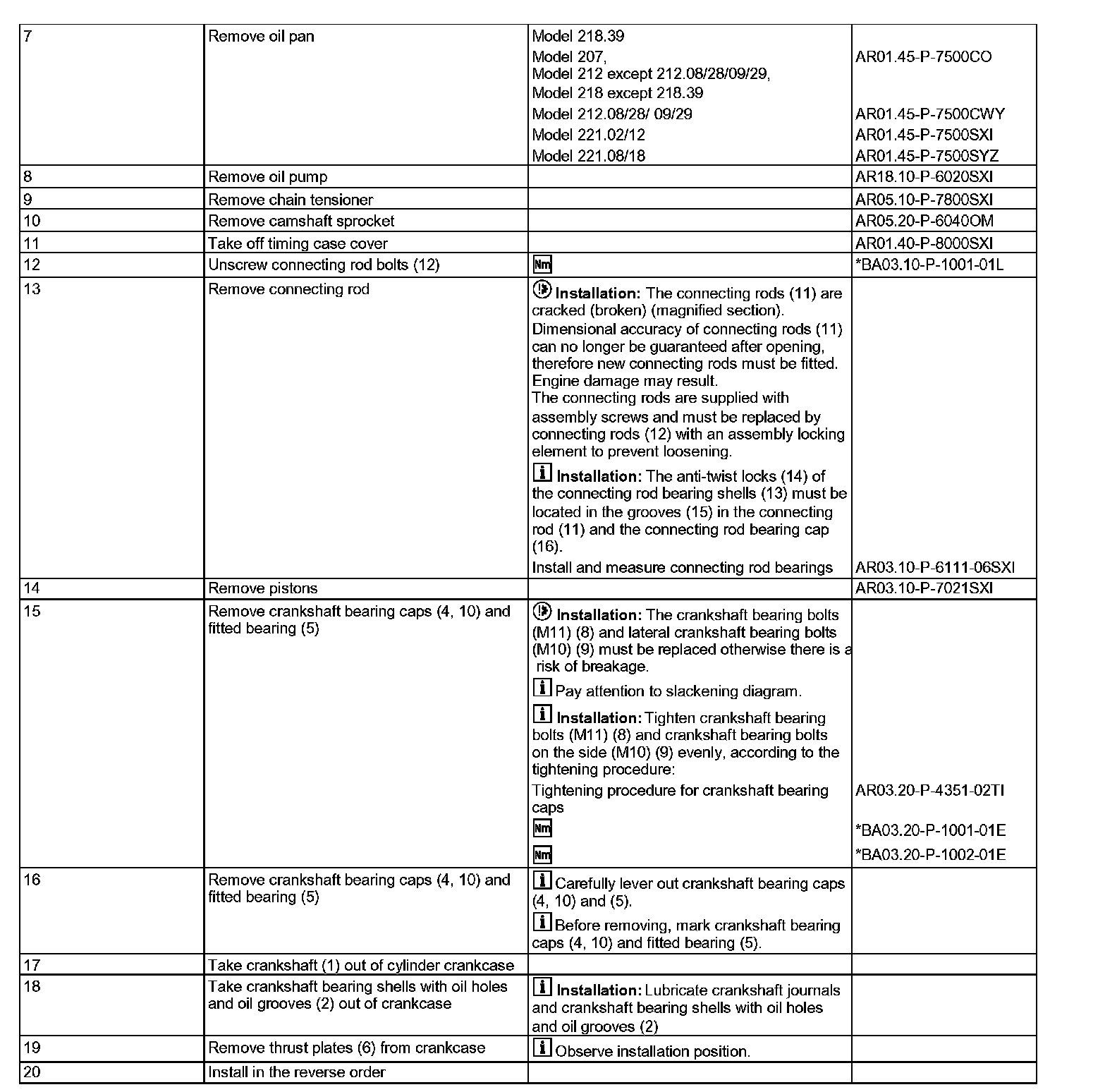

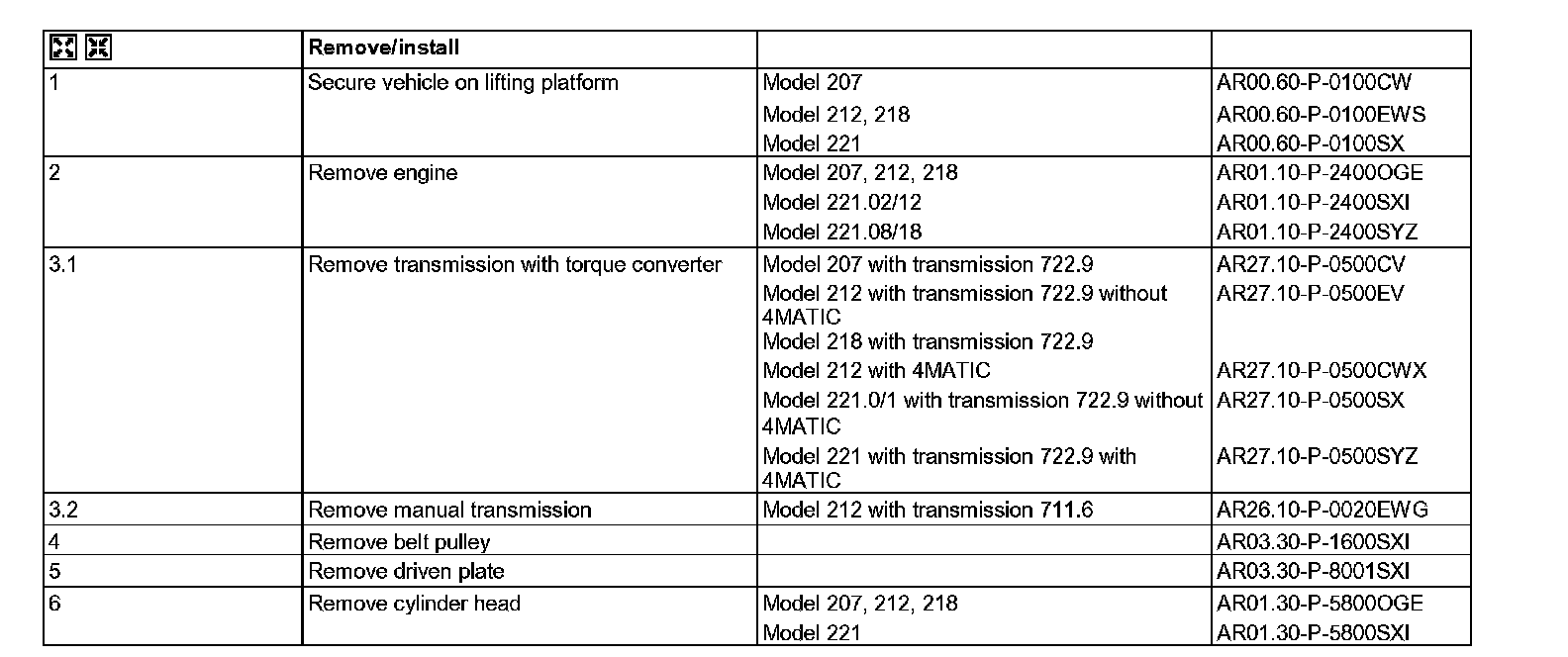

AR03.20-P-4351SXI Remove/Install Crankshaft






1 Crankshaft
2 Crankshaft bearing shell with oil holes and oil grooves
3 Crankshaft bearing shells
4 Crankshaft bearing cap
5 Fitted bearing
6 Thrust plate
8 Crankshaft bearing bolts (M11)
9 Lateral crankshaft bearing bolts (M10)
10 Crankshaft bearing cap
11 Connecting rod
12 Connecting rod bolts
13 Connecting rod bearing shell
14 Anti-twist lock
15 Groove
