Crankshaft Seal Retainer: Service and Repair

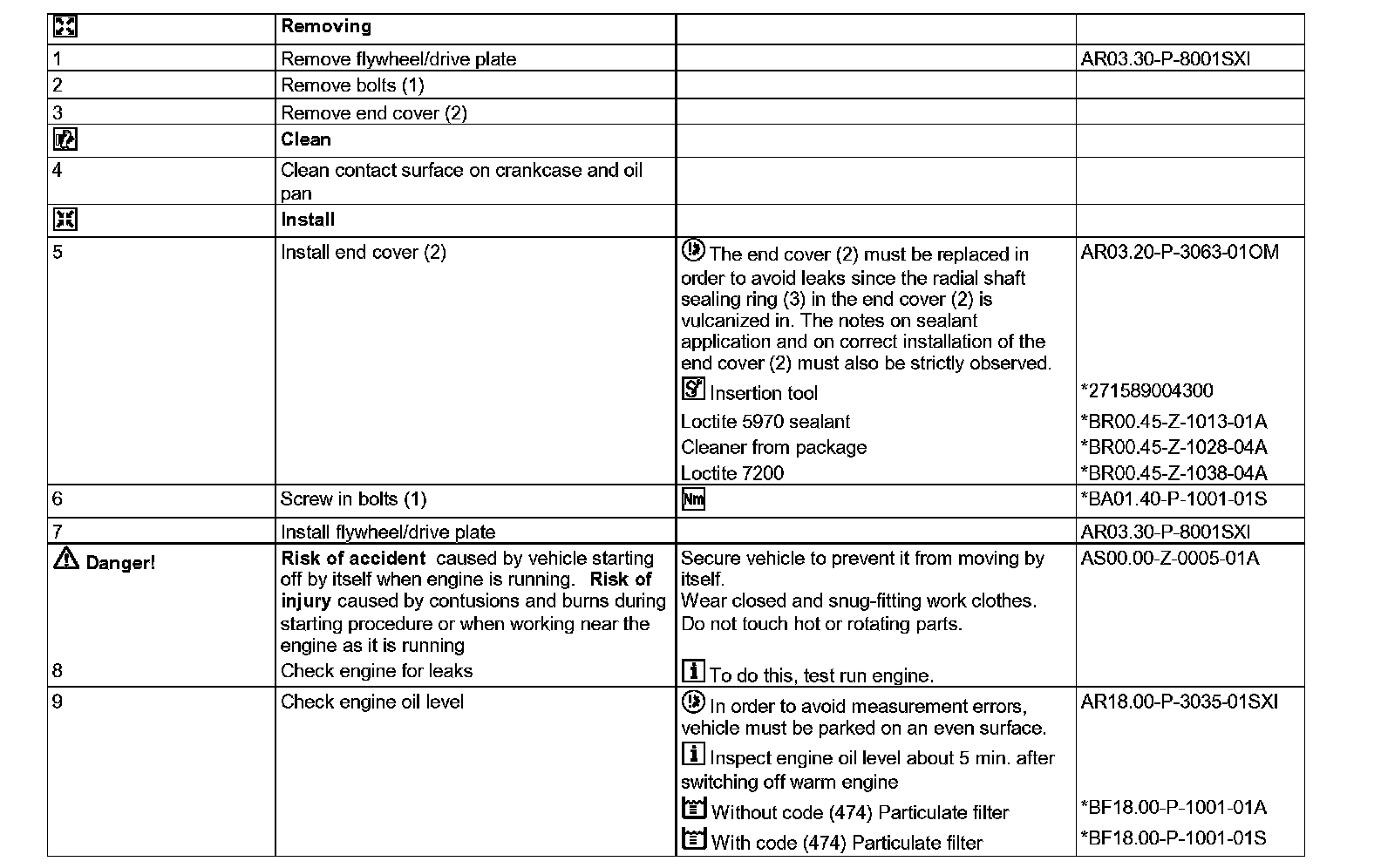

AR01.40-P-8913SXI Remove/Install End Cover

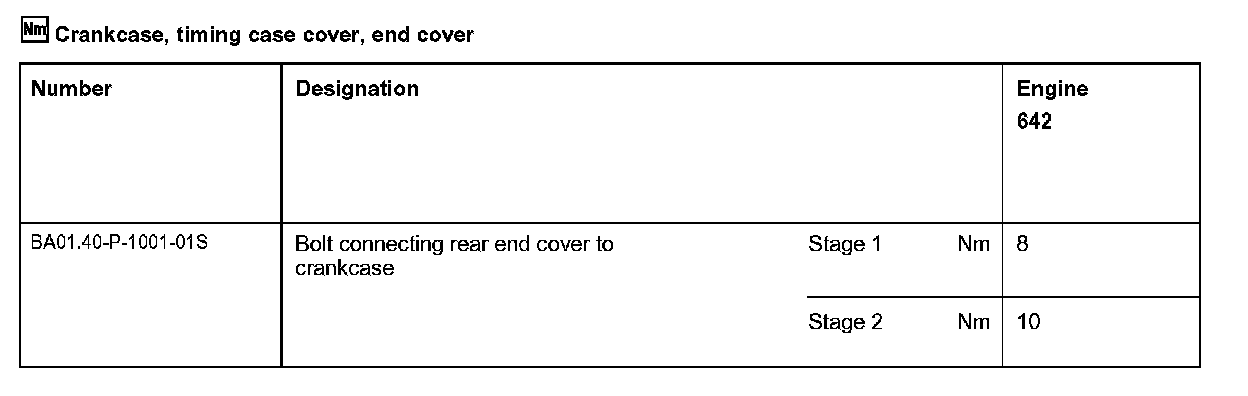

1 Bolts
2 End cover
3 Radial shaft sealing ring

















271 589 00 43 00
Insertion tool
