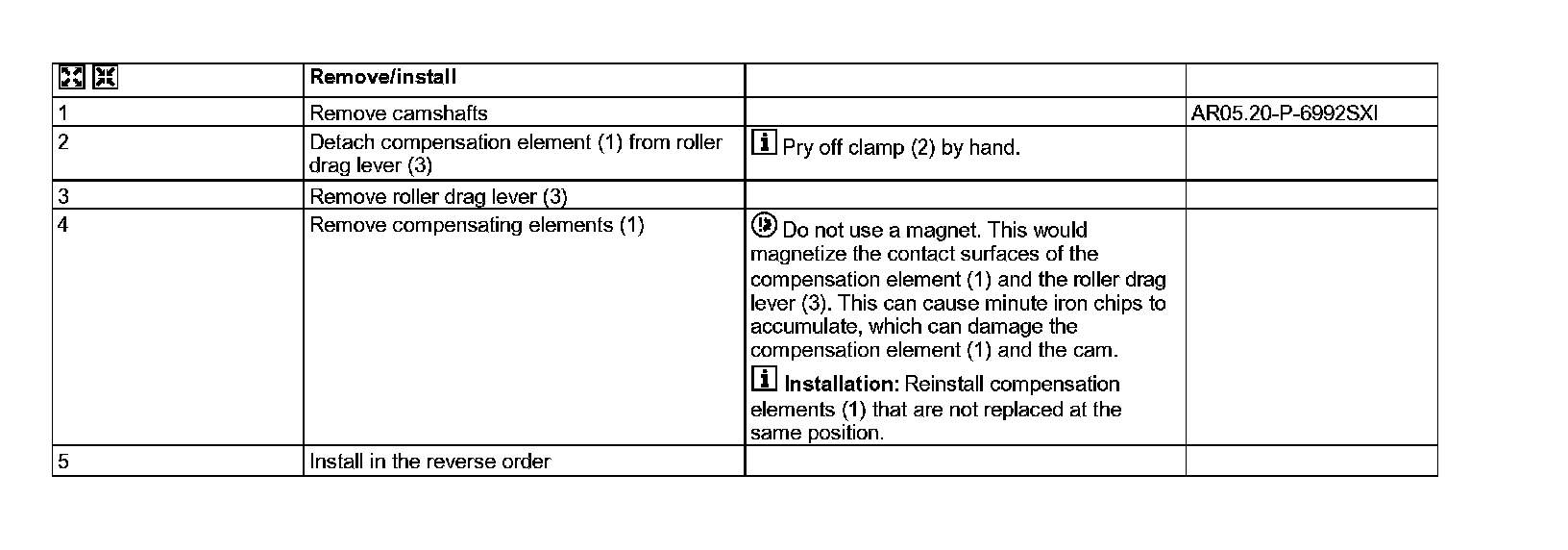

AR05.00-P-2011SXI Remove/Install Hydraulic Valve Clearance Compensating Elements




AR05.00-P-2011SXI Remove/Install Hydraulic Valve Clearance Compensating Elements

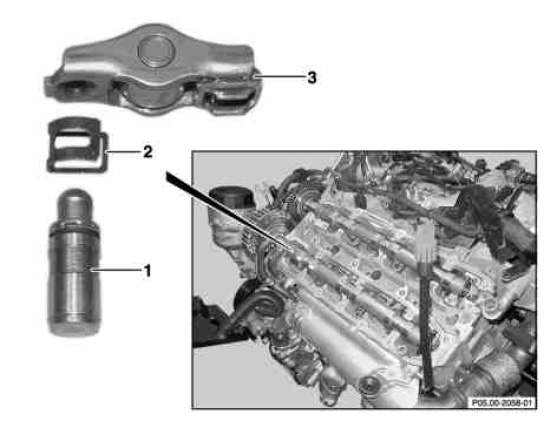

1 Compensating element
2 Clamp
3 Roller-type cam follower
