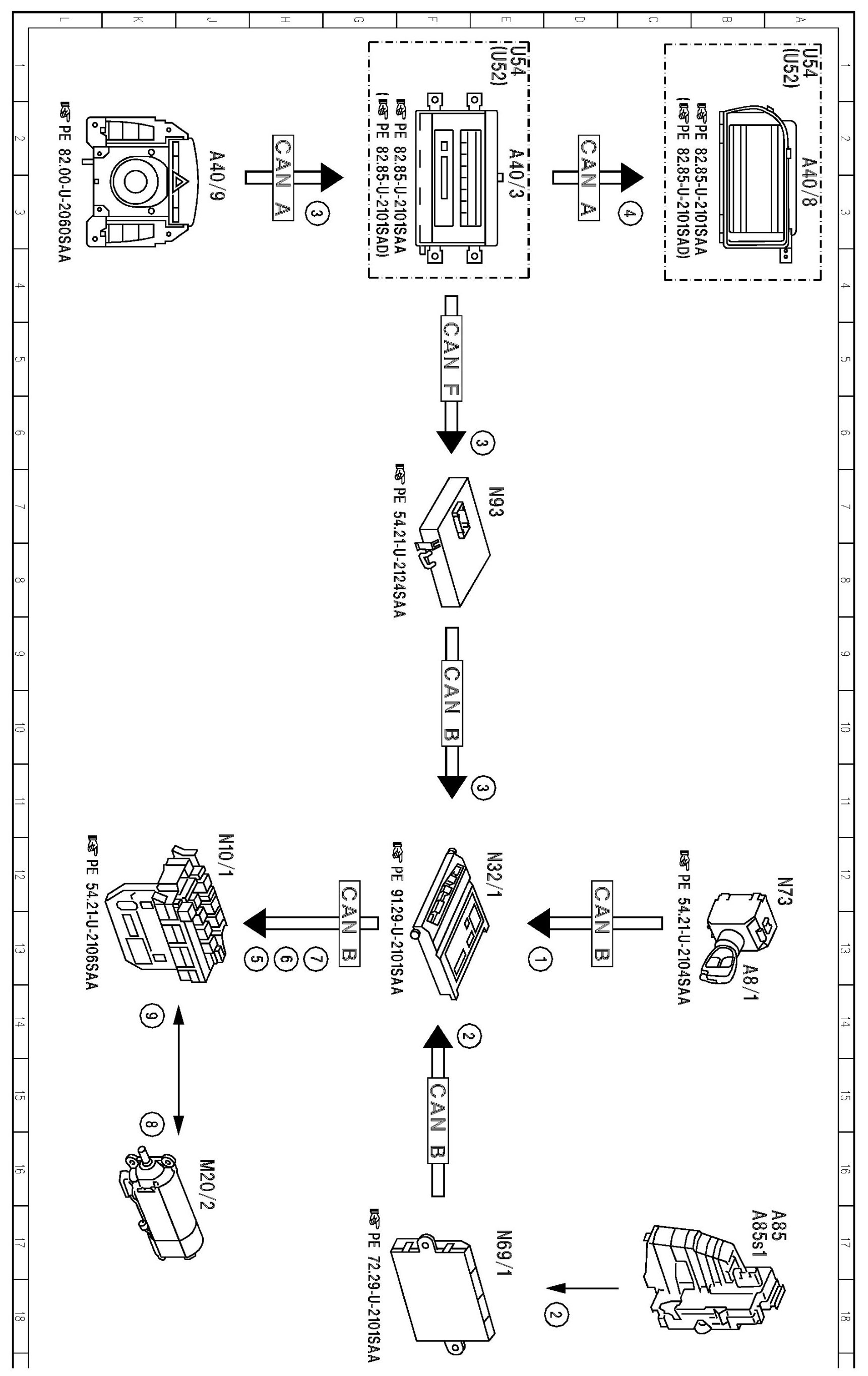

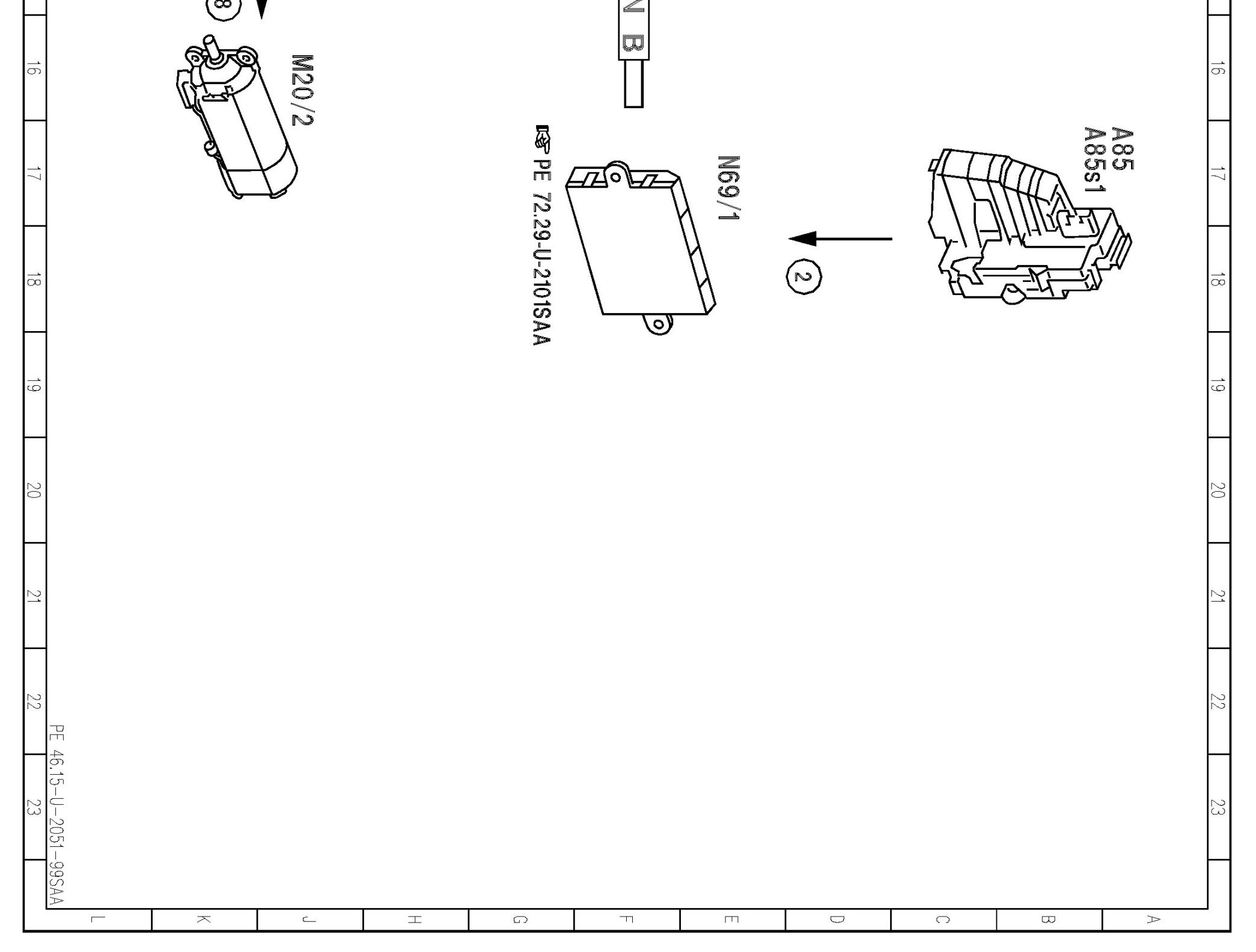

PE46.15-U-2051SAA Electrical Function Schematic For Steering Column Easy Entry/Exit Adjustment

PE46.15-U-2051SAA Electrical Function Schematic For Steering Column Easy Entry/Exit Adjustment

MODEL 221
- with CODE (275) Memory package (driver seat, steering column, mirrors)
- as of Model Year 2009

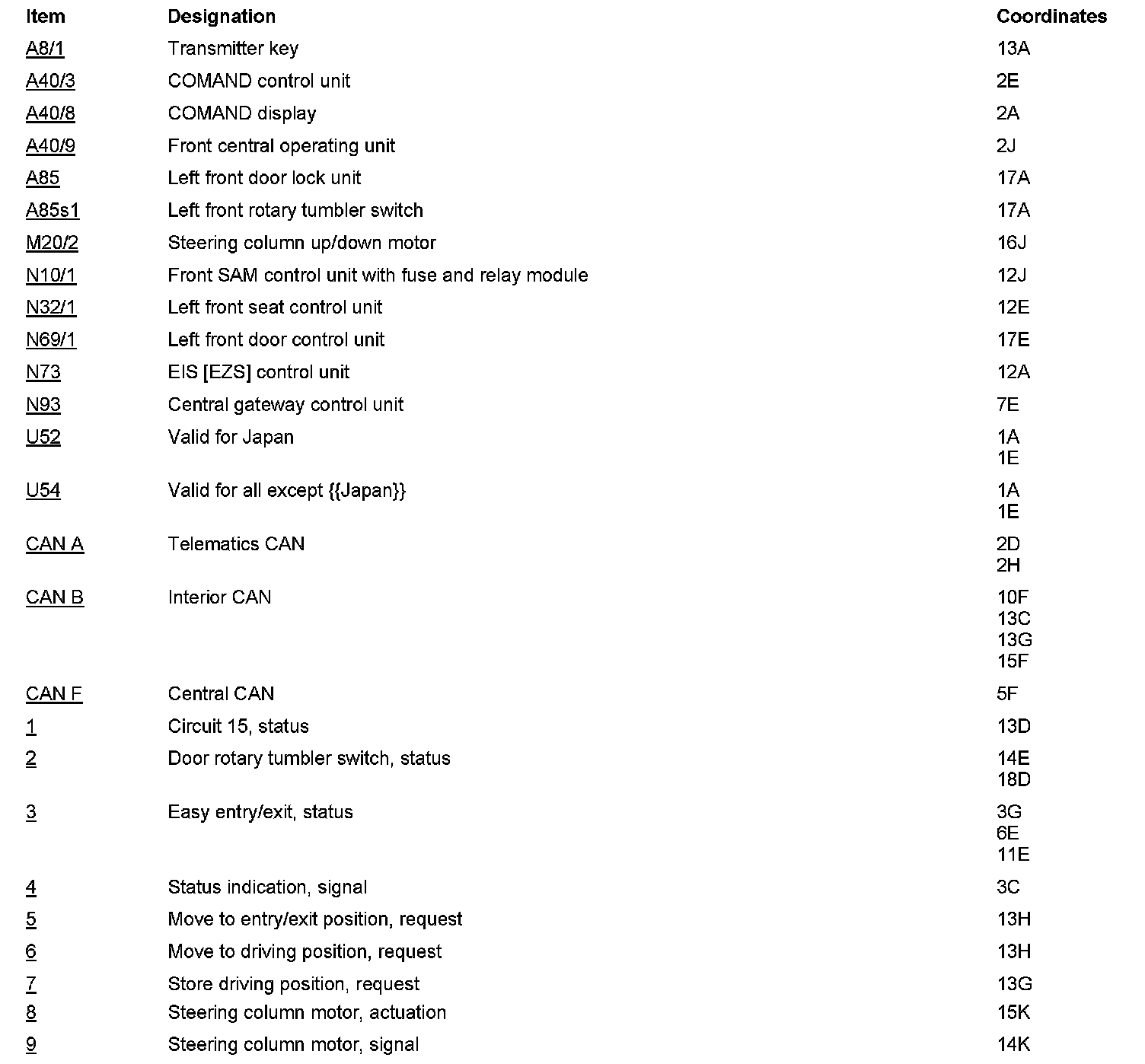

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
