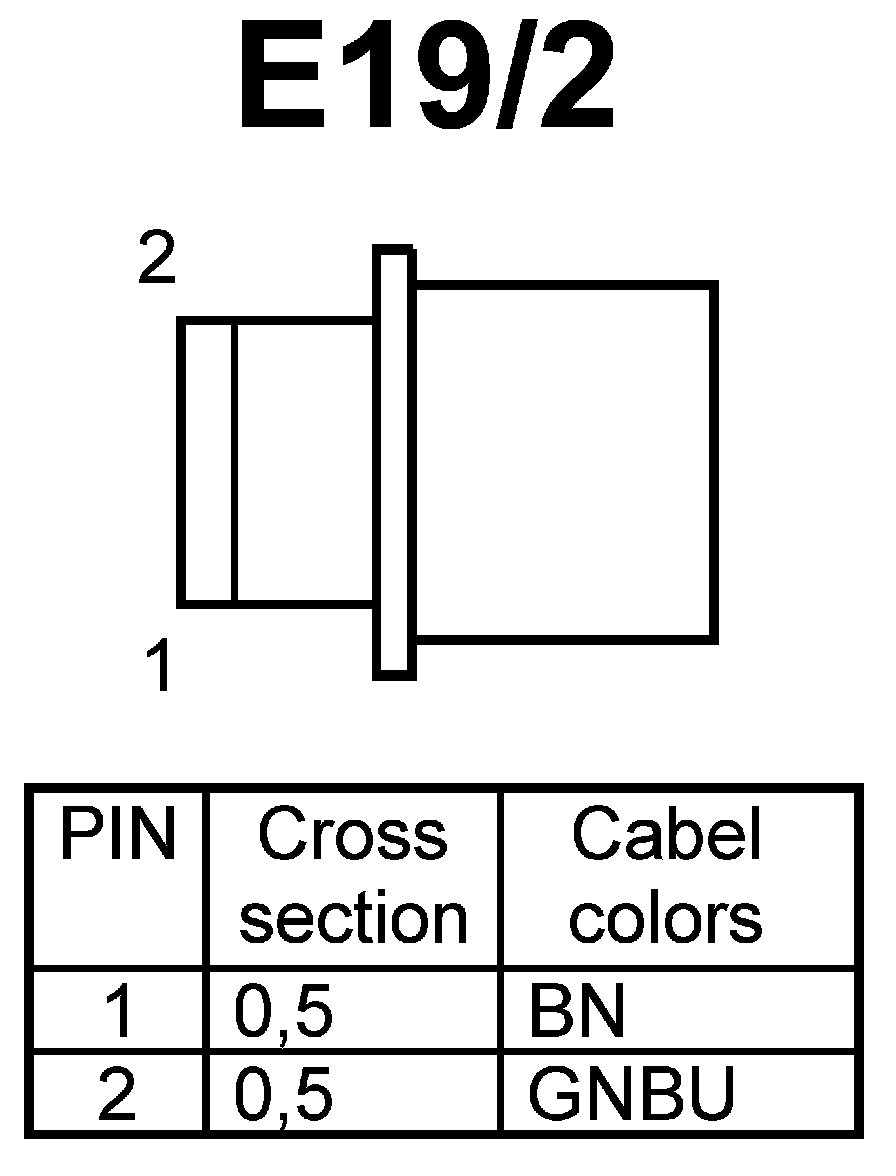

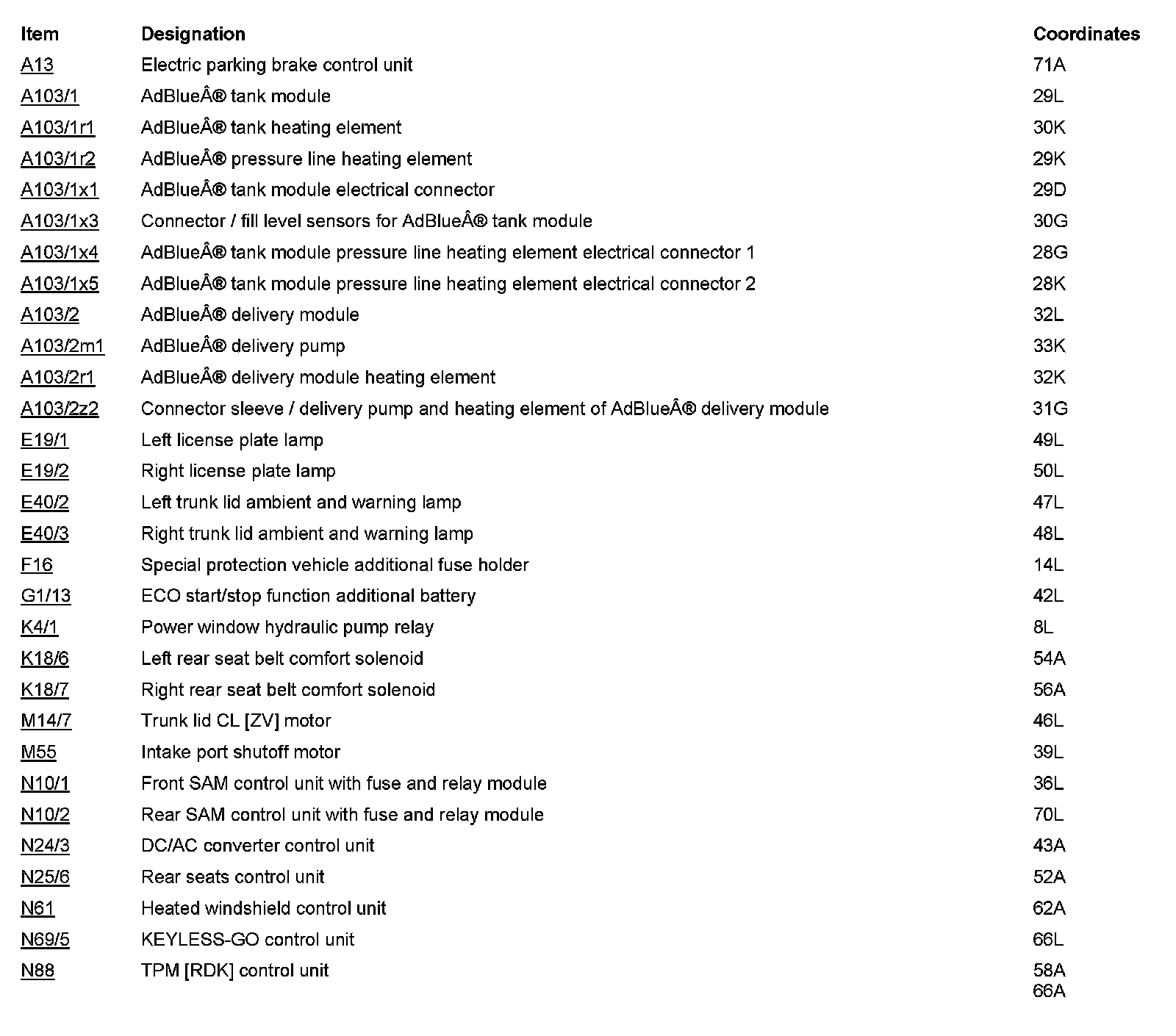

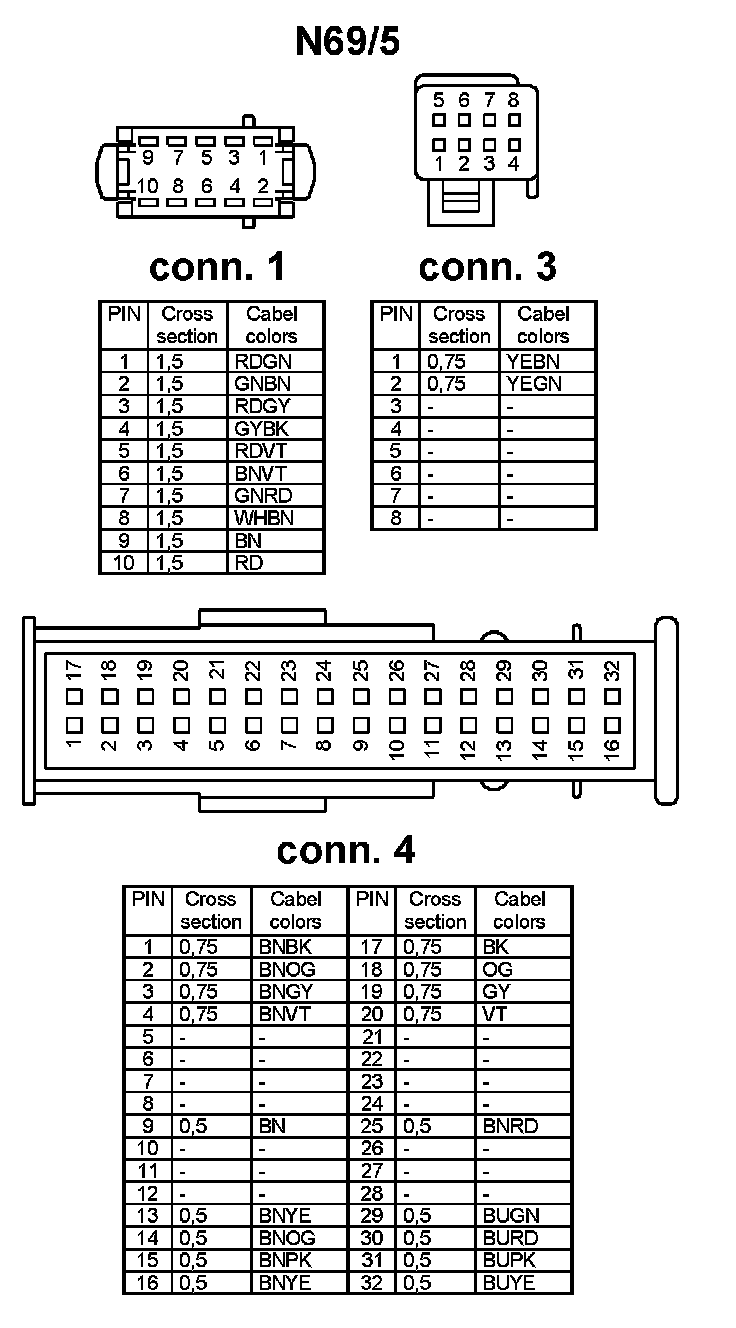

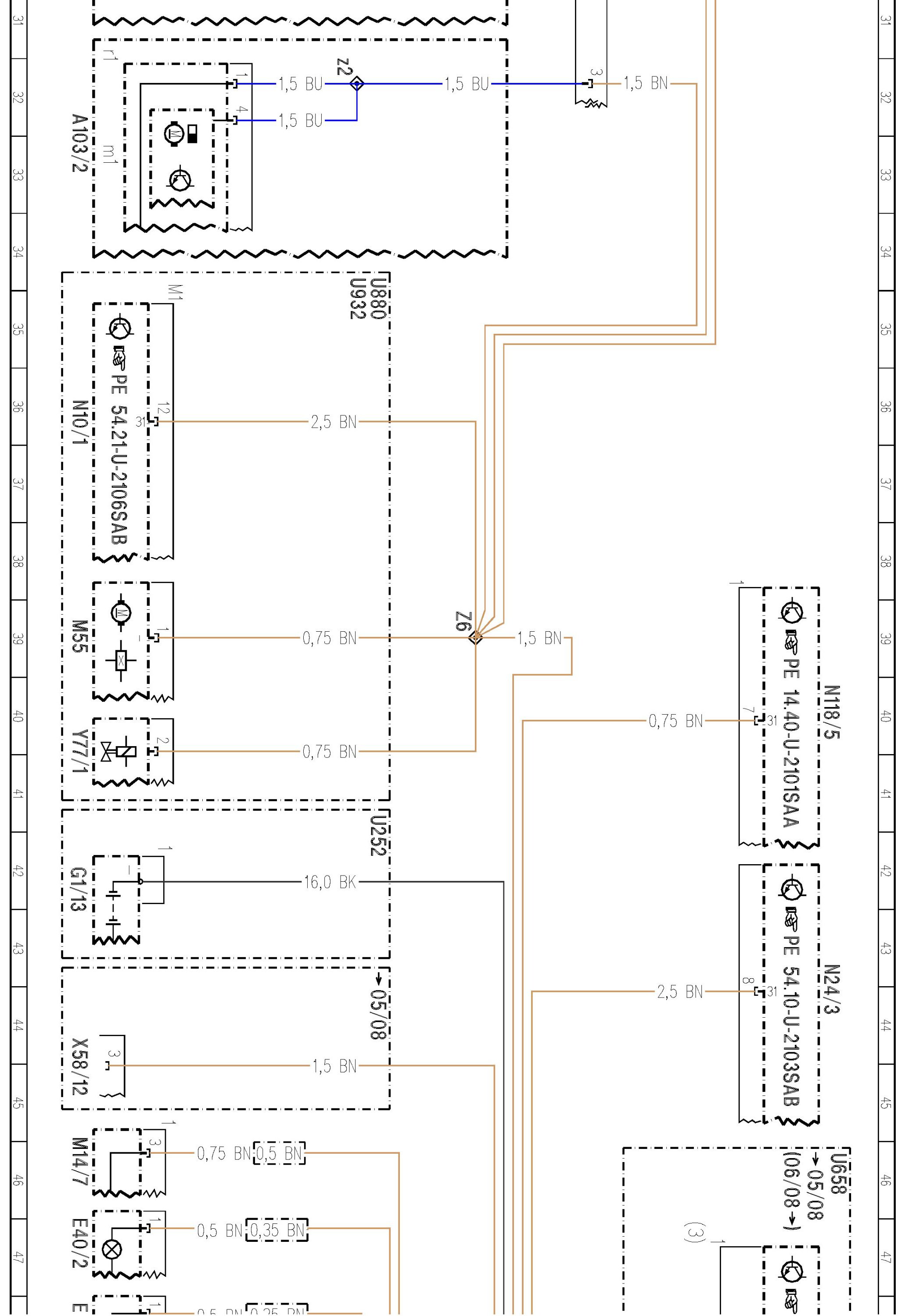

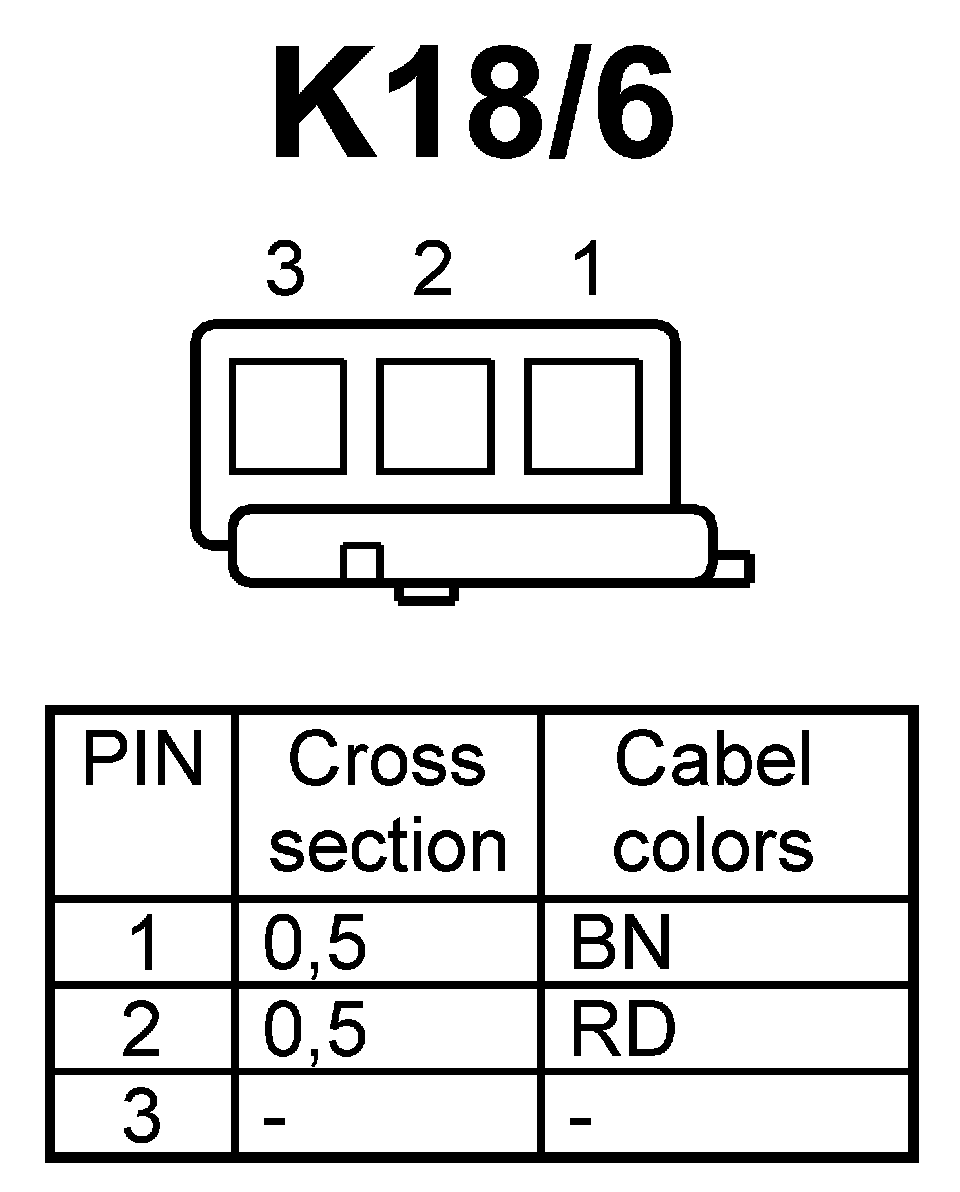

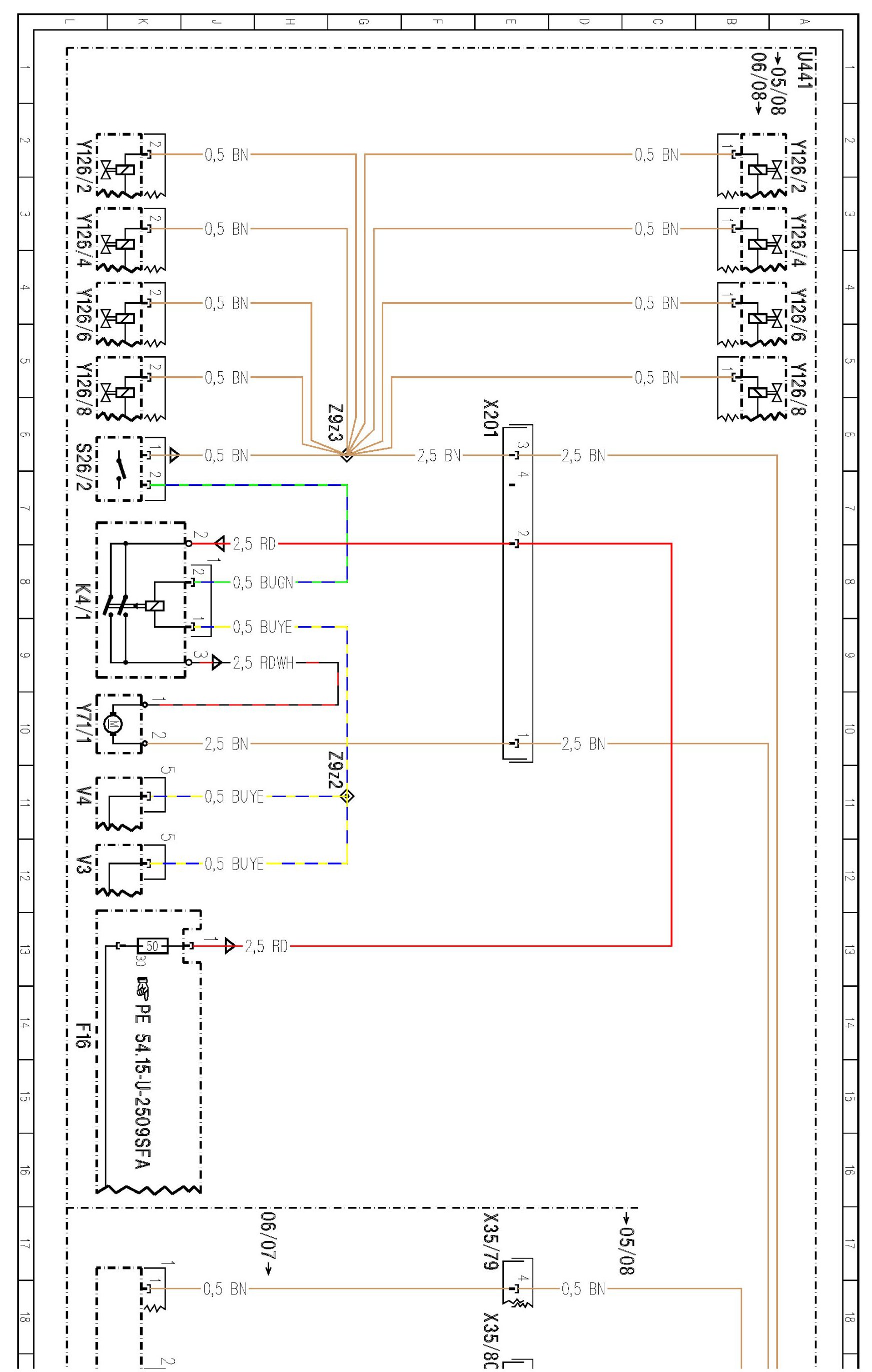

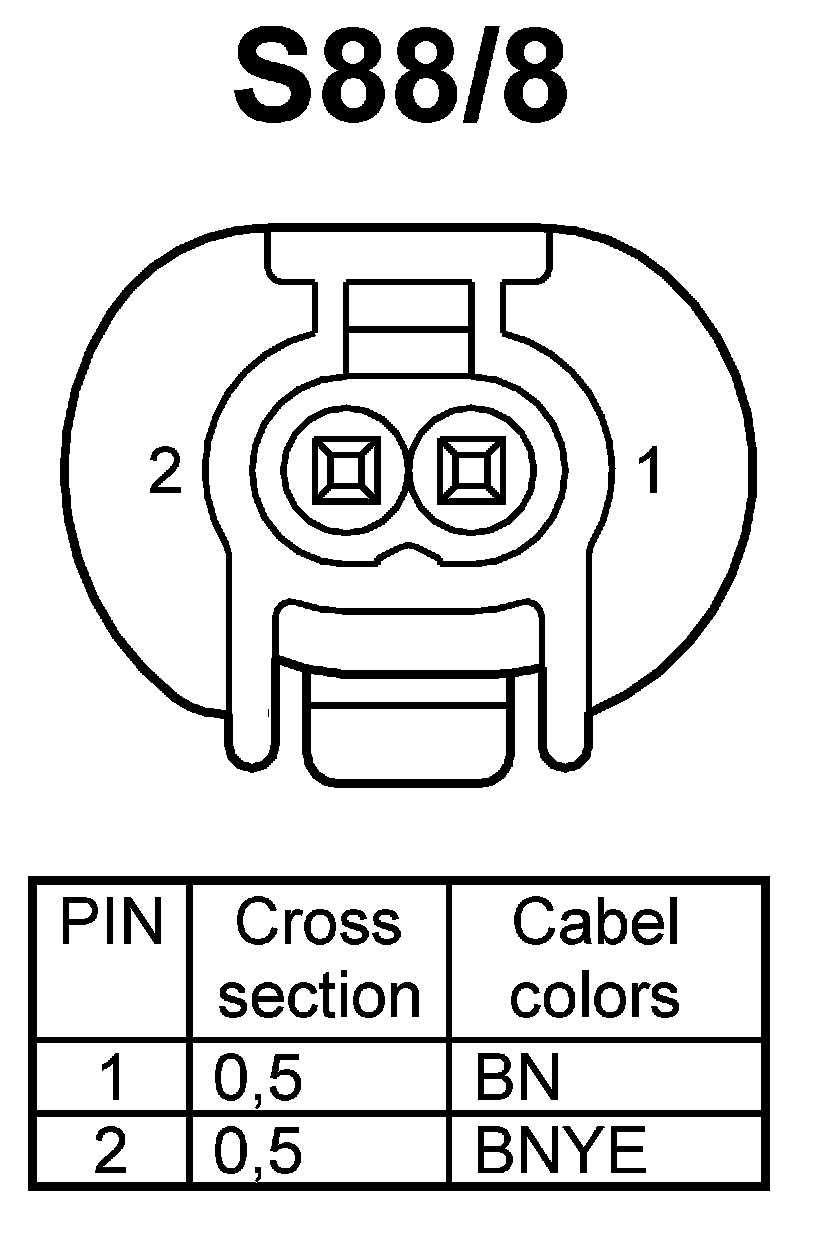

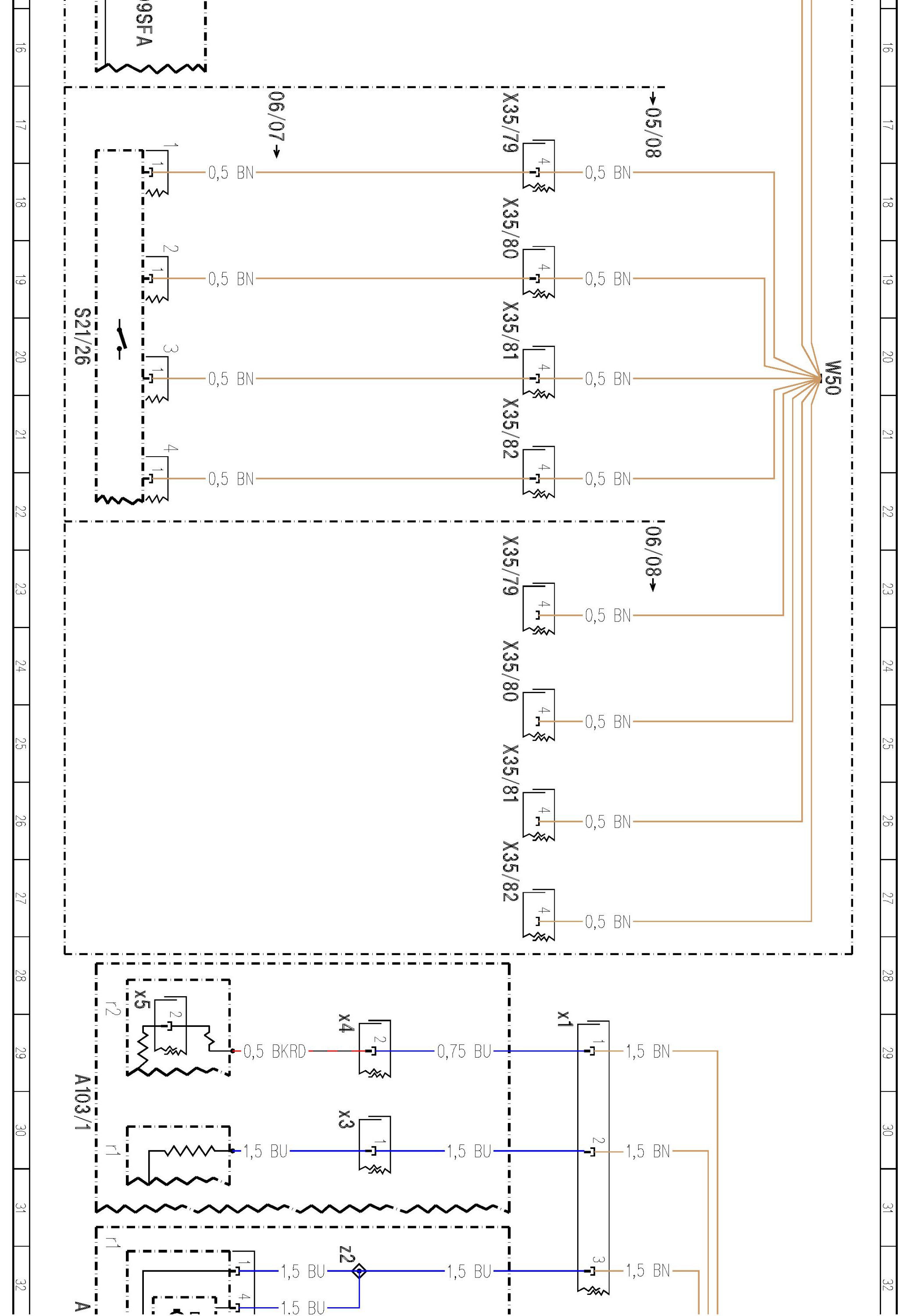

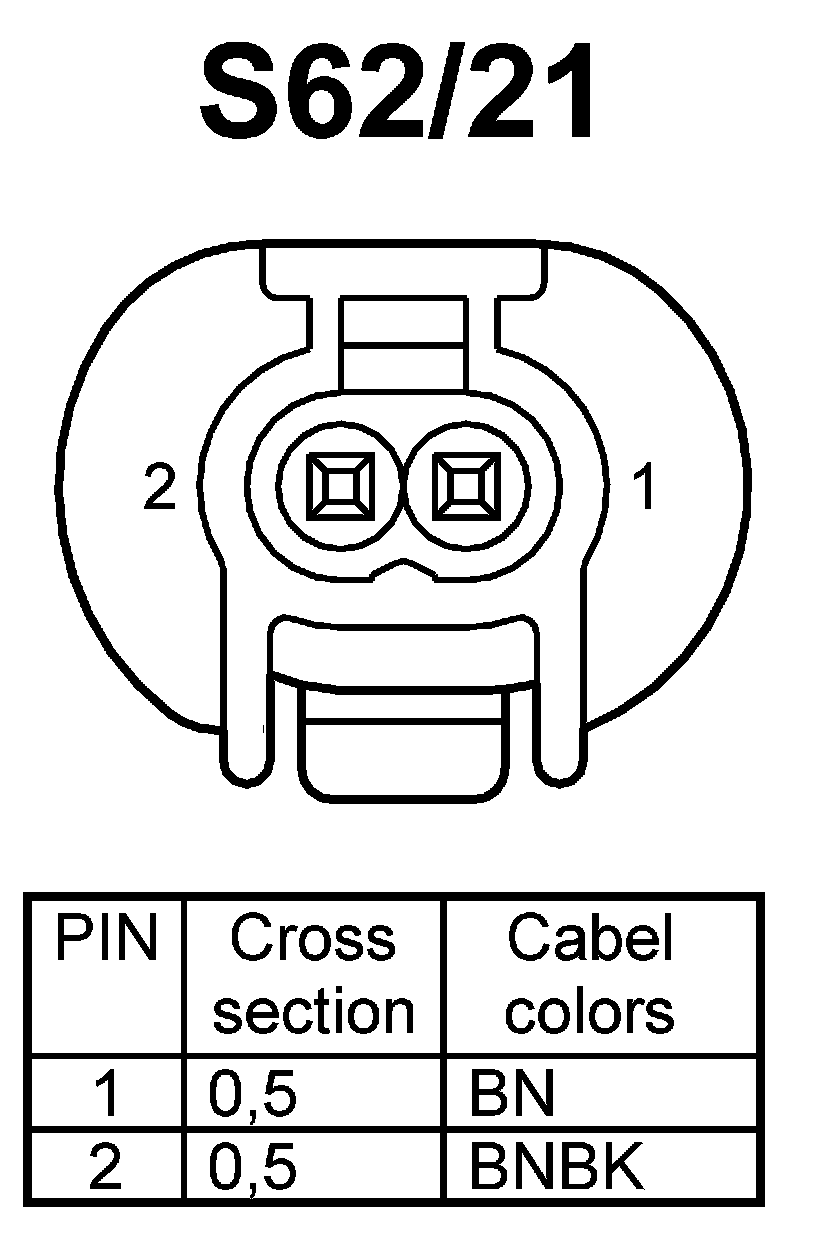

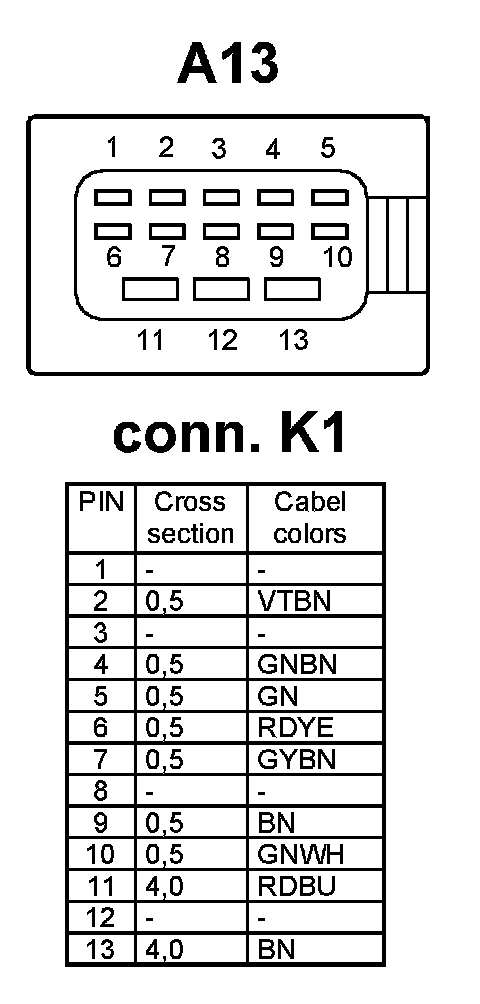

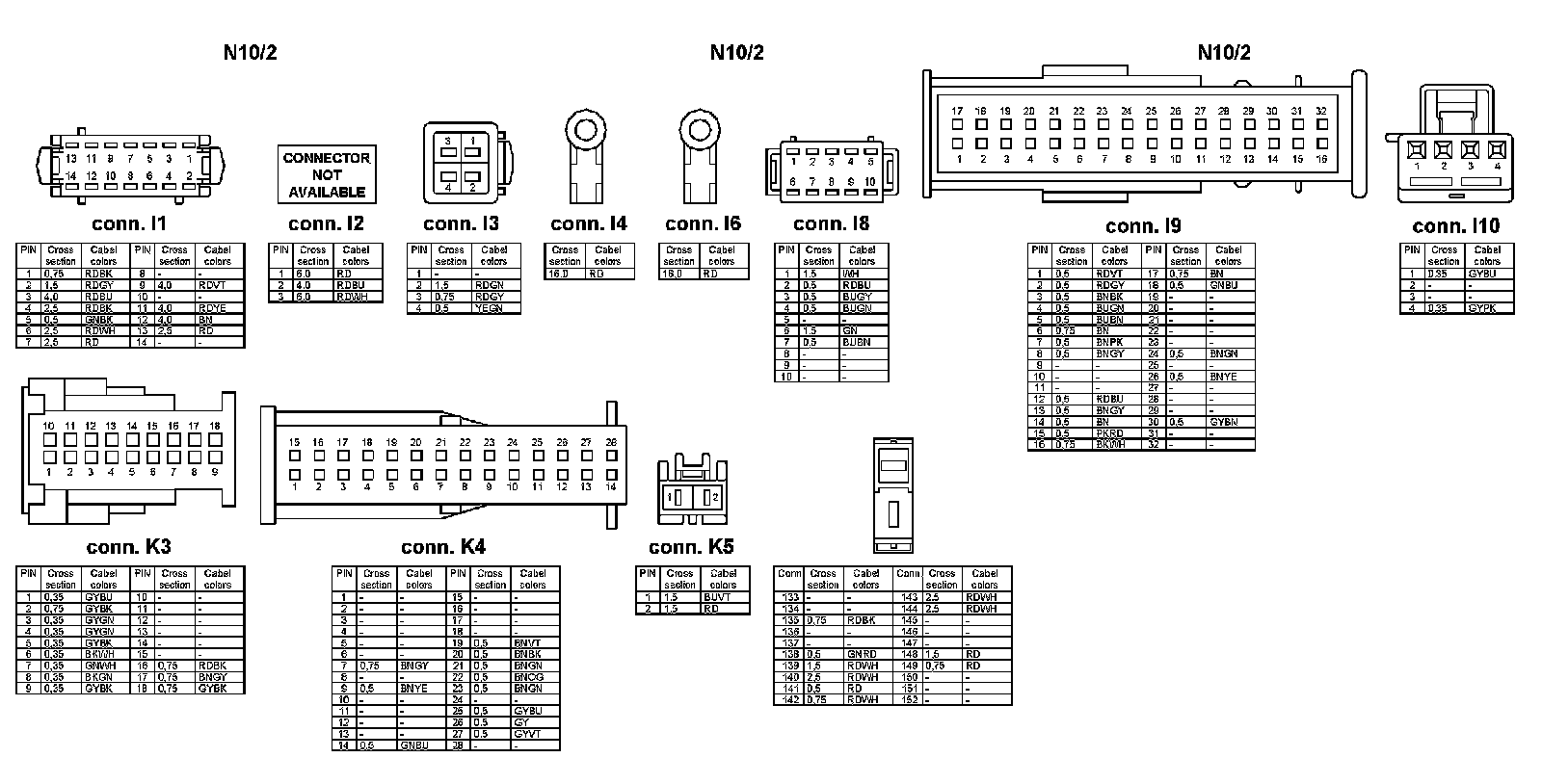

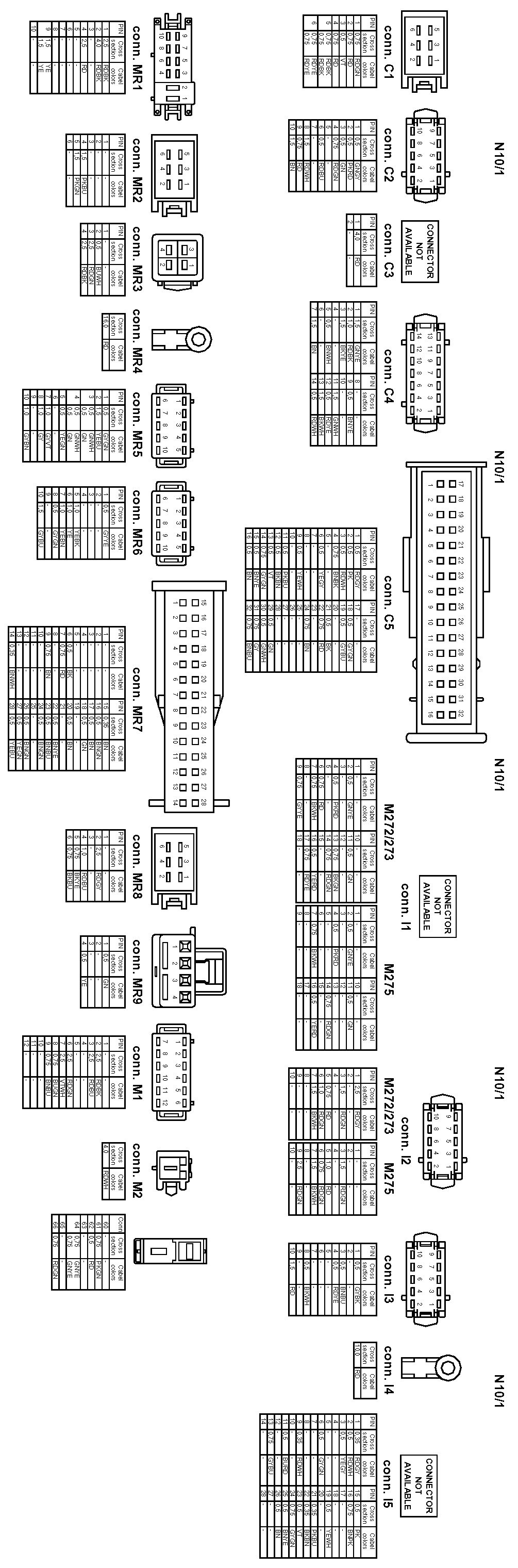

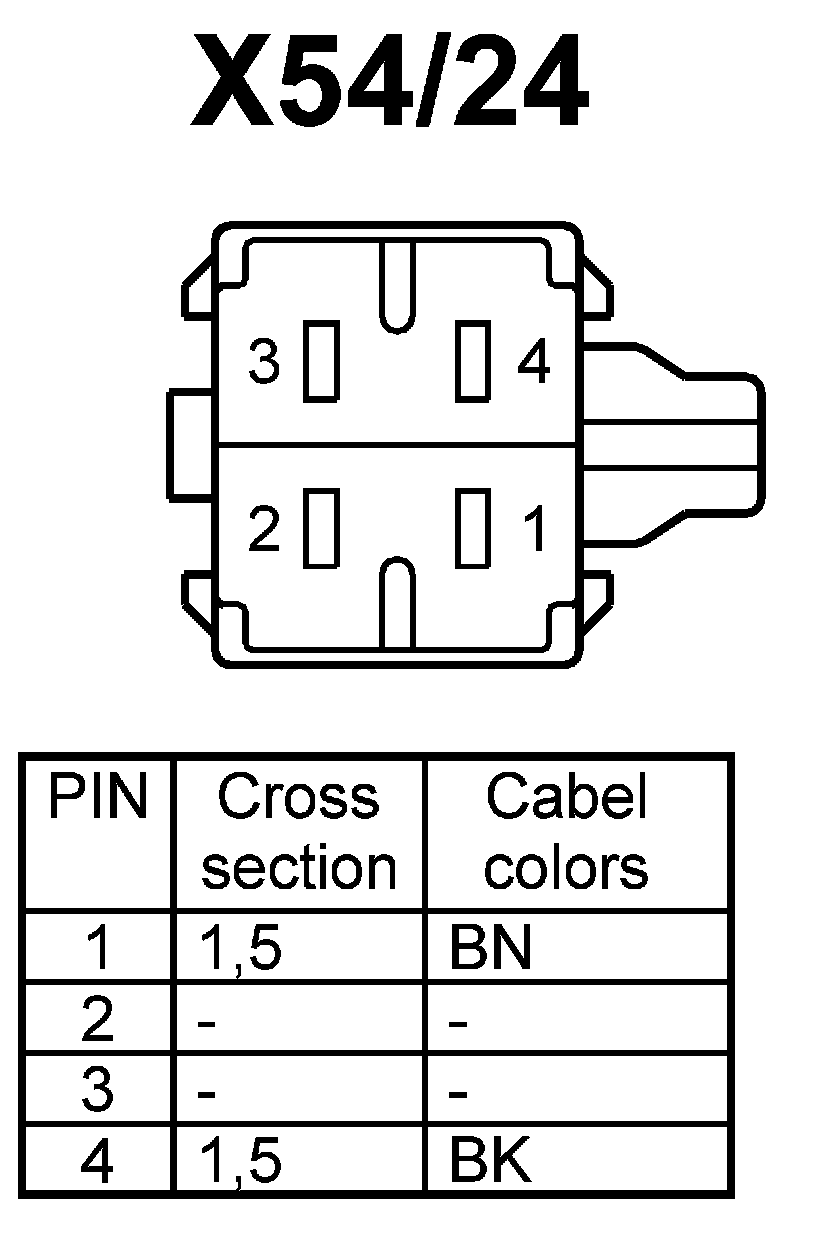

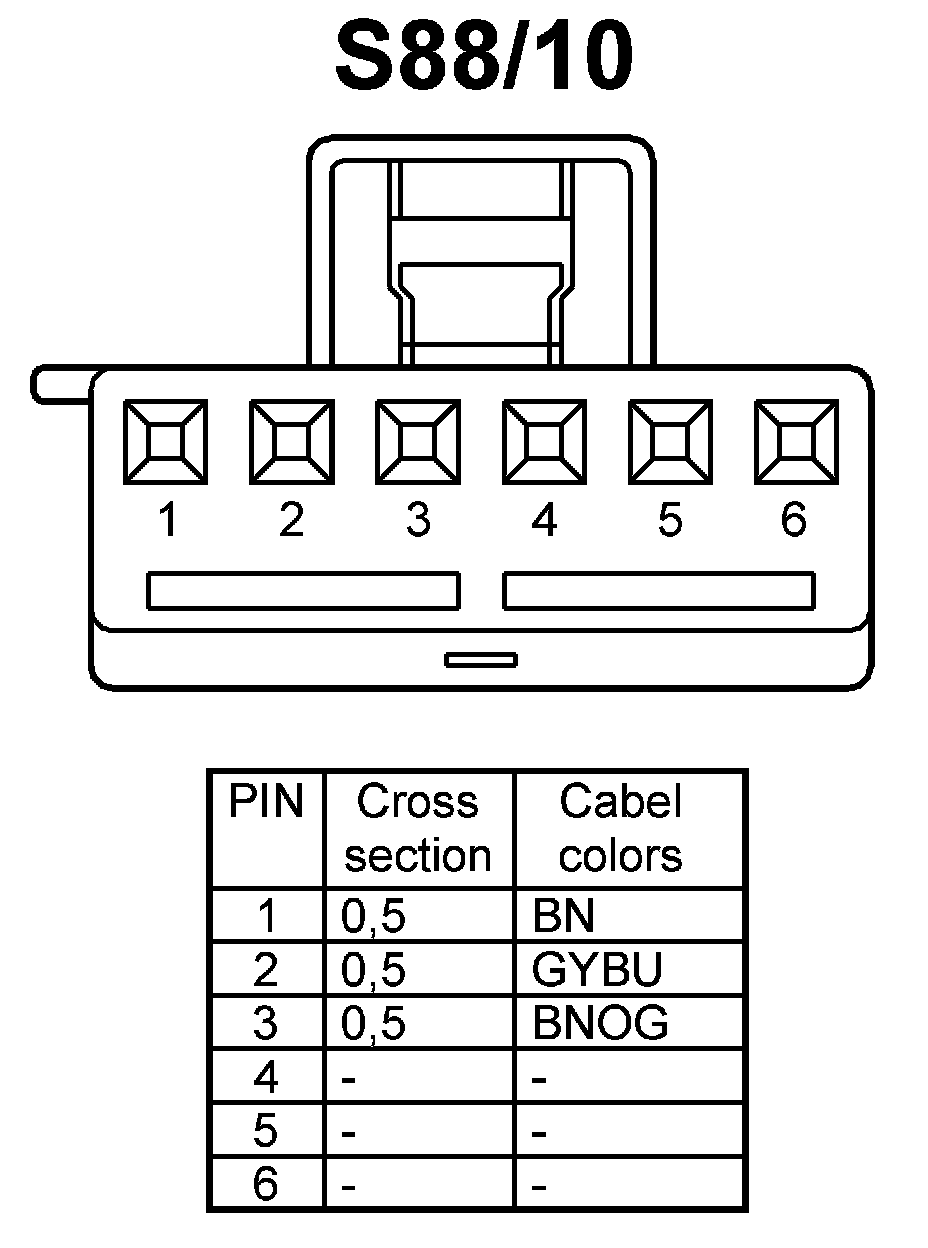

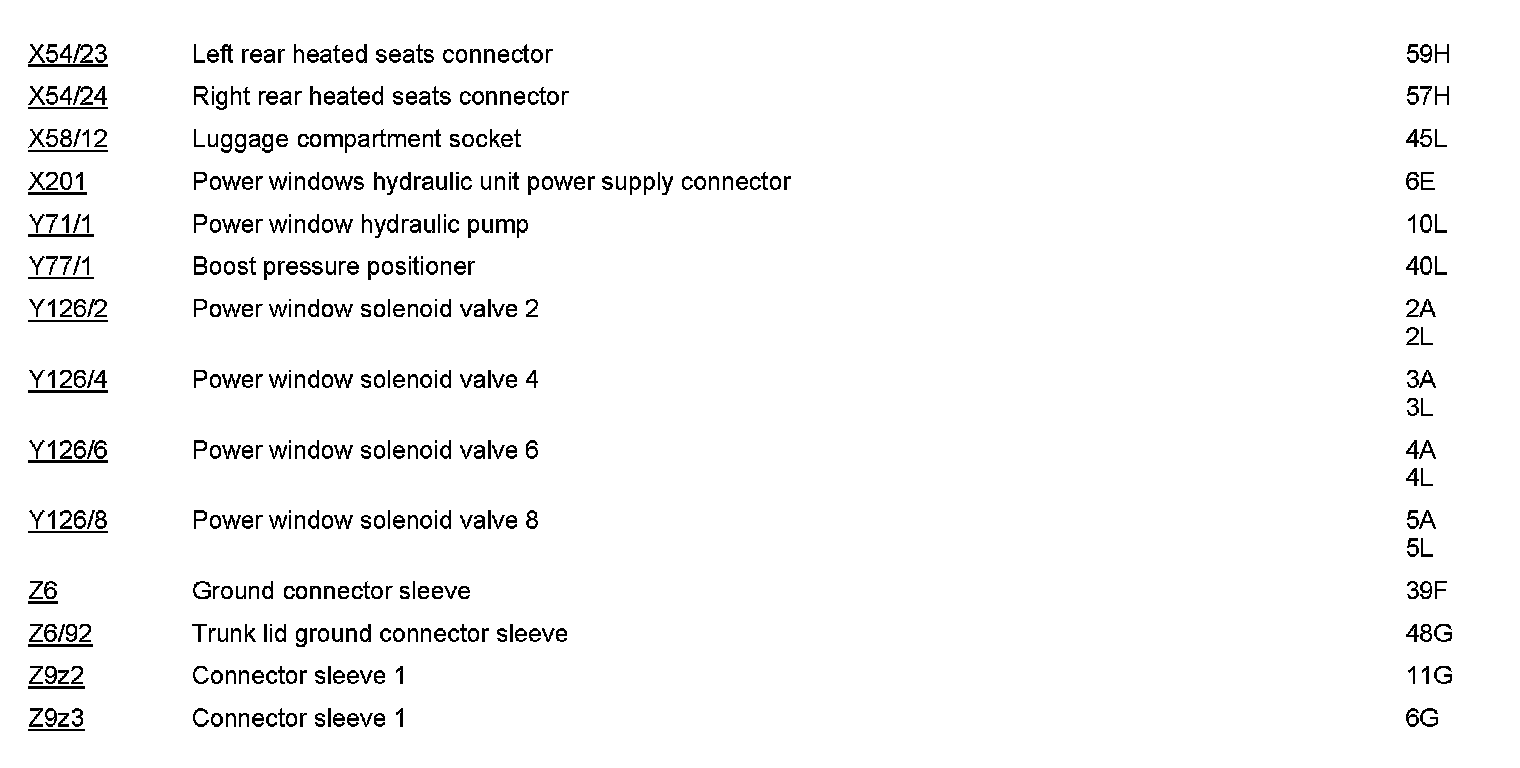

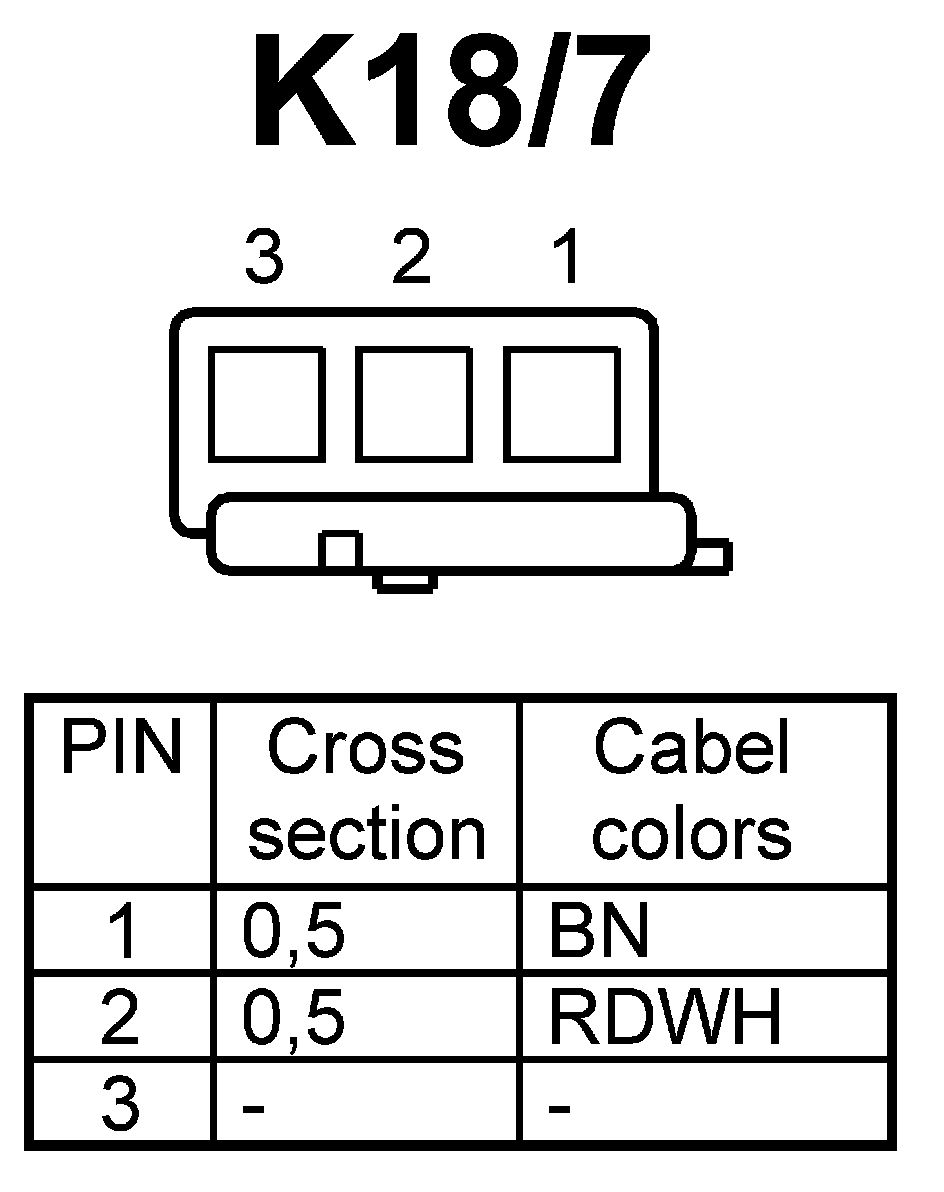

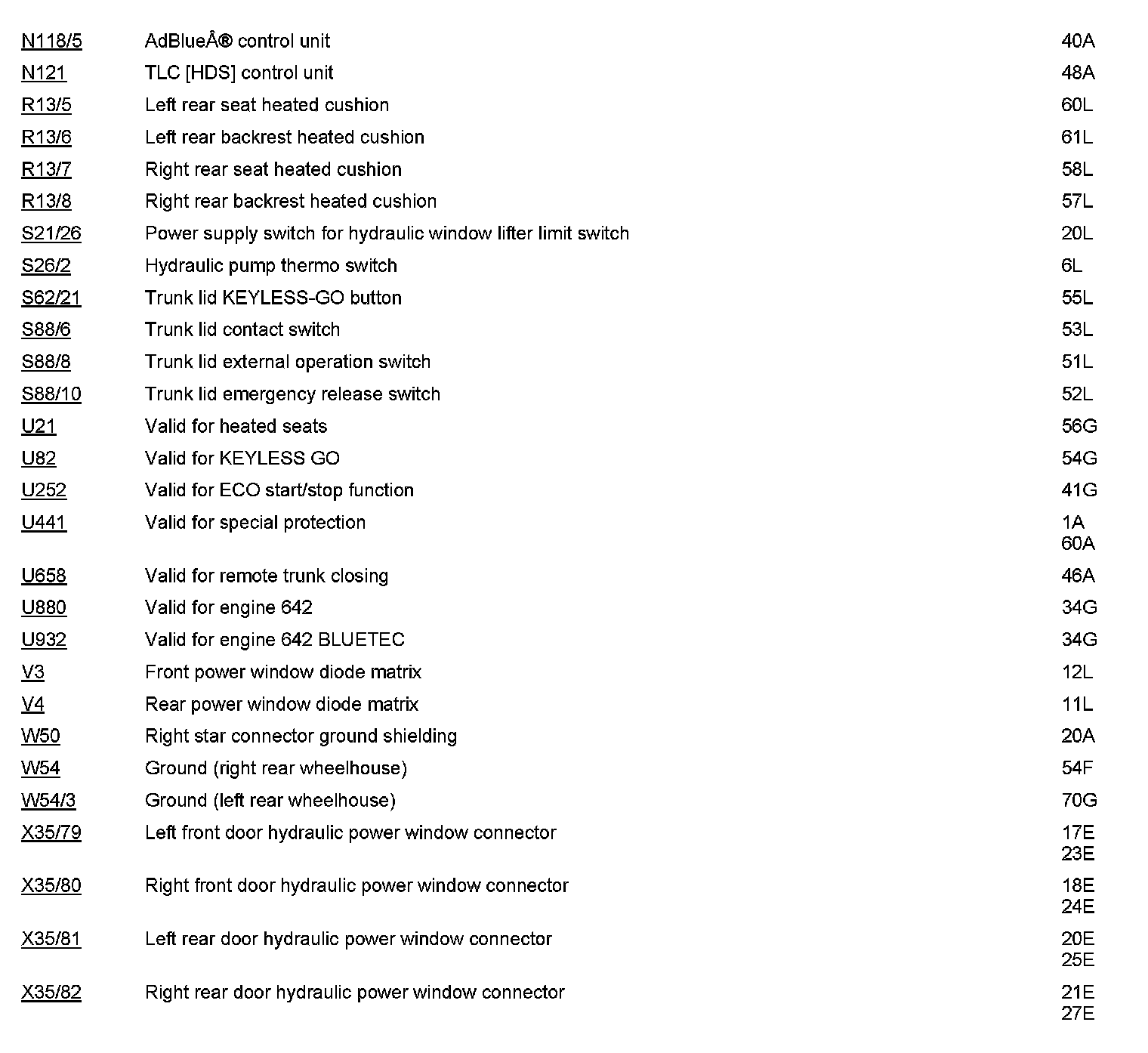

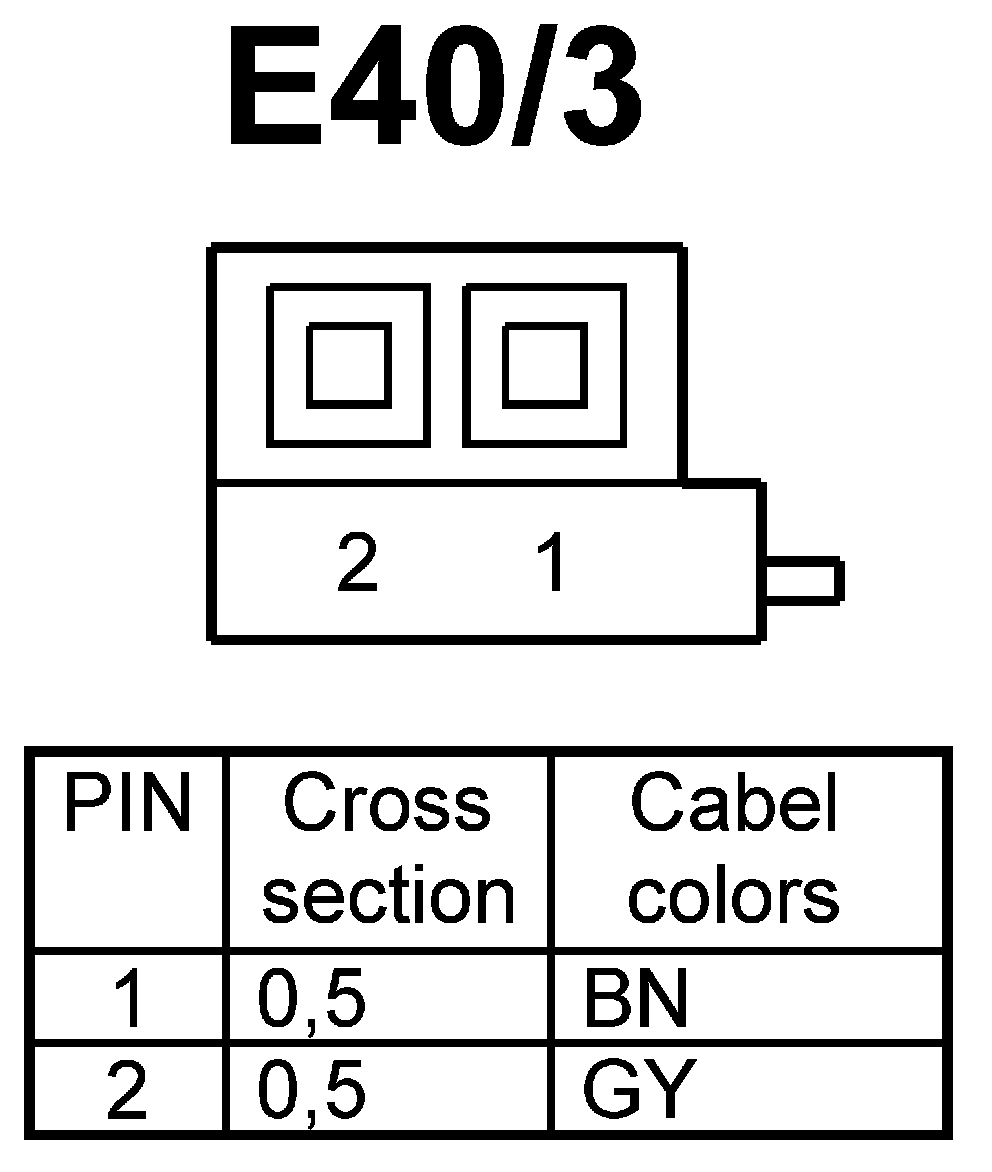

PE00.19-U-2800SAF Ground Wiring



PE00.19-U-2800SAF Ground Wiring

MODEL 221
- W50, W54, W54/3, sheet 6















































































































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
