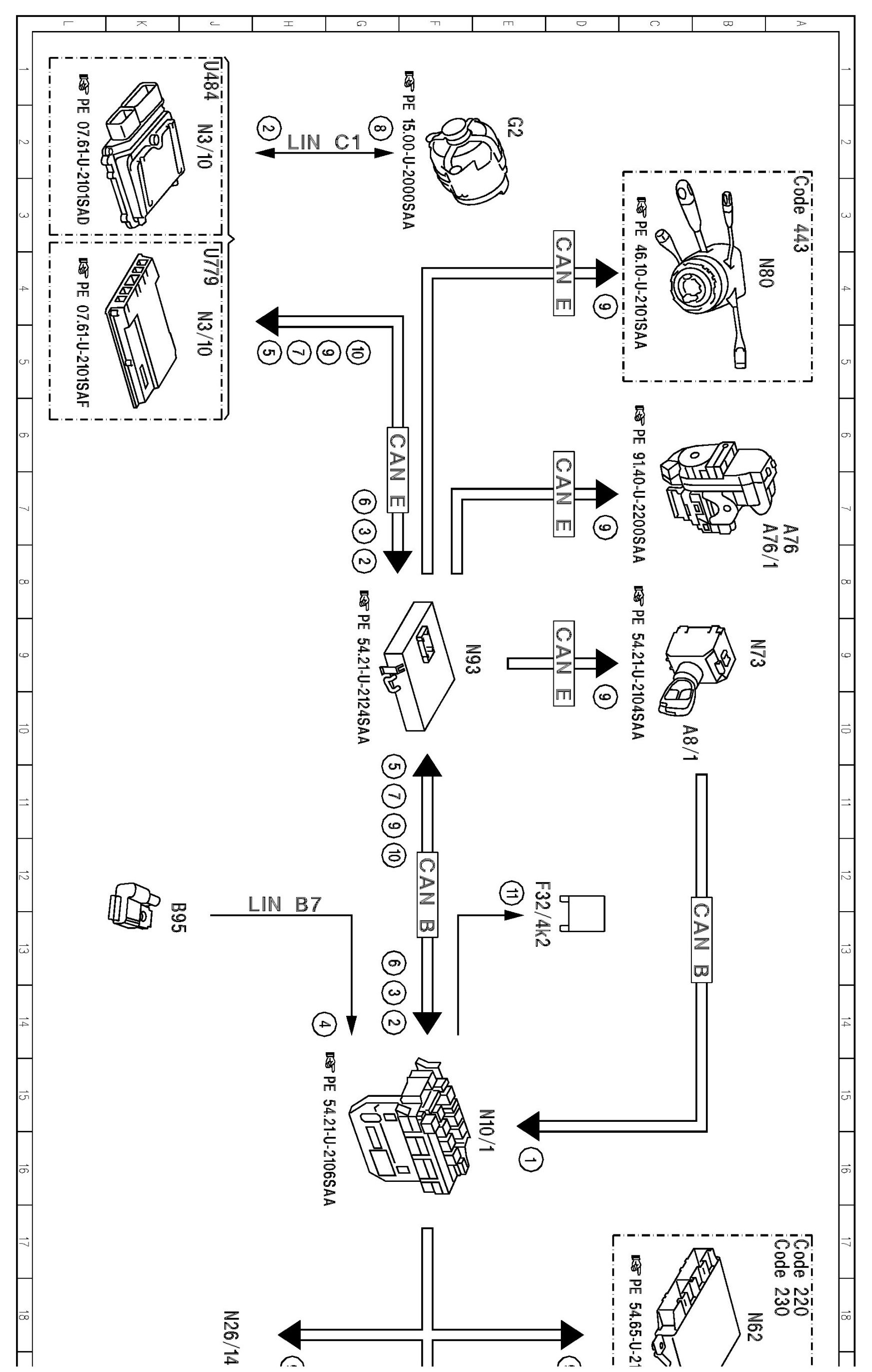

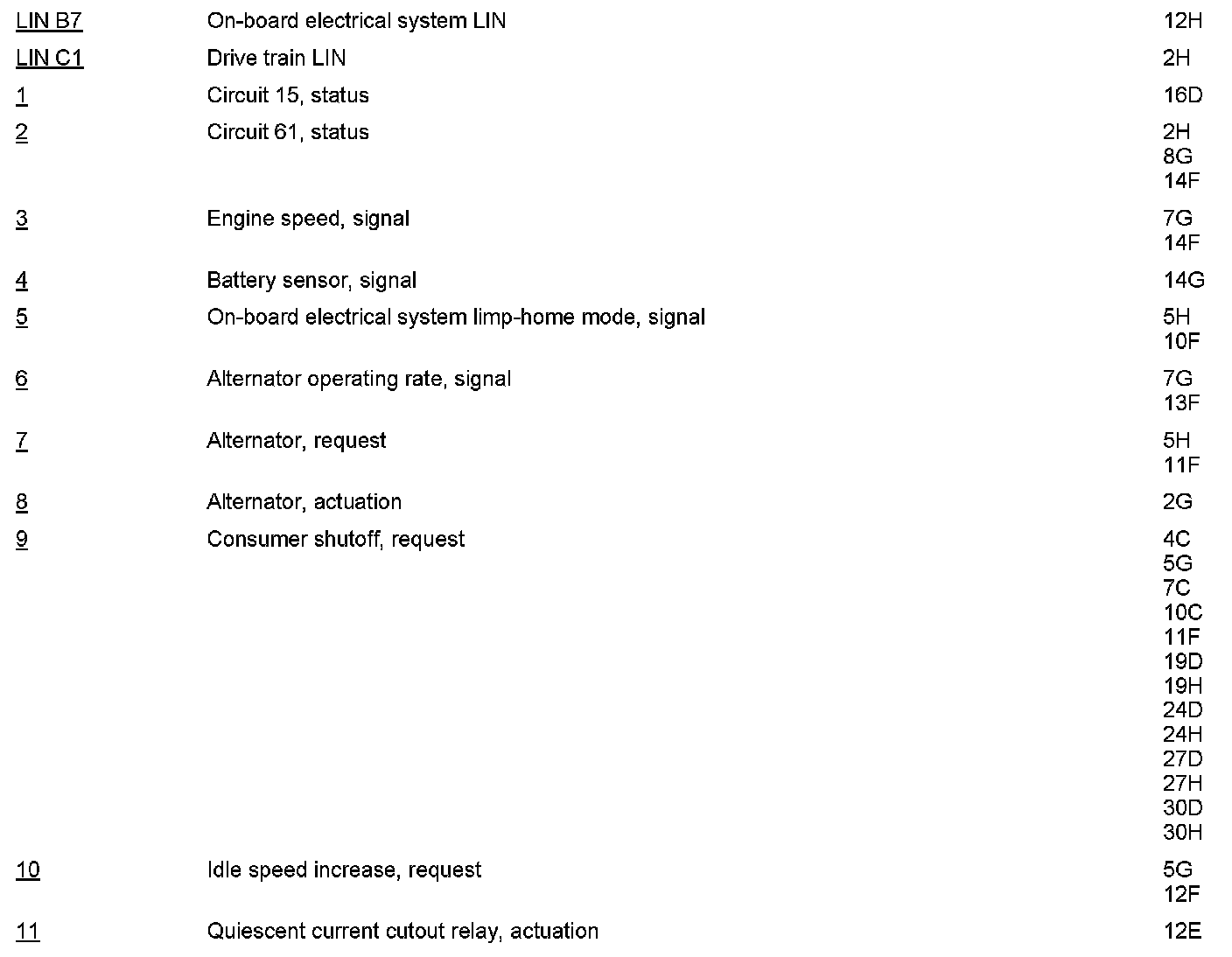

PE54.10-U-2052SAA Electrical Function Diagram For ON-Board Electrical System Control

PE54.10-U-2052SAA Electrical Function Diagram For On-Board Electrical System Control

MODEL 221
- as of Model Year 2009











































































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
