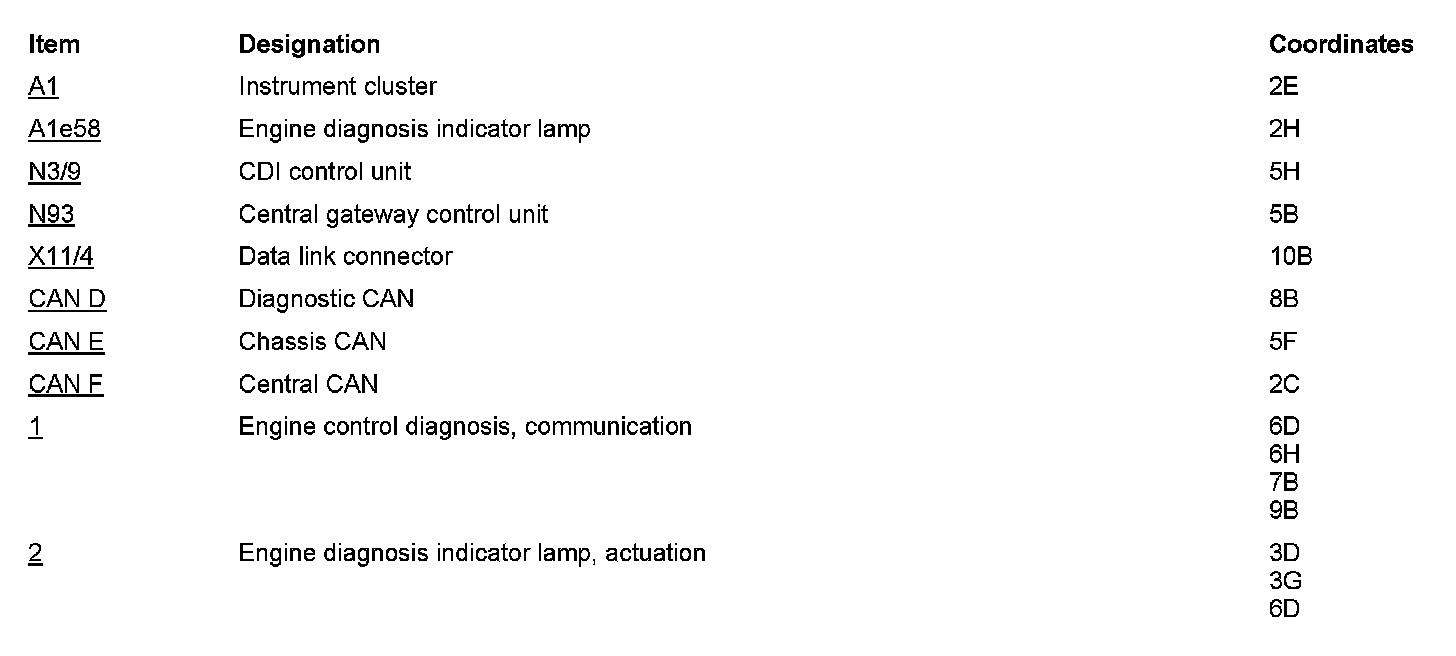

PE07.10-U-2720SAE Electrical Function Schematic For On-Board Diagnosis

PE07.10-U-2720SAE Electrical Function Schematic For On-Board Diagnosis

ENGINE 642.8 in MODEL 221























Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
