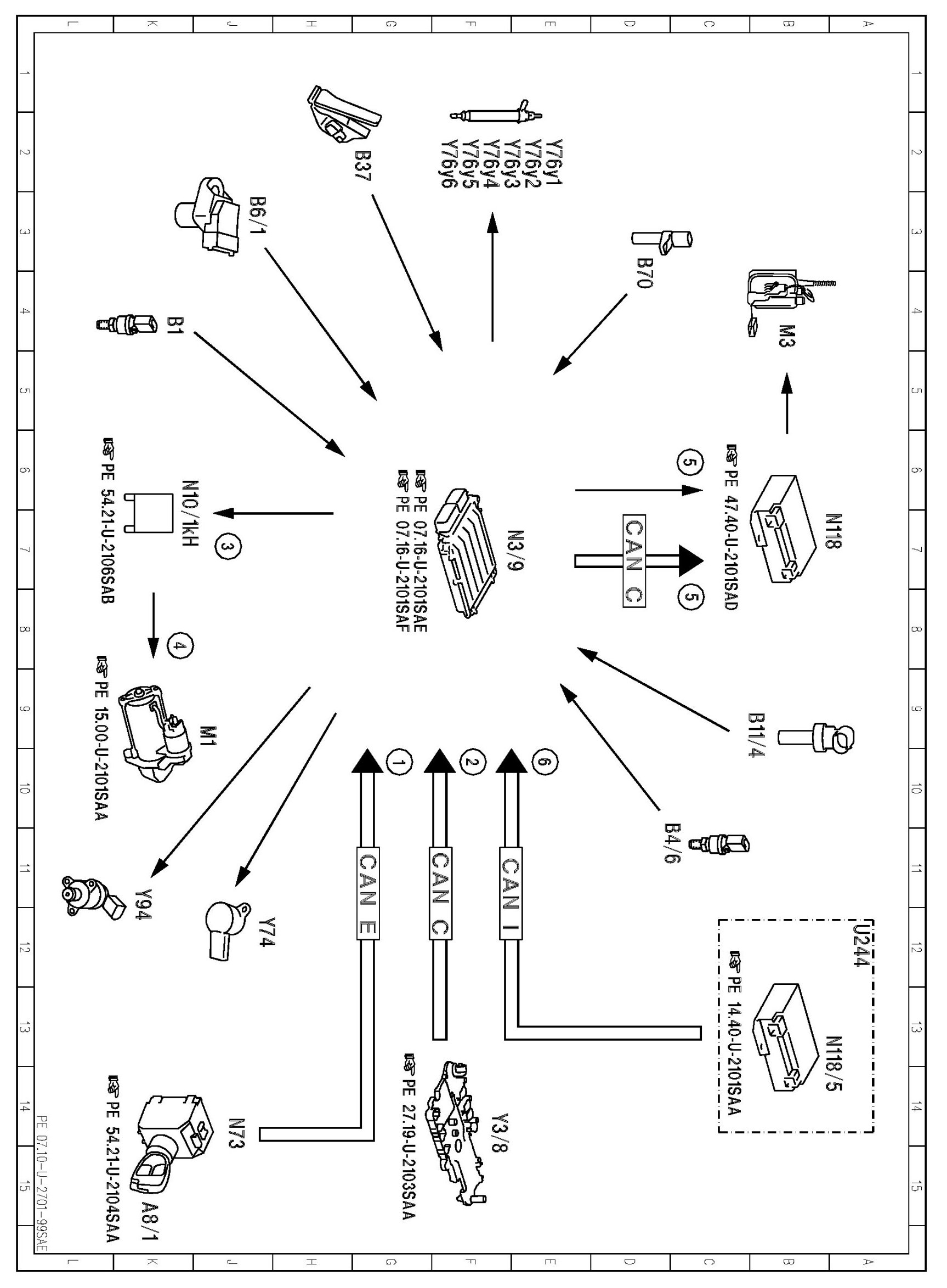

PE07.10-U-2701SAE Electrical Function Schematic For Starting

PE07.10-U-2701SAE Electrical Function Schematic For Starting

ENGINE 642.8 in MODEL 221































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
