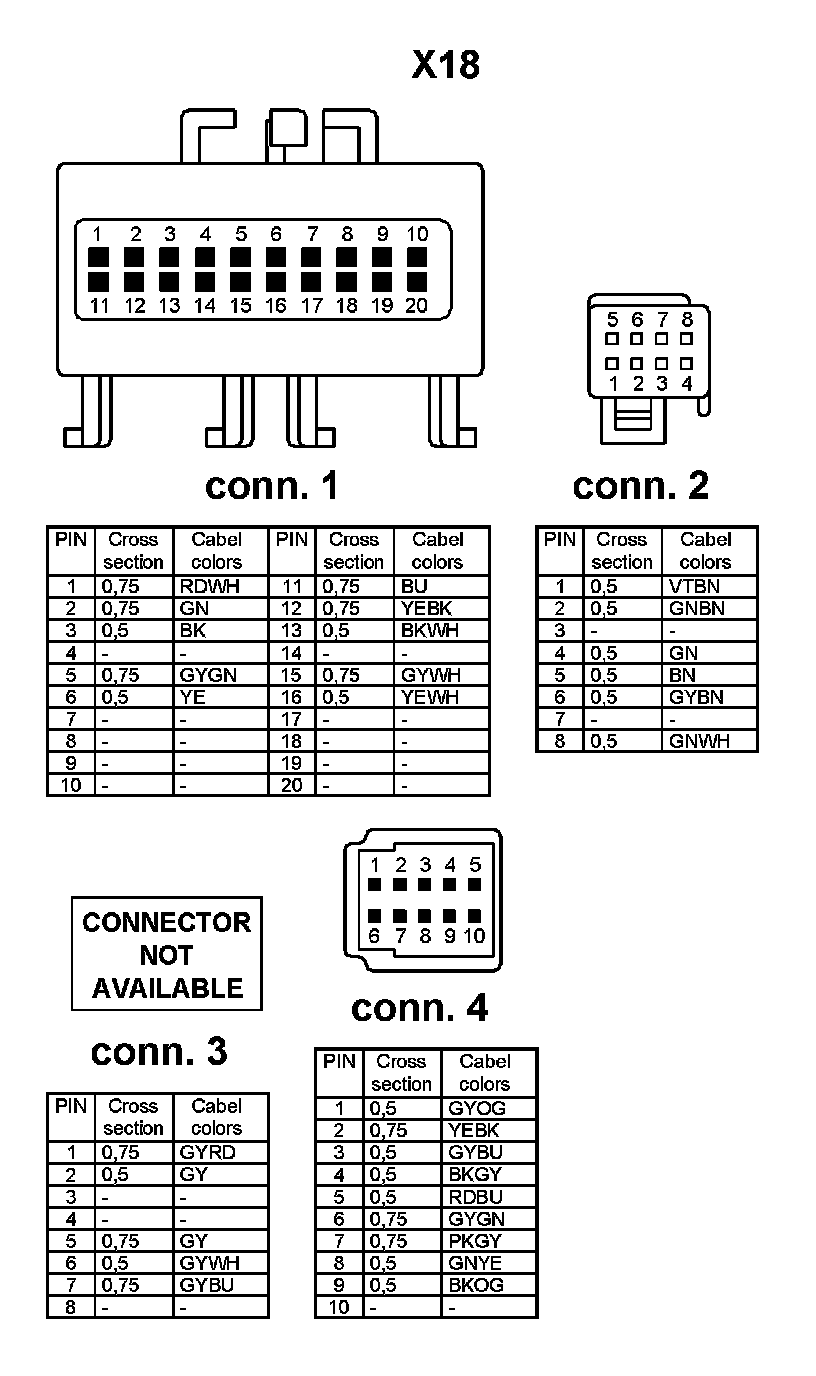

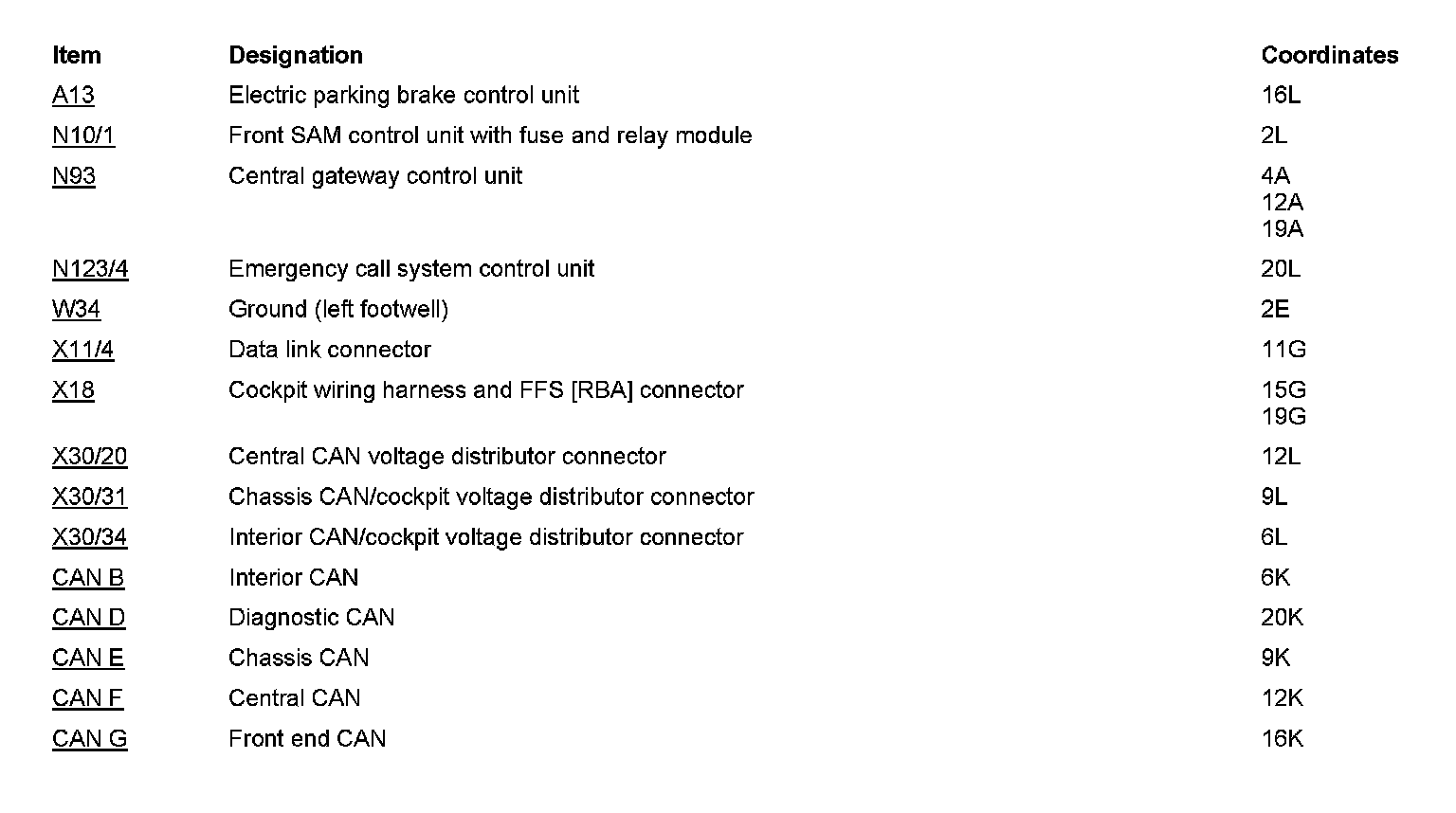

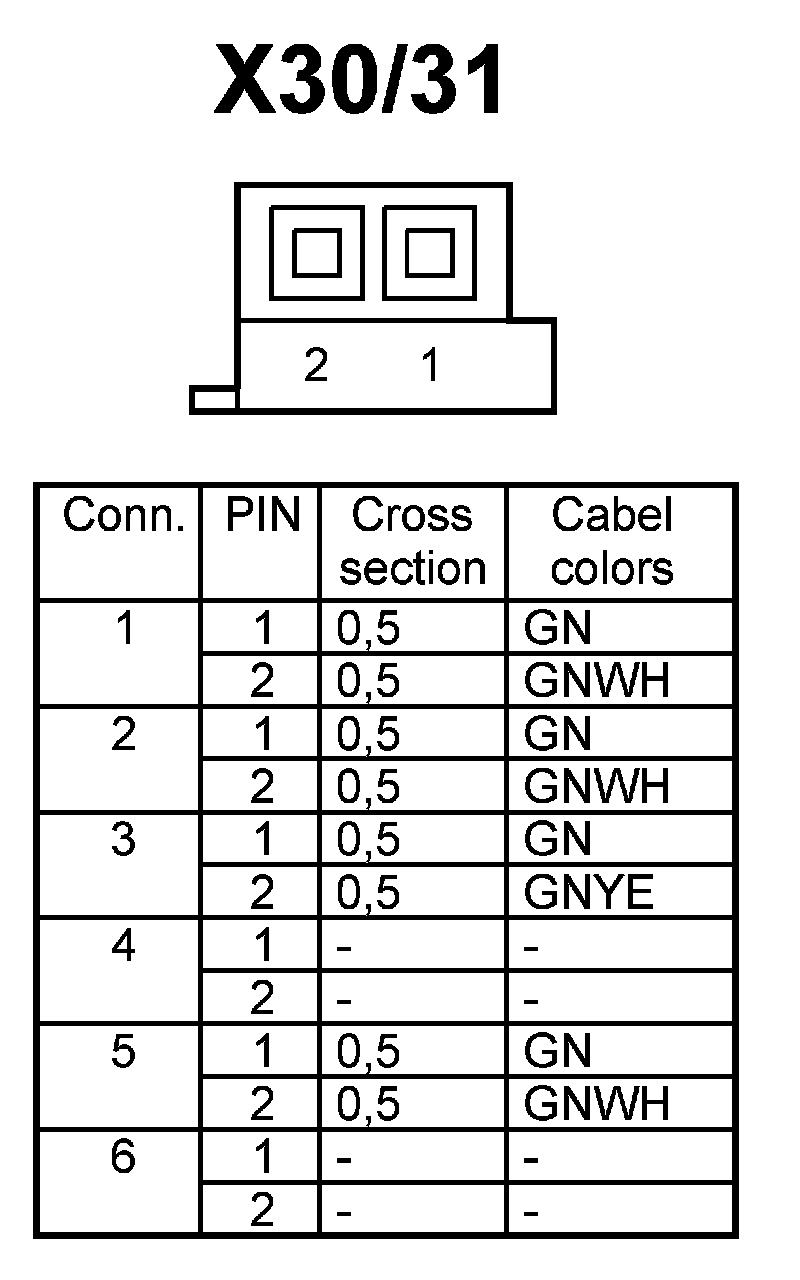

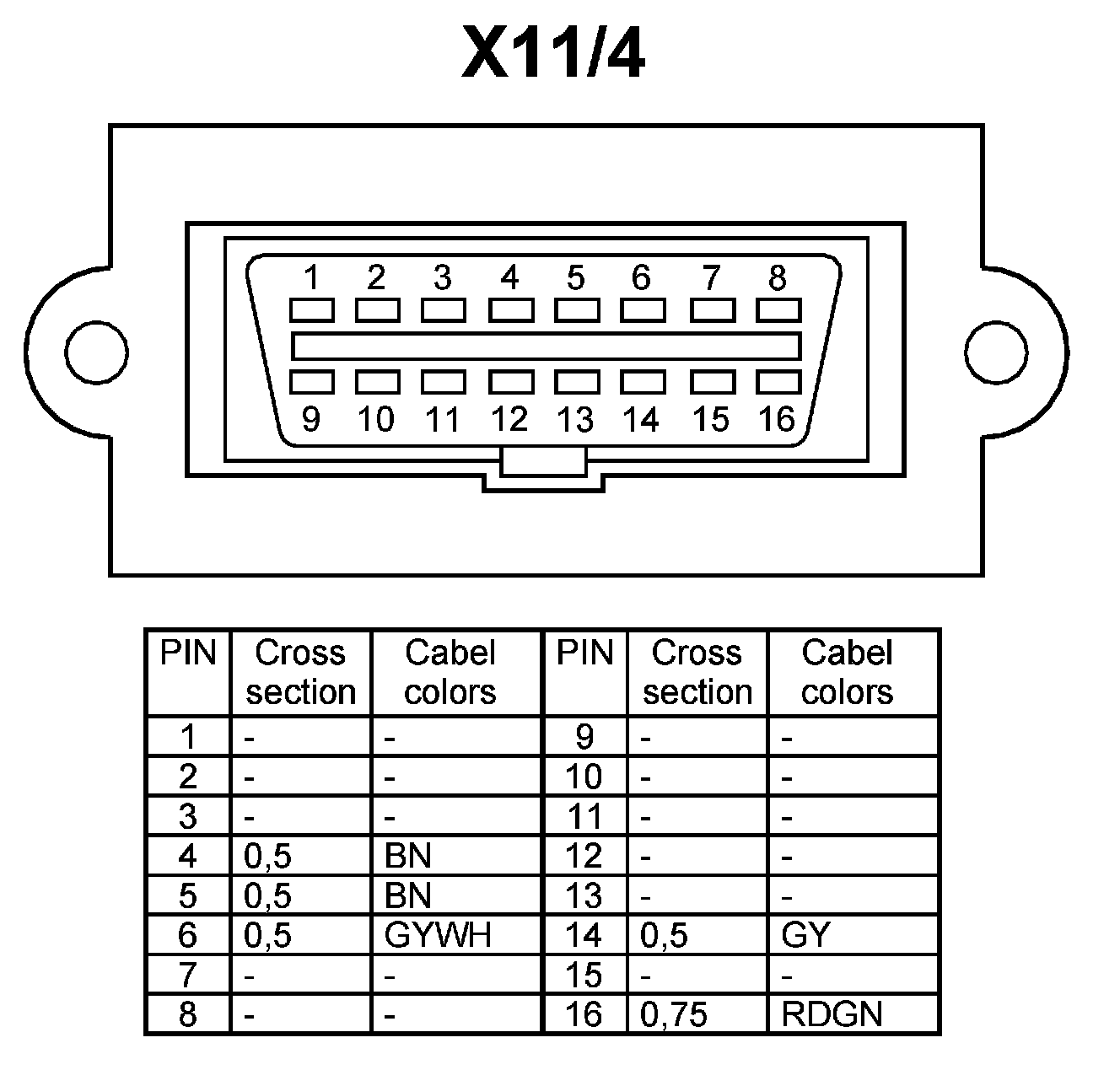

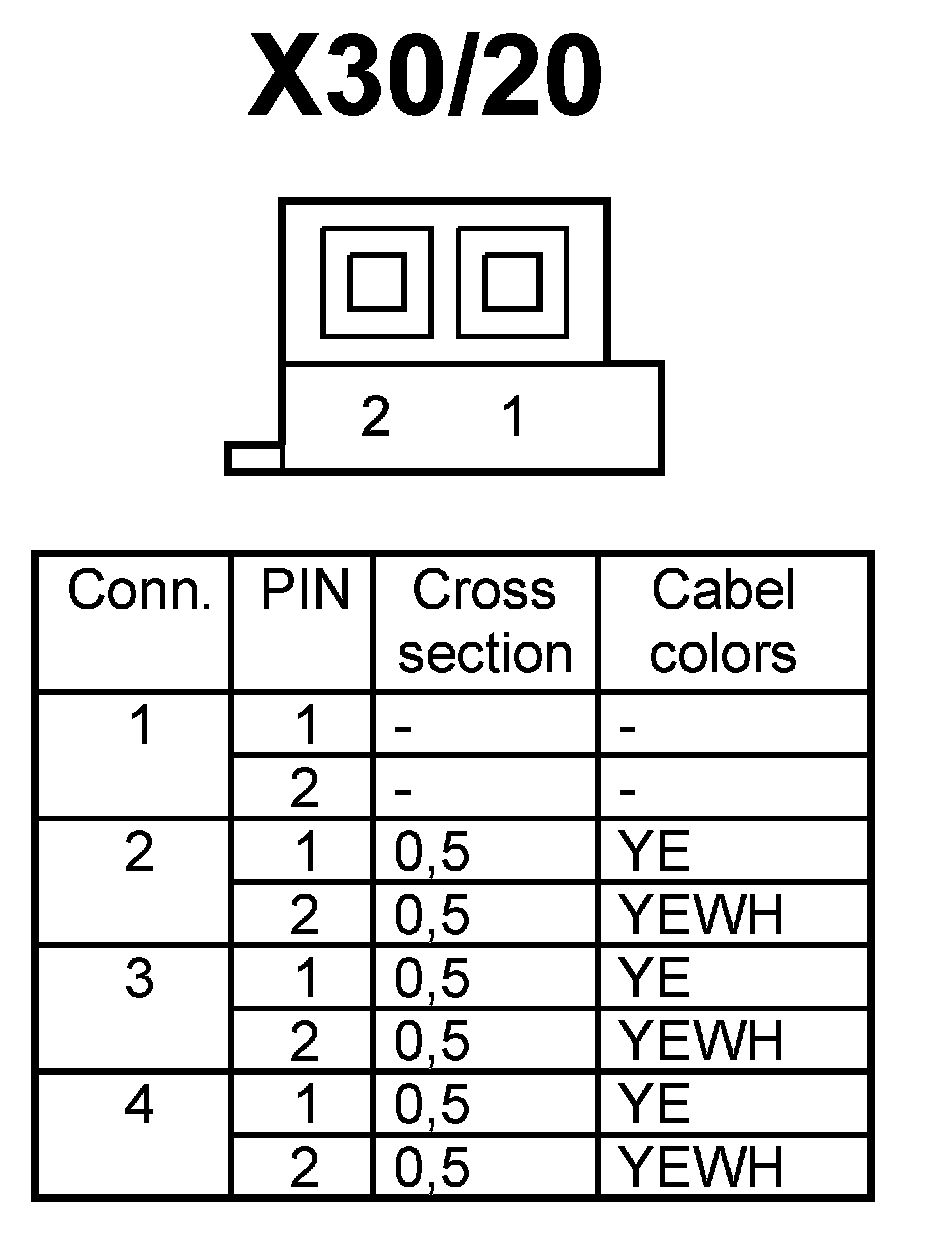

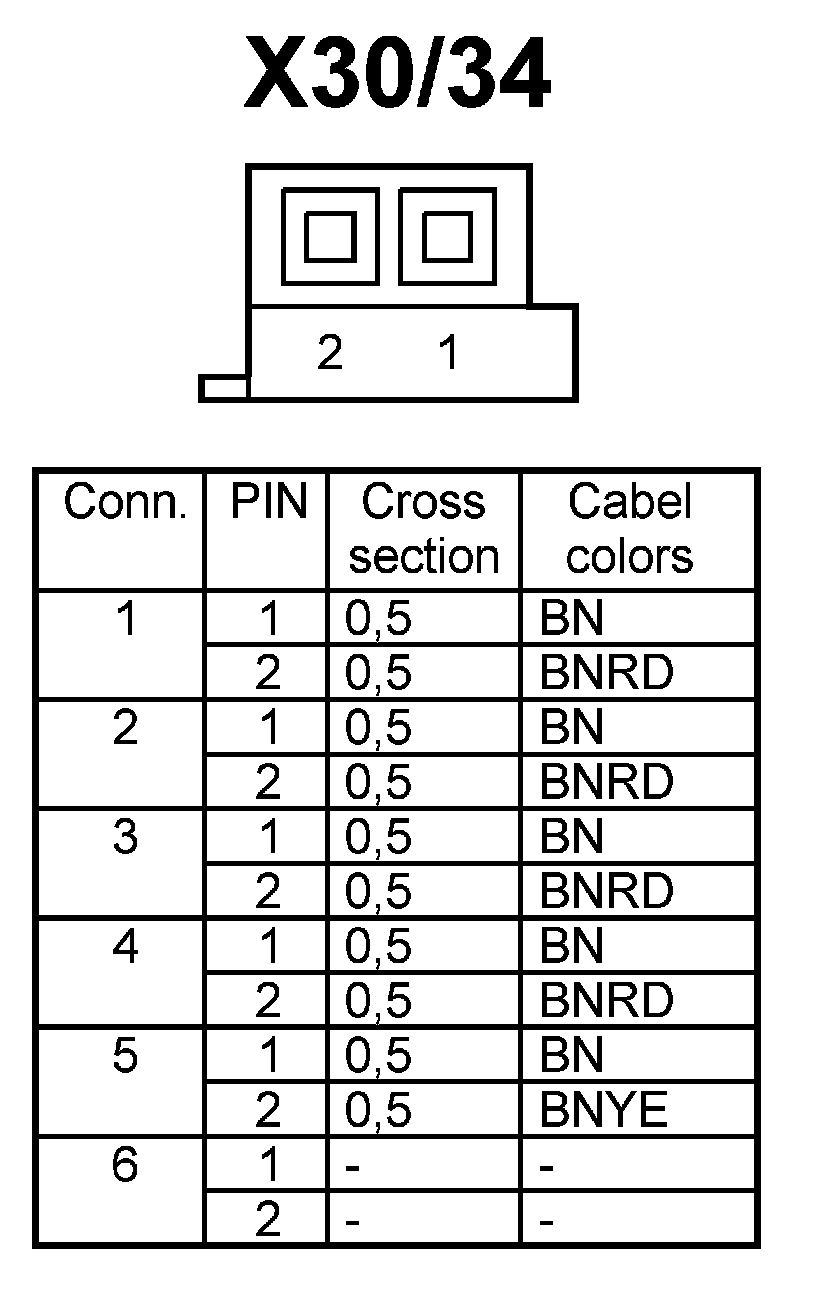

PE54.21-U-2124SAA Central Gateway Control Module



PE54.21-U-2124SAA Central Gateway Control Module

MODEL 221

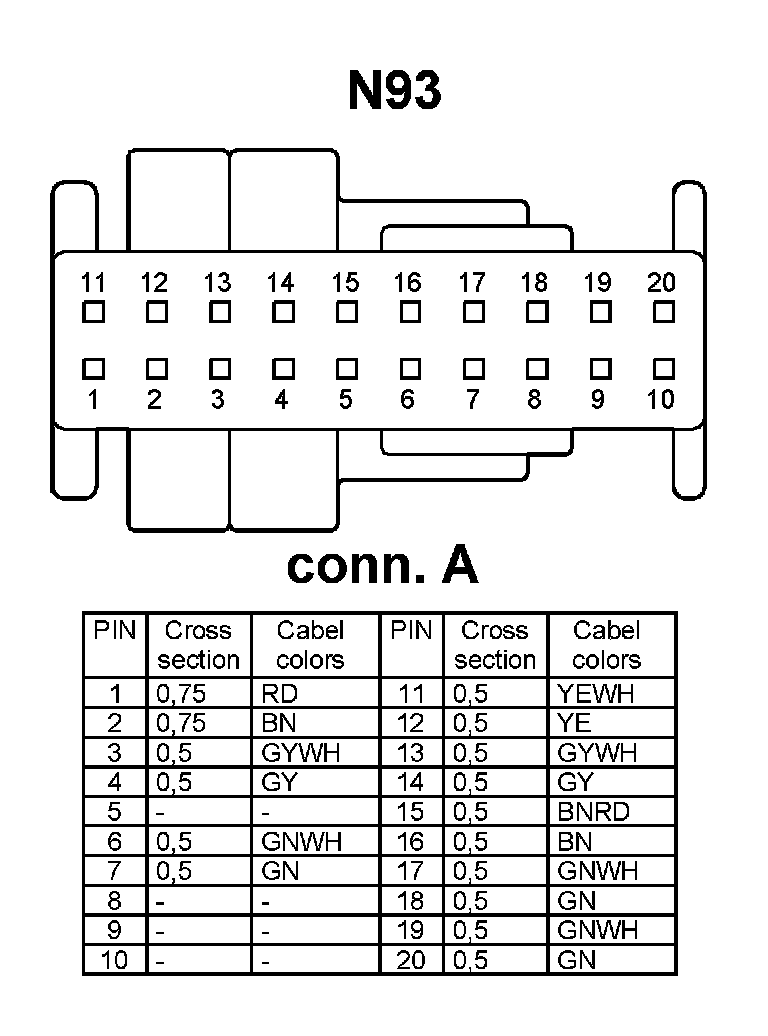

- Control unit N93















































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
