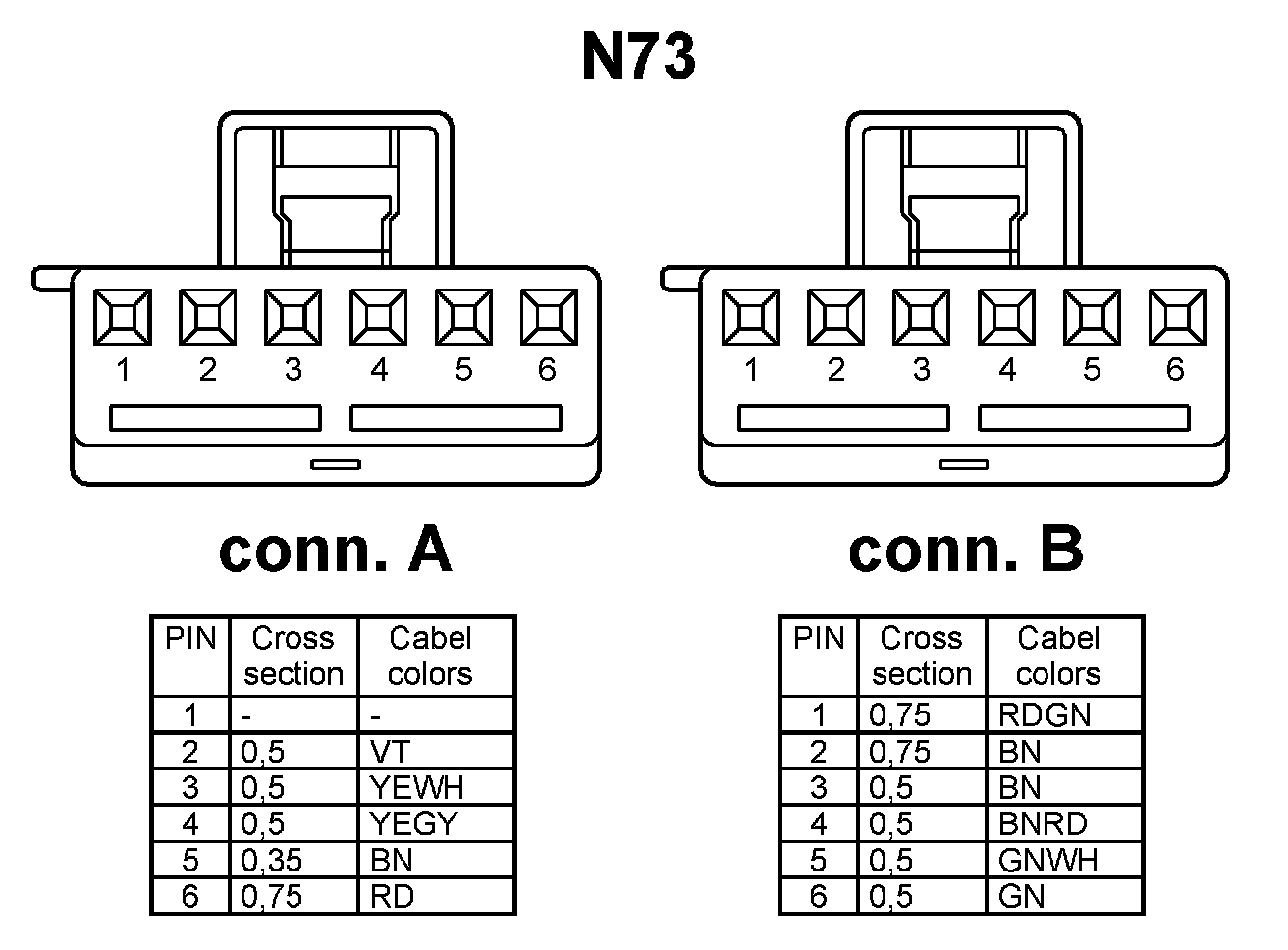

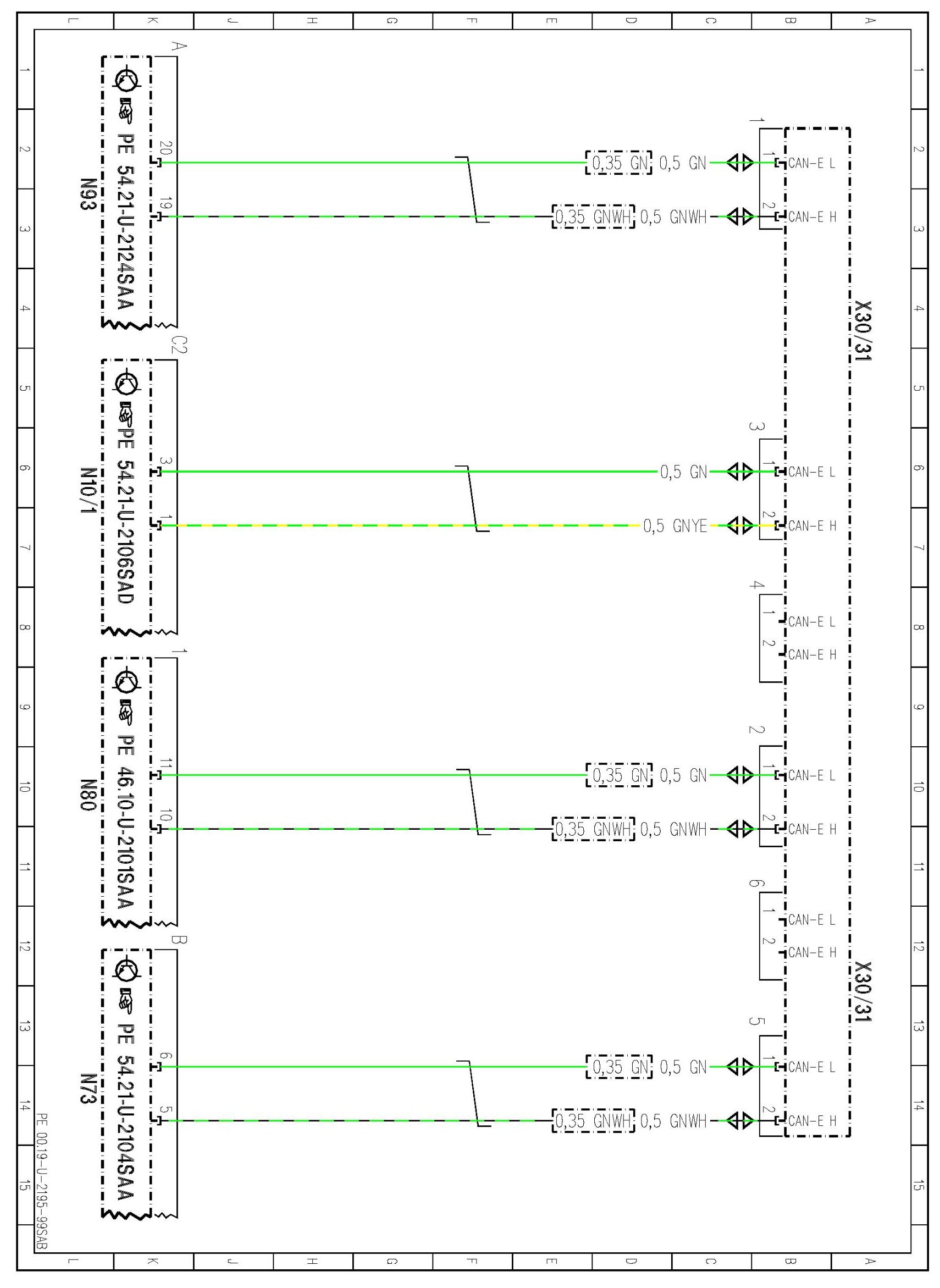

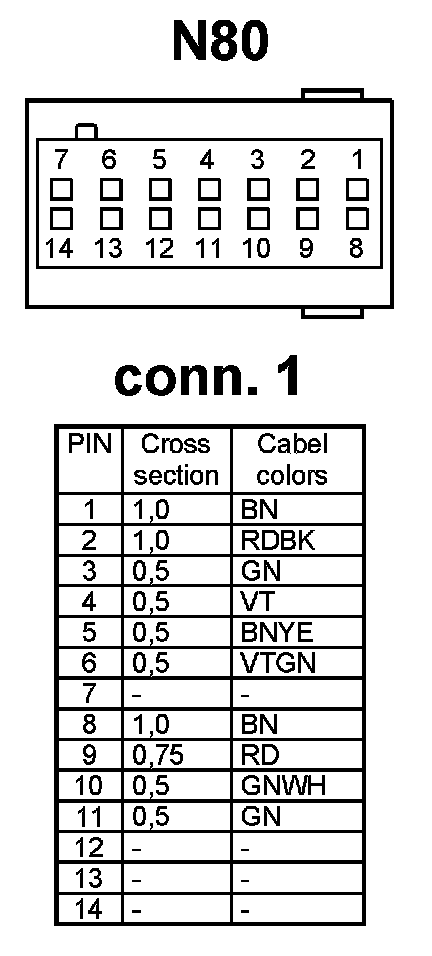

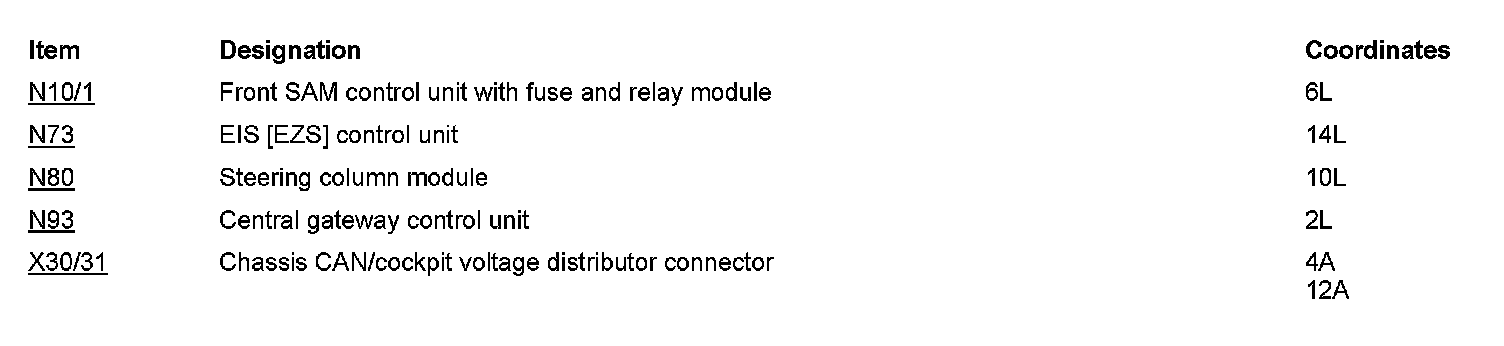

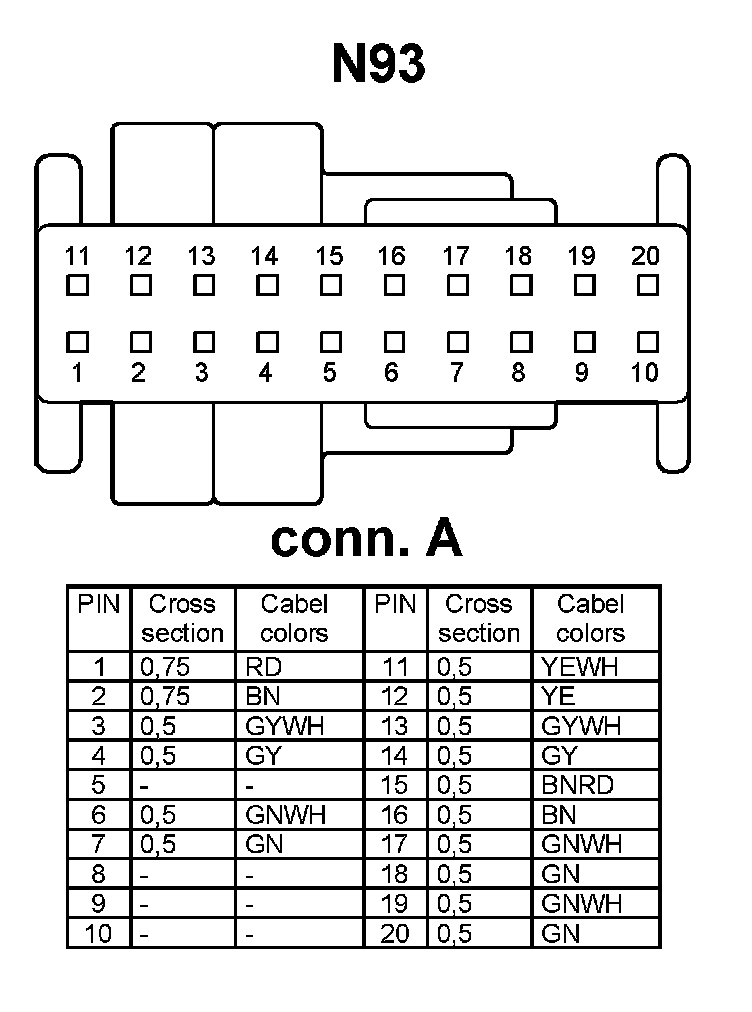

PE00.19-U-2195SAB Chassis CAN



PE00.19-U-2195SAB Chassis CAN

MODEL 221

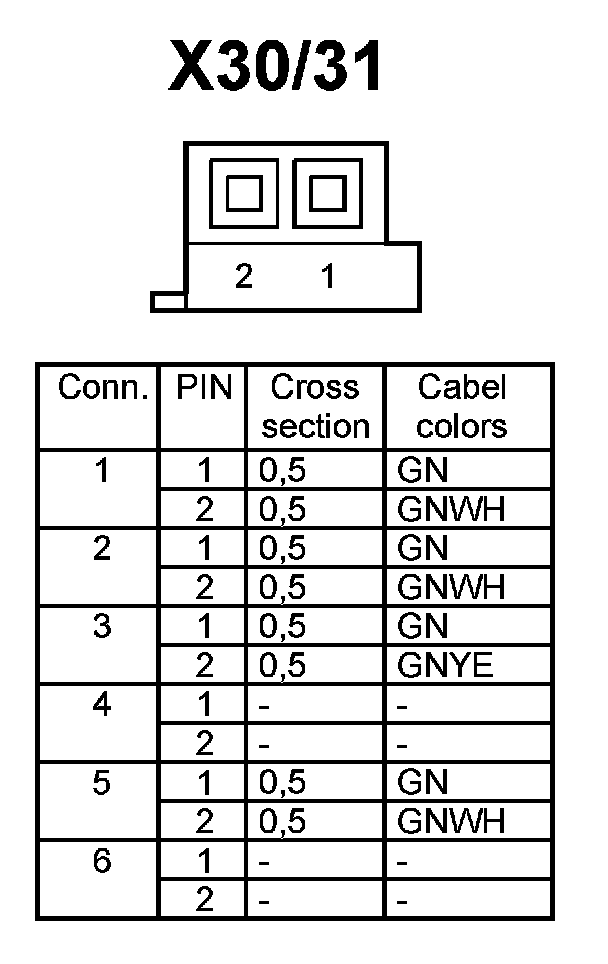

- Voltage distributor X30/31































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
