Glow Plug System

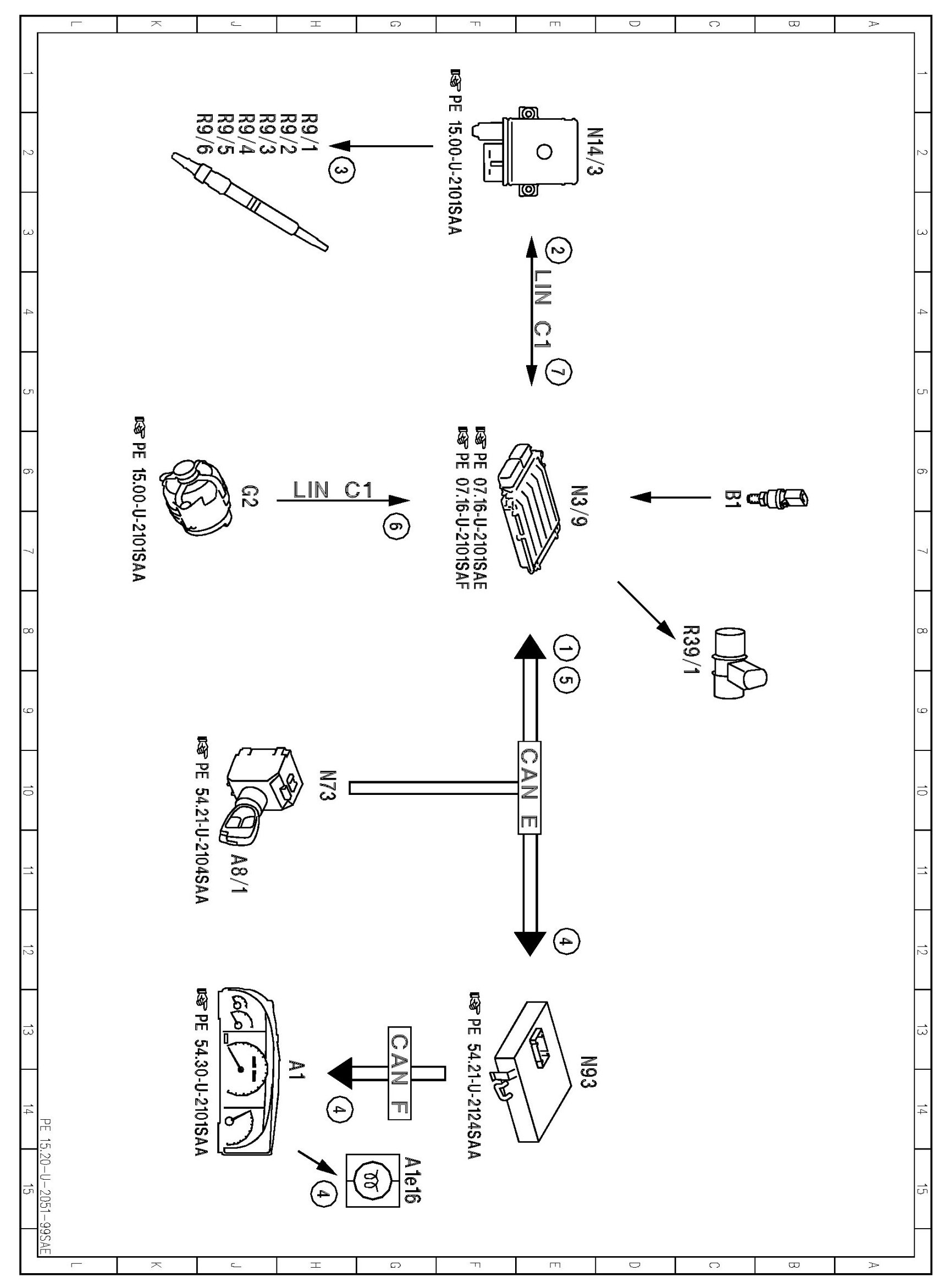

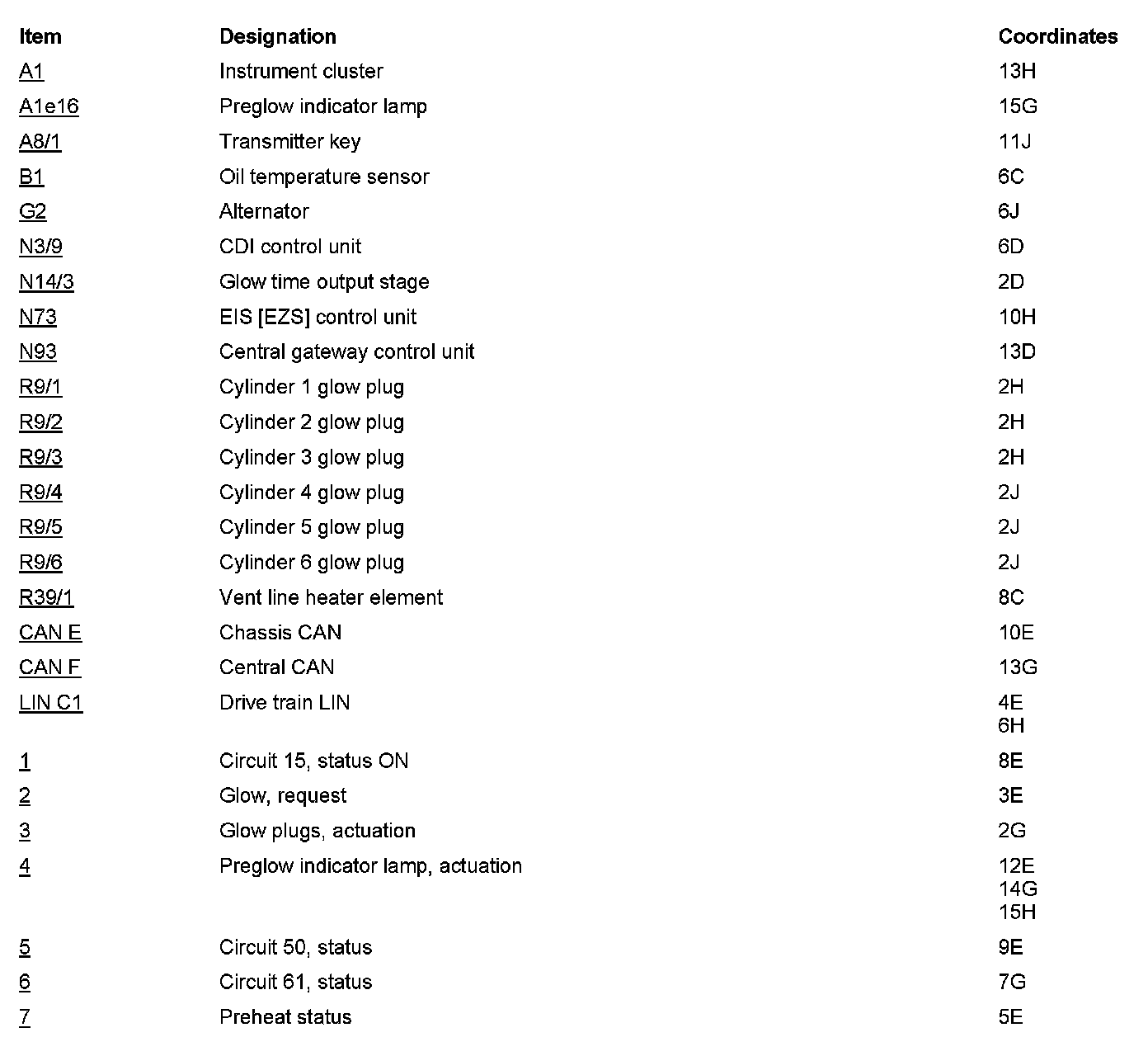

PE15.20-U-2051SAE Electrical Function Schematic For Preheating

ENGINE 642.8 in MODEL 221























Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
