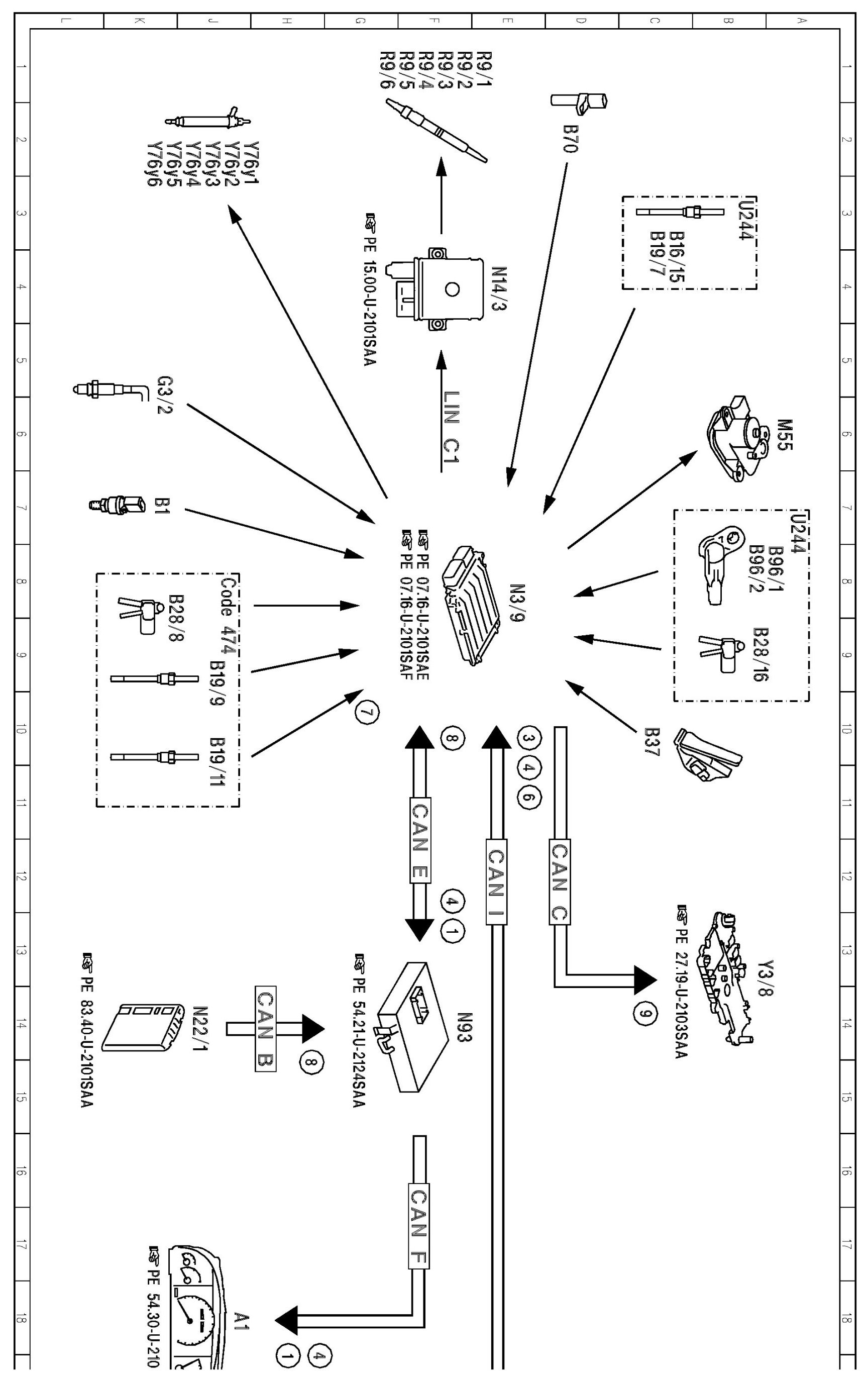

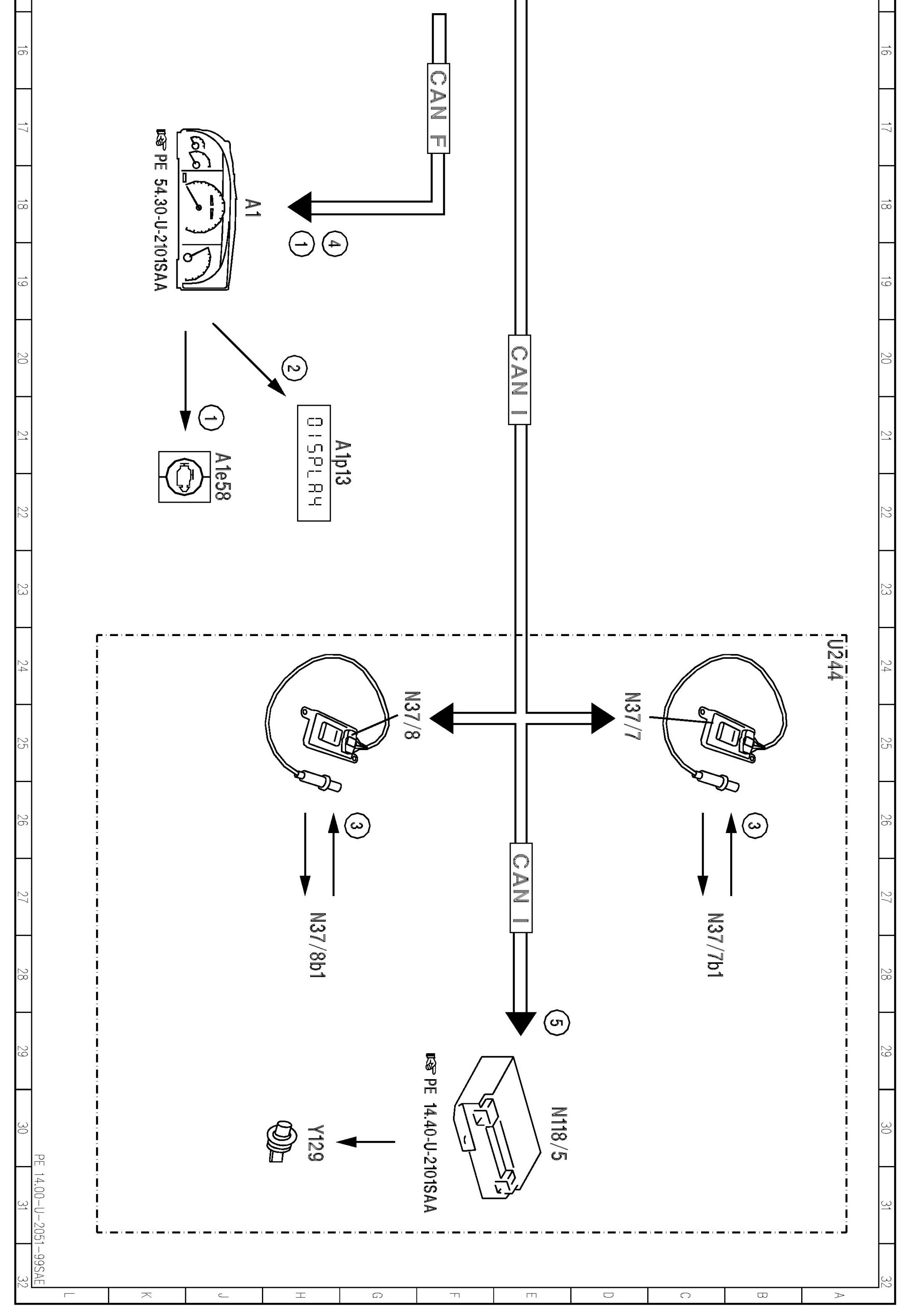

PE14.00-U-2051SAE Electrical Function Schematic For Exhaust Treatment

PE14.00-U-2051SAE Electrical Function Schematic For Exhaust Treatment

ENGINE 642.8 in MODEL 221







































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
