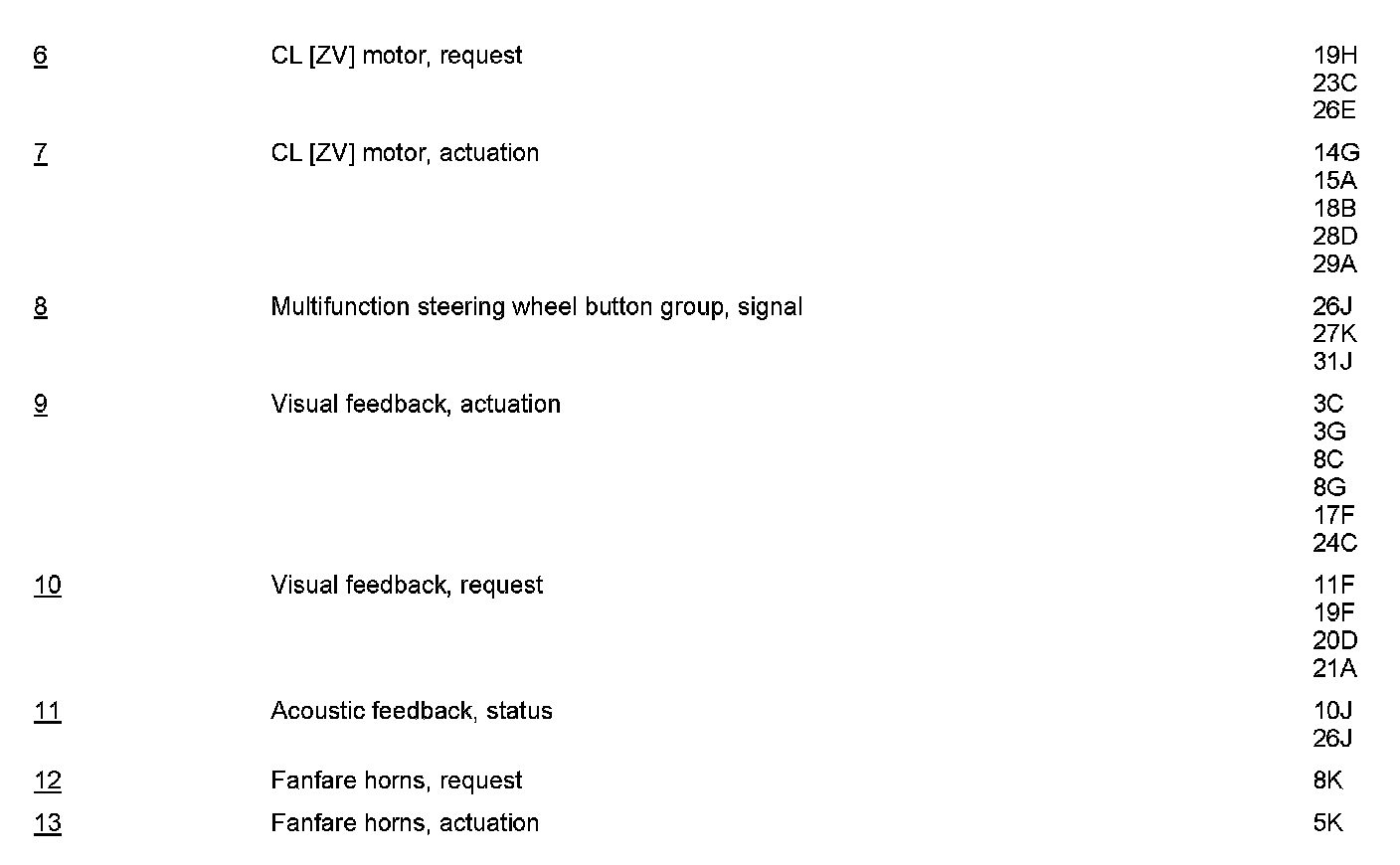

PE80.20-U-2052SAA Electrical Function Diagram For Central Locking System Operation With Transmitter Key

PE80.20-U-2052SAA Electrical Function Diagram For Central Locking System Operation With Transmitter Key

MODEL 221
- as of Model Year 2009

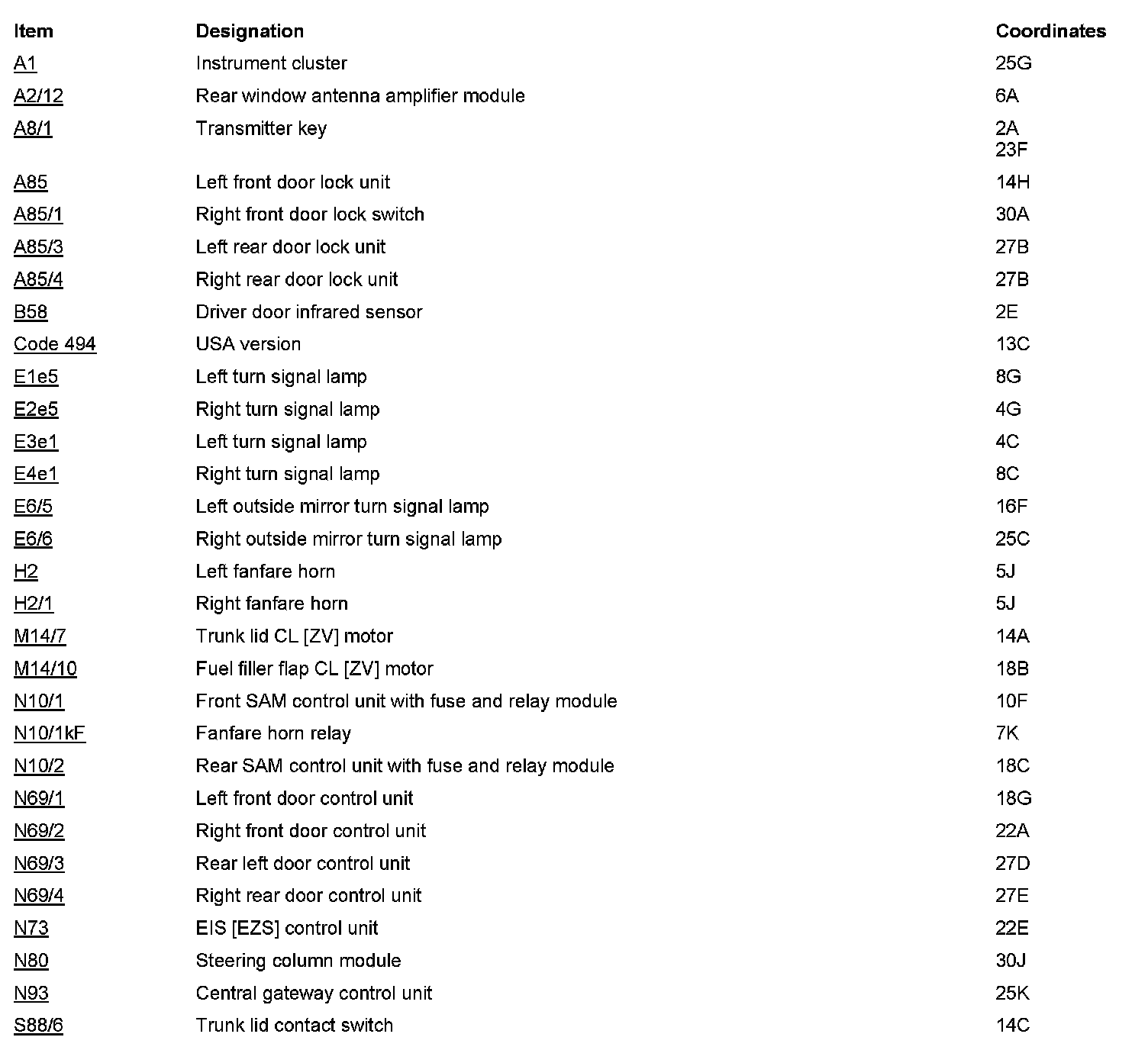

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
