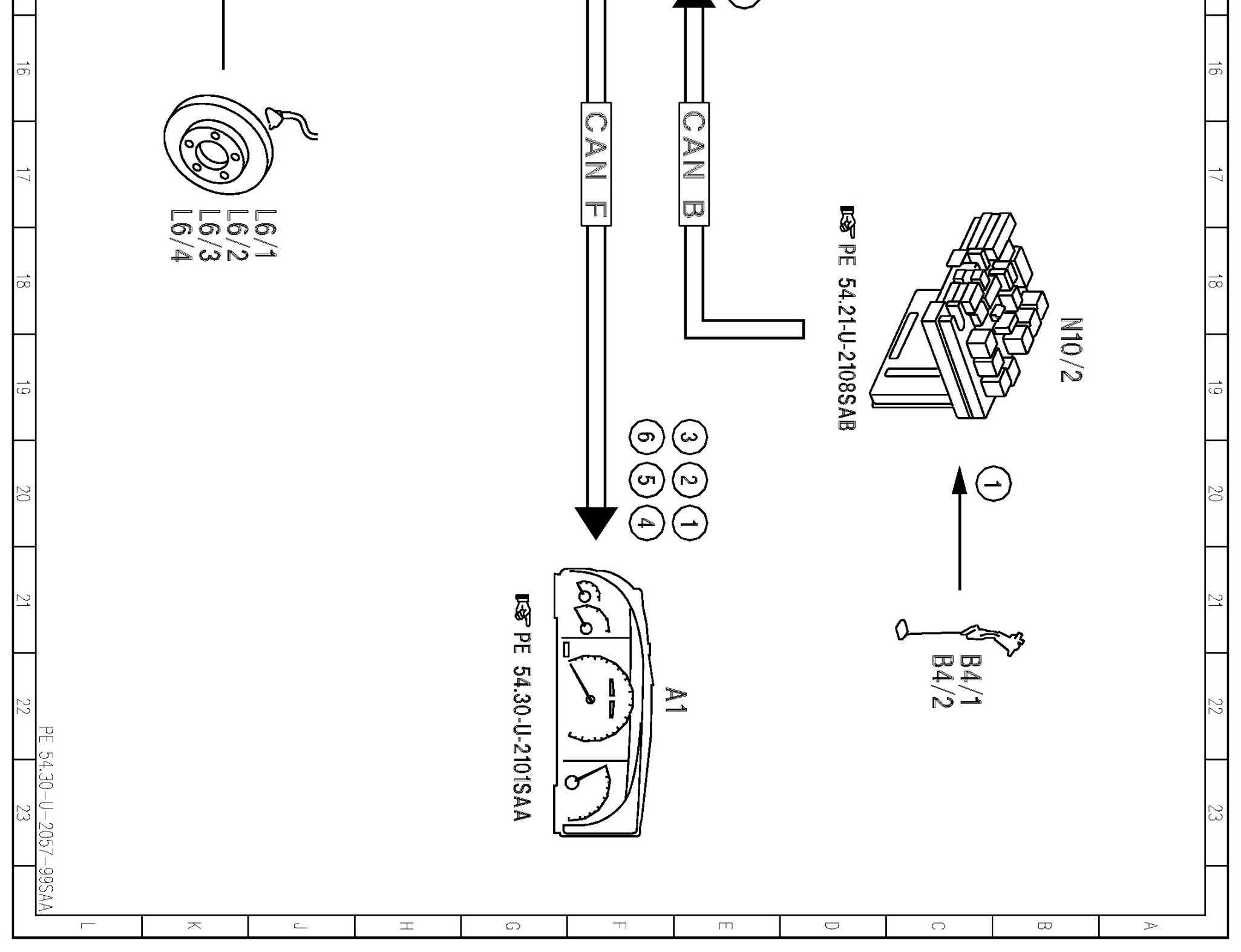

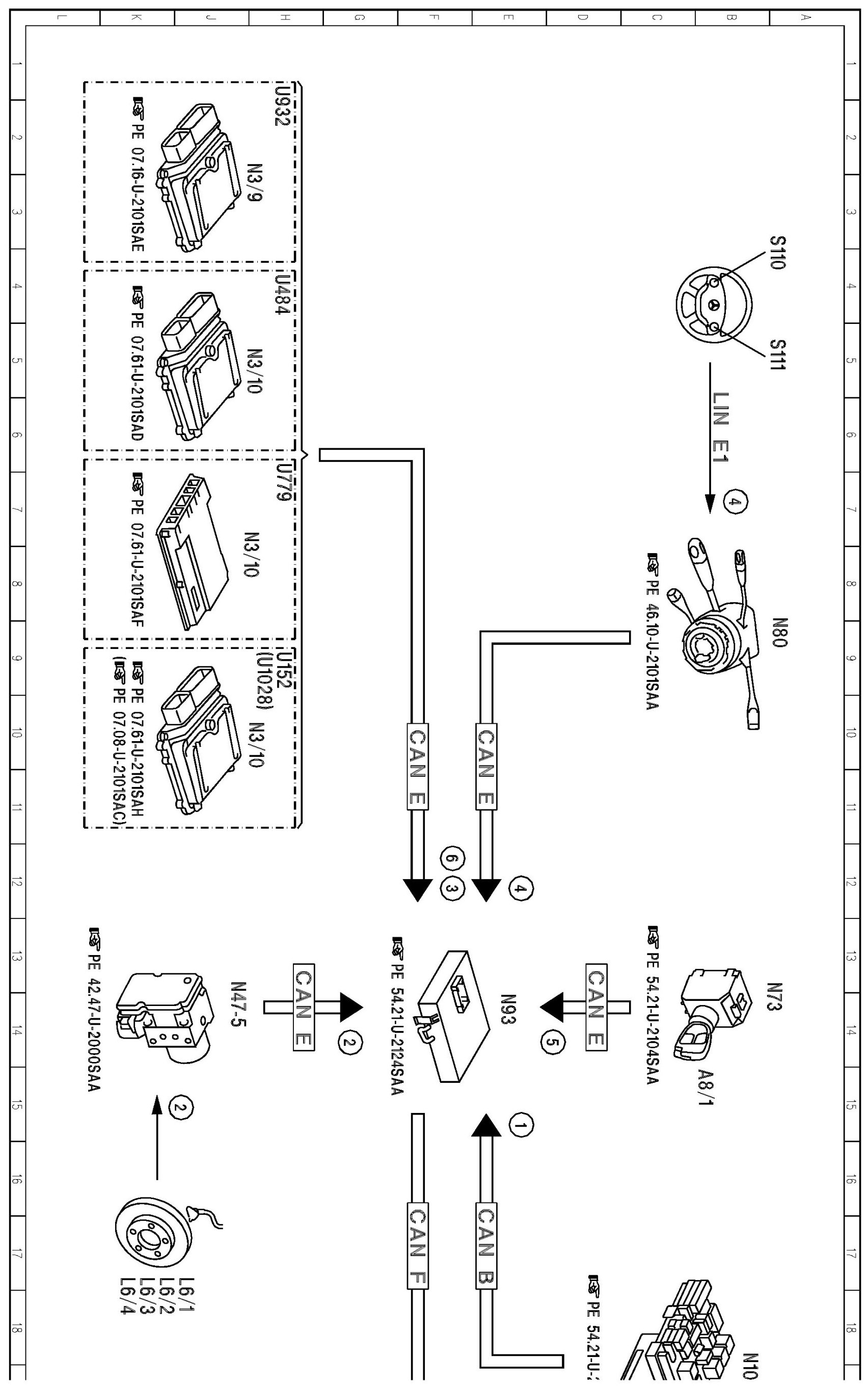

PE54.30-U-2057SAA Electrical Function Schematic For Instrument Cluster, Trip Computer

PE54.30-U-2057SAA Electrical Function Schematic For Instrument Cluster, Trip Computer

MODEL 221.0 /1 (except 221.095 /195)
- as of Model Year 2009











































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
