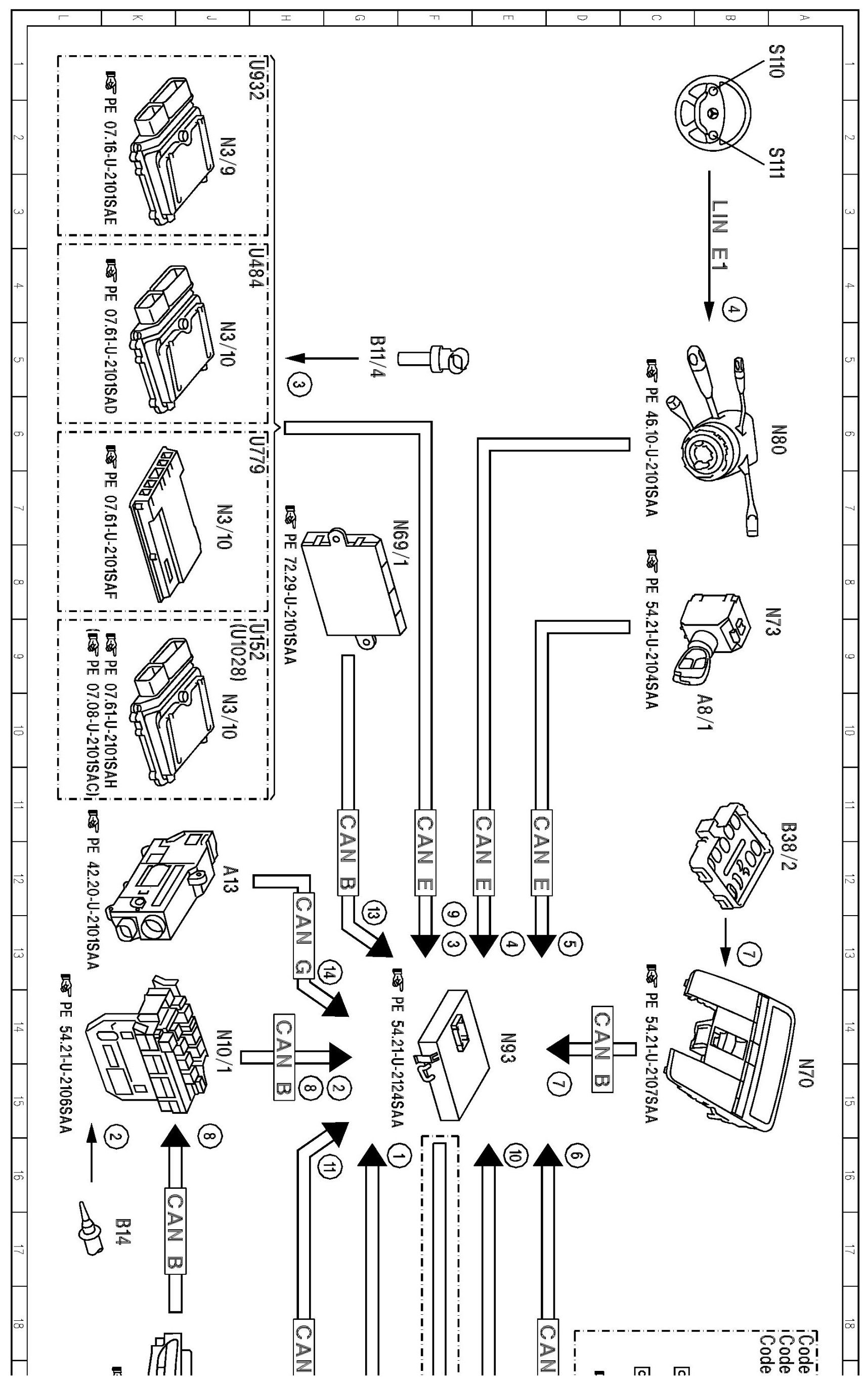

PE54.30-U-2056SAA Electrical Function Diagram For Instrument Cluster Comfort Display

PE54.30-U-2056SAA Electrical Function Diagram For Instrument Cluster Comfort Display

MODEL 221.0 /1 (except 221.095 /195)
- as of Model Year 2009

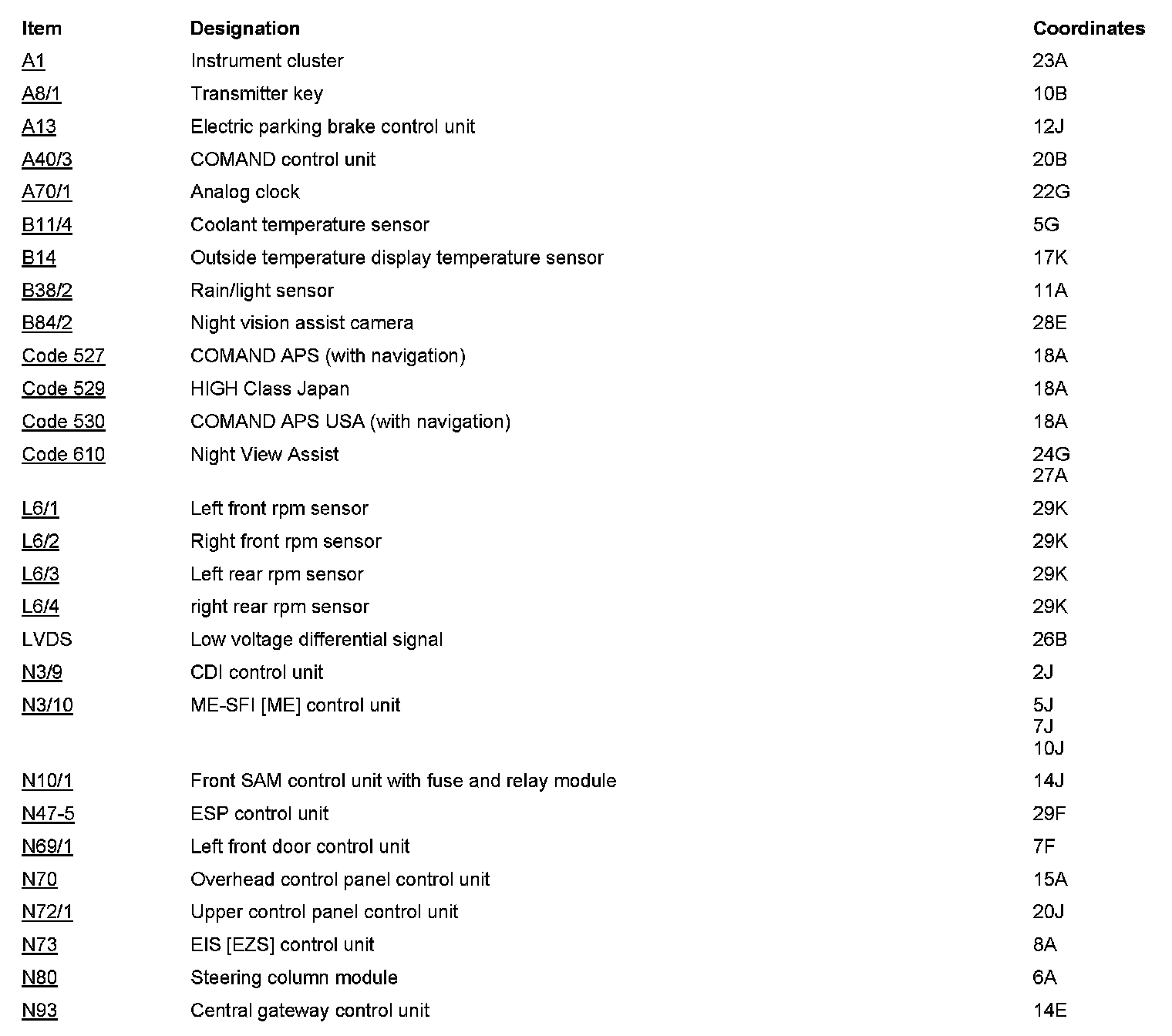

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
