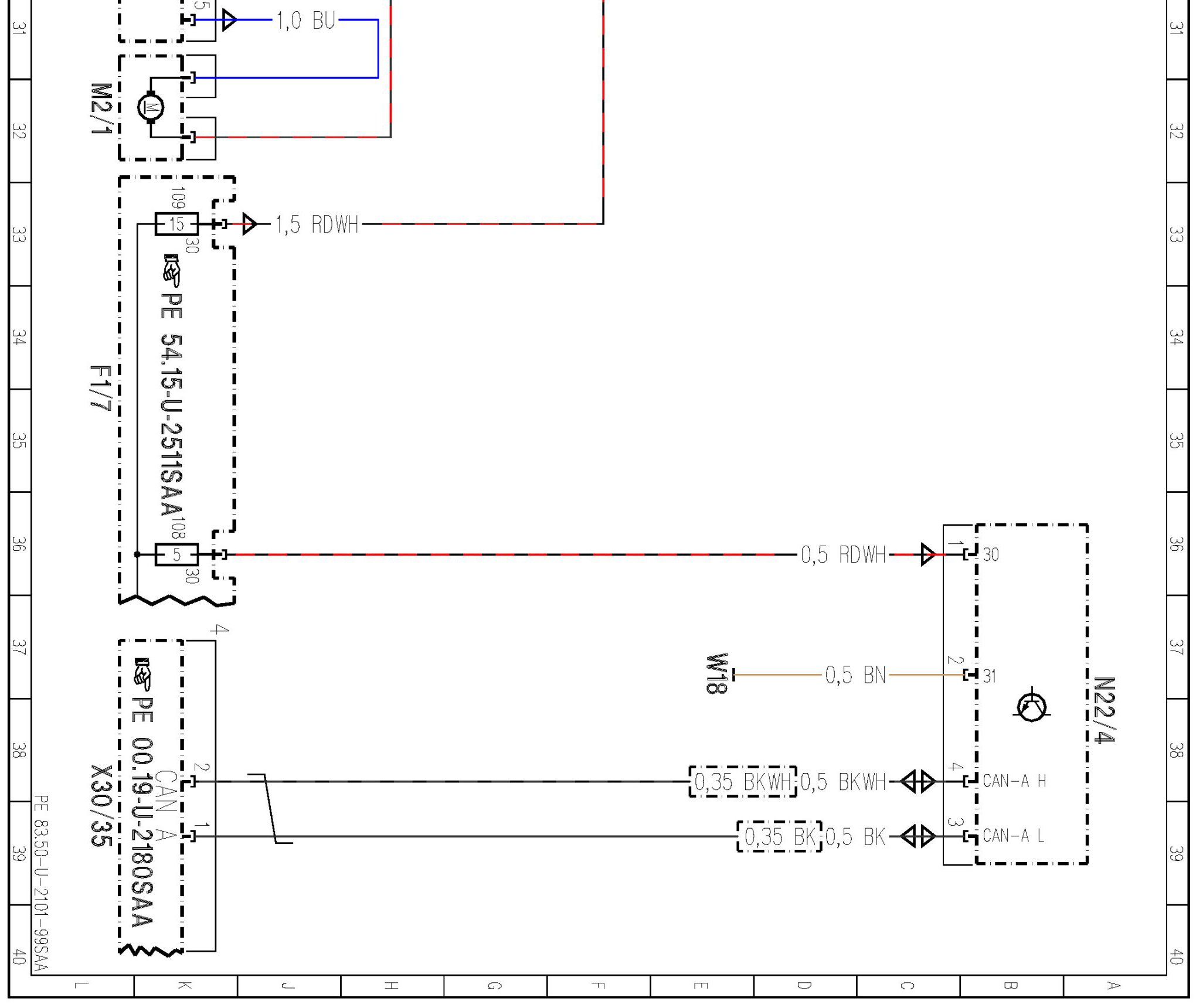

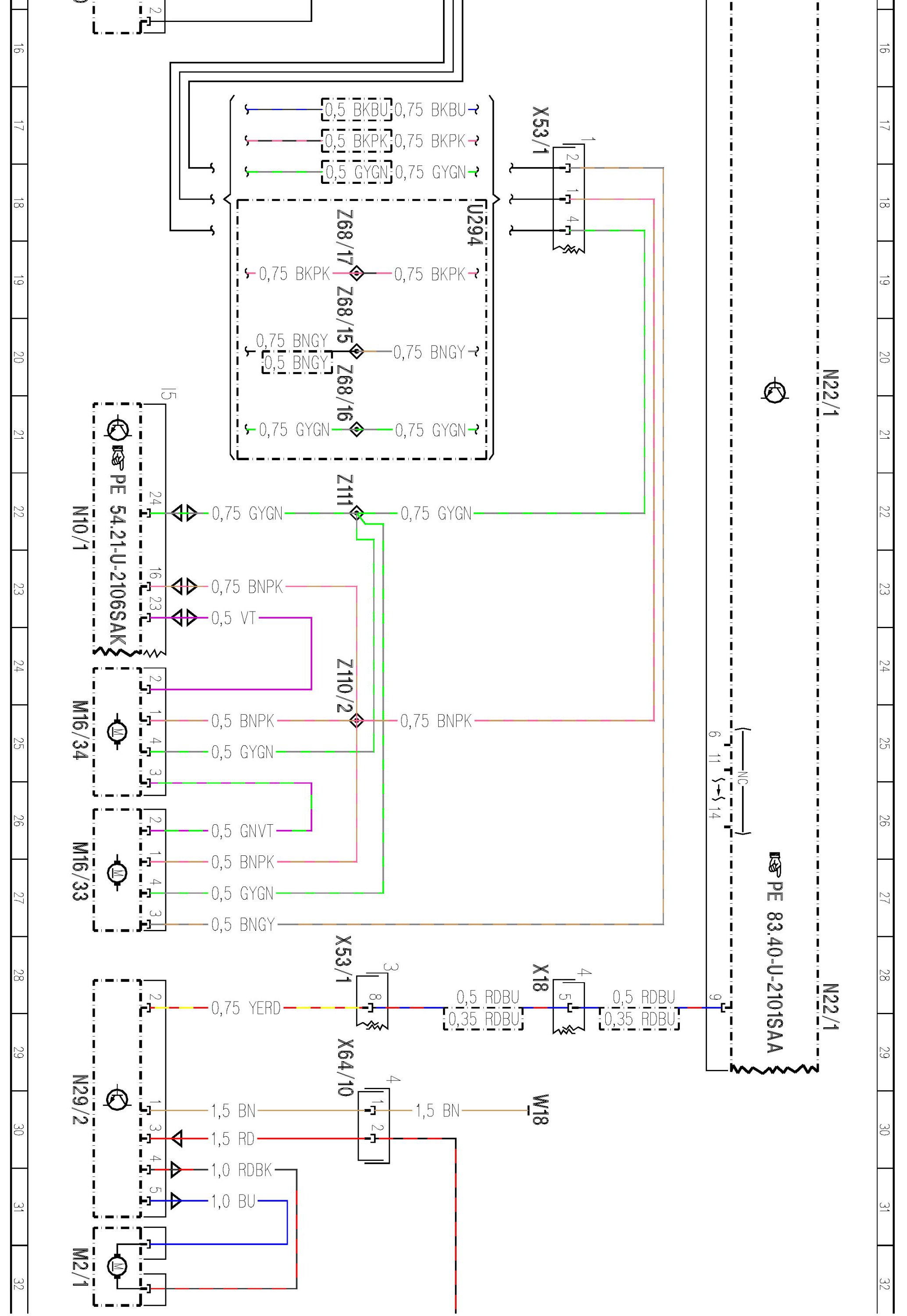

PE83.50-U-2101SAA Rear Air Conditioning Control Module

PE83.50-U-2101SAA Rear Air Conditioning Control Module

MODEL 221
- with CODE (580) Automatic air conditioning
- with CODE (582) Rear air conditioner

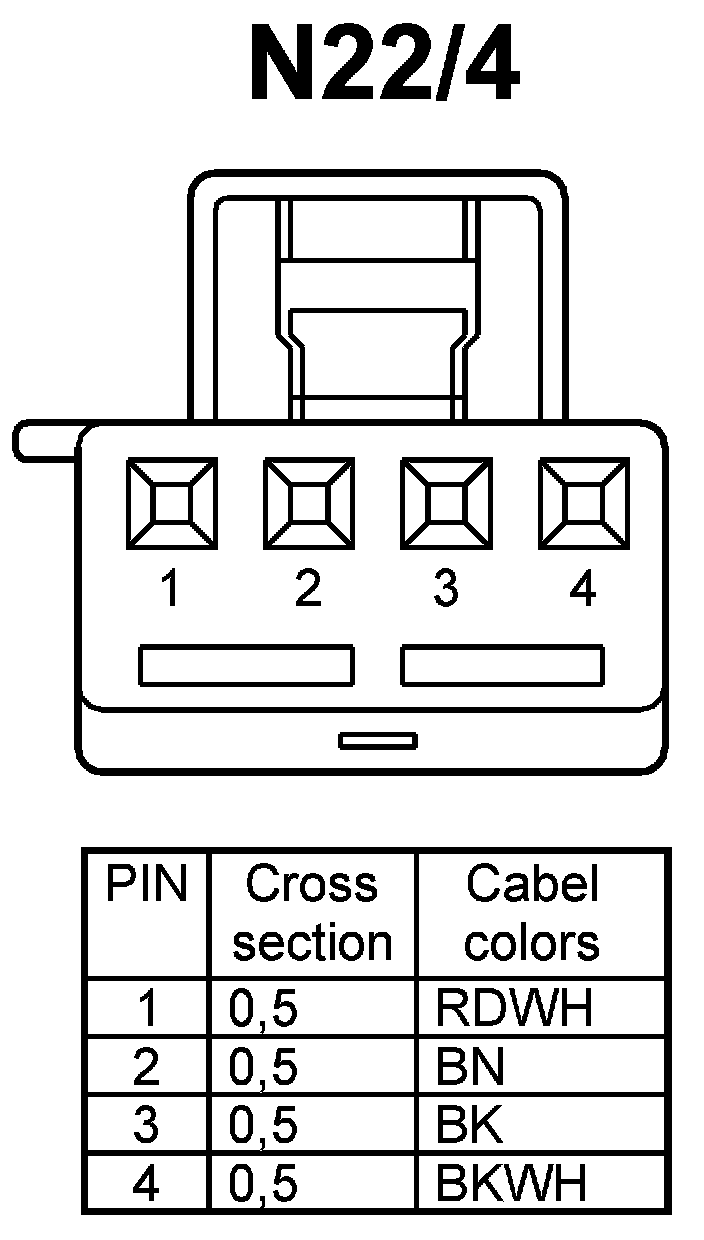

- Control unit N22/1, N22/4







































































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
