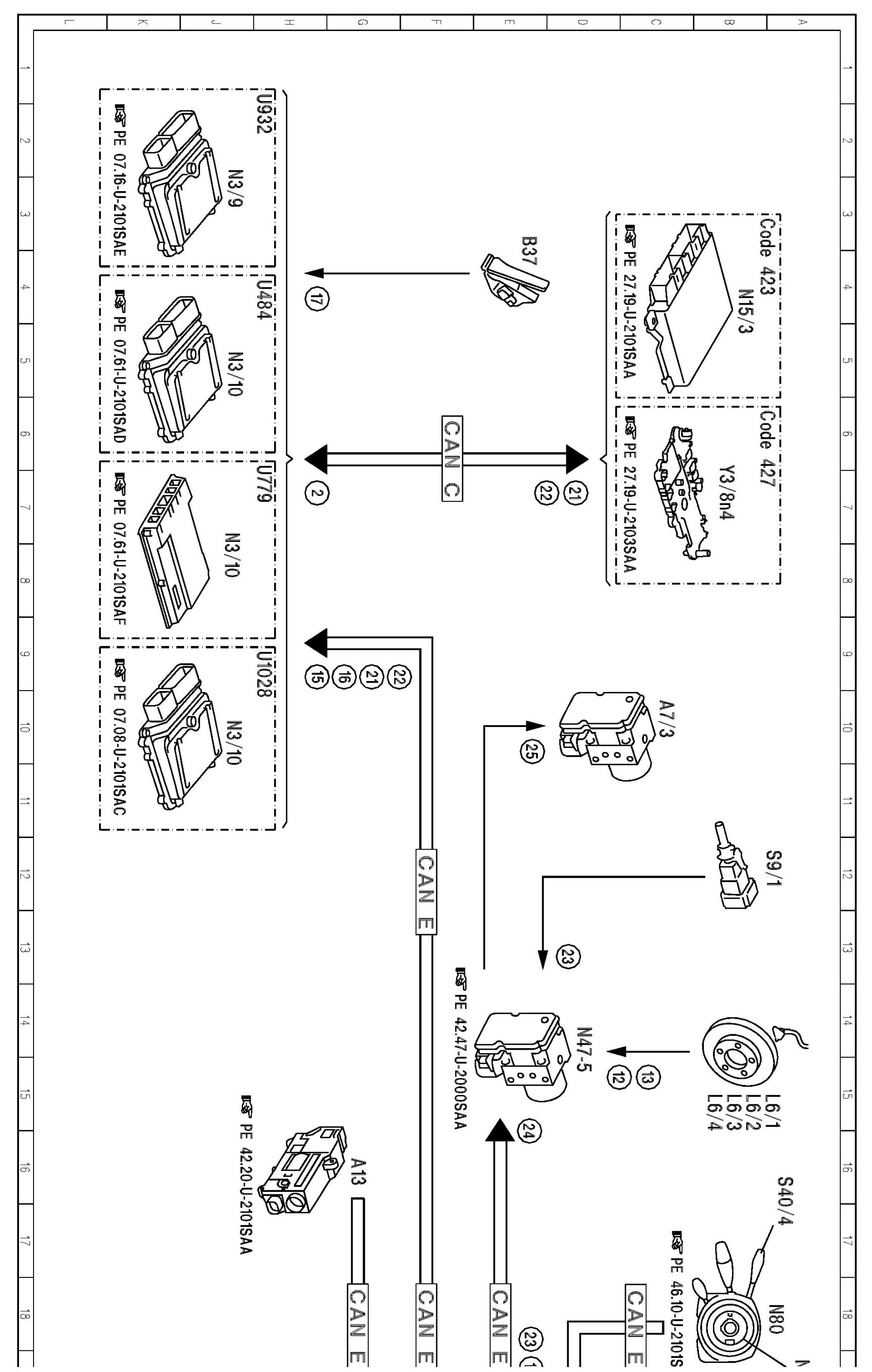

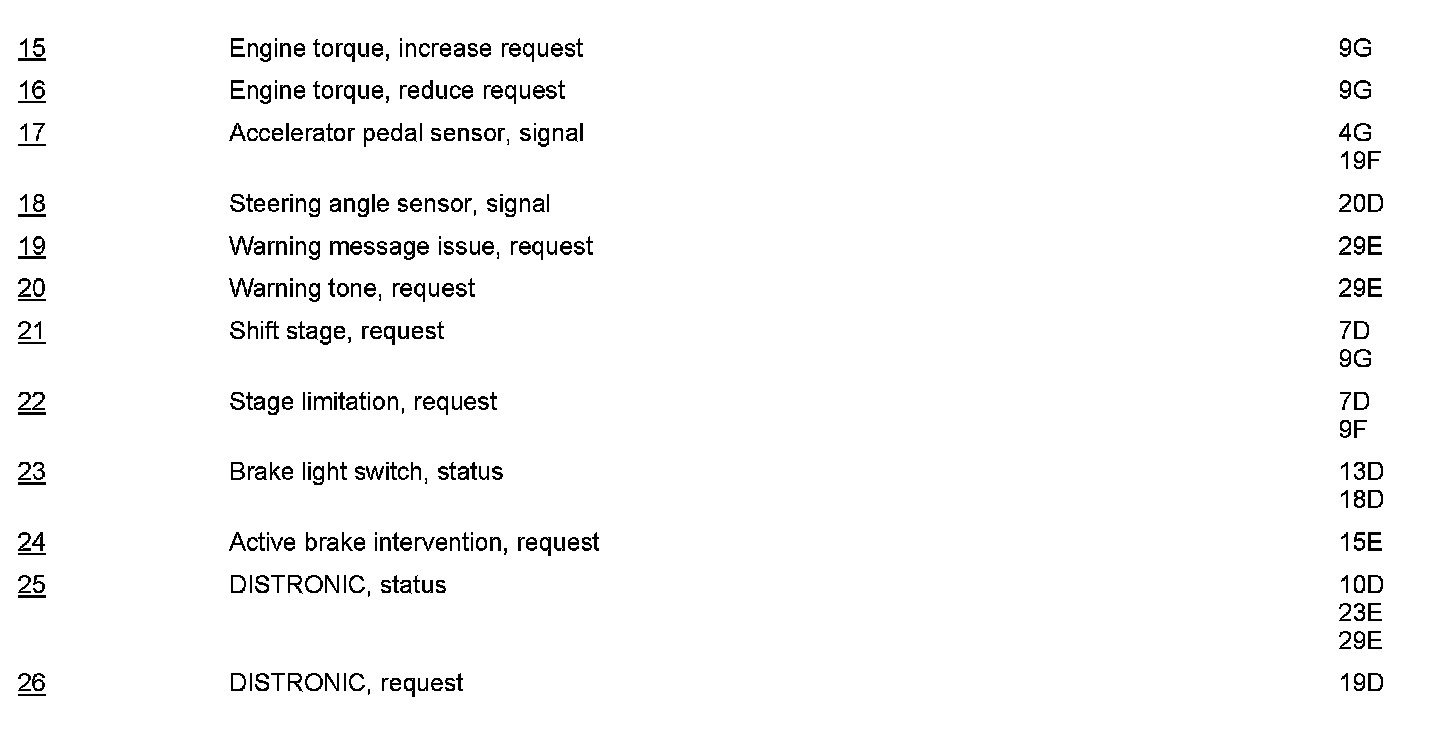

PE30.30-U-2055SAA Electrical Function Schematic For DISTRONIC PLUS Incl. BAS PLUS and PRE-SAFE Brake

PE30.30-U-2055SAA Electrical Function Schematic For DISTRONIC PLUS Incl. BAS PLUS and PRE-SAFE Brake

ENGINE 157, 273, 275, 642.8 in MODEL 221.0 /1 (except 221.095 /195)
- with CODE (233) Distronic Plus
- as of Model Year 2011































































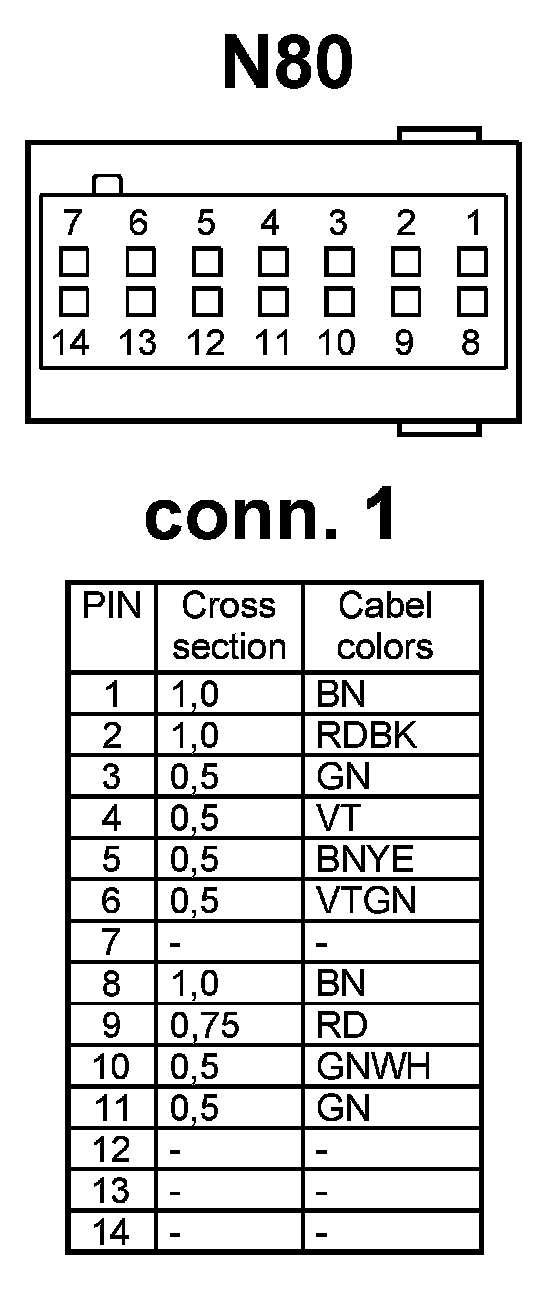

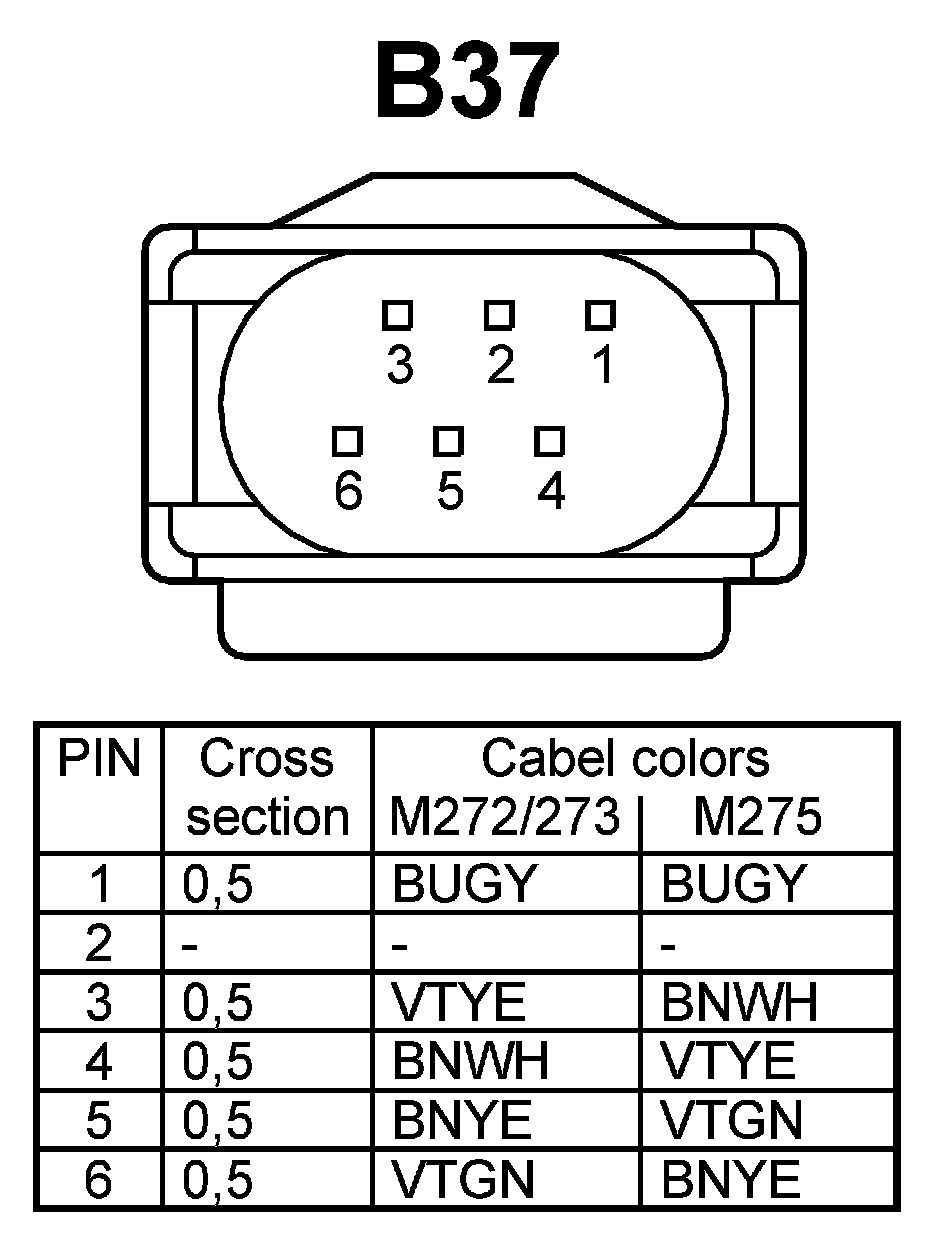

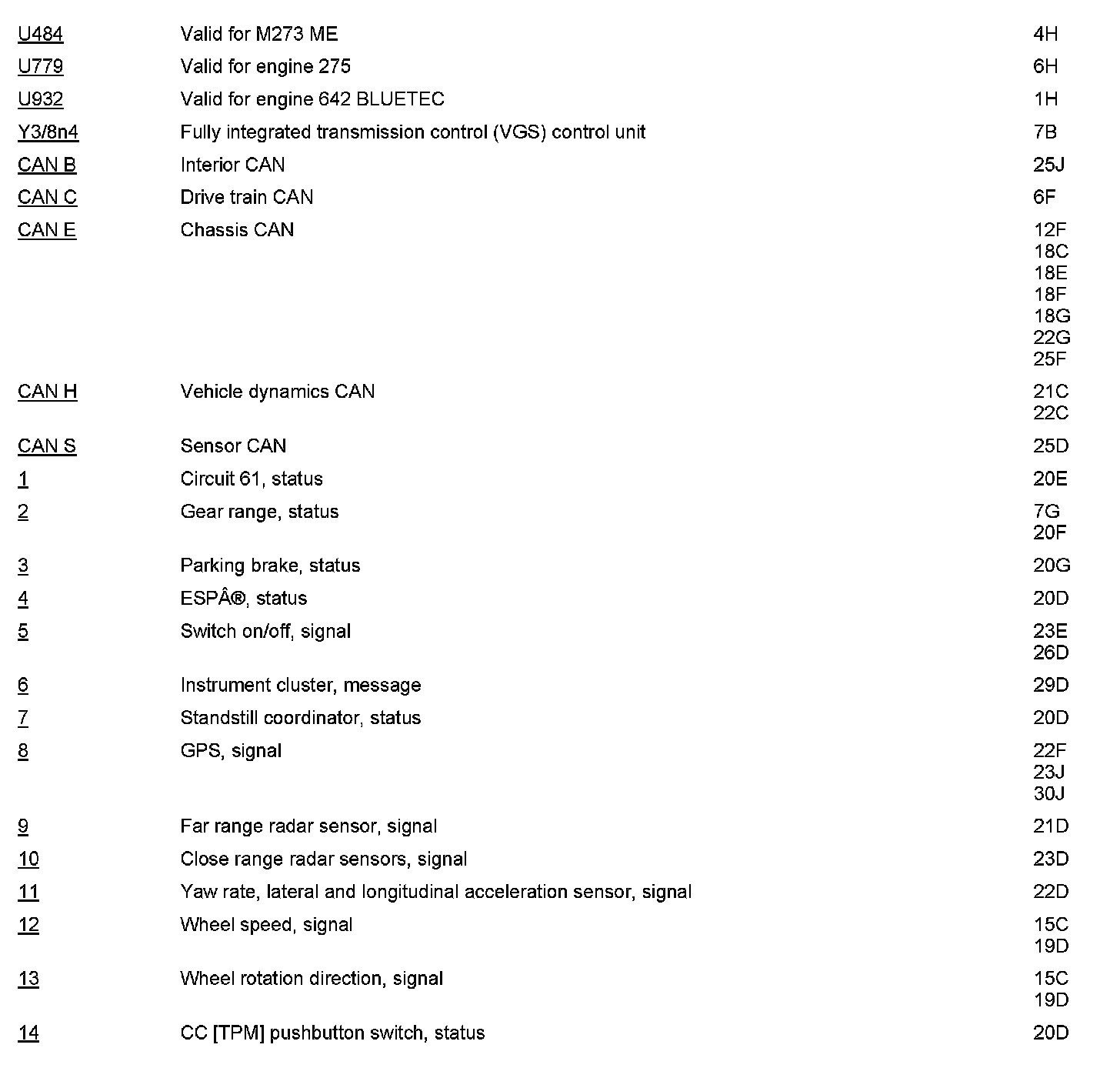

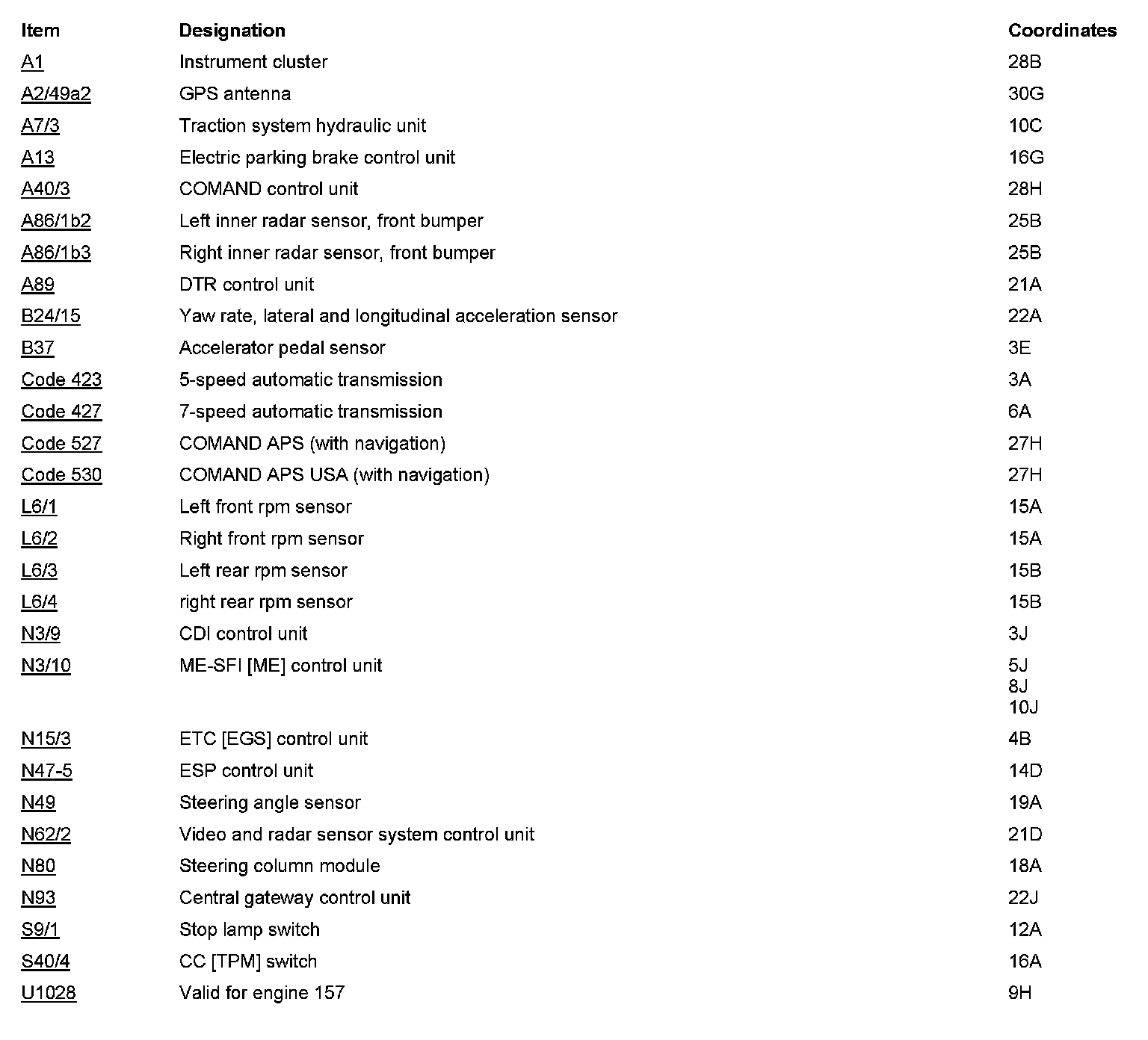

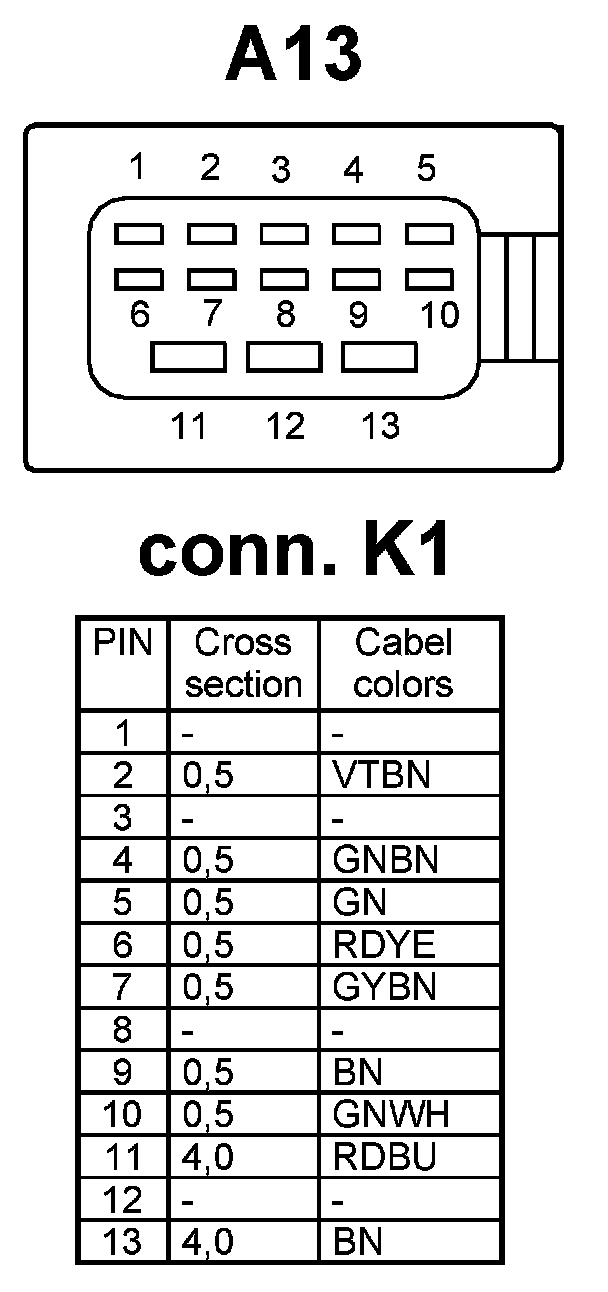

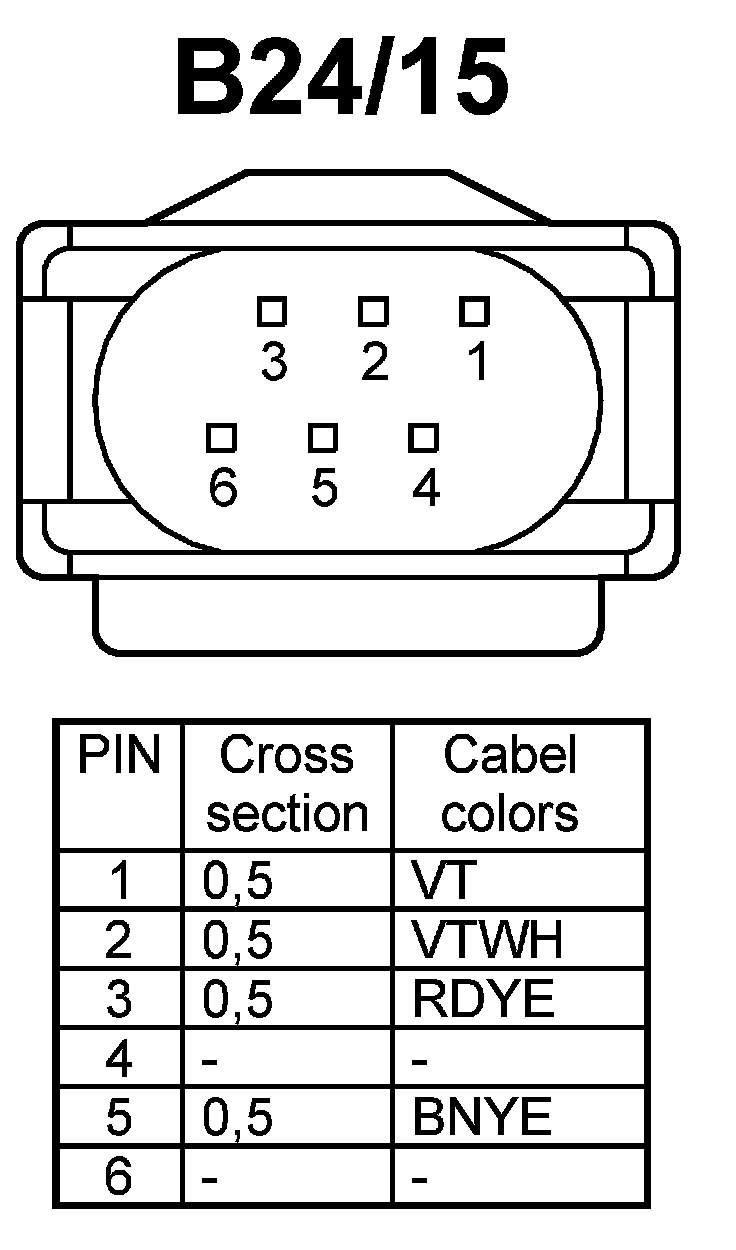

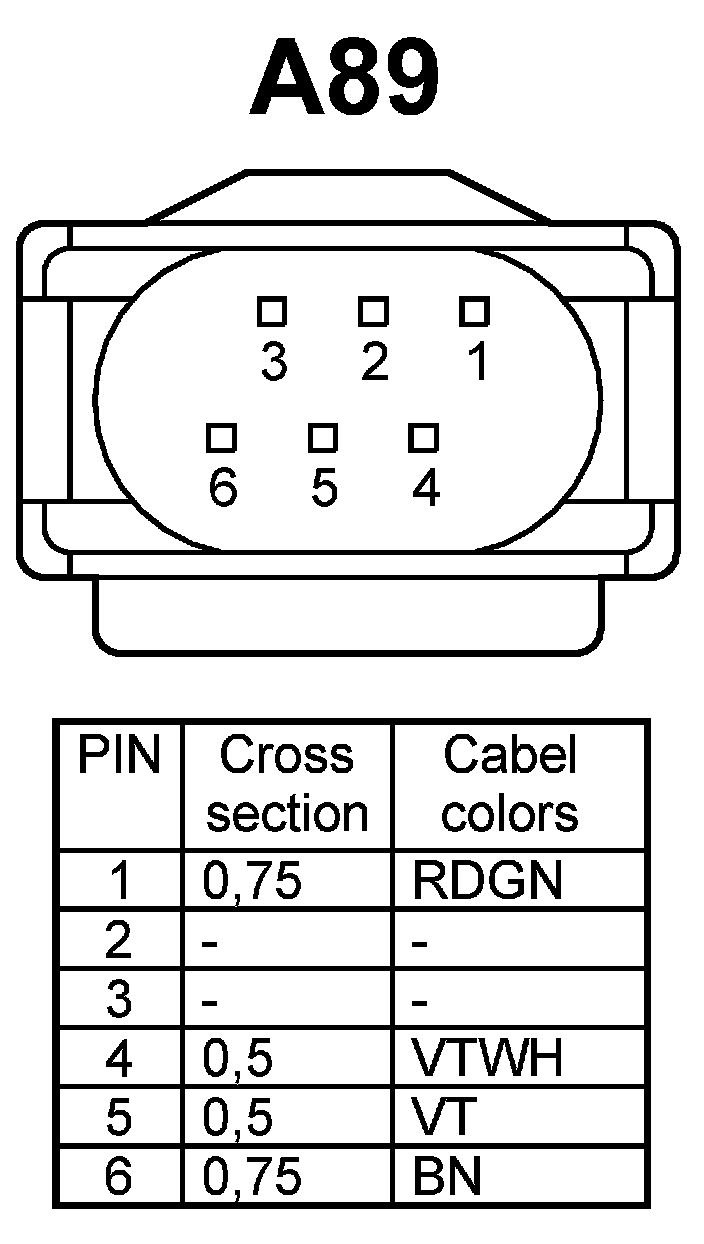

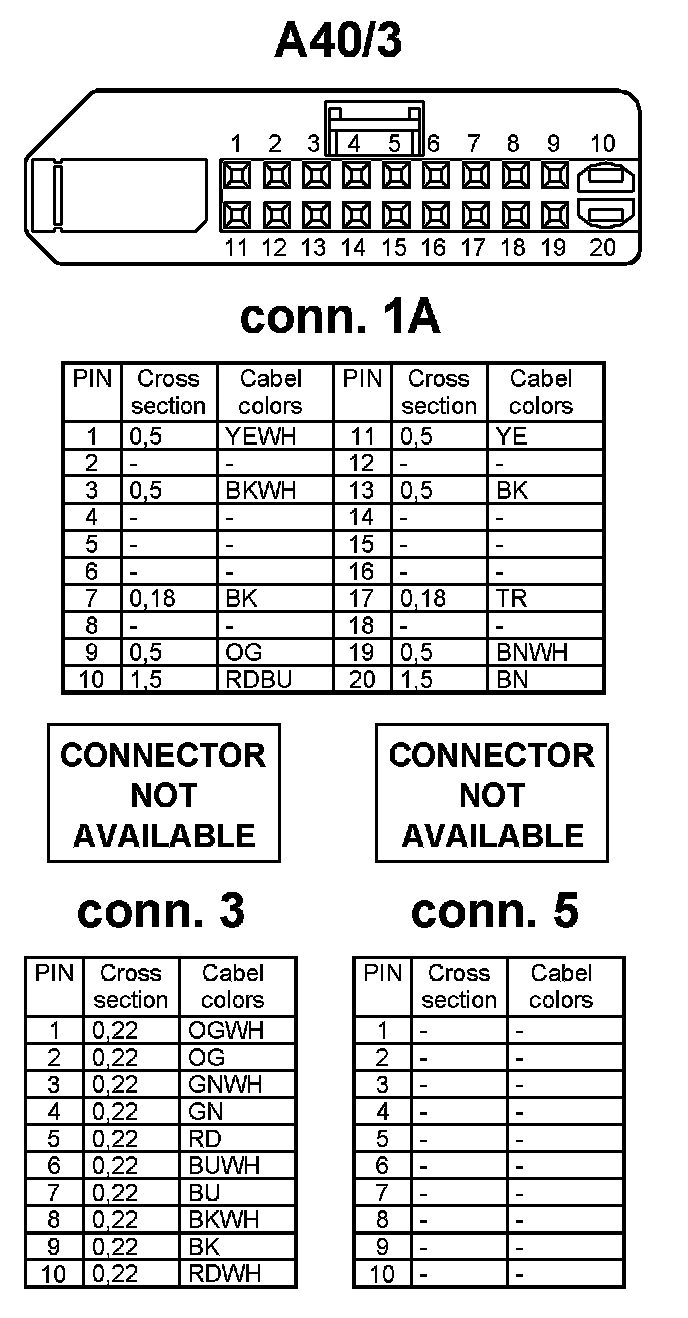

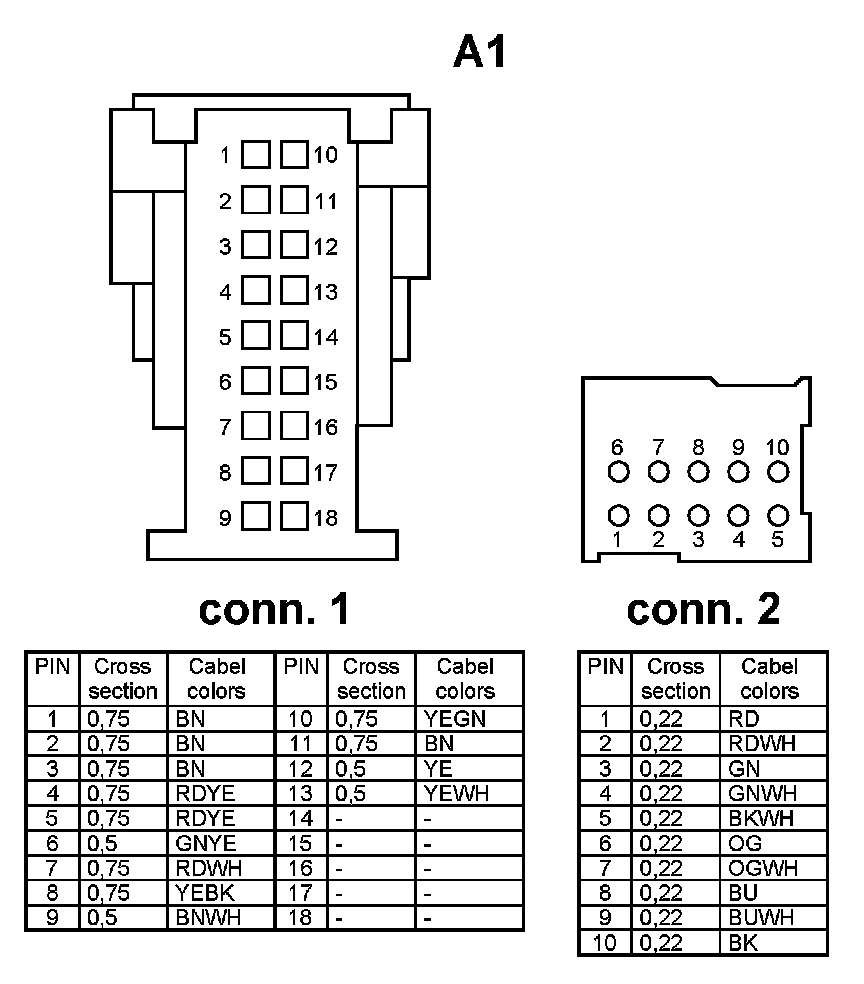

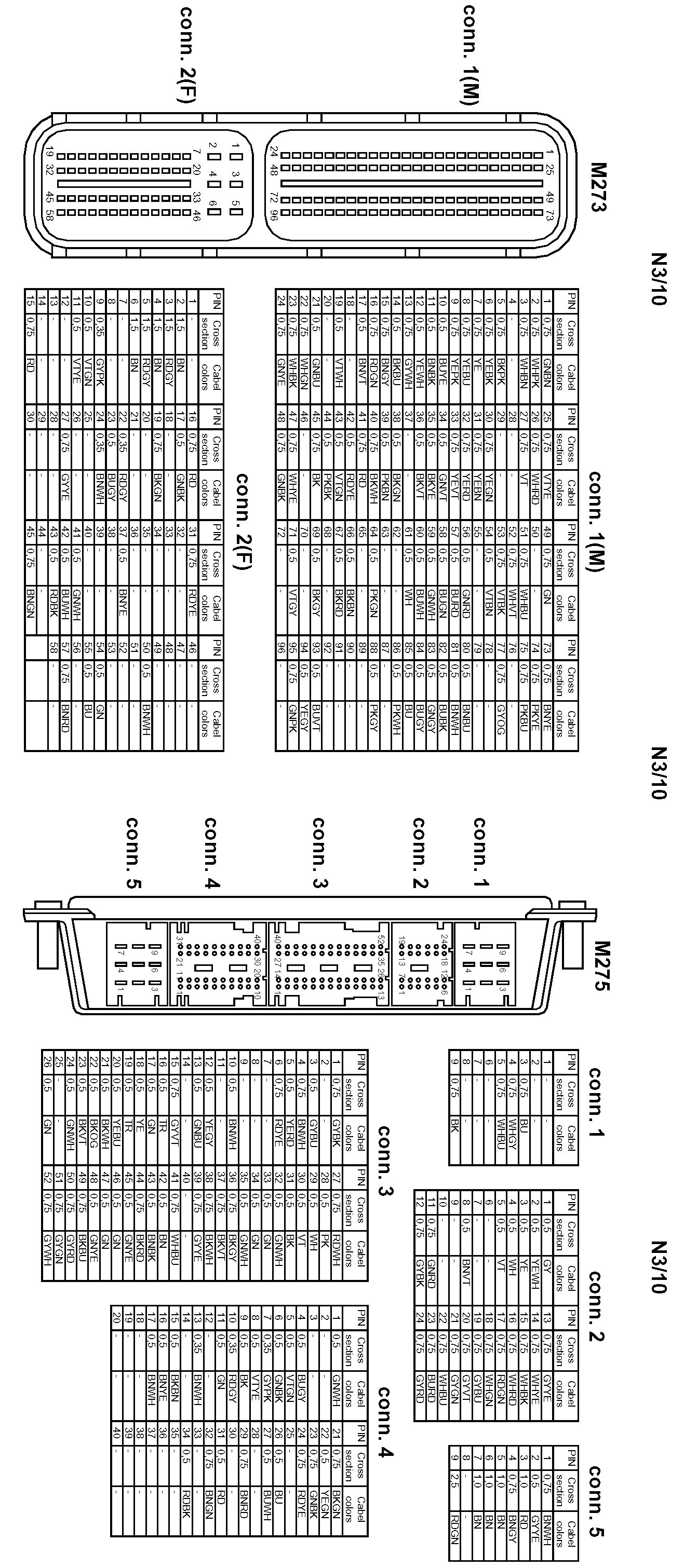

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
