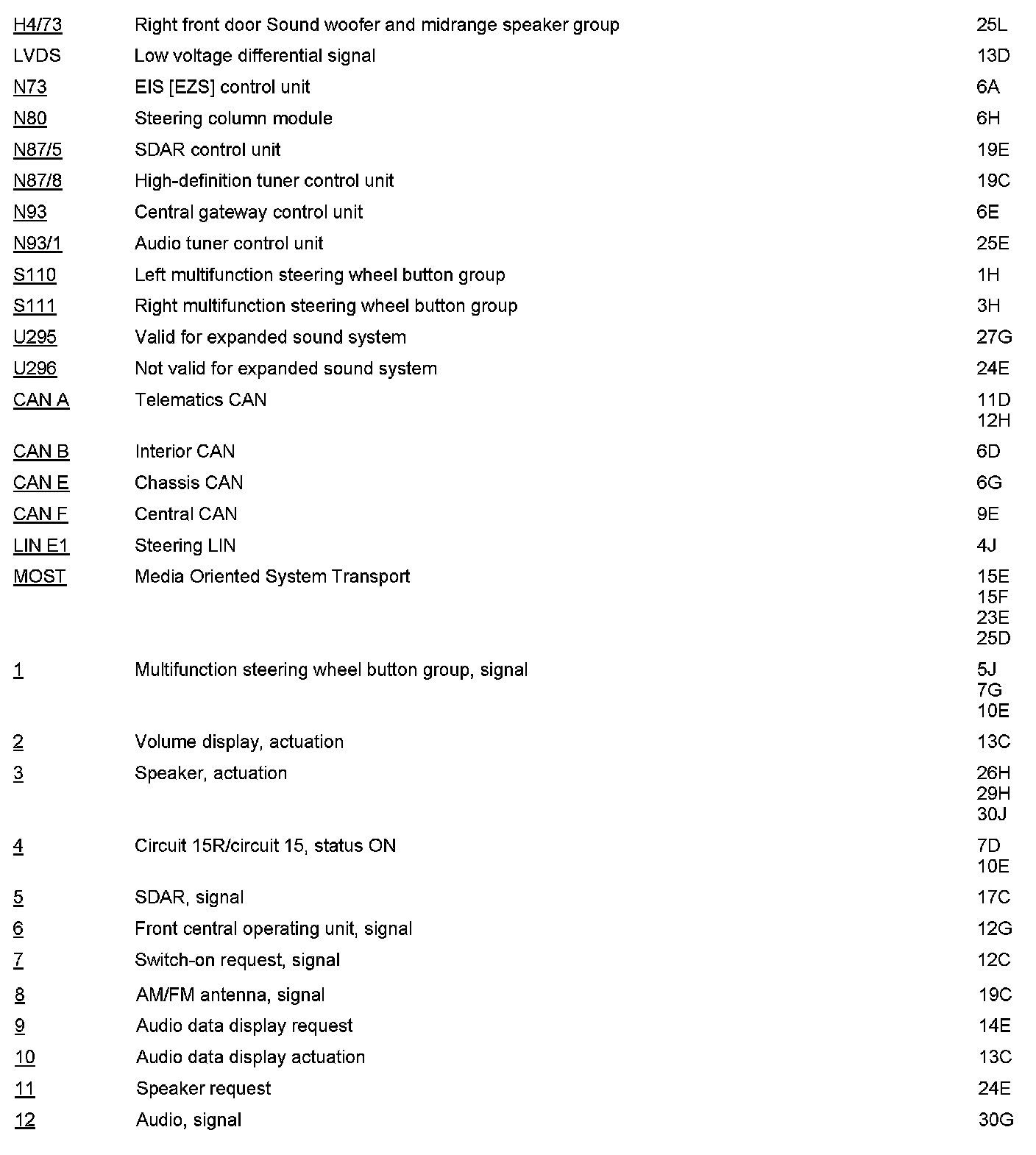

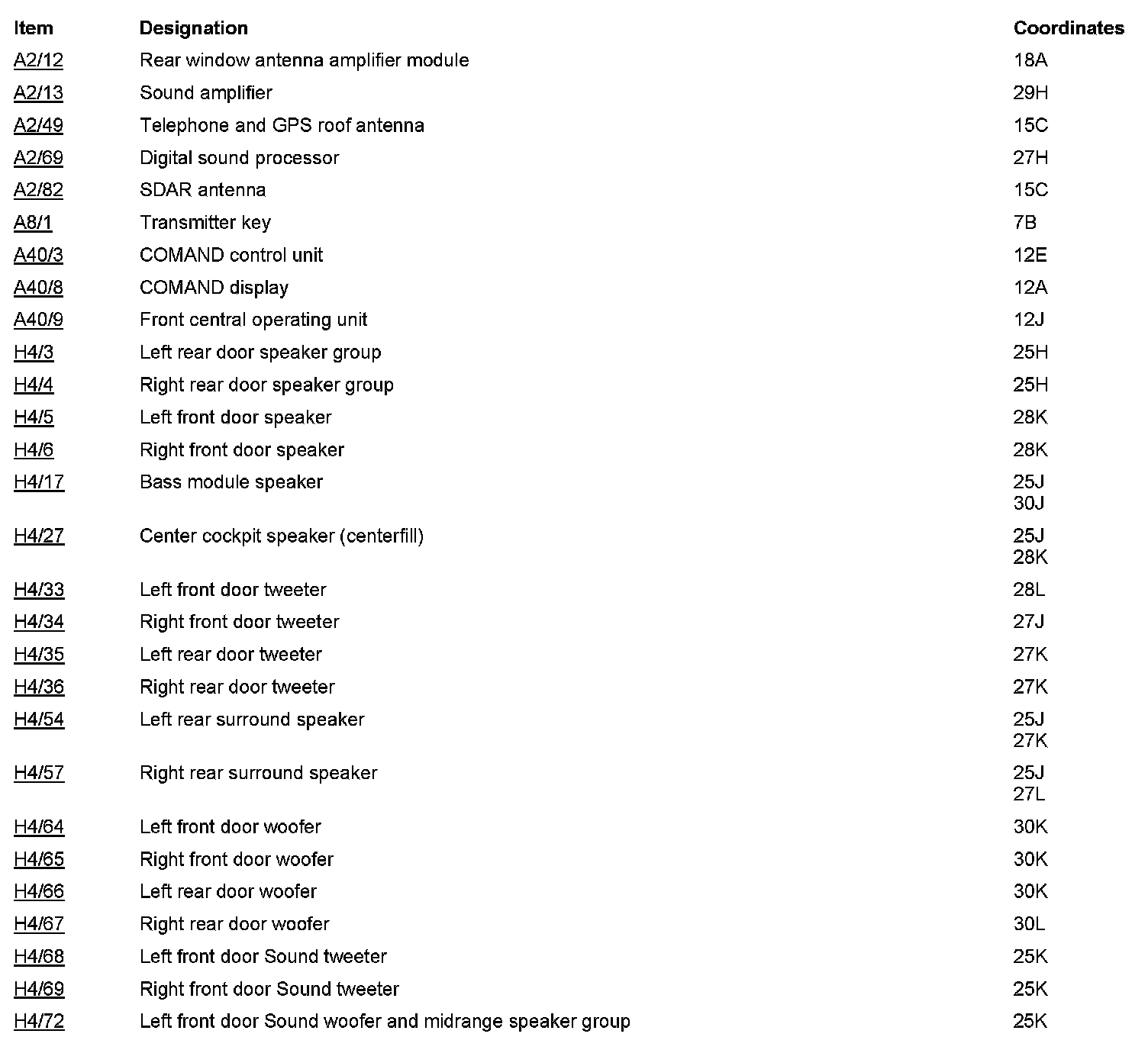

PE82.60-U-2060SAA Electrical Function Schematic For SDAR, Function

PE82.60-U-2060SAA Electrical Function Schematic For SDAR, Function
MODEL 221
- with CODE (536) SIRIUS satellite radio
- as of Model Year 2009

MODEL 221
- with CODE (517) HD Radio
- as of Model Year 2010



























































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
