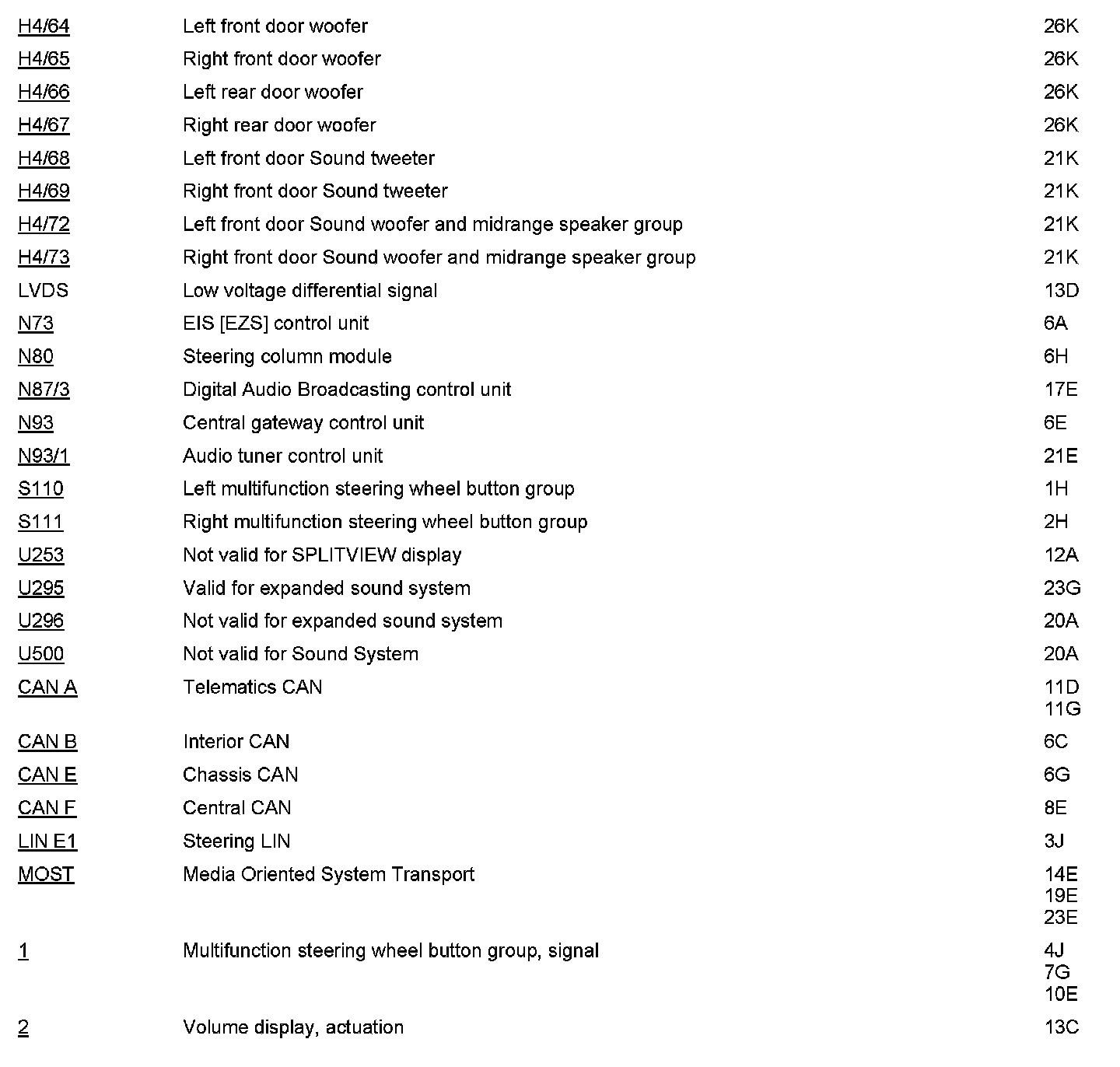

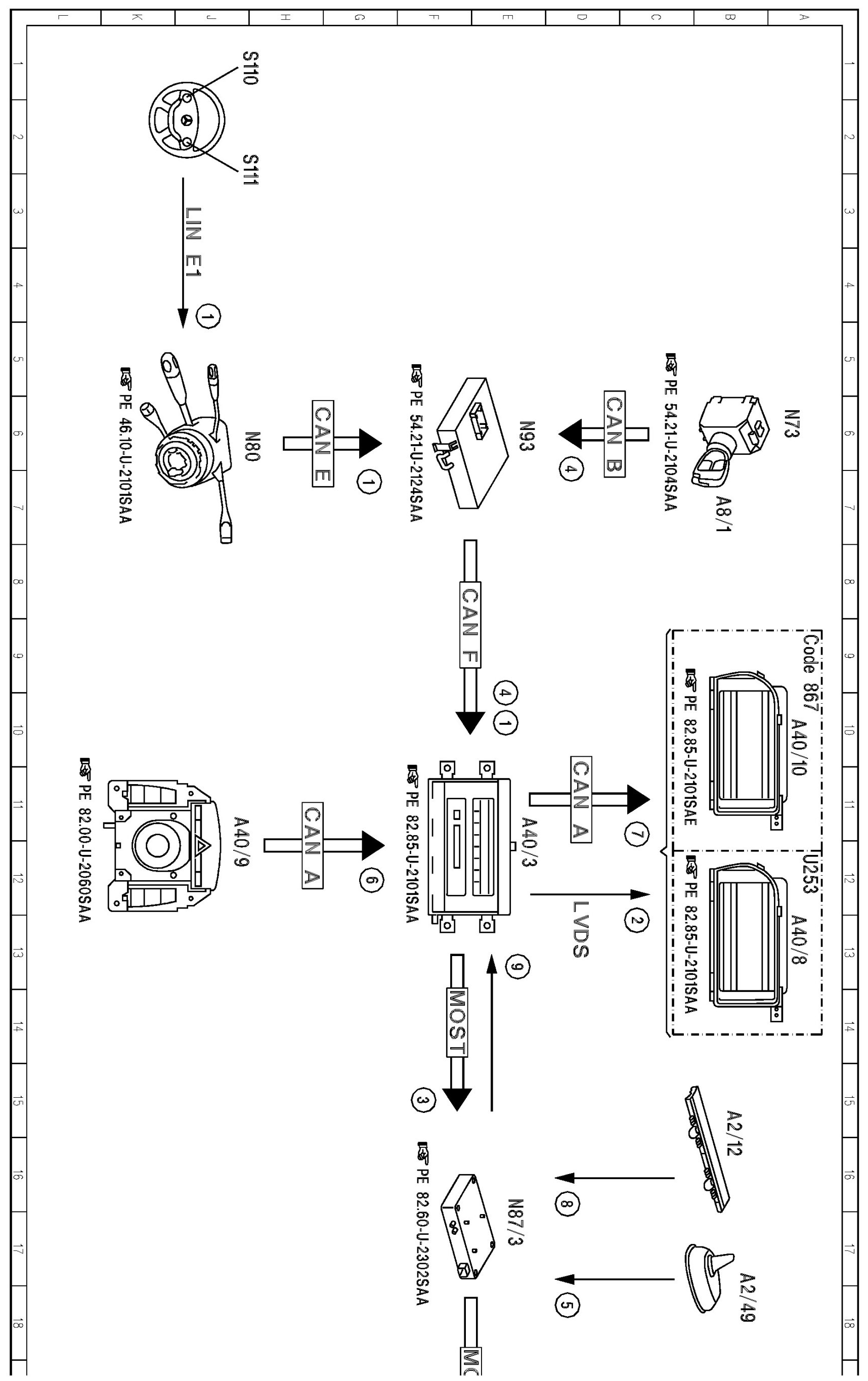

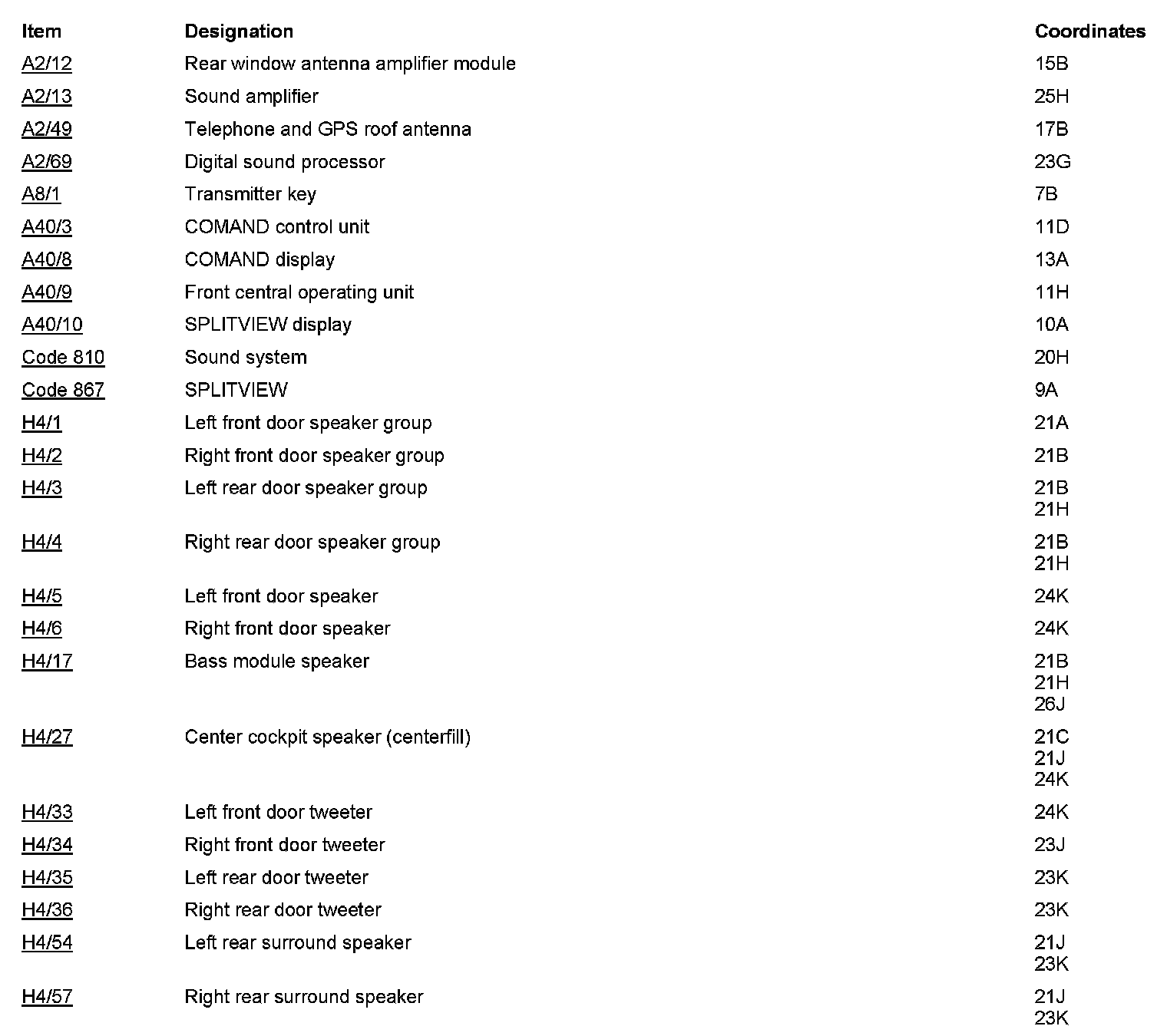

PE82.60-U-2057SAA Electrical Function Diagram For Digital Audio Broadcasting, Function

PE82.60-U-2057SAA Electrical Function Diagram For Digital Audio Broadcasting, Function

MODEL 221
- with CODE (537) Digital radio
- as of Model Year 2009































































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
