Intercom

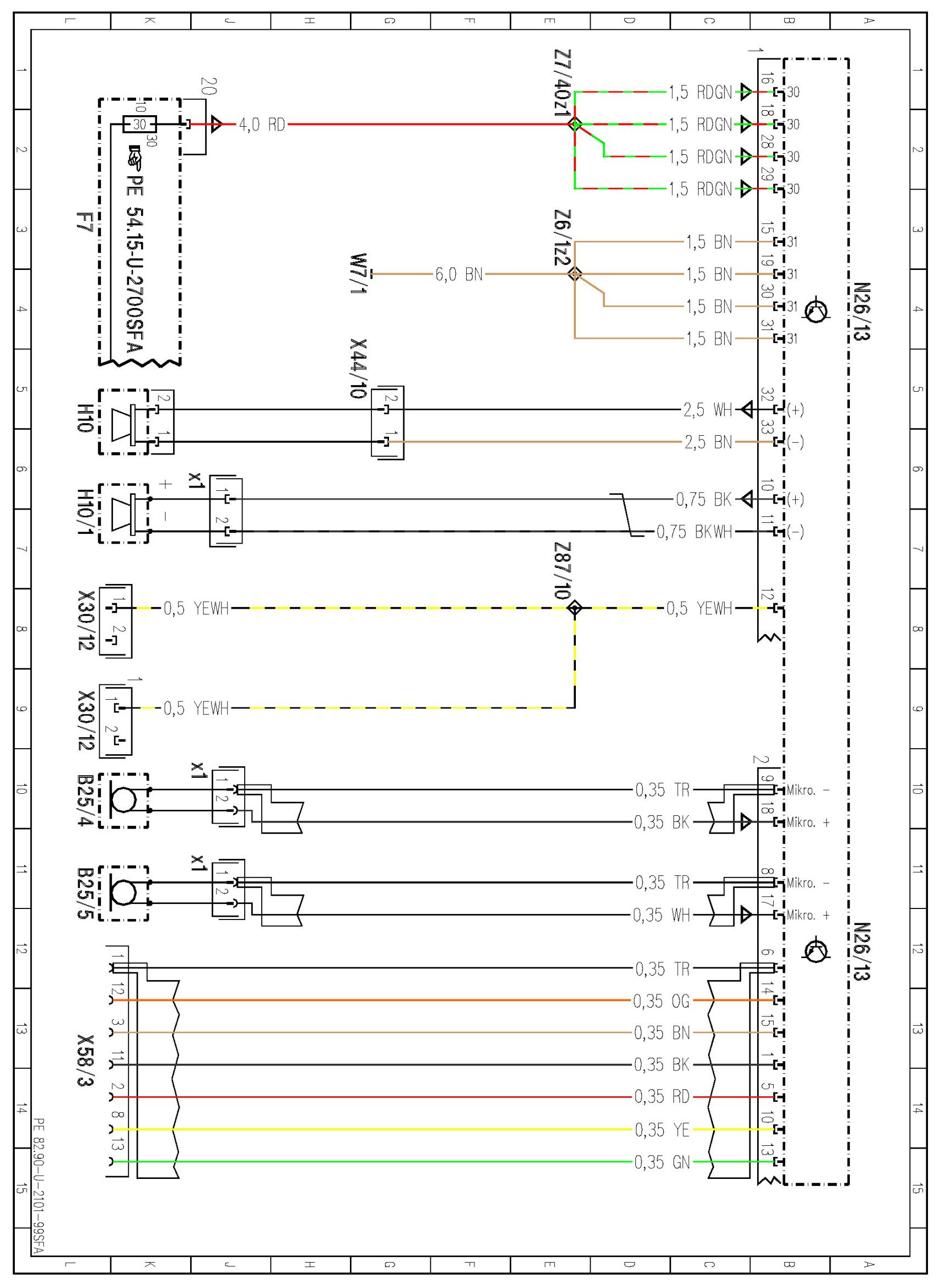

PE82.90-U-2101SFA
Intercom
Control Module
MODEL 221
-
with CODE (Z07) Top protection
-

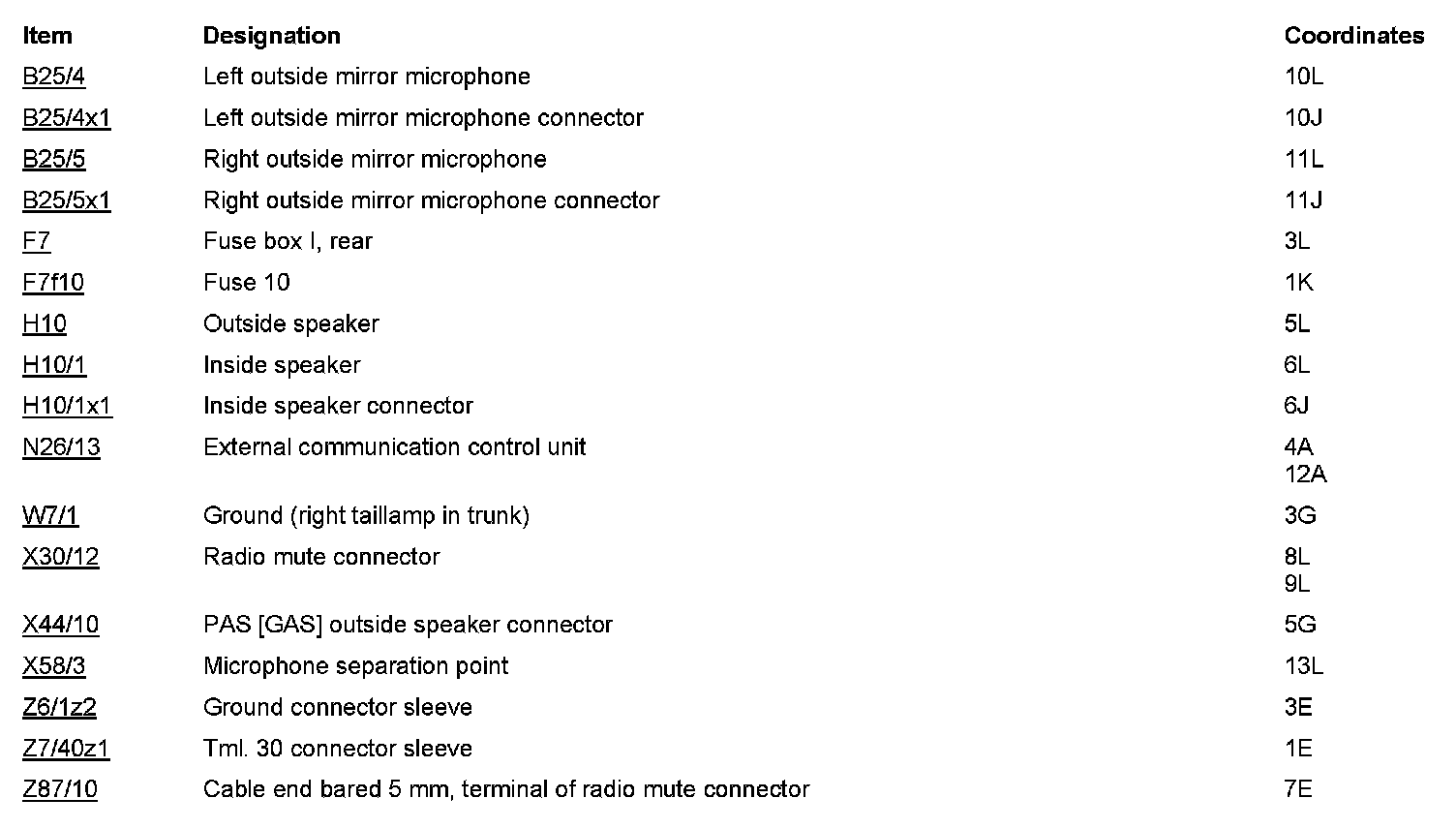

Control unit N26/13
Component Locations:
Component Location photographs can be found via their component names at the vehicle level.
Component Locations
