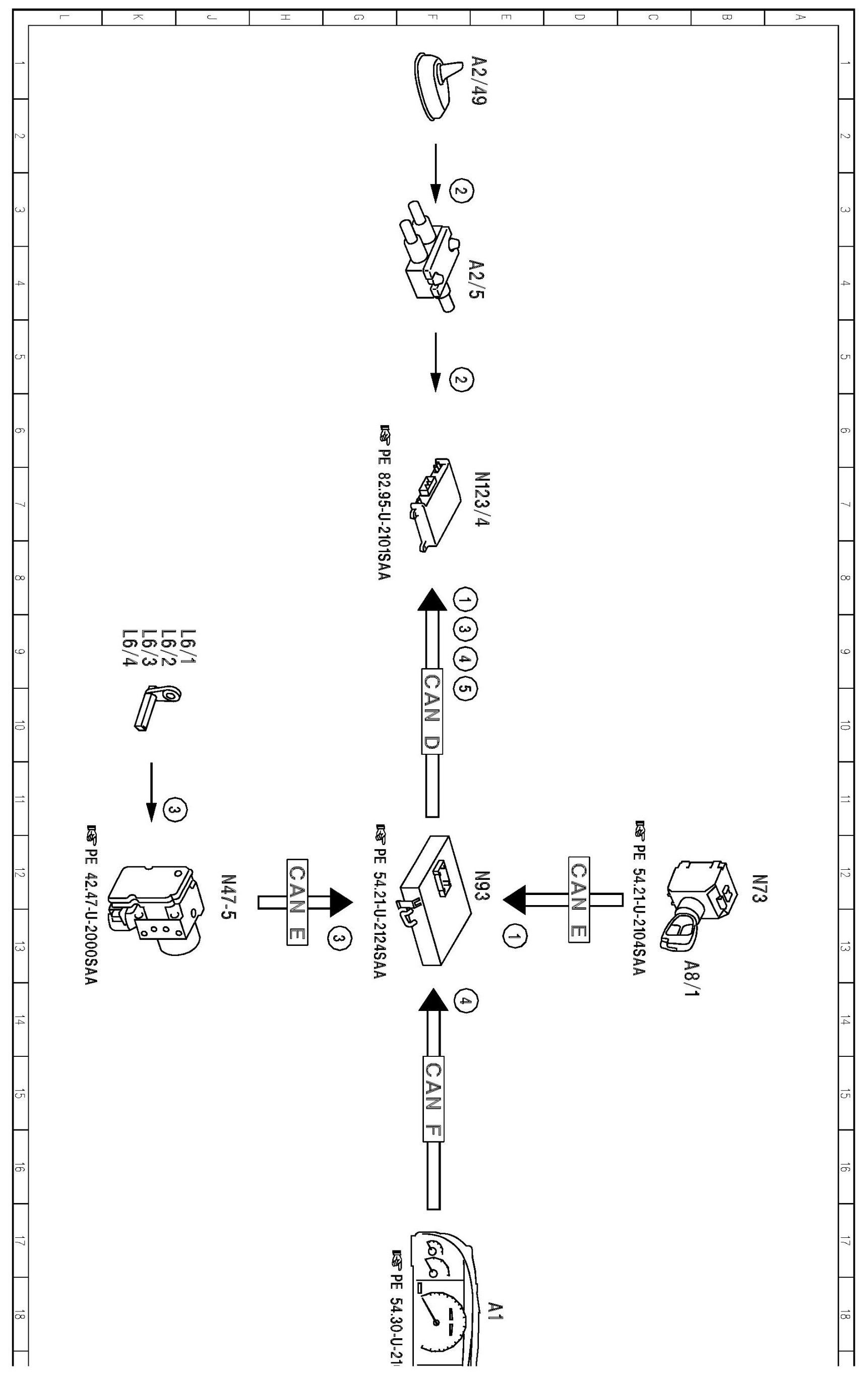

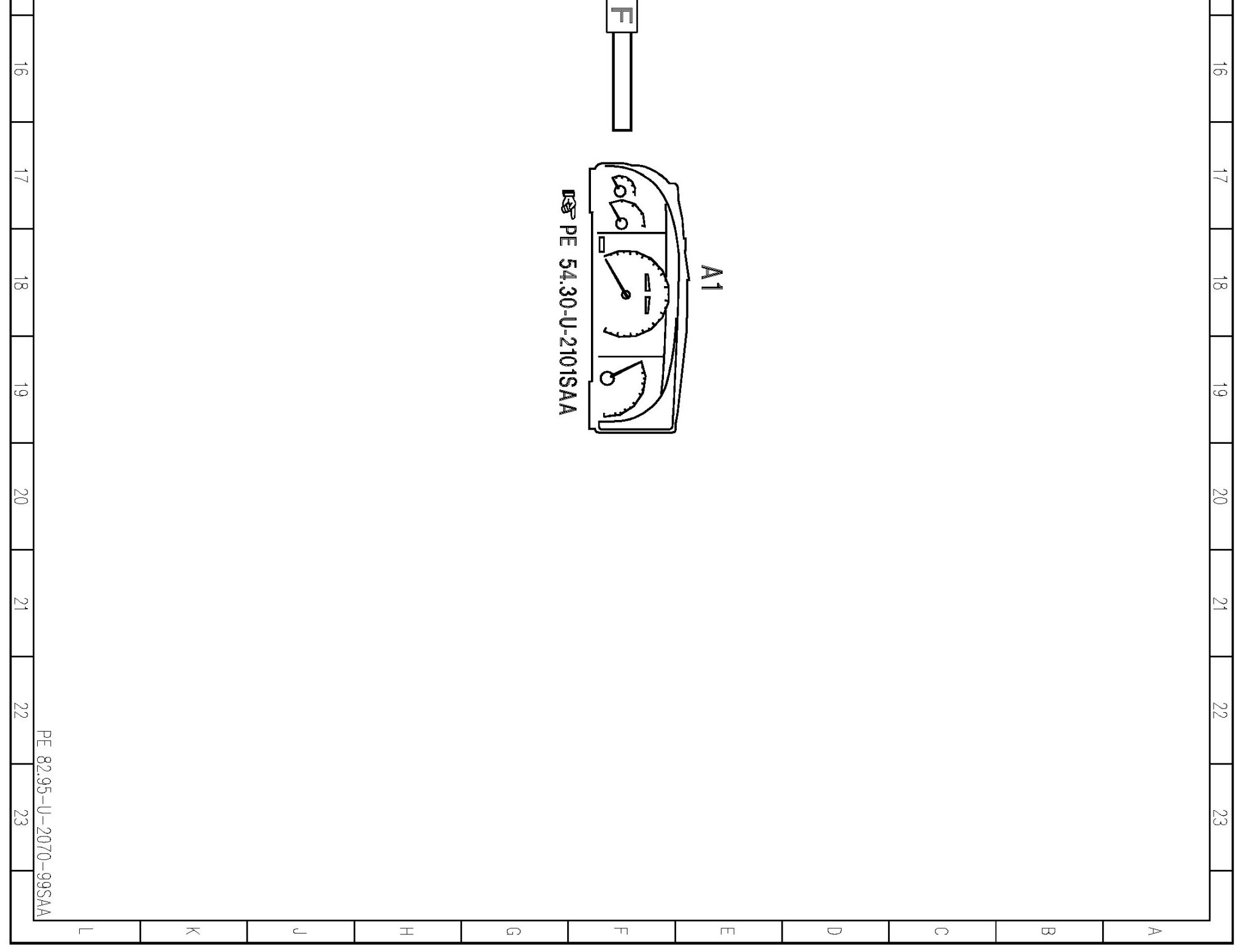

PE82.95-U-2070SAA Electrical Function Schematic For Position Finding, Function

PE82.95-U-2070SAA Electrical Function Schematic For Position Finding, Function

MODEL 221
- with CODE (359) TELE AID emergency call system
- as of Model Year 2009

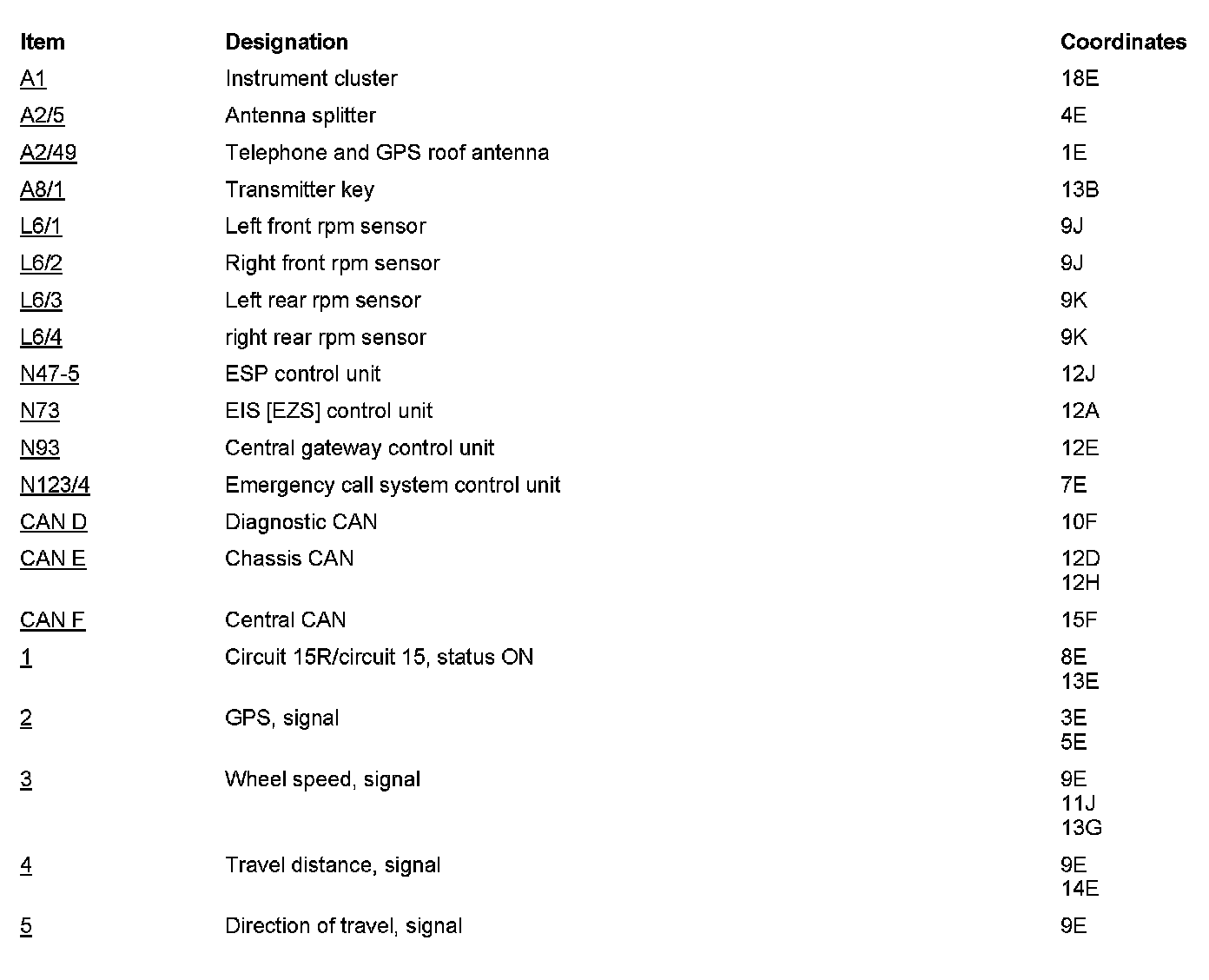

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
