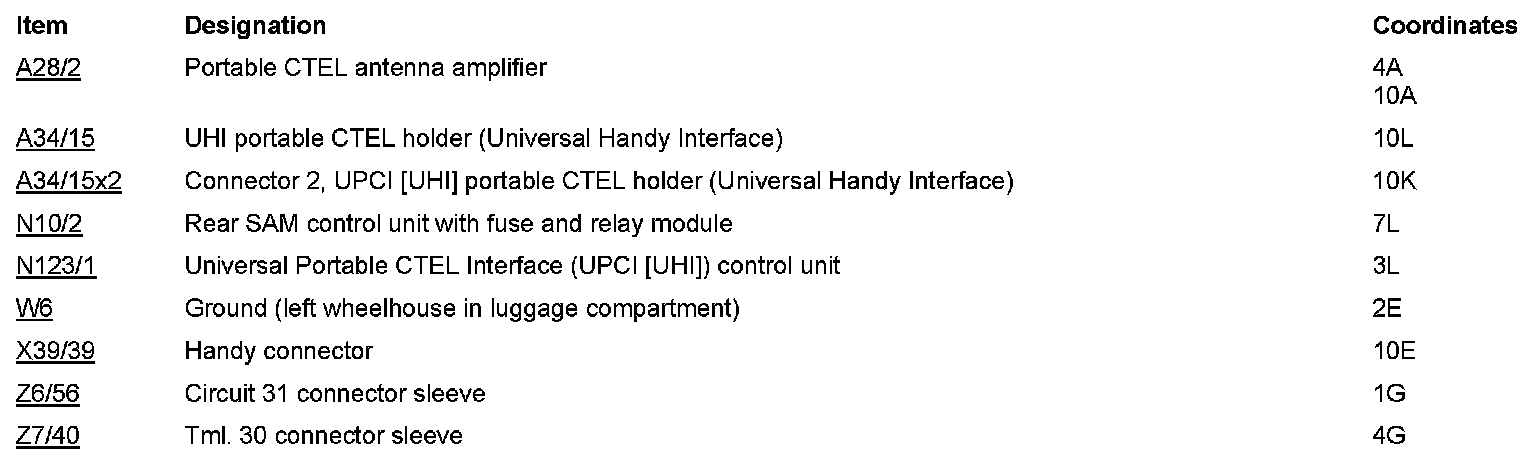

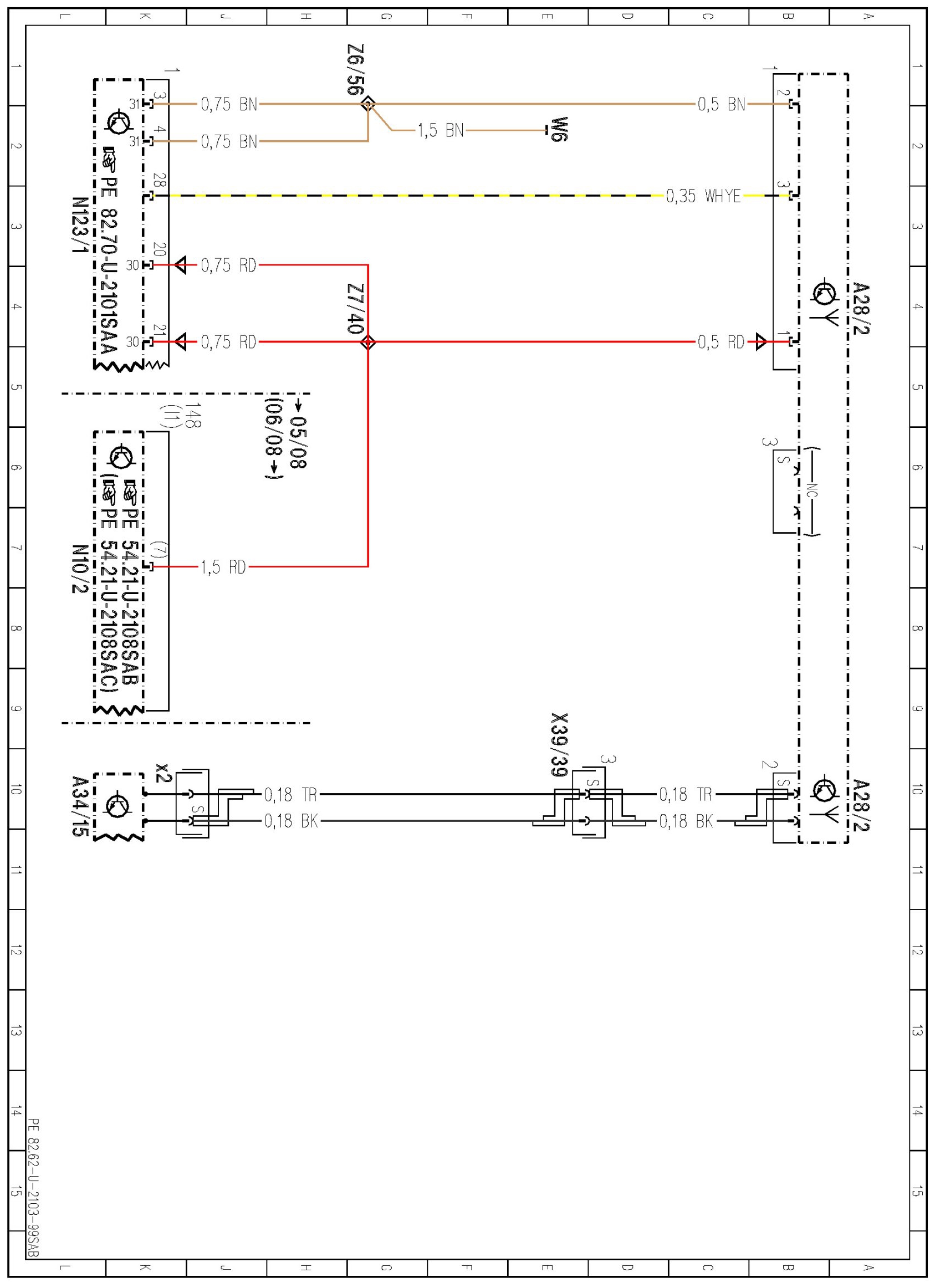

PE82.62-U-2103SAB Antenna Module



PE82.62-U-2103SAB Antenna Module

MODEL 221
- Sheet 2

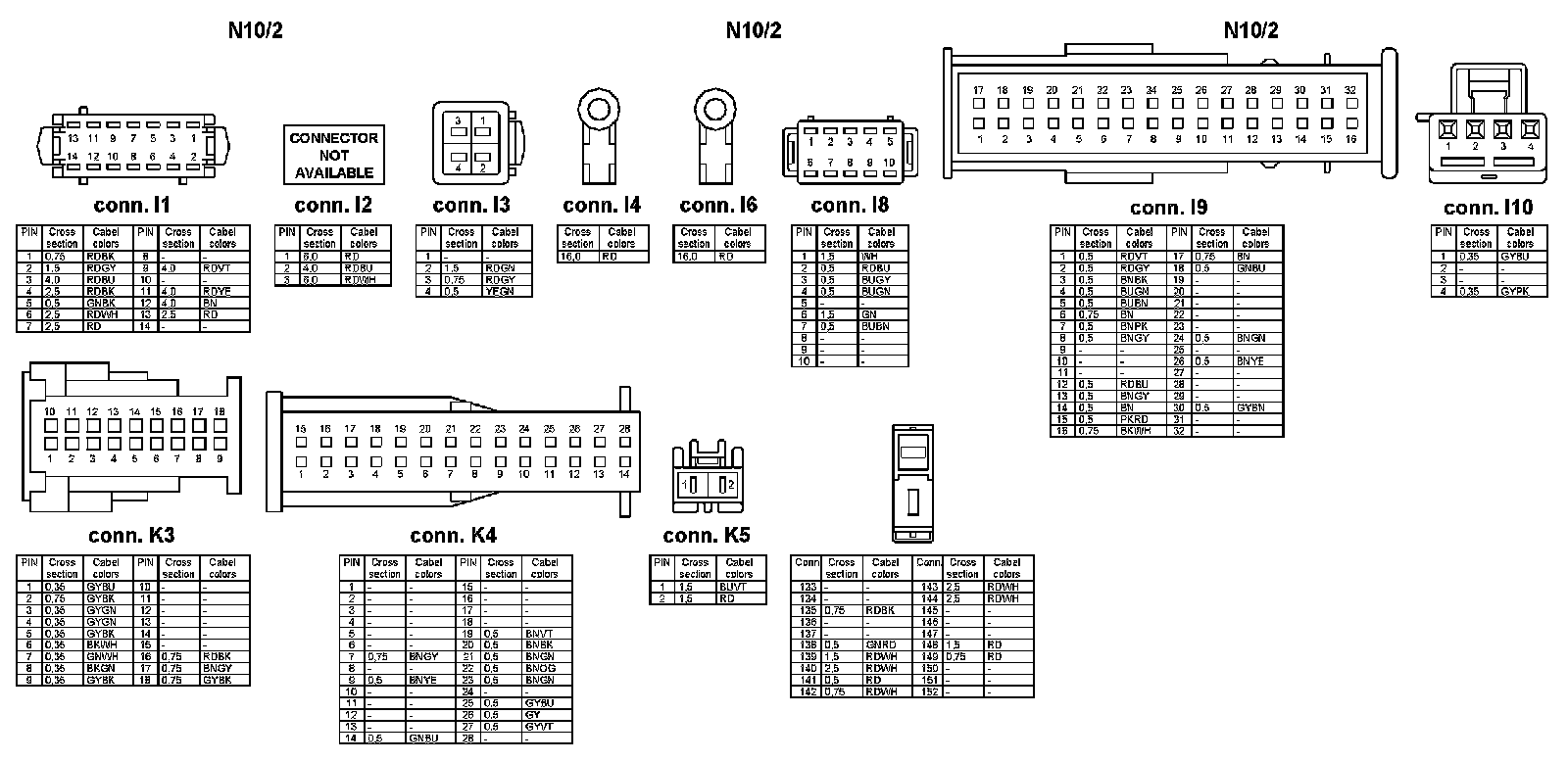

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
