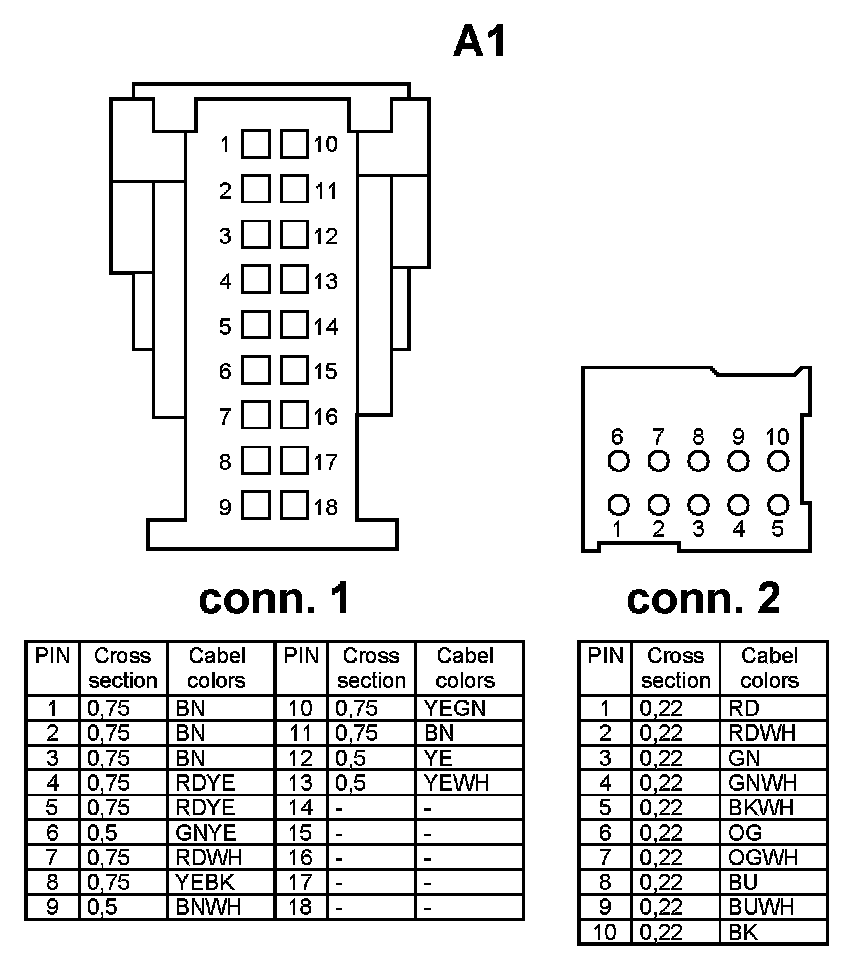

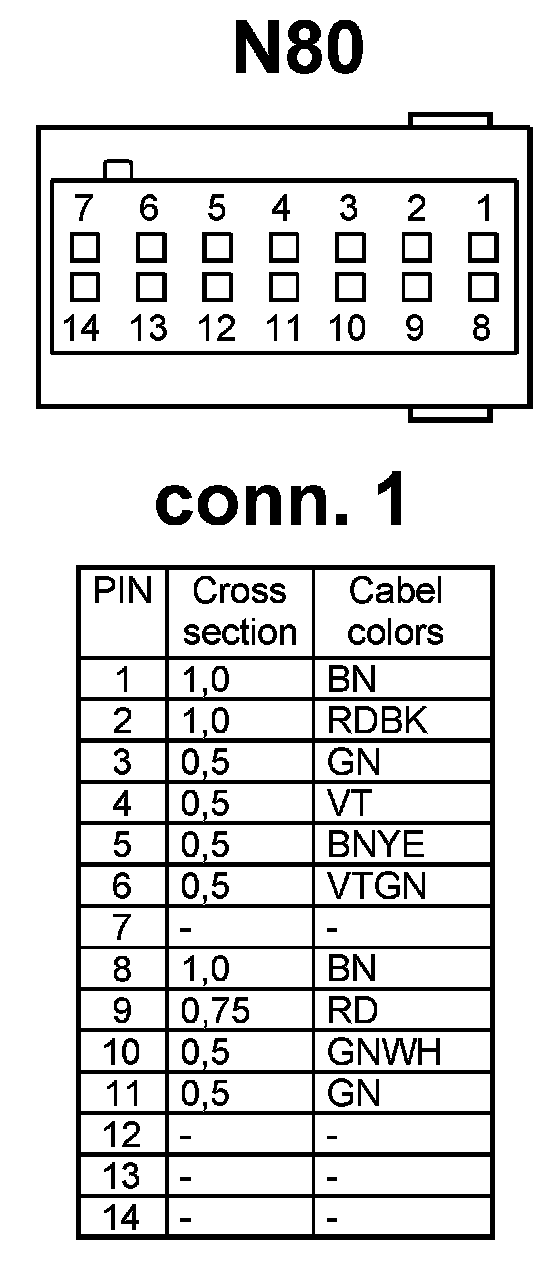

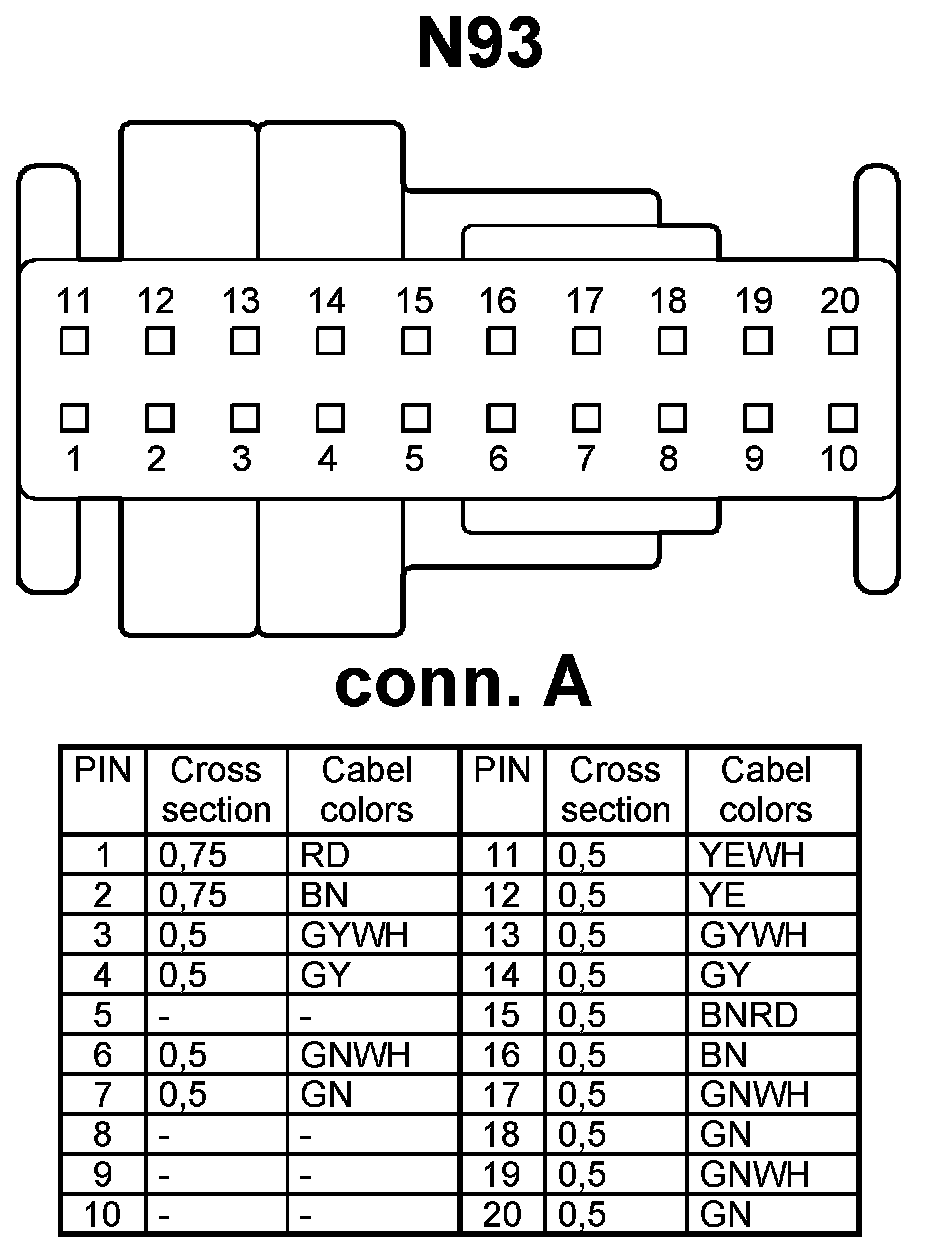

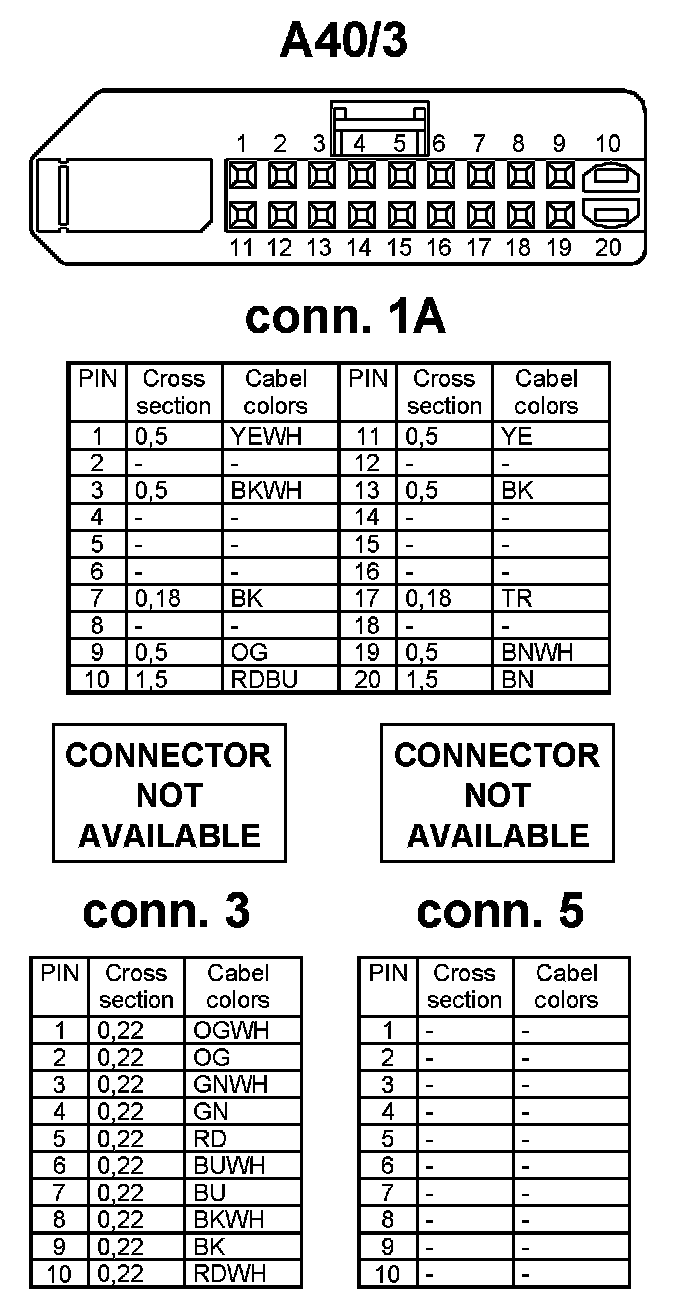

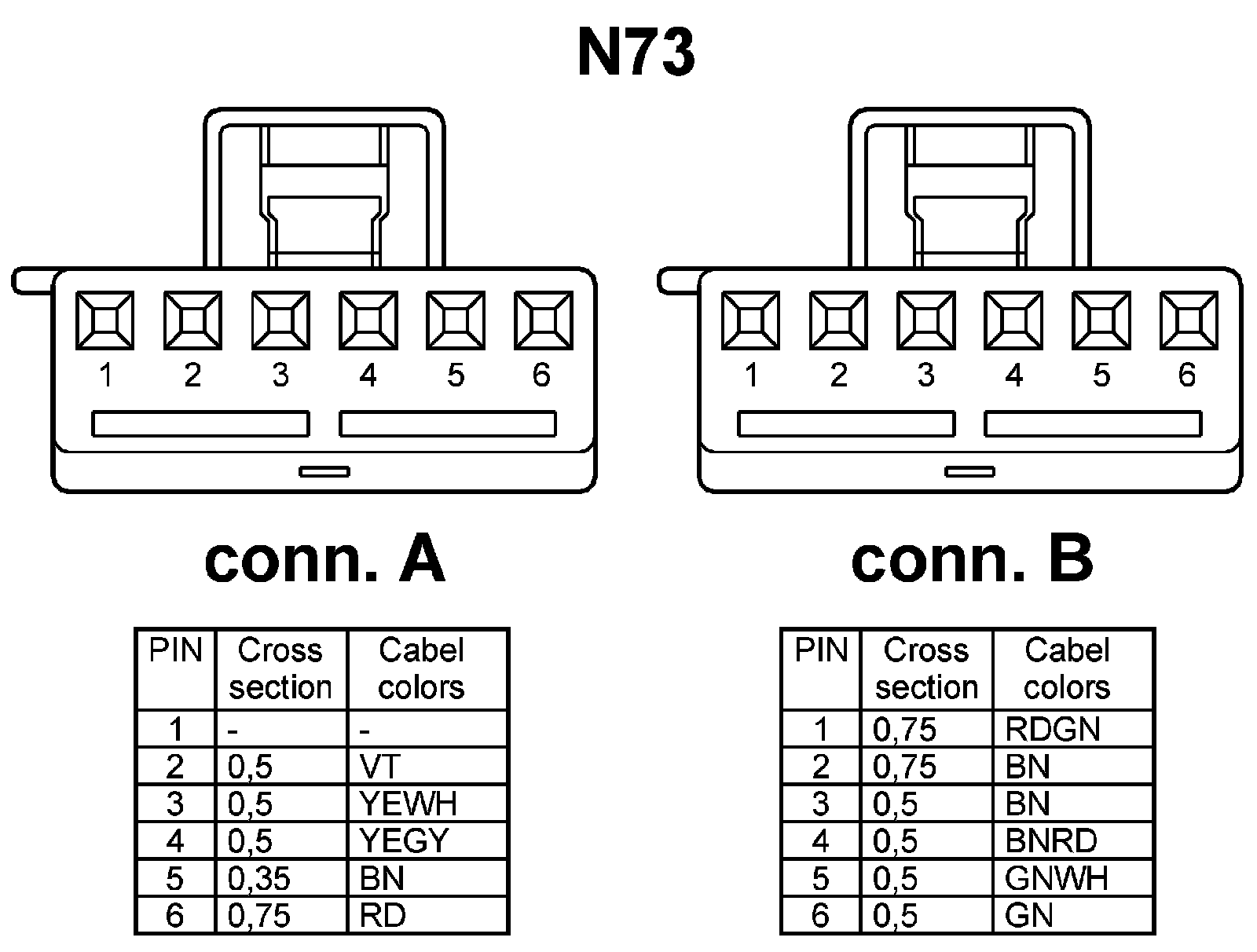

PE82.85-U-2063SAA Electrical Function Schematic For Navigation Mode (COMAND), Function

PE82.85-U-2063SAA Electrical Function Schematic For Navigation Mode (COMAND), Function

MODEL 221
- with CODE (527) COMAND APS with single DVD drive (with navigation)
- with CODE (530) COMAND APS USA (with navigation system)
- as of Model Year 2009







































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
