PE82.85-U-2059SAA Electrical Function Schematic For Media Interface, Function

PE82.85-U-2059SAA Electrical Function Schematic For Media Interface, Function

MODEL 221
- with CODE (518) Media interface
- as of Model Year 2010

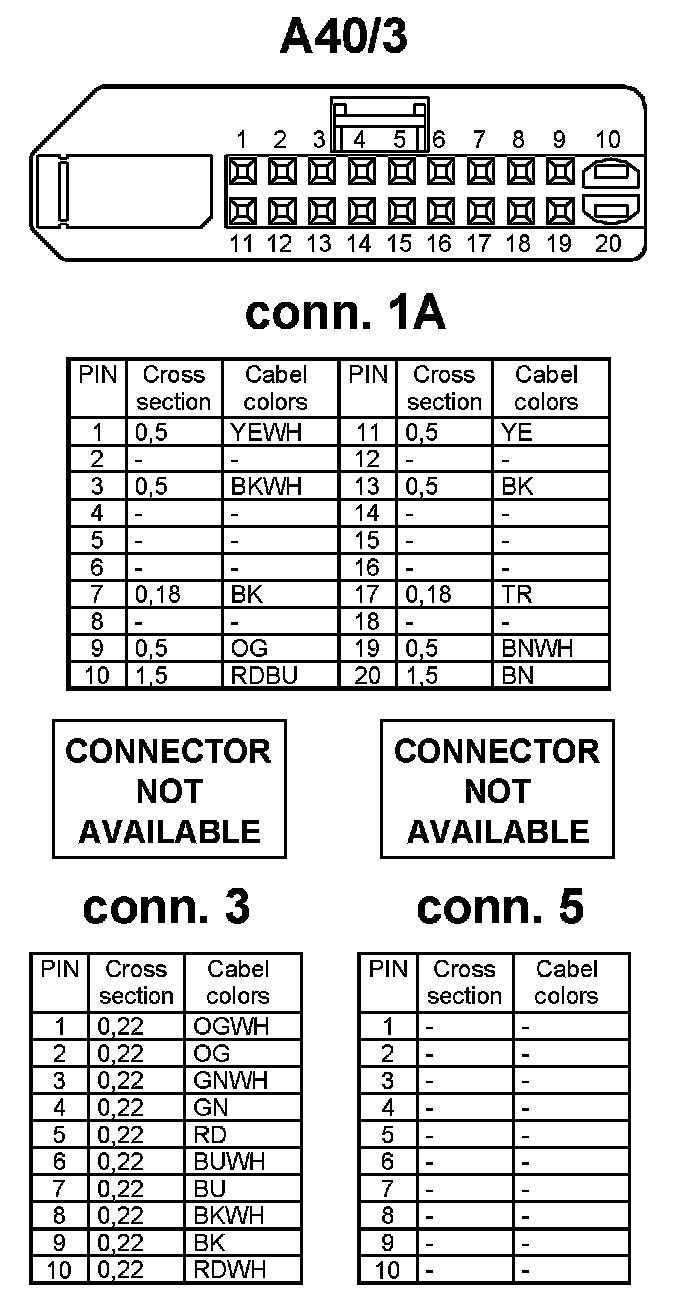

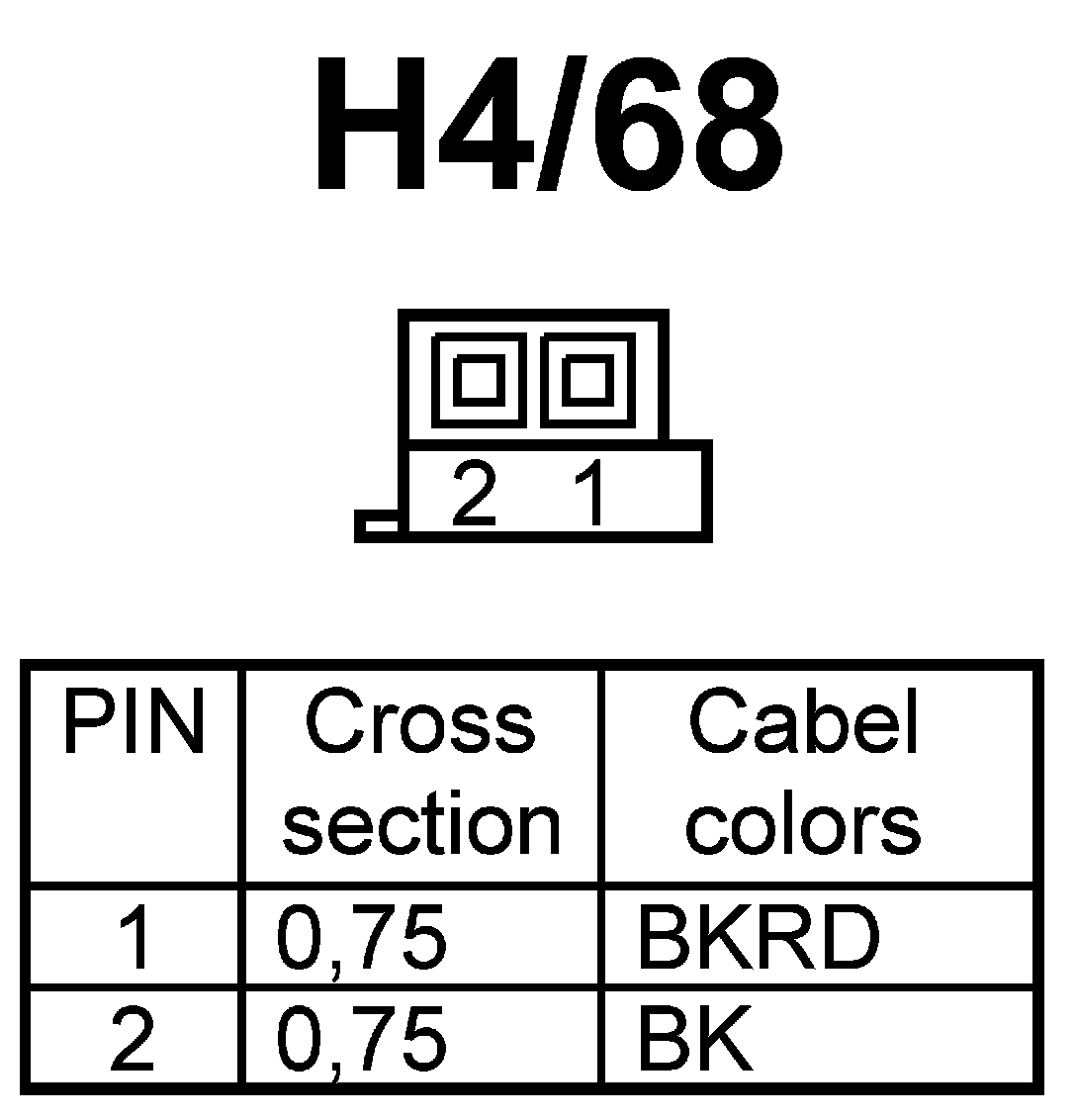

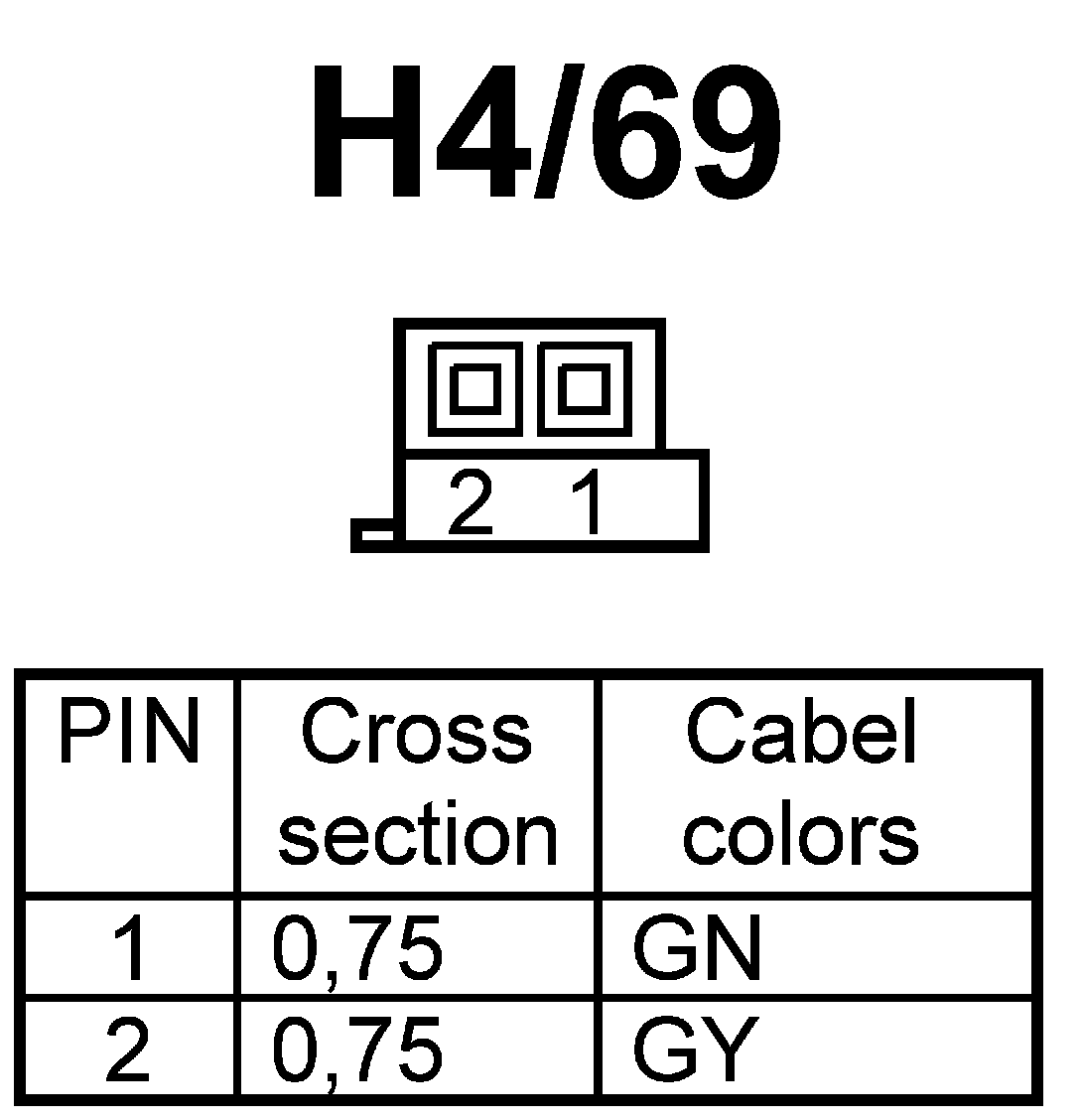

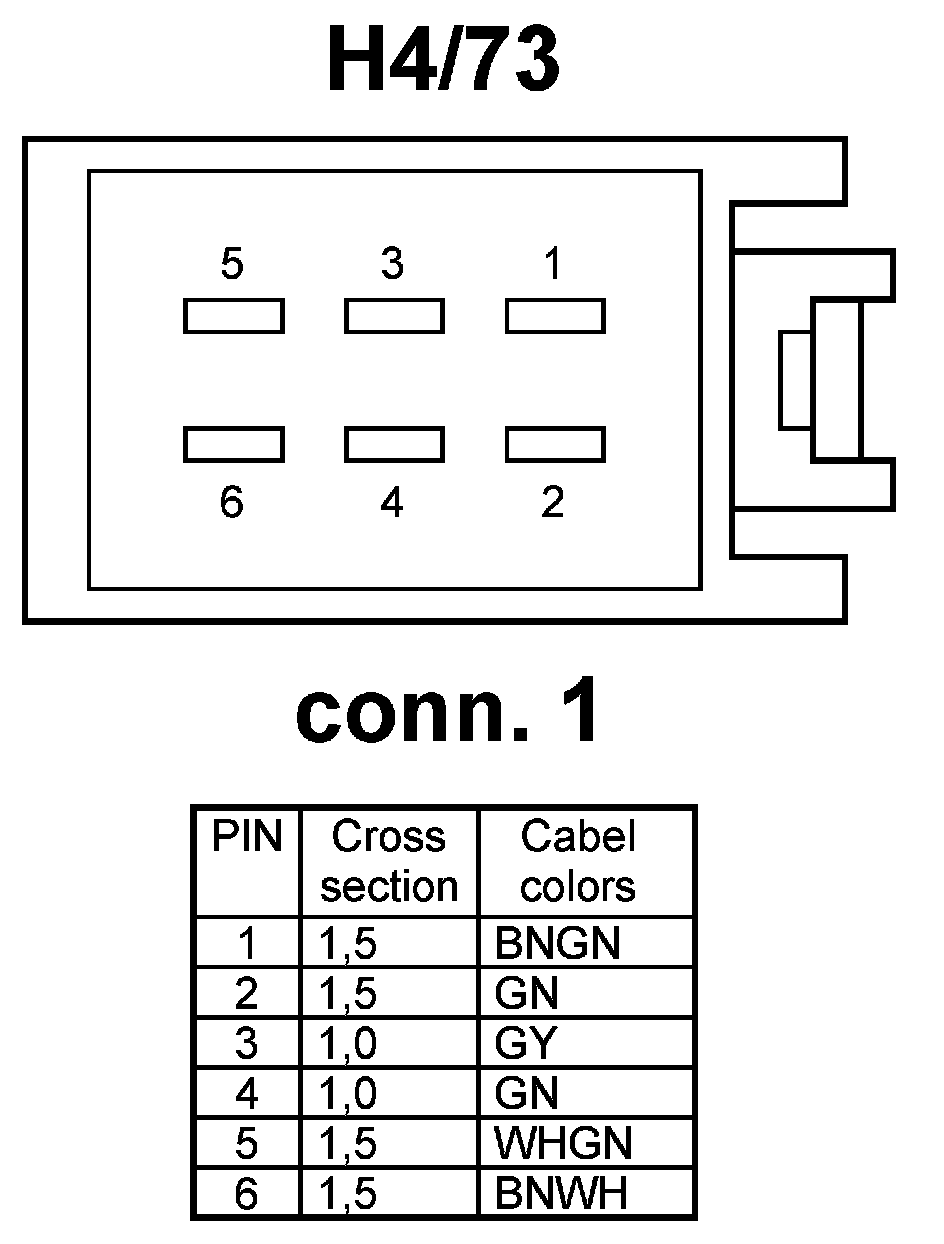

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
